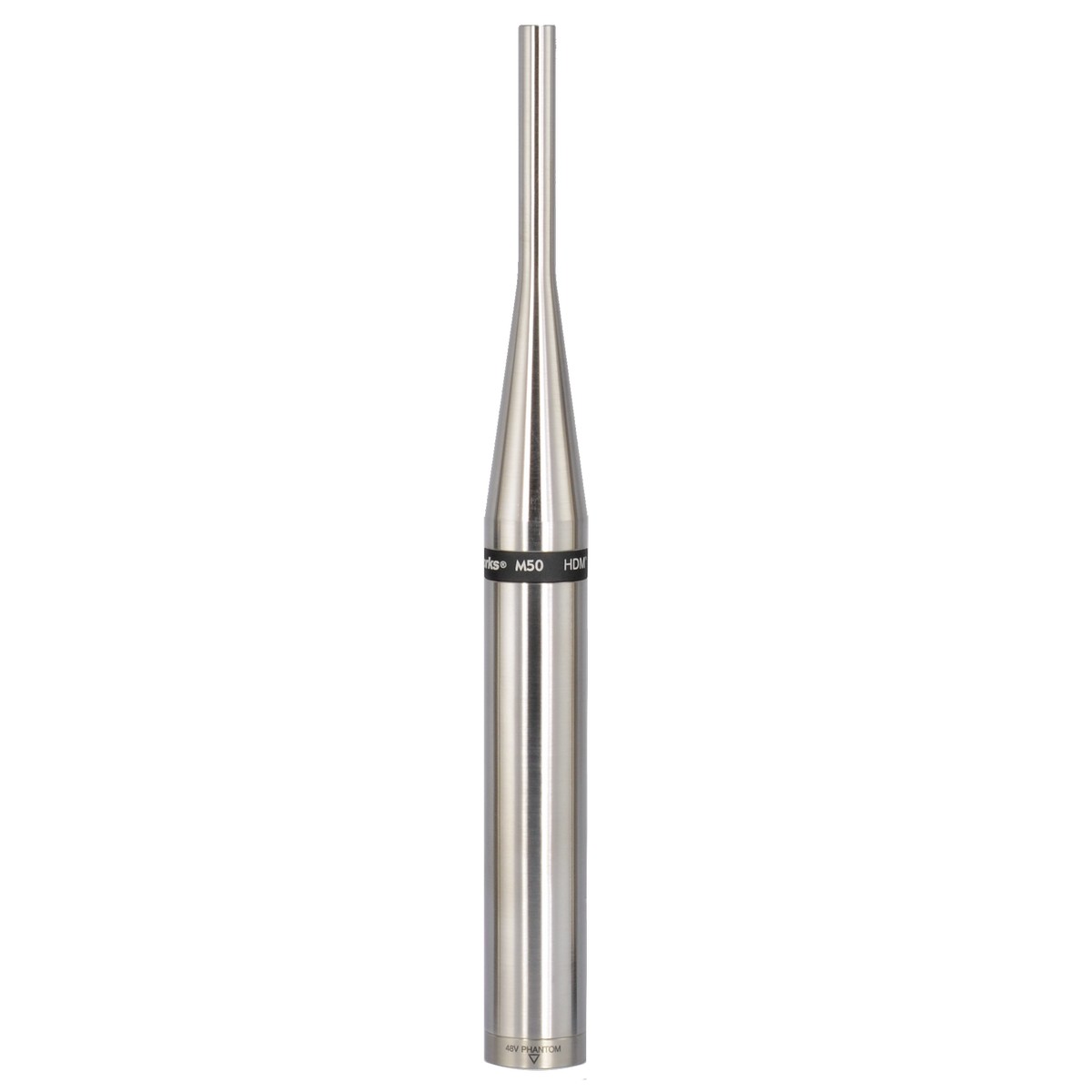

Earthworks model M50 50kHZ Omni Measurement Microphone
The M Series has become the accepted standard for affordable, reliable reference and measurement microphones that are accurate in the time domain and frequency response. They are remarkably stable with respect to temperature and atmospheric conditions and are optimized for clean, very fast impulse performance providing accurate wideband response with virtually no handling noise.
Key Features
- 50kHz flat frequency response
- Ideally suited for acoustical measurements that require extended frequency response, including high-end loudspeaker design and quality control, scientific research, measurements of ultrasonic or subsonic transducers, or any application where an extremely accurate free-field measurement microphone is required
- Our top of the line measurement microphone with extraordinary impulse response for those who have stringent requirements and demand the very best
- Provides laboratory grade accuracy
- Improved version of the SMAARTMIC previously offered by EAW
- Omnidirectional polar pattern
- Flat frequency response, fast impulse response and exceptional polar characteristics
- Used by SMAART, MLSSA, Spectrafoo, TEF and RTA in addition to acoustic measurement systems manufactured by dbx, DEQX and others
- Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements
- Requires 48V Phantom Power
- Each M Series microphone is delivered with its own calibration chart providing its individually measured open-circuit sensitivity and the frequency response curve
- Electronic Calibration File available
- Operating Temp Range: -10 deg C to +40 deg C ( 14 deg. F to 104 deg. F)
- Storage Temp Range: -20 deg C to +50 deg C ( -4 deg. F to 122 deg. F)
Technical Specifications
Frequency Response:
3Hz to 50kHz ±1/-3dB
Polar Pattern:
Omnidirectional
Sensitivity:
30mV/Pa (-30.5dBV/Pa)
Power Requirements:
48V Phantom, 10mA
Max Acoustic Input:
142dB SPL
Output:
XLR (pin 2+)
Output Impedance:
100, balanced (50 ea. pin 2 & 3)
Min Output Load:
600 between pins 2 & 3
Noise:
22dB SPL equivalent (A weighted)
Dimensions L x D:
229mm x 22mm (9 x .860 inches)
Weight:
0.5 lb. (225g)
