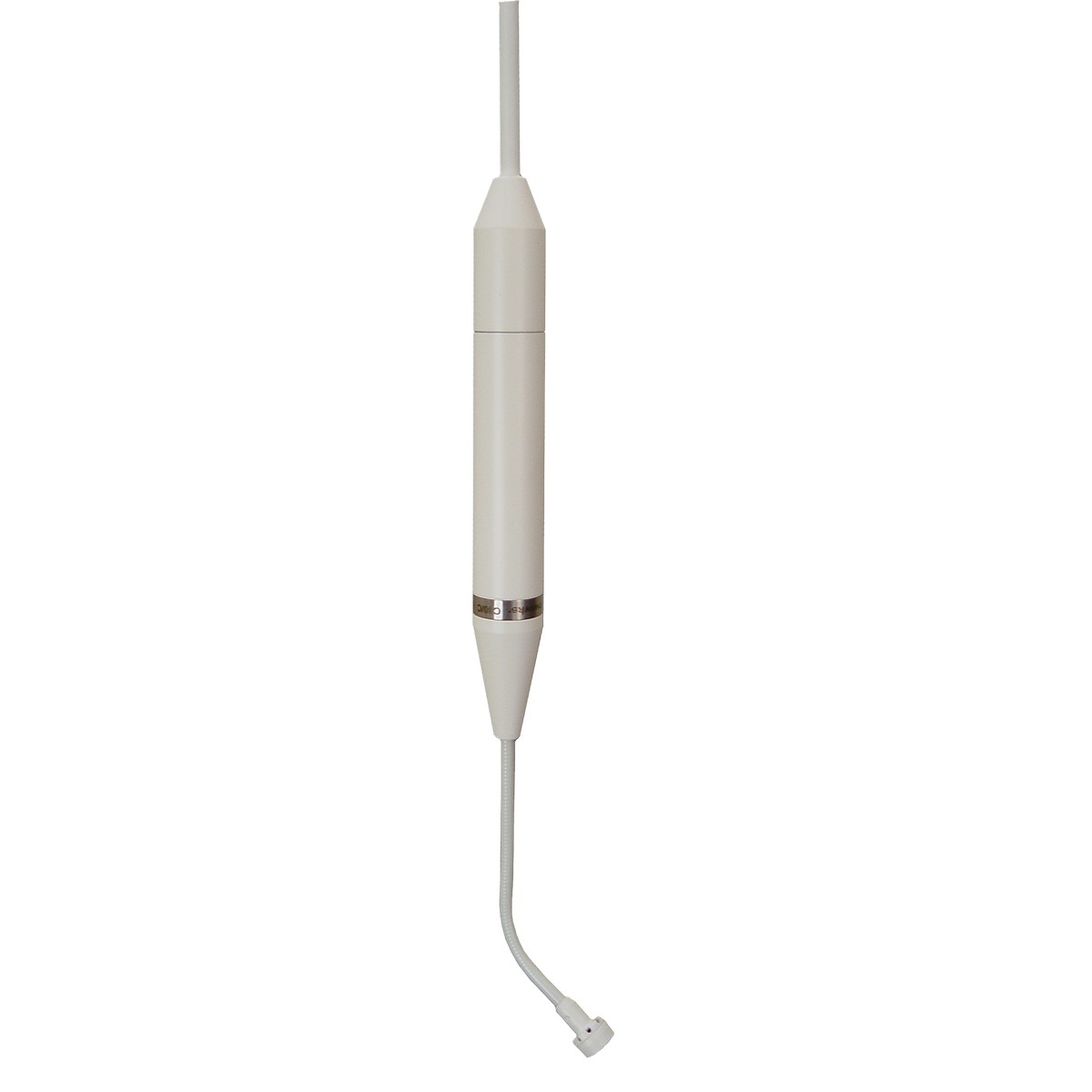

Earthworks model C30/HC-W Hanging White Hypercardioid Microphone with Cable

Choir microphones have always presented a unique design and installation challenge the traditional solution is to use an angle guide on the microphones lead to aim towards the performance venue. The problem with this approach is that either a very small microphone had to be used to keep aimable weight within practical limits or locate the microphones electronics at some considerable distance from the element inviting losses and noise. The ChoirMic Series solves all of these problems. Our hanging choir microphones provide pristine audio quality without spotlighting and more gain before feedback while picking up almost no sound from the rear of the microphones. They are ideal for miking choirs and orchestra or band in front of the choir.

Key Features

• 30kHz flat frequency response
• No spotlighting
• Uniform frequency response on or off axis
• More gain before feedback
• Picks up almost no sound from the rear of the microphone
• Electronics housed in microphone
• Prevents RFI
• Mini-gooseneck allows quick and easy positioning
• Comes with 30 foot balanced, twisted pair Canare cable
• Available in black and white
• Custom cable lengths available
• Does not come with XLR (order accessory C30-XLR for installed male XLR)

Technical Specifications

Frequency Response:
30Hz to 30kHz ±2dB at 12 inches (30.5cm)

Polar Pattern:
Hypercardioid

Sensitivity:
10mV/Pa (-40dBV/Pa)

Power Requirements:
48V Phantom, 10mA

Max Acoustic Input:
145dB SPL

Output:
XLR (pin 2+)

Output Impedence:
100 balanced (50 each pins 2 & 3)

Min Output Load:
600 between pins 2 & 3

Noise:
22dB SPL equivalent (A weighted)

Dimensions L x D:
324mm x 22mm (12.75 x .860 inches)

Attached Cable:
30 feet (9.14m) Canare Star Quad

Weight:
1.2 lb (544.3g) microphone with 30 cable
