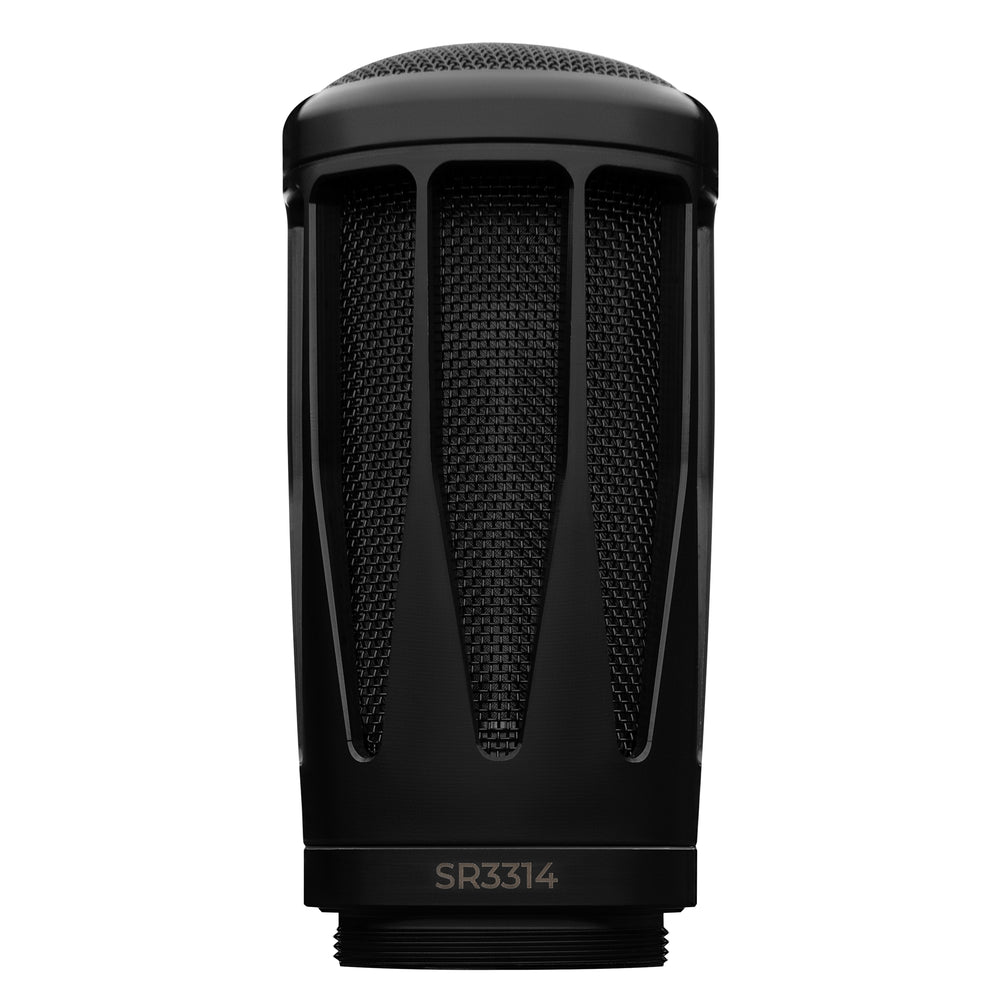

Earthworks SR3314-B Cardioid Wireless Microphone Capsule, Black
Earthworks SR3314-B Cardioid Wireless Microphone Capsule, Black
Speed matters. Bring the most responsive wireless capsule to your favorite wireless platform. Formatted for use with any 3-ring wireless microphone base, the Earthworks SR3314 captures natural, open, rich-sounding vocals with minimal proximity effect.
STUDIO CONTROL ON PAGE
Mitigate bleed and feedback with unparalleled off-axis sound rejection.
WIRELESS FLEXIBILITY
Whether performing for an intimate live streaming session or for a local gig, work the stage while sounding like you’re singing through a wired handheld.
FASTER SOUNDCHECKS
Clean impulse response combined with a textbook cardioid pattern equals better monitor mixes.
Technical Specifications
FREQUENCY RESPONSE
20Hz - 30kHz
POLAR PATTERN
Cardioid
SENSITIVITY
6.5 mV/Pa (-43.7 dBV/Pa)
POWER REQUIREMENTS
3V to 6V; 2.1 mA @ 5V
DISTORTION
Less than 3% THD
PEAK ACOUSTIC INPUT
133dB SPL @ 6V
OUTPUT
Center & outer ring on 3-ring concentric connector
OUTPUT IMPEDANCE
0.1 ohms
THREADS
1.25”/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
SELF NOISE
22dBA @ capsule output (A weighted)
DIMENSIONS
3.3” (84mm) long
1.6” (40.6mm) max dia.
1.46” (37mm) min dia
WEIGHT
0.4 lbs. (0.18kg)
Compatible Wireless Systems
SHURE
ULX-D
QLX-D
*Axient
*with Shure Axient AD2 and ADX2 handheld transmitters, the SR3314 may take a little over 3 seconds to warm up, starting from the moment the transmitter is switched on. We recommend keeping the channel muted during this short warmup period to prevent distortion and/or noise being heard.
AUDIO-TECHNICA
3000 Series
5000 Series
6000 Series
LECTROSONICS
HH
HHa
LINE 6
V75
V55
