Eaton MX16RSS-US VoCALL 16 Silver Surface Type B Call Station

Eaton MX16RSS-US Type B Call Station

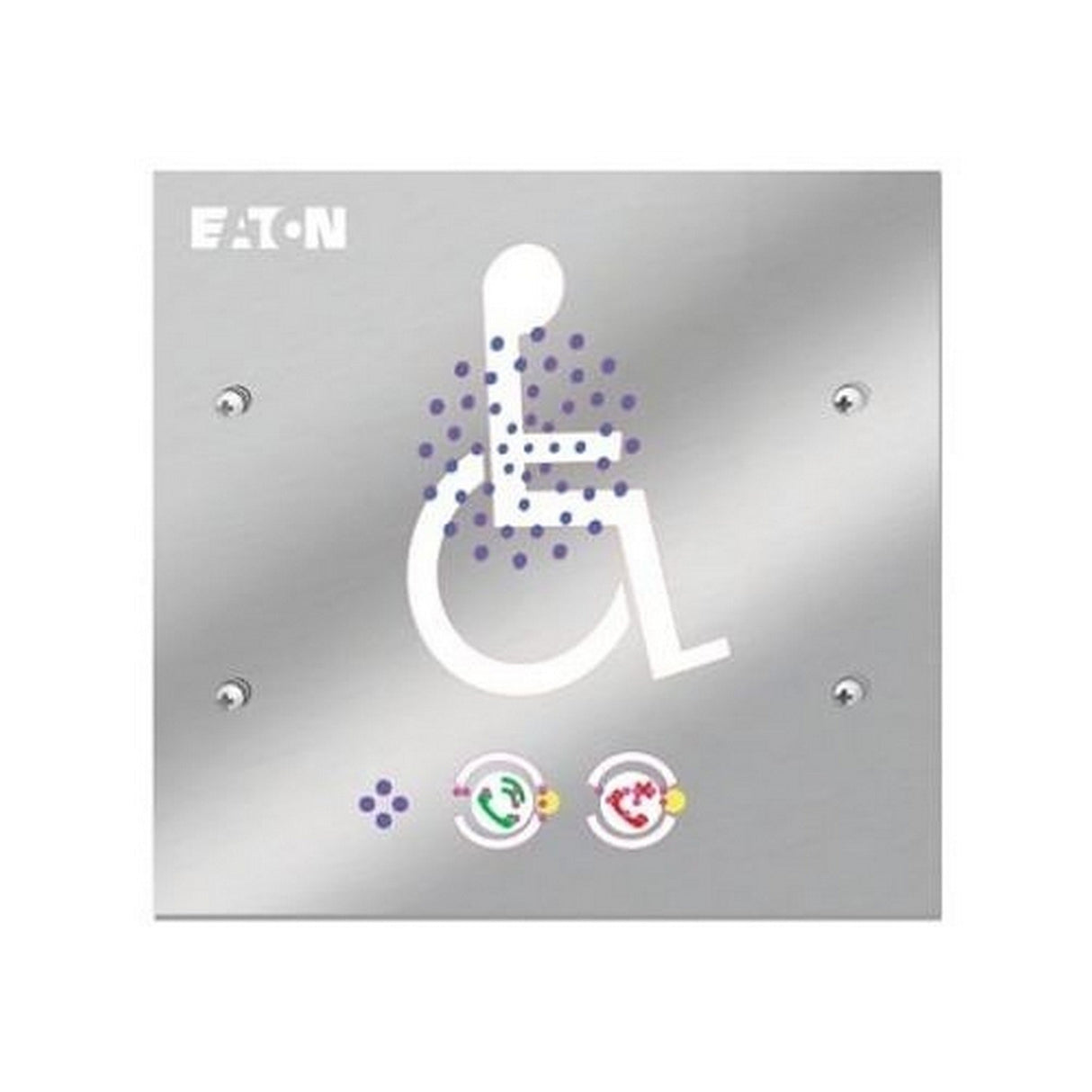

The Eaton MX16RSS-US Type B Call Station is a silver, surface-mounted emergency communication station for VoCALL 16US area-of-refuge systems. It provides bidirectional full-duplex voice communication between an assistance point and the MX16US main panel through a supervised digital loop connection designed for emergency and life-safety communication applications.

This surface mount area-of-refuge call station provides a straightforward interface for locations where occupants may need to request assistance during a fire, medical event, or other emergency. Users initiate communication with the Call button and terminate it with the End Call button. The VoCALL 16US emergency call station is suited to areas of refuge, elevator landings, and other designated assistance locations where a permanently installed silver Type B call station is required.

The MX16RSS-US operates on the VoCALL 16US four-conductor digital call-station loop and communicates using full-duplex CAN. Each panel supports up to 16 digital call stations, while networked VoCALL installations can scale to 160 stations with compatible main and network panels. Eaton lists UL 62368-1, UL 864, UL 294, and UL 60950-3 compliance for this model.

Key Features

• Silver Surface-Mount Design: Provides the surface-mounted configuration specifically assigned to the MX16RSS-US model.
• Two-Way Emergency Communication: Supports incoming and outgoing full-duplex calls between the station and compatible VoCALL 16US equipment.
• Simple Call Controls: Dedicated Call and End Call functions provide direct operation during emergency communication.
• Digital Loop Connectivity: Uses a supervised four-conductor power-and-CAN loop for system integration.
• Addressable System Operation: Integrates with VoCALL 16US soft-addressable digital call-station architecture.
• Audible and Visual Indication: Provides local indicators for clear station status feedback.
• Scalable VoCALL Integration: Supports systems with up to 16 call stations per panel and larger networked configurations.

Technical Specifications

• Brand: Eaton
• Catalog Number: MX16RSS-US
• Product Line: VoCALL 16 US
• Product Type: Type B emergency call station accessory

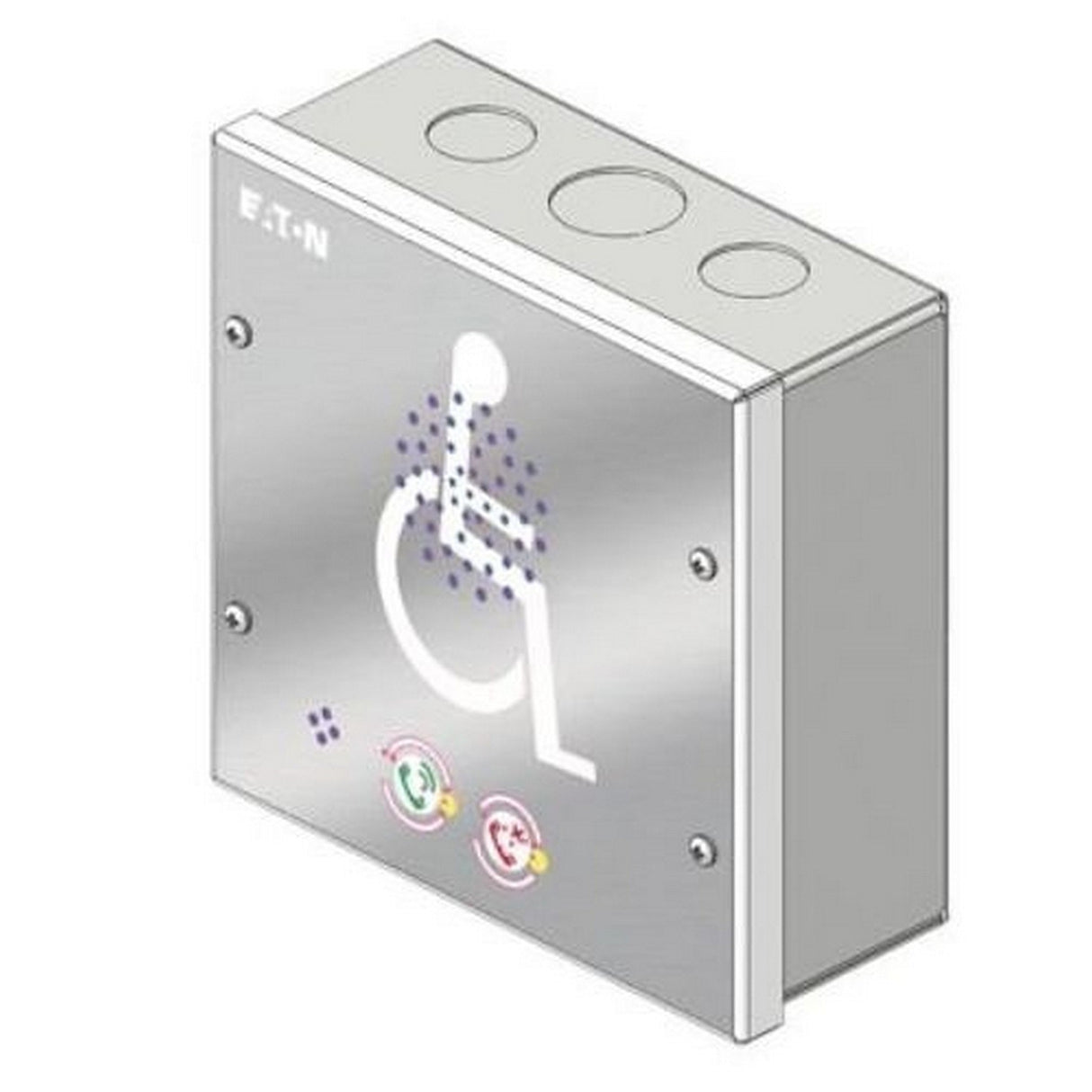

• Mounting: Surface
• Color: Silver
• Compatible System: Eaton VoCALL 16US
• Communications: CAN, full duplex
• Loop Configuration: Four-conductor power and CAN
• Cable Type: Two pairs, 18-12 AWG shielded twisted pair, solid core or stranded
• Rated Voltage: 21 to 27.6 VDC, 24 VDC nominal
• Rated Input Current: 32 mA
• Active Current Draw: 32 mA
• Standby Current Draw: 13 mA
• Active Power Consumption: 0.65 W
• Standby Power Consumption: 0.52 W
• Maximum Total Loop Resistance: 3.6 ohms including return, equivalent to 1,700 ft with 16 AWG cable
• Maximum Resistance Between Panel and Call Station: 4.8 ohms, equivalent to 600 ft with 16 AWG cable
• Maximum Resistance Between Call Stations: 4.8 ohms, equivalent to 600 ft with 16 AWG cable
• Maximum Capacitance, Wire-to-Wire: 60 pF/ft
• Maximum Capacitance, Wire-to-Shield: 100 pF/ft
• Call Stations Per Panel: Up to 16 digital call stations
• Maximum Networked System Capacity: Up to 160 call stations with compatible MX and NX panels
• Indicators: Audible and visual

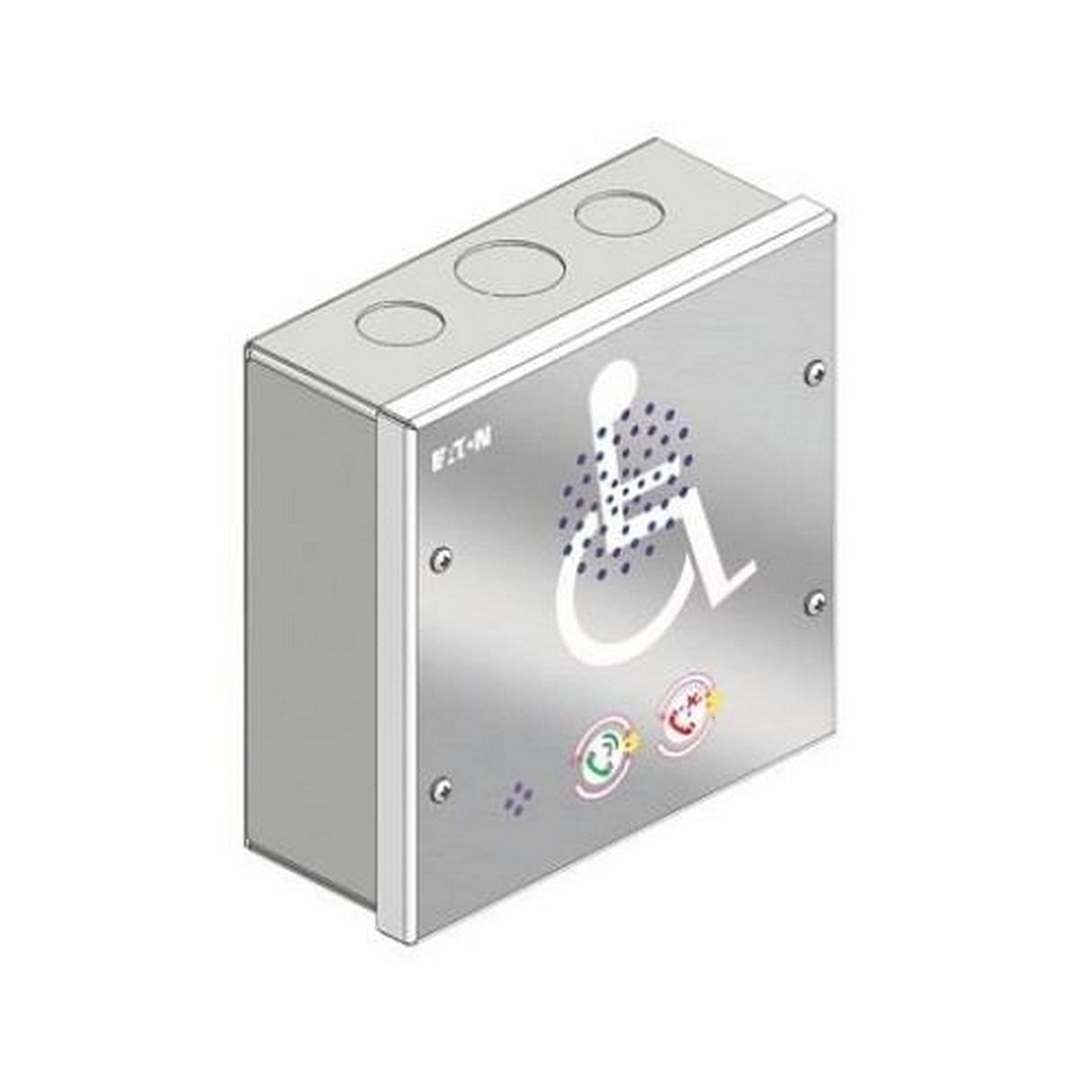

• Knockouts: 3/4" standard knockouts
• Operating Temperature: 32°F to 98°F
• Humidity: 95% non-condensing
• Dimensions: 5.4" H x 5.4" W x 2.2" D
• Weight: 1.8 lb
• Compliances: UL 62368-1, UL 864, UL 294, UL 60950-3
• UPC: 786697660634
