Description

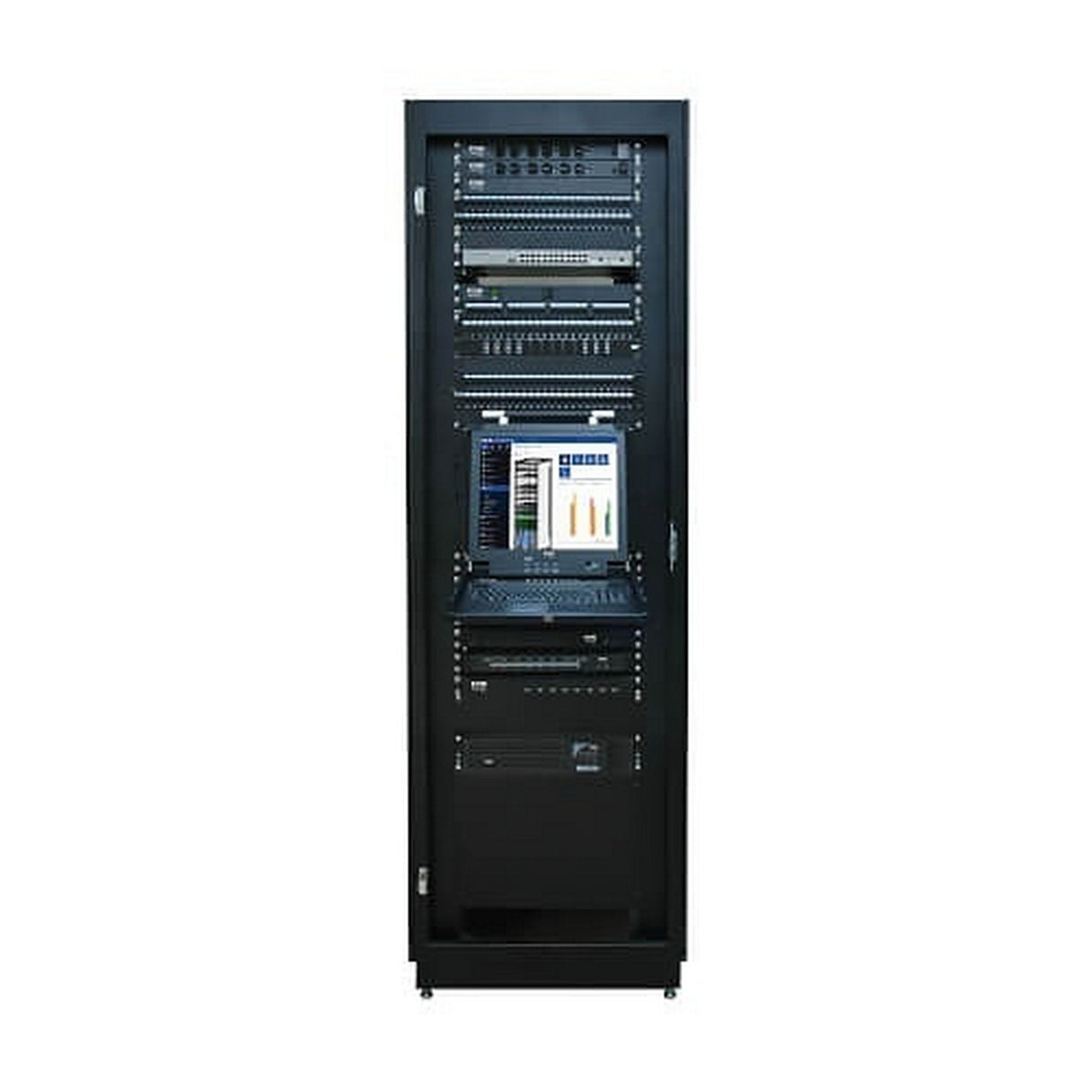

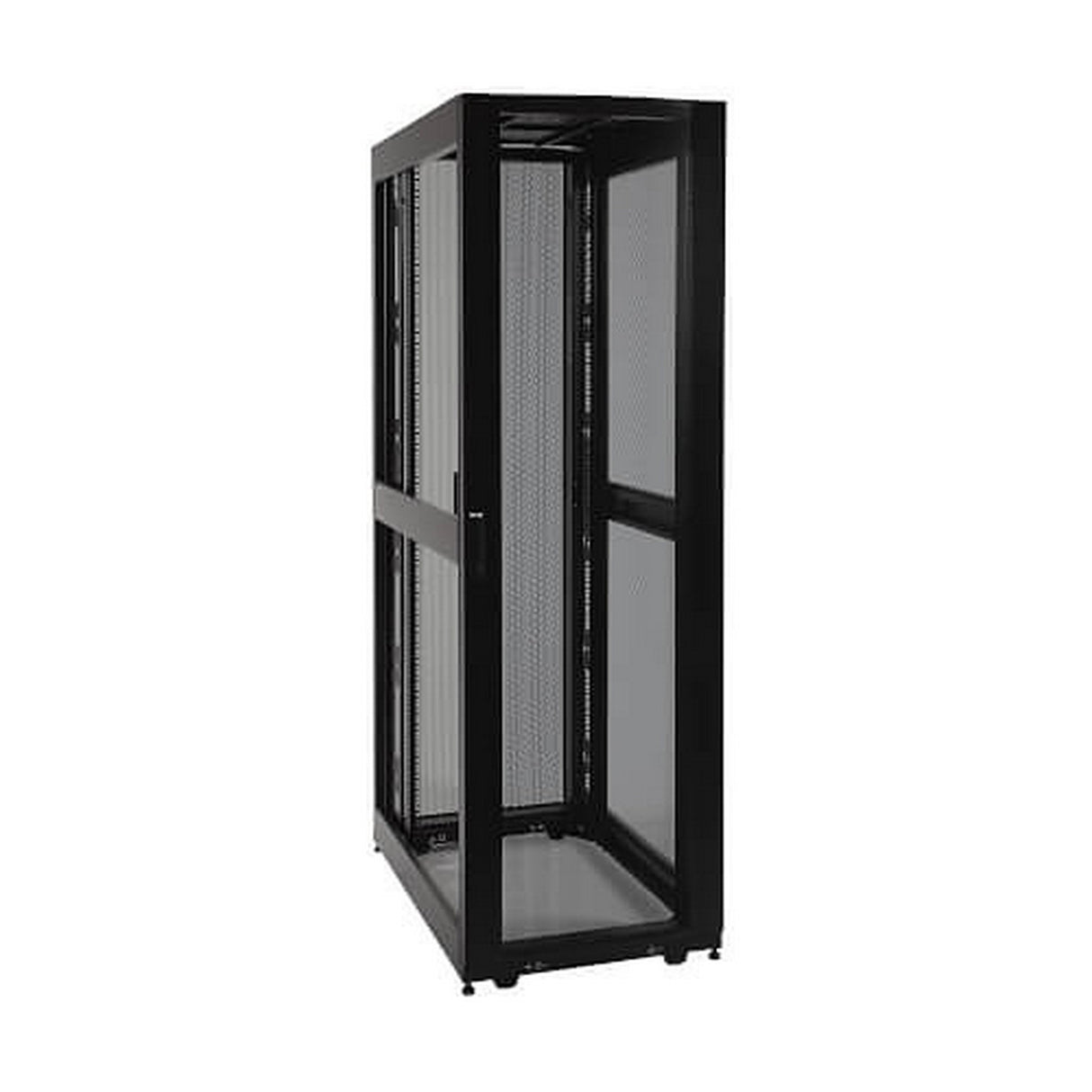

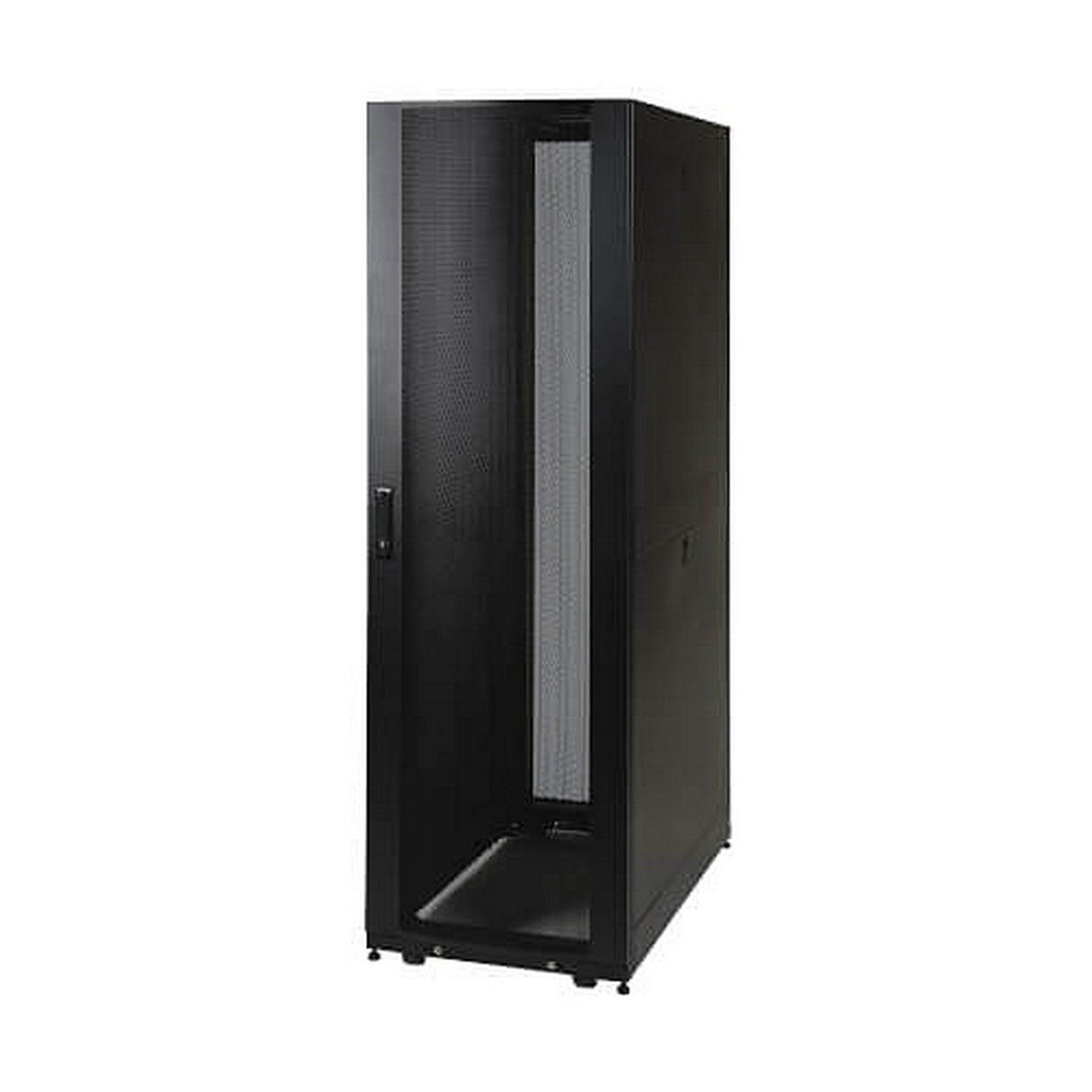

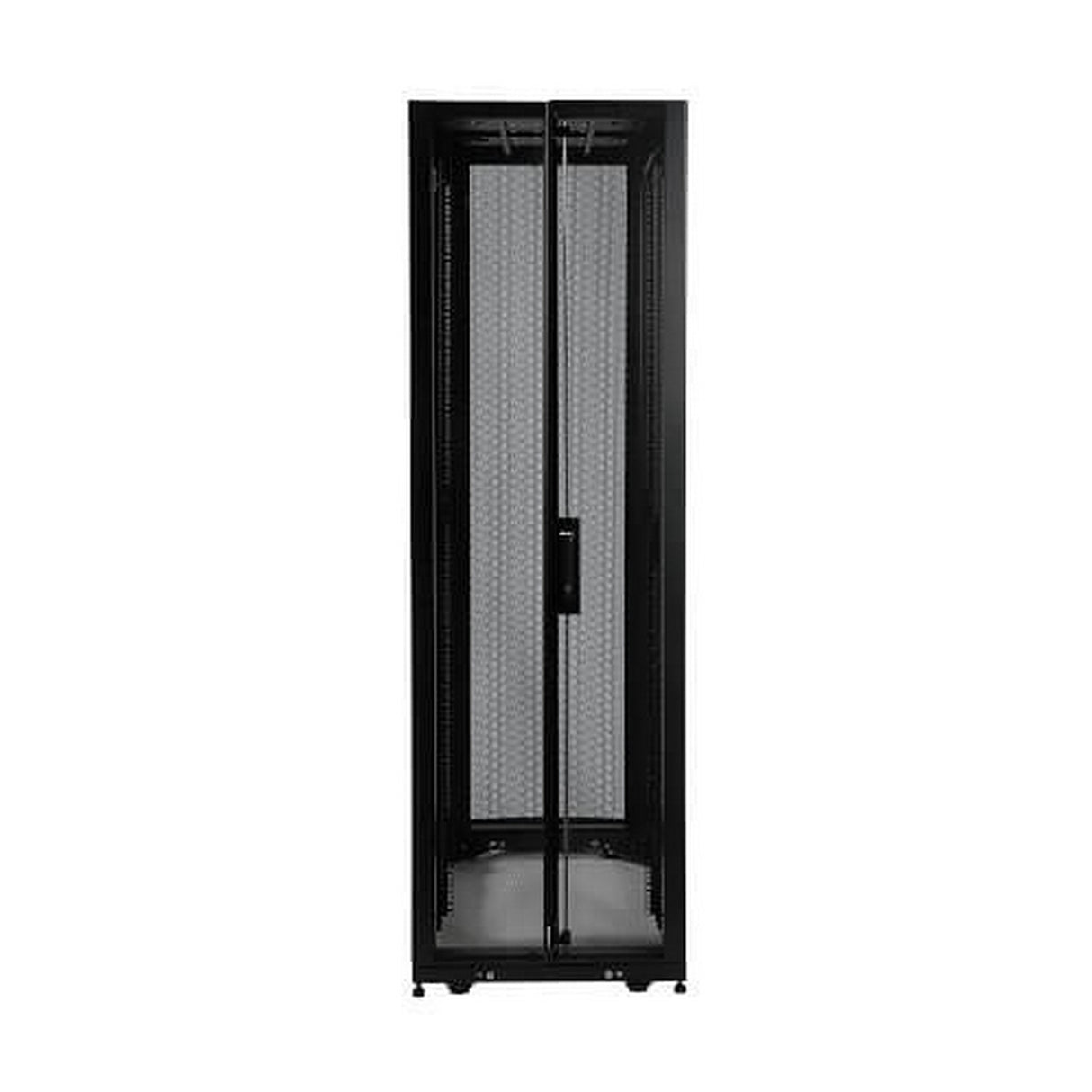

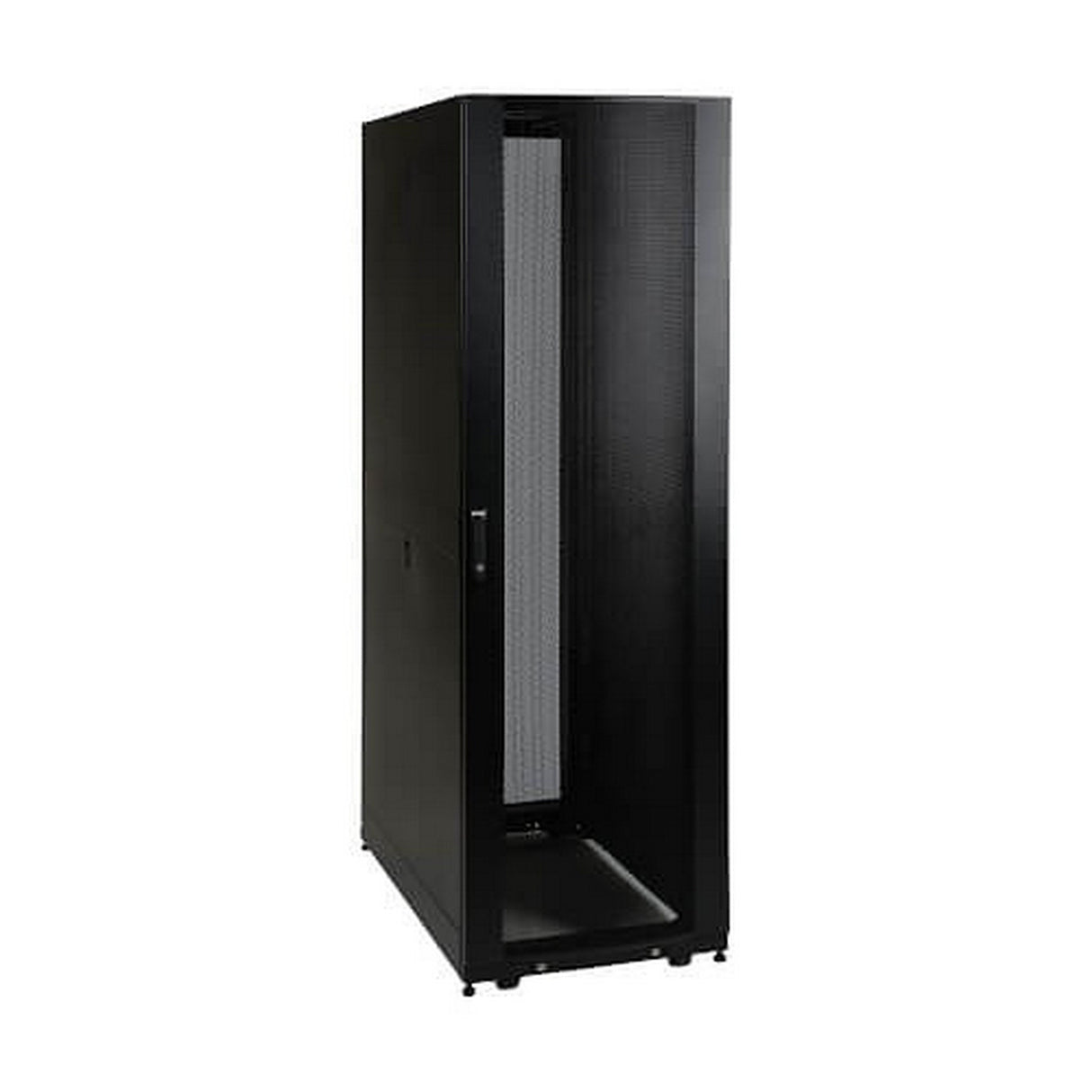

Eaton Tripp Lite Standard-Depth Server Rack Enclosure for Mission-Critical IT, 42RU
The Tripp Lite SmartRack SR42UB is a heavy-duty 42U server rack enclosure designed to house, organize, and secure standard-depth 19-inch rack equipment in server rooms, IT closets, edge computing environments, and micro data centers. Built from rugged powder-coated steel, this enclosure delivers exceptional strength, security, and airflow for critical IT deployments.
Secure and Accessible Equipment Housing

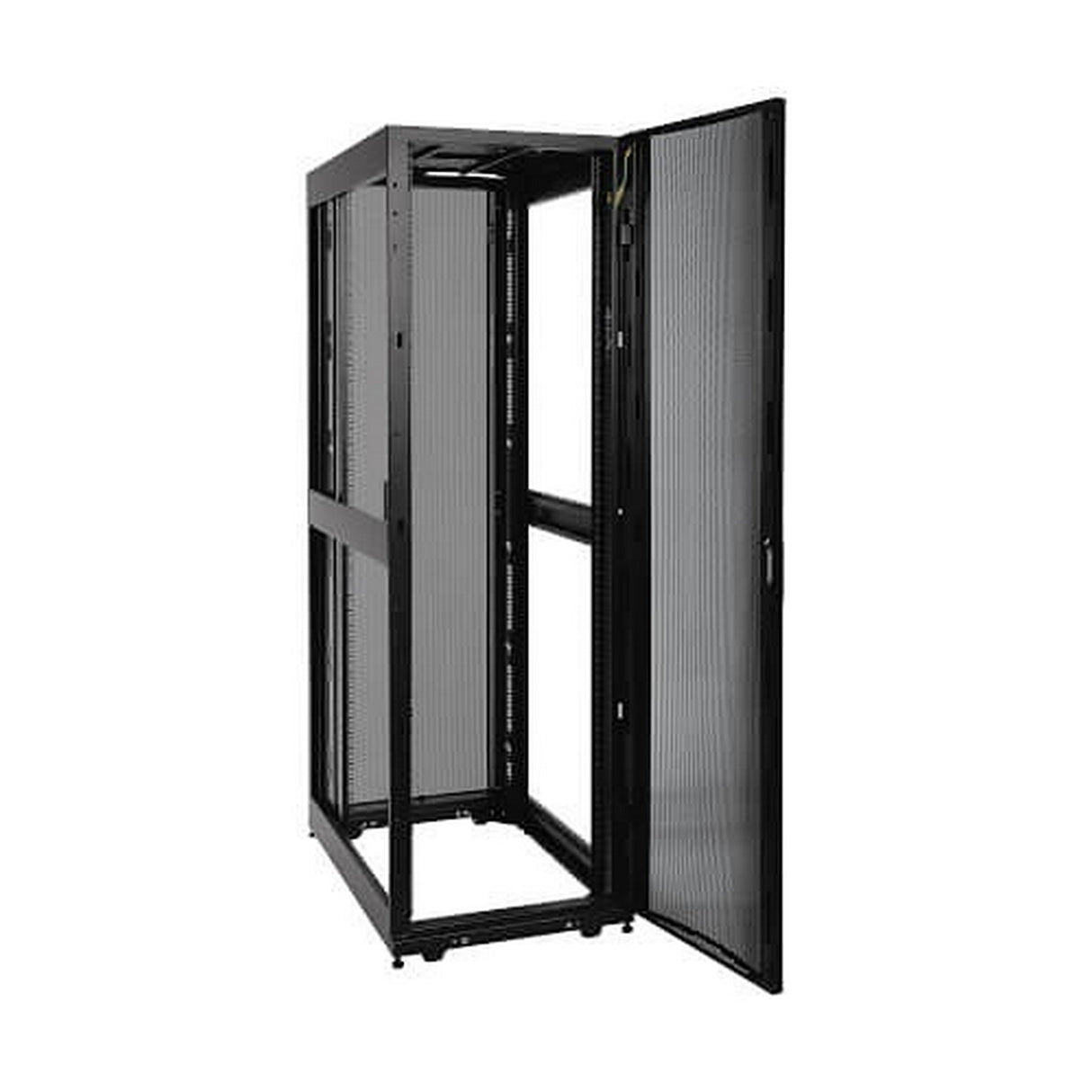

Reversible front and rear doors and removable side panels lock securely to help prevent tampering, theft, or accidental damage. Quick-release doors and panels provide fast access to equipment and cabling, while vented doors promote efficient front-to-rear airflow to keep devices operating at optimal temperatures.
Designed for Easy Installation and Deployment
The SR42UB ships fully assembled for immediate installation. Pre-installed casters allow smooth positioning through standard doorways, and adjustable levelers stabilize the enclosure once in place. Front and rear mounting rails support rack equipment up to 37 inches deep, and integrated 0U mounting rails enable tool-free installation of compatible PDUs and vertical cable managers.
Expandable and Standards-Compliant Design
Built-in baying brackets allow multiple enclosures to be joined in a row, with center-to-center spacing aligned to standard data center floor tiles. The cabinet provides the physical equipment and media security required for PCI DSS compliance, making it suitable for environments that process, store, or transmit sensitive payment data.
Key Features
- 42U rack enclosure for standard-depth 19-inch rack equipment
- Heavy-duty steel construction with black powder-coated finish
- Maximum load capacity of 3500 lb stationary and 2250 lb rolling
- Locking front and rear doors with removable locking side panels
- Vented doors for efficient front-to-rear airflow
- Ships fully assembled with pre-installed casters and levelers
- Supports equipment depths up to 37 inches
- Toolless 0U rails for vertical PDUs and cable management
- PCI DSS compliant physical security
Technical Specifications
- Rack Height: 42U
- Rack Type: Enclosure
- Rack Depth: Standard
- Maximum Device Depth: 37 in (940 mm)
- Minimum Device Depth: 4 in (102 mm)
- Color: Black
- Number of Vertical Mounting Rails: 4
- Pre-Installed Casters: Yes
- Built-In Cable Management: Yes
- Outdoor Use: No
- Certifications: UL 60950-1
- Compliance: CE, EIA/ECA-310-E, RoHS
Package Contents
- x1 SR42UB 42U Server Rack Enclosure
- x4 Side Panels
- x4 Side Panel Locks
- x2 Keys
- x50 M6 Screws
- x50 M6 Washers
- x50 M6 Cage Nuts
- Owner’s Manual
