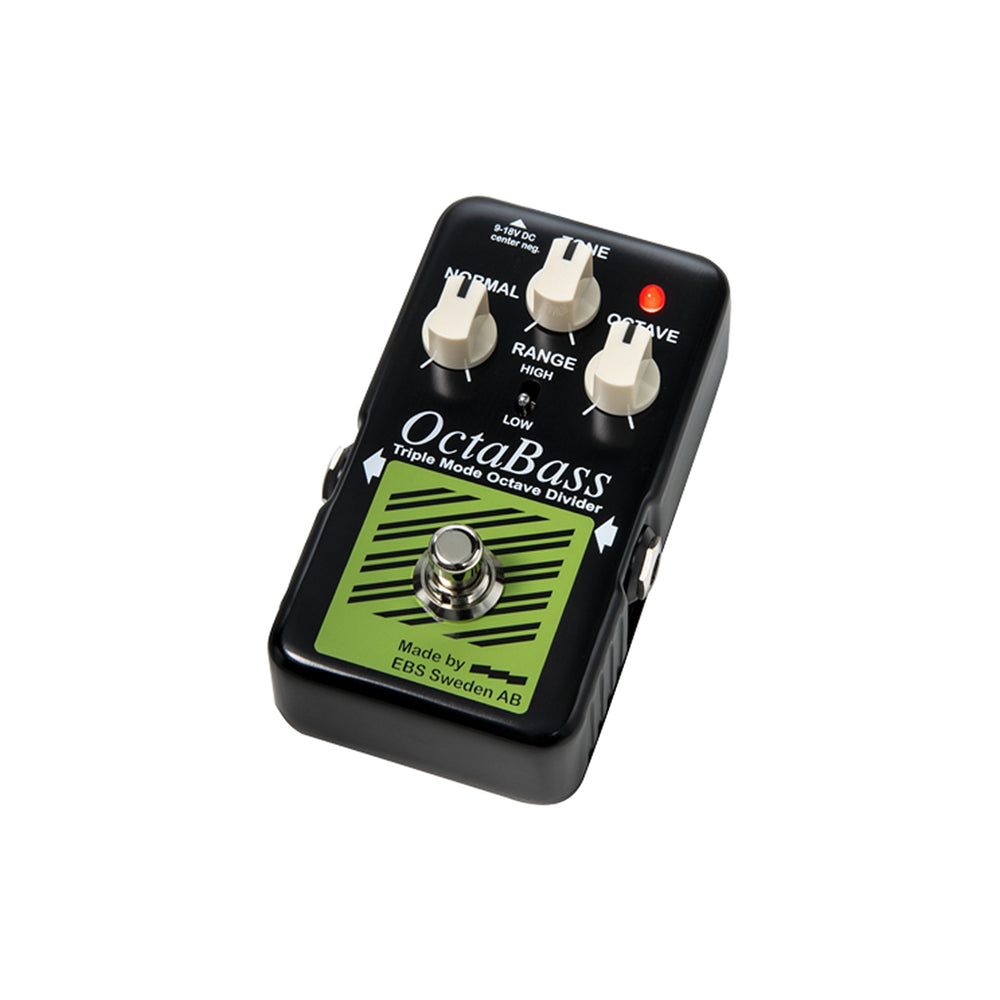

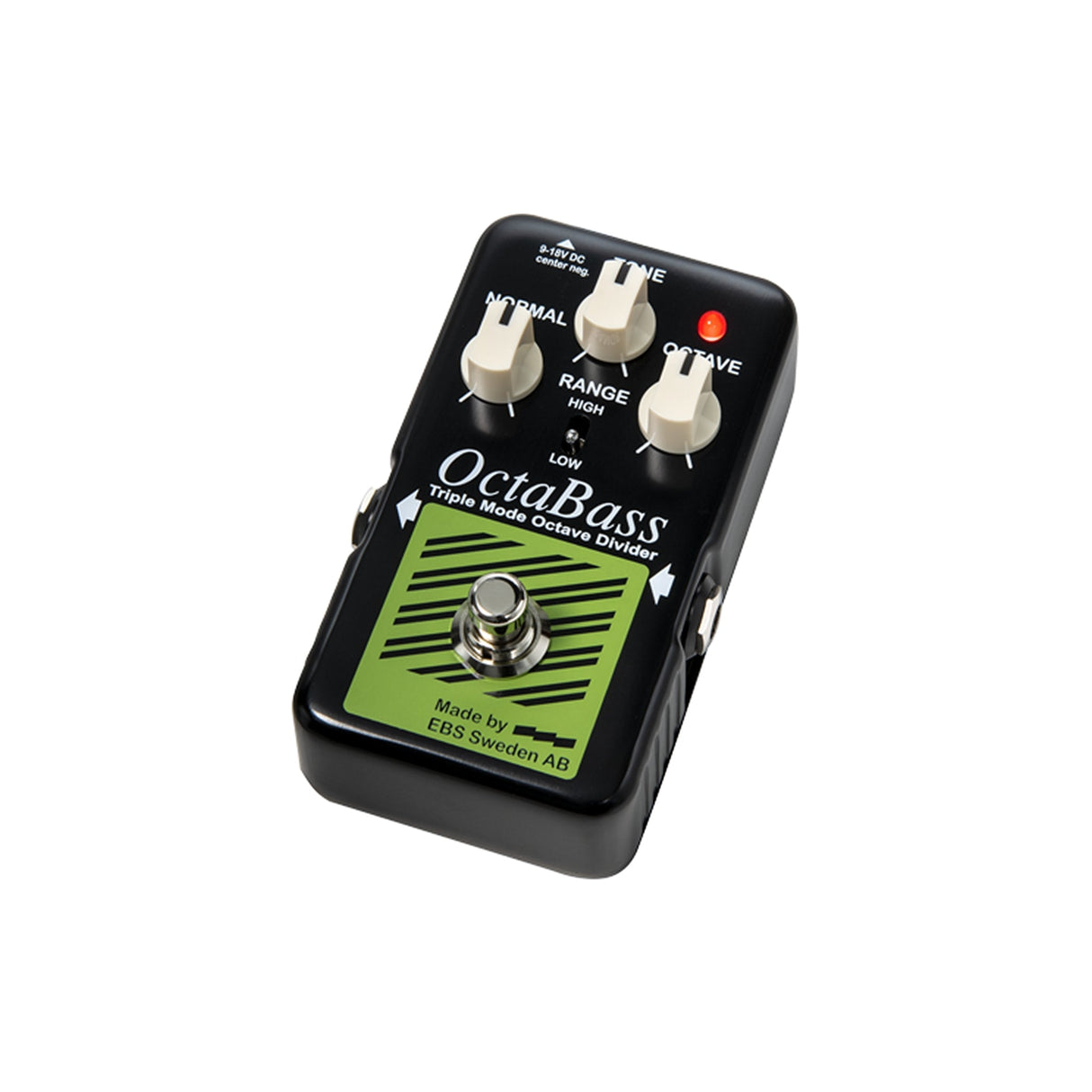

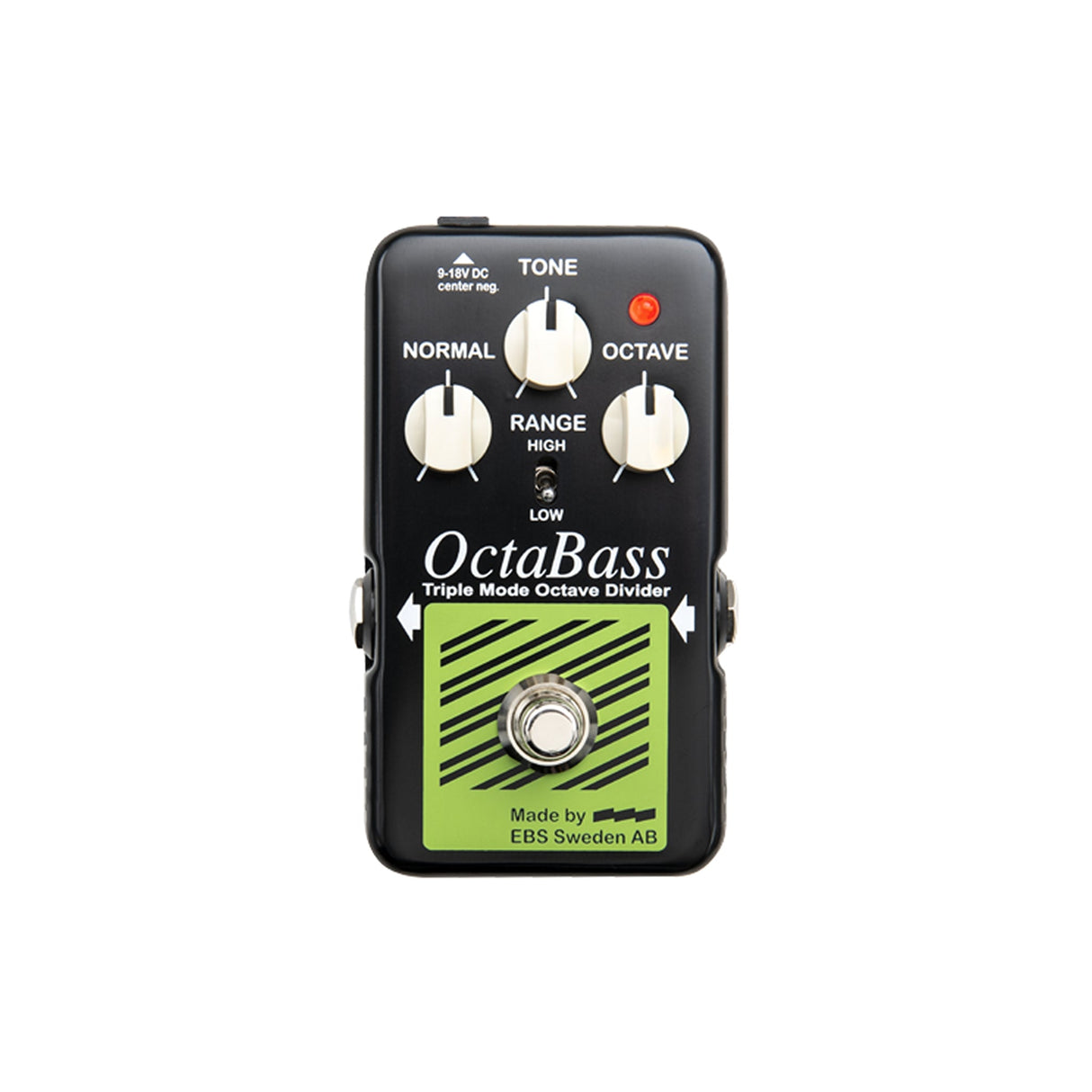

EBS OctaBass Blue Label Octave Divider Pedal
Description
Description
EBS OctaBass Blue Label Octave Divider Pedal
The ebs octabass blue label pushes the boundaries for what has been seen as possible with an analog octave effect. The quality and character of the octave tone, as well as the precision and speed of the tracking, are outstanding.
The EBS OctaBass was the first effect unit ever made by EBS. It is famous for fast and accurate tracking and a fat, natural sound. When you play your instrument, its “tracks” the note you play and produce a sound one octave below to mix in with the note you play. The 'Blue Label' model has a couple of new features that enhance the tracking range and improves the control of the sound.
Improve the tracking where it matters the most
A new Range-switch makes it possible to move the optimized focus area of the tracking to either higher up or lower down the fretboard. All to match your playing style and needs. This feature makes the tracking speed and range outstanding for an analog octave pedal. Note: Don't confuse this switch with the Range-switch on previous OctaBass pedals where it changed the character of the tone.
Enhanced tone control
By adding a seamless tone control you can go from a present, focused octave sound that cuts through the mix all the way to a sub-bass backdrop of lows that discreetly supports the note you play. The tone control enhances the palette of sounds and also makes it easier to achieve a synthesized bass sound.
Power the Blue Label OctaBass with 9-18V DC power. The footprint is reduced by 12% compared to the previous Studio and Black Label editions.
Tips on how to use an analog octave pedal in the most effective way?
Since analog octave pedals are played almost like an individual instrument, we've put together some advice on how to successfully using an analog octave effect with your bass. See this post.
Key Features
- Preserve the low range
- Suitable for live and studio use
- High or Low-optimized fretboard tracking-range
- Controls for Normal and Octave volume
- Seamless Tone control for Octave
- Can be powered with 9-18V DC
Technical Specifications
Nominal Input Level
-10 dBv
Input Impedance
1.8 Mohms
Output Impedance
100 ohms
Dry Bandwidth +0/-2 dB
20 - 20k Hz
Dry Level min/max
-oo / 0 dB
Octaver Level Gain min/max
-oo / 12 dB min
Octaver Tone Filter
Type
Low Pass
Slope
>18 dB/octave
Range
60 - 350 Hz
Triggering Threshold
-70 dBv @200 Hz
Dimensions
W x H x D 2.6” x 4.5” x 1.9”
(67 x 115 x 48 mm)
Weight
315g (0.7 lb.)
Type
Analog Effect, Relay type Switching
Power Requirements
9, 12 or 18 V DC, 40 mA max. Pedal shuts off below 6.0 V
