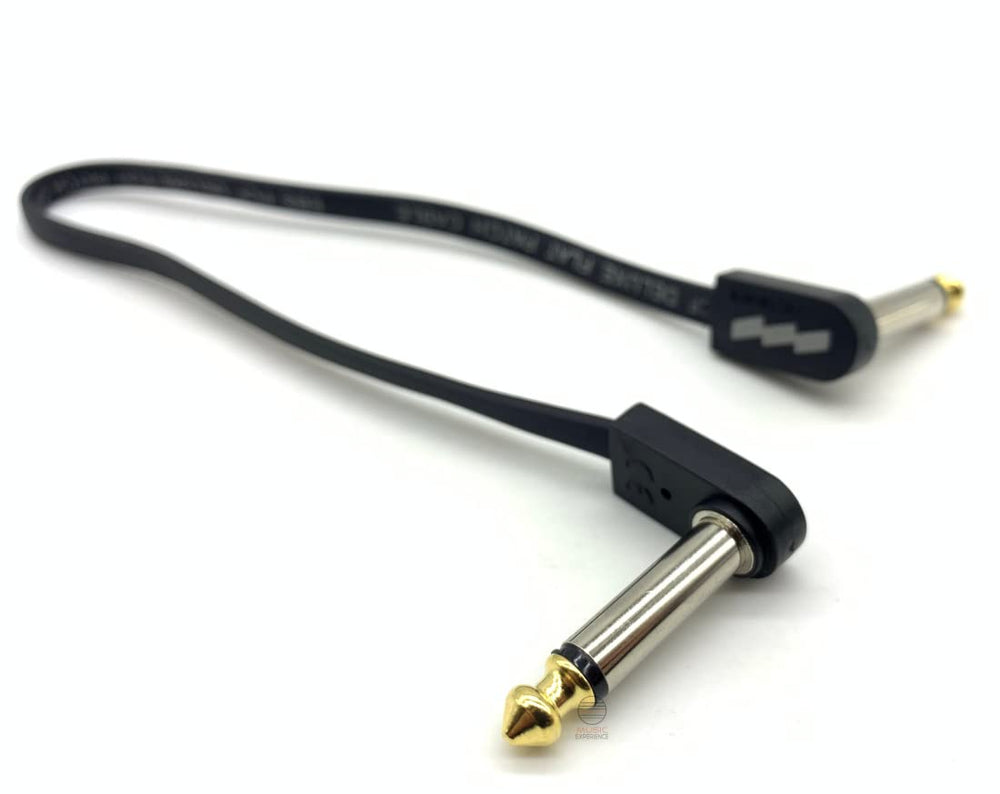

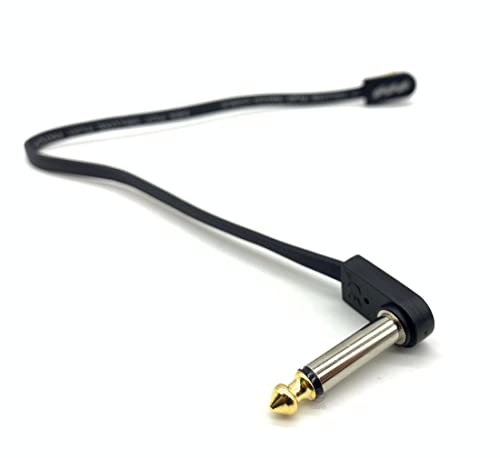

EBS PCF-DL28 Flat Patch Cable, 28cm
Authorized Dealer
Low In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
EBS PCF-DL28 Flat Patch Cable, 28cm
If you have ever struggled with limited space on your pedalboard, we share the pain with you.
To end the frustration we’ve designed the truly unique, super compact and affordable EBS Flat Patch Cables. Cables that won’t let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum.
The PCF Deluxe (PCF-DL) series is the most affordable alternative and is an improved version of the original design.
Key Features
- Double shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.
- Very compact size and flexible cables ensure effective use of ALL space on your pedalboard.
- Available in four lengths to cover your needs; 10, 18, 28 and 58 cm.
Technical Specifications
Conductor
Flexible copper conductor low voltage audio signal system
Operating Temperature
-15-deg C to +70-deg C
Outer Insulation
PVC (Polyvinyl Chloride)
Signal Copper Cores
20 x 0,12mm
Signal Insulation
PE (polyethylene)
Copper Twisted Shield
38 x 0,12mm
Capacitance Cond./Shield
< 10 pF/decimeters
Conductor Resistance
< 10 mOhm/decimeters
Dimensions
6 x 3 mm (rectangular cable) 30,0 x 13,0 x 6,0 mm (contact house)
Connectors
1/4” 90 degrees angled audio plug
Installation / Use Cases
- Use the 28 cm flat patch cable to connect effects pedals while minimizing the space required between pedals.
- Suitable for compact pedalboards requiring flexible cabling and 90-degree 1/4-inch audio plugs.
- Use the double-shielded, low-resistance cable to maintain a clean signal path through a pedalboard setup.
Package Contents
- EBS PCF-DL28 Flat Patch Cable, 28cm
Frequently Asked Questions
How long is the EBS PCF-DL28 patch cable?
The PCF-DL28 is 28 cm long.
What type of connectors does the EBS PCF-DL28 use?
It uses 1/4-inch 90-degree angled audio plugs.
Is the EBS PCF-DL28 double shielded?
Yes. The cable uses double shielding to help maintain a clean signal path.
What conductor does the PCF-DL28 use?
It uses a flexible copper conductor for low-voltage audio signals.
What is the outer insulation made from?
The cable uses PVC outer insulation.
Why is the PCF-DL28 useful on compact pedalboards?
Its flat, flexible design and compact angled connectors help reduce the space required between pedals.
