EBS PG-58 Premium Gold Flat Patch Cable, 58cm
Authorized Dealer
Low In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
EBS PG-58 Premium Gold Flat Patch Cable, 58cm

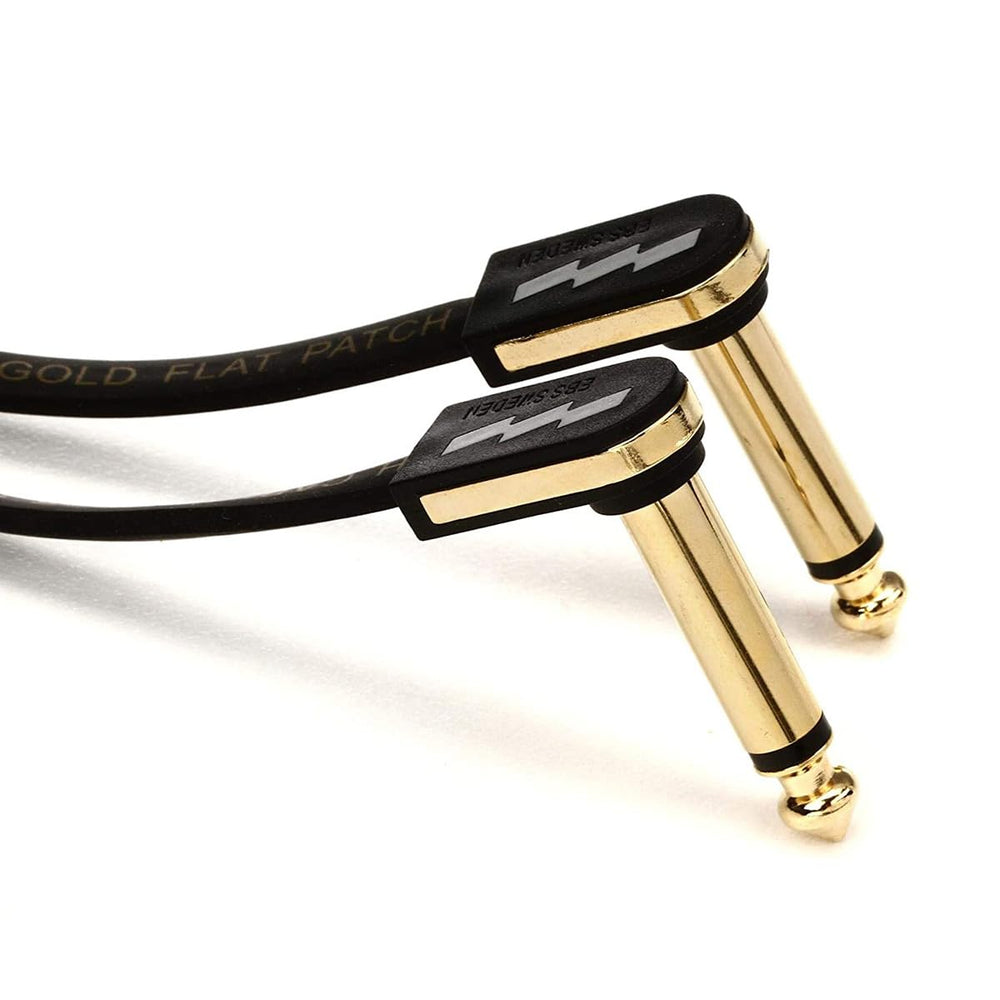

If you have ever struggled with limited space on your pedalboard, we share the pain with you. To end the frustration we’ve designed the truly unique, super compact and affordable EBS Flat Patch Cables. Cables that won’t let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum. The elegant Premium Gold (PG) series are the most compact and features 24K Gold plated contacts with even smaller housing than the original EBS PCF-Deluxe (PCF-D) cables.
Double shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.
Extremely compact size and flexible cables ensure effective use of ALL space on your pedalboard.

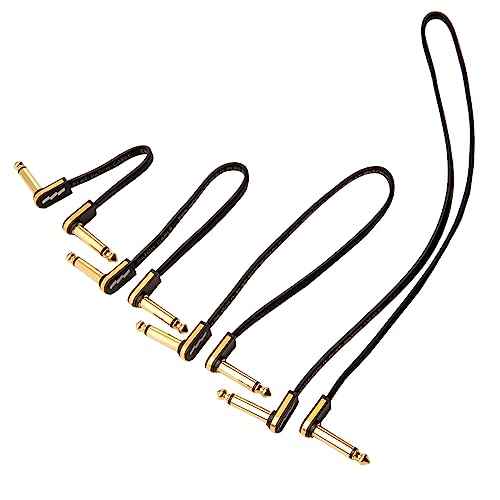

Available in four lengths to cover your needs; 10, 18, 28 and 58 cm.
Since the introduction, these cables have made thousands of customers happy. We hope you will become one of them too.* Buy the cables at local stores and online dealers all over the world. * Great customer reviews and very few reported failures from hundreds of thousands sold cables so far.
Technical Specifications
Contact house
24 Carat Gold Plated
Double Shield
Conductive PVC and Copper shield protect effectively from both LF and HF interferences.
Conductor
Flexible copper conductor low voltage audio signal system
Operating Temperature
-15C to +70C
Outer Insulation
PVC (Polyvinyl Chloride)
Signal Copper Cores
20 x 0,12mm
Signal Insulation
PE (polyethylene)
Twisted Copper shield
45 x 0,12mm
Capacitance Cond./Shield
< 10 pF/decimeters
Conductor Resistance
< 10 mOhm/decimeters
Dimensions
5,3 x 2,5 mm (rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
Installation / Use Cases
- Connect effects pedals across wider sections of a pedalboard with a 58 cm flat patch cable.
- Use the compact connector housings where minimizing the space between pedals helps increase usable pedalboard area.
- Use in guitar or bass effects setups where double shielding and low resistance are desirable for maintaining the audio signal through multiple pedal connections.
Package Contents
- EBS PG-58 Premium Gold Flat Patch Cable, 58cm
Frequently Asked Questions
How long is the EBS PG-58?
The PG-58 is 58 cm long.
What type of contacts does the PG-58 use?
It uses 24K gold-plated contacts.
Is the EBS PG-58 shielded?
Yes. It uses double shielding with conductive PVC and copper shielding.
Why does the PG-58 use compact connector housings?
The compact design reduces the space required between pedals on a pedalboard.
What conductor material is used in the PG-58?
It uses a flexible copper conductor for low-voltage audio signals.
