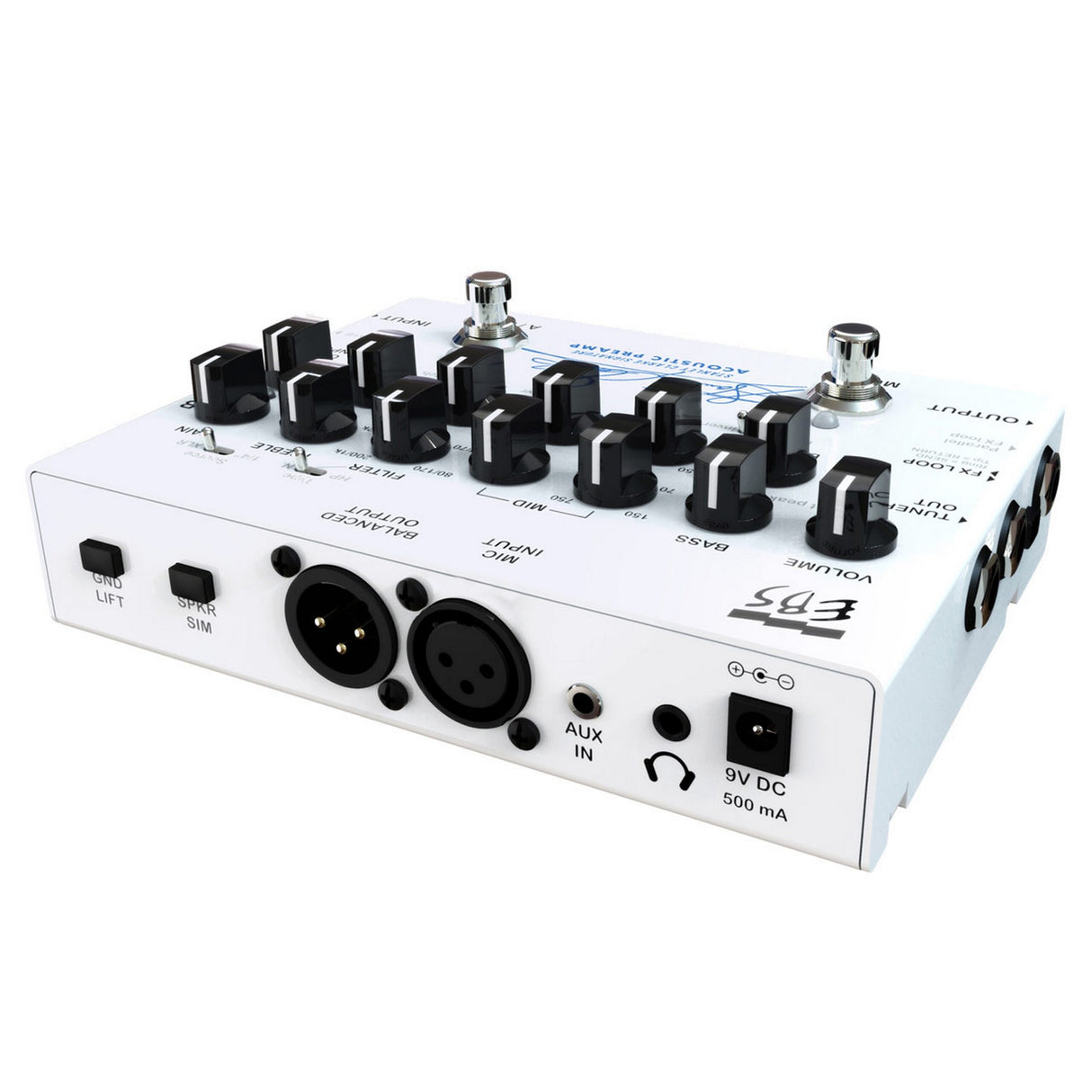

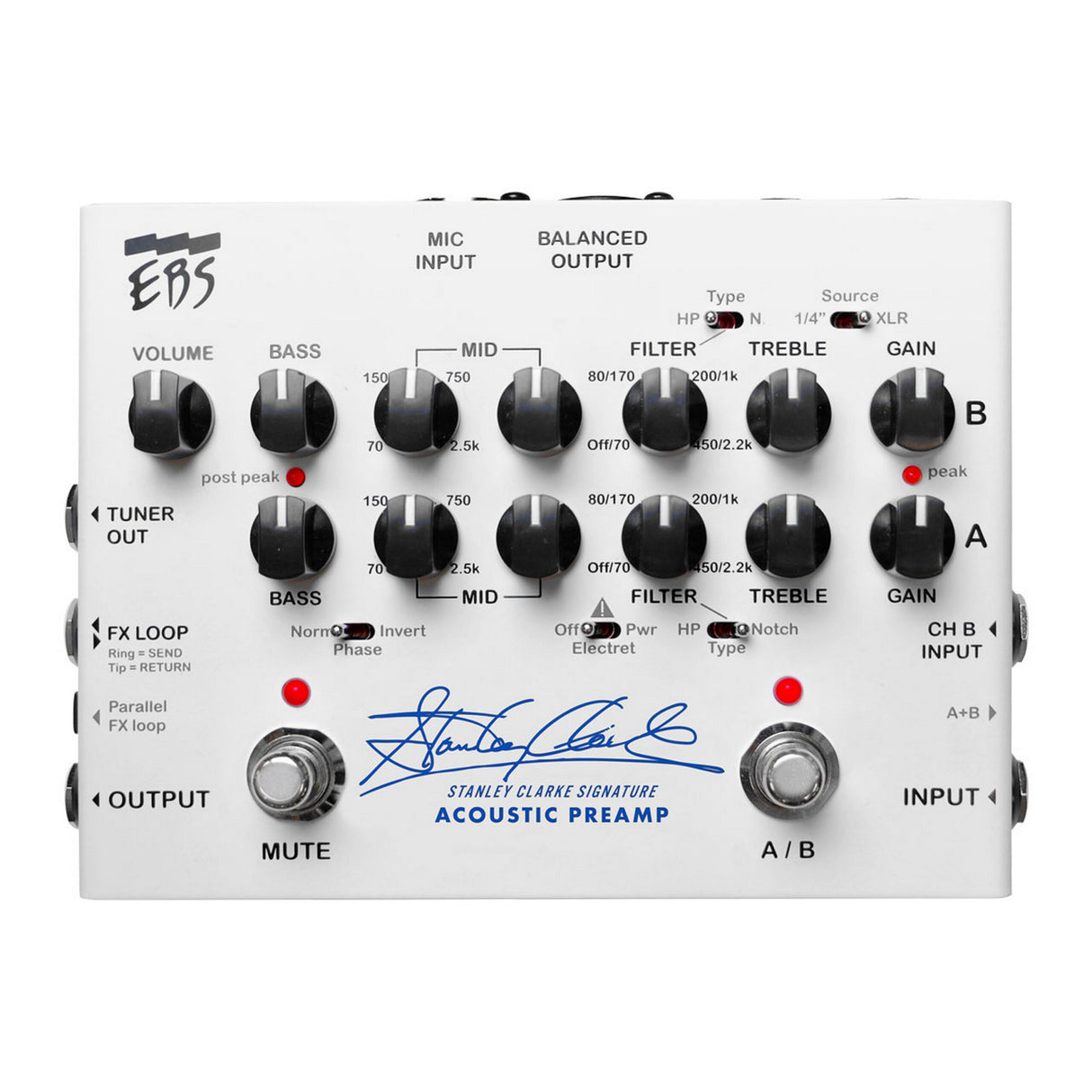

EBS Stanley Clarke Signature 2 Channel Preamp
The Stanley Clarke Signature Acoustic Preamp is a 2-channel preamp, built exclusively with premium components. It is engineered and designed by EBS together with the legendary bass player and composer Stanley Clarke. Since the preamp operates at a signal level equal to professional mixing consoles it provides a huge amount of headroom. The superior signal quality makes It'suitable to use as a preamp in combination with any power amp. The headroom and specific features make it ideal for handling the complex sonic characteristics of an upright bass. The A and B channels both feature an input GAIN control and an EQ strip with BASS, MIDS (pick the frequency range with one knob and cut or boost in that range with another) and TREBLE. They both also have a secret weapon, a control knob that can be used either as a HIGH PASS or NOTCH filter. A switch decides the function, while the control knob picks the frequency range. The notch and high pass filters are excellent tools to prevent unwanted feedback and adjust the sound to the characteristics of the room and your instrument.
Key Features
- 2-channel preamp (A/B or A+B)
- Operates with Studio-grade signal quality
- 10 Mohm Impedance inputs (both channels)
- Individual High Pass/Notch Filter for each channel
- XLR microphone-input with 48V Phantom Power (channel B)
- Electret pickup support (channel A)
- Tuner output
- Effects Loop (serial/parallel)
- Balanced Output (with Speaker Simulator and Ground Lift)
- Aux Input and professional-grade headphones output
Technical Specifications
Input Impedance
10 Mohms // 22 pF
Gain
Gain Range -oo/+30 dB Gain Peak LED (ch A = RED, B = yellow) +10 dBv Frequency Response +0/-3 dB 20-20.000 Hz
Bass Filter
Type Shelving Gain Range +/- 15 dB @ 40 Hz
Mid Filter
Type Bandpass Filter Gain Range +/- 13 dB Frequency Range 70 - 2500 Hz Q 0.8
Treble Filter
Type Shelving Gain Range +/- 15 dB @ 10 kHz
HP Filter
Type 12 dB/octave High Pass Frequency Range 20(off) - 450 Hz
Notch Filter
Type Bandpass Notch Frequency Range 70 - 2200 Hz Q 7 Attenuation 7 dB (typically)
Electret Power (Channel A)
5V, 2mA
Dimensions (WxDxH)
max 168 x 124 x 53 mm / 6.6” x 4.9” x 2.1”
Weight
660 g (1.5 lbs.)
