Condition: New

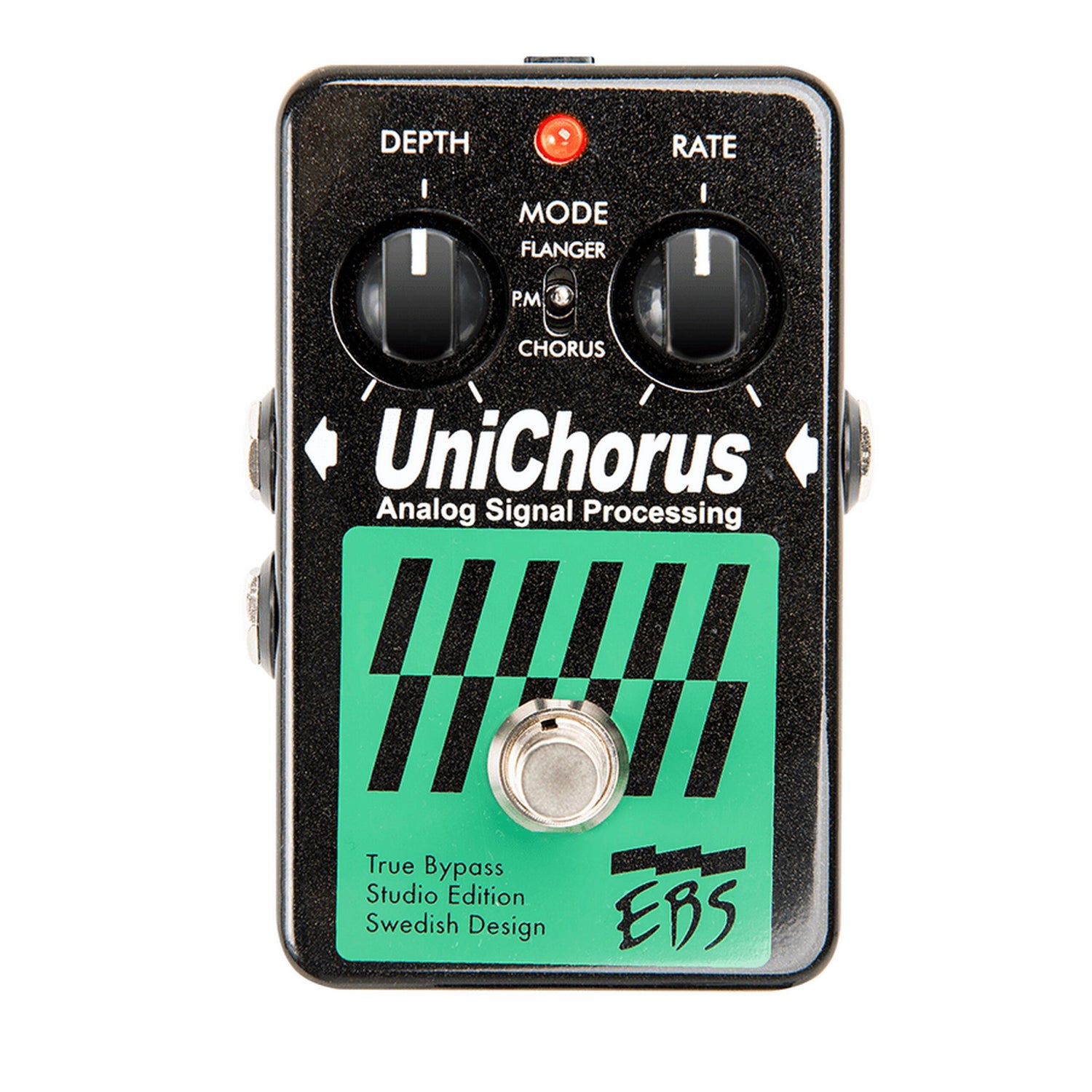

EBS UniChorus Studio Edition Effects Pedal
The pedal is built with the best analog processing circuitry available. This gives a smoother, warmer and fatter sounding chorus/flange effect, useful both for live and studio performances. The pedal output can run in mono or stereo. Under the hood of the UniChorus, there's a mix level control that lets you decide how much or little of the effect you'd like to be blended with the original tone. See the manual for details. The UniChorus was first introduced in 1997. From the 2008 edition improvements added 3 dB higher headroom, higher sensitivity (makes it easier to dial-in), and new analog circuitry with higher dynamics and lower noise, as well as true bypass switching technique. The Studio Edition features an optimized signal path, new design, new signal relay switching technique, protection against overvoltage up to 18V, and the possibility to power the pedal with anything between 9-12V DC.
Key Features
- Preserve the low range
- Suitable for live and studio use
- Analog Signal Processing
- Flanger, Pitch Mod and Chorus Modes
- Controls for Depth and Rate
- Stereo output
- True Bypass Signal Relay Switching
- Protected against over voltage up to 18V
- Powered by 9 to 12V DC
Technical Specifications
Nominal Input Level
- 8 dBv
Input Impedance
700 kohms
Bandwidth
+0/-3 dB 20 - 20 kHz
Delay Bandwith
+0/-3 dB 200 - 8 kHz
Delay Level mix
min/max -oo - +3 dB
Flange
3 ms
Chorus
5.5 ms
Modulation Depth
min/max +/- 50% of nominal delay time
LFO Range
min/max 0.15 - 7.5 Hz
Dimensions (L x W x H)
2.8 x 4.5 x 1.4” (70 x 115 x 35 mm)
Weight
400g (0.88 lb.)
Power Requirements
9-12 V DC Regulated, 35 mA max
