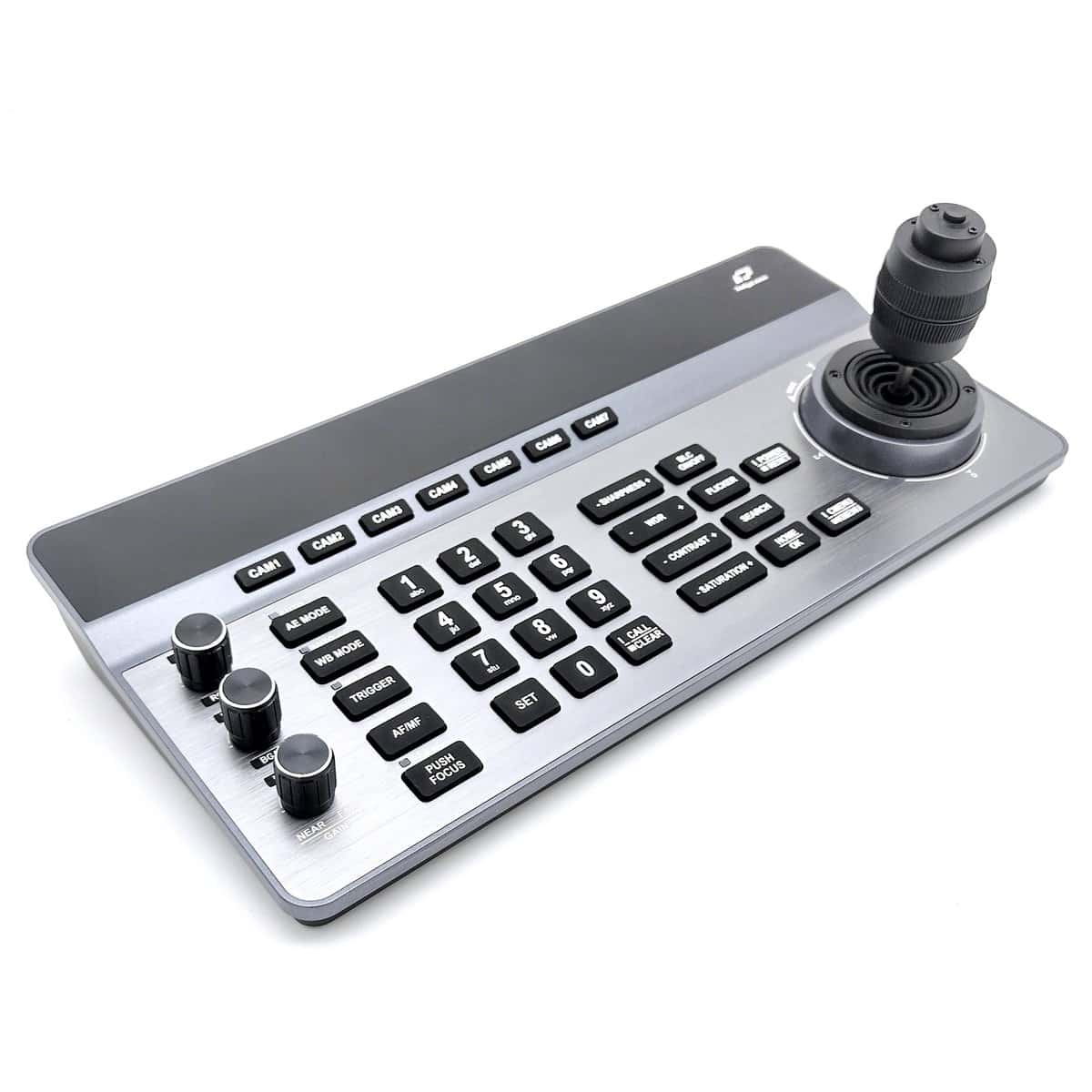

EDIUS PTZCtr50N 4 Dimensional Joystick PTZ Controller

EDIUS PTZCtr50N 4 Dimensional Joystick PTZ Controller

PTZ Controller for GrassValley PTZ and others (NDI, IP, ...) Supported protocols: NDI/Visca/ViscaIP/ONVIF. perfect for the Grass Valley PTZ 35x HD and the new 4K 60p PTZ.

Key Features

• Supports multiple protocols NDI, VISCA over IP, Serial VISCA, ONVIF, PELCO P/D,
• Users can control multiple cameras with different protocols with one keyboard, or multiple keyboards controlling one camera through a network interface.
• It supports up to 7 cameras of daisy chain control.
• A high-definition screen to show detailed camera and control status.
• With a four-dimensional joystick controller to make smooth control of the camera’s all-around rotation and zooming.
• The control buttons and function knobs allow to set the camera’s exposure mode, white balance mode, and focus mode, as well as adjusting image parameters according to your preferences and scene applications.
• 128 preset positions can be set, recalled, and cleared via the numerical button area.
• Comes with 7 camera shortcut control buttons, to switch control between multiple cameras.
• Whether need RS232, RS485, RS422, or even RJ45 control, the TLC-50TC can meet all requirements.
• TLC-50TC can be connected to all these interfaces simultaneously.
• TLC-50TC supports POE and supports 10M, 100M, 1000M adaptive network RJ45 connection.

Technical Specifications

Control Ports
NDI|HX, RS232, RS422, RS485
RJ45
Ethernet port, POE (IEEE802.3af)
RS232
DB9 Male head
RS422
3.81 Spacing terminal, T+, T-, R+, R-
RS485
3.81 Spacing terminal, T+, T-
Control Protocols
NDI |HX, VISCA, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, PELCO-P, PELCO-D,
Upgrade Port
Type-C
LCD Screen
3.12-inch OLED screen, blue light, 256x64 pixel
Working Power
12V, 1A
Working Temperature
-10 Degrees C~50 Degrees C
Working Humidity
20%~80%
Storage Temperature
-20 Degrees C~60 Degrees C
Storage Humility
0~90%
Dimension
320.5mmx156.5mmx118mm
Net Weight
1.05 kg
