Chauvet DJ 4BAR Quad ILS 4x RGBA LED Wash Light System with Stand
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

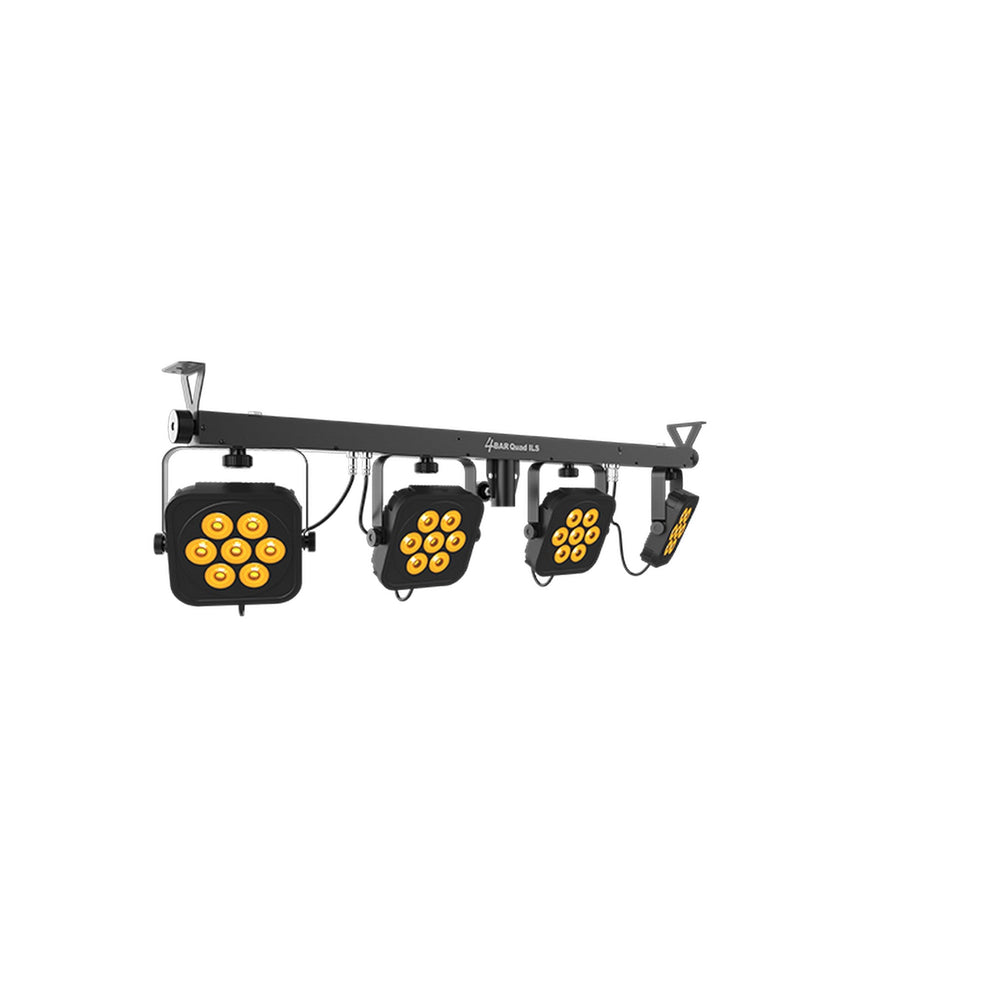

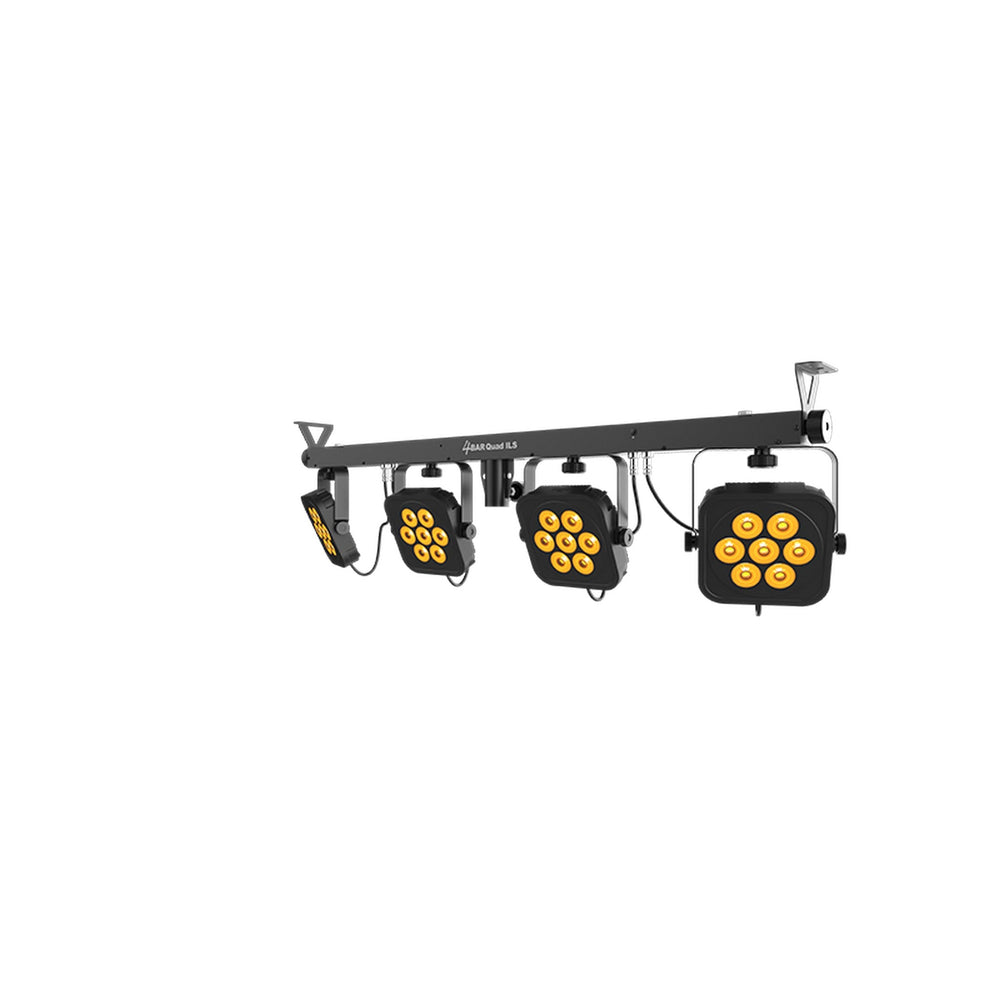

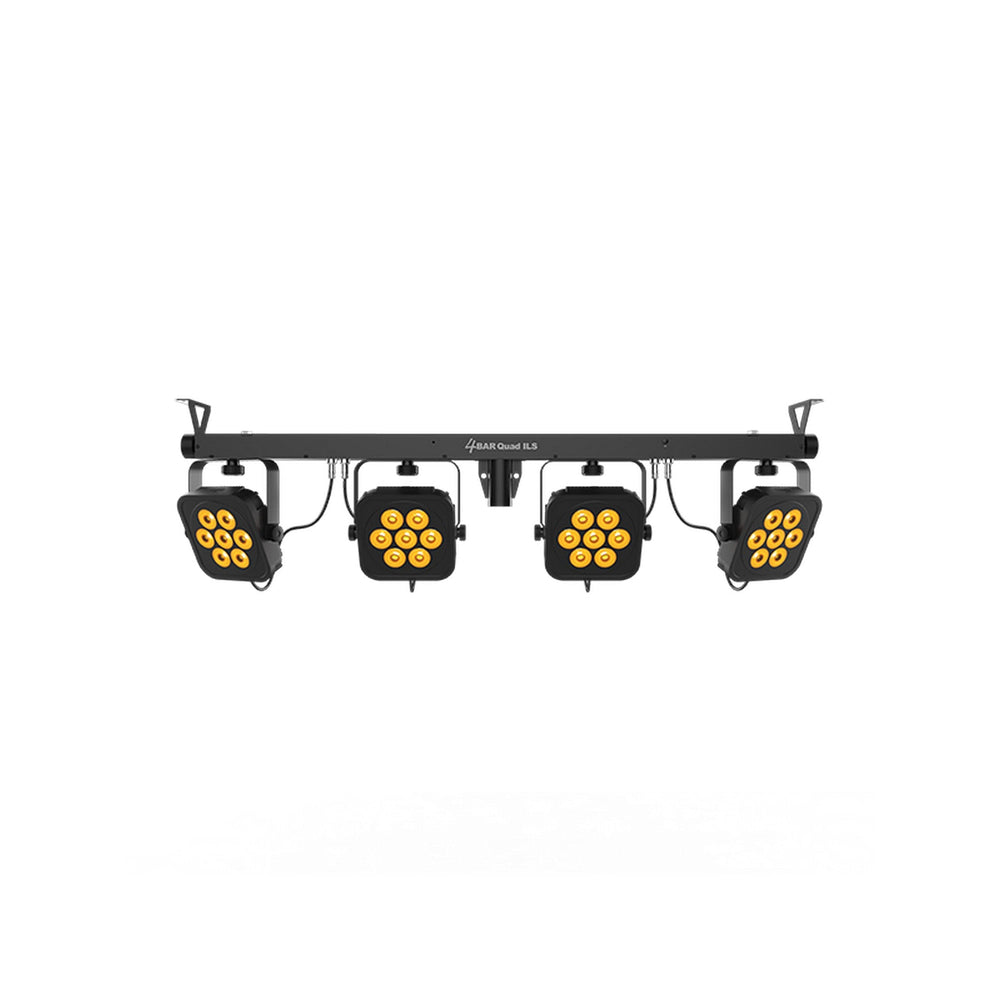

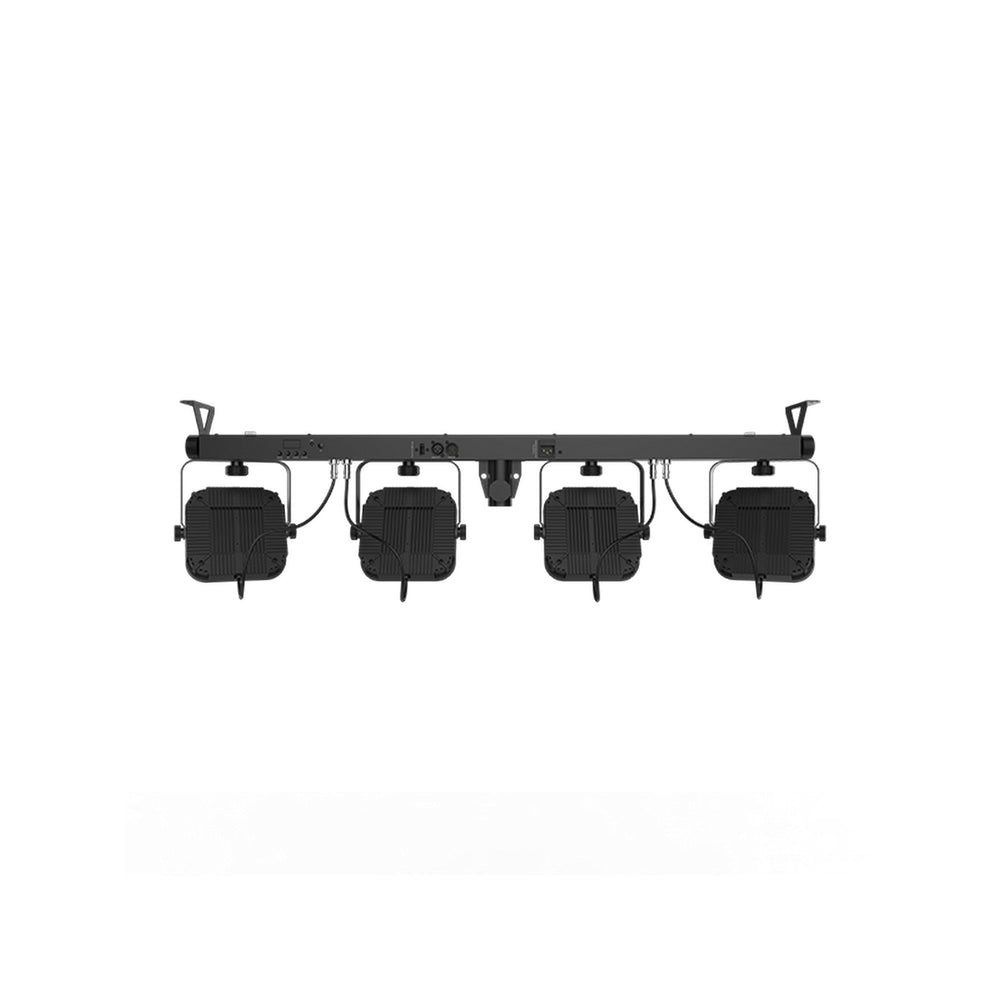

Chauvet DJ 4BAR Quad ILS 4x RGBA LED Wash Light System with Stand
The 4Bar Quad ILS is a comprehensive wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs, offering unparalleled versatility and control right out of the box. With the included wireless footswitch or optional IRC-6 controller, you can effortlessly command your lighting setup. But for truly convenient control, the 4Bar Quad ILS boasts compatibility with ILS, making it simple to create coordinated light shows across different fixture types.
Generate a broad spectrum of colors and achieve natural-looking color temperatures with the punchy amber LEDs. Achieve total area coverage by individually positioning the four adjustable pods, ensuring comprehensive illumination for any space or stage. Furthermore, the 4Bar Quad ILS is compatible with D-Fi USB, enabling wireless Master/Slave or DMX programming for seamless integration into your lighting setup.
Setup and teardown are a breeze with the included tripod stand and carrying bags, allowing you to be up and running in minutes. Additionally, the 4Bar Quad ILS can be safely attached to truss with its built-in bolts, increasing mounting options and flexibility for your lighting design.
Key Features
- Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
- ILS compatibility for use in the ILS ecosystem
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Out of the box wireless control with included footswitch or optional IRC-6 controller

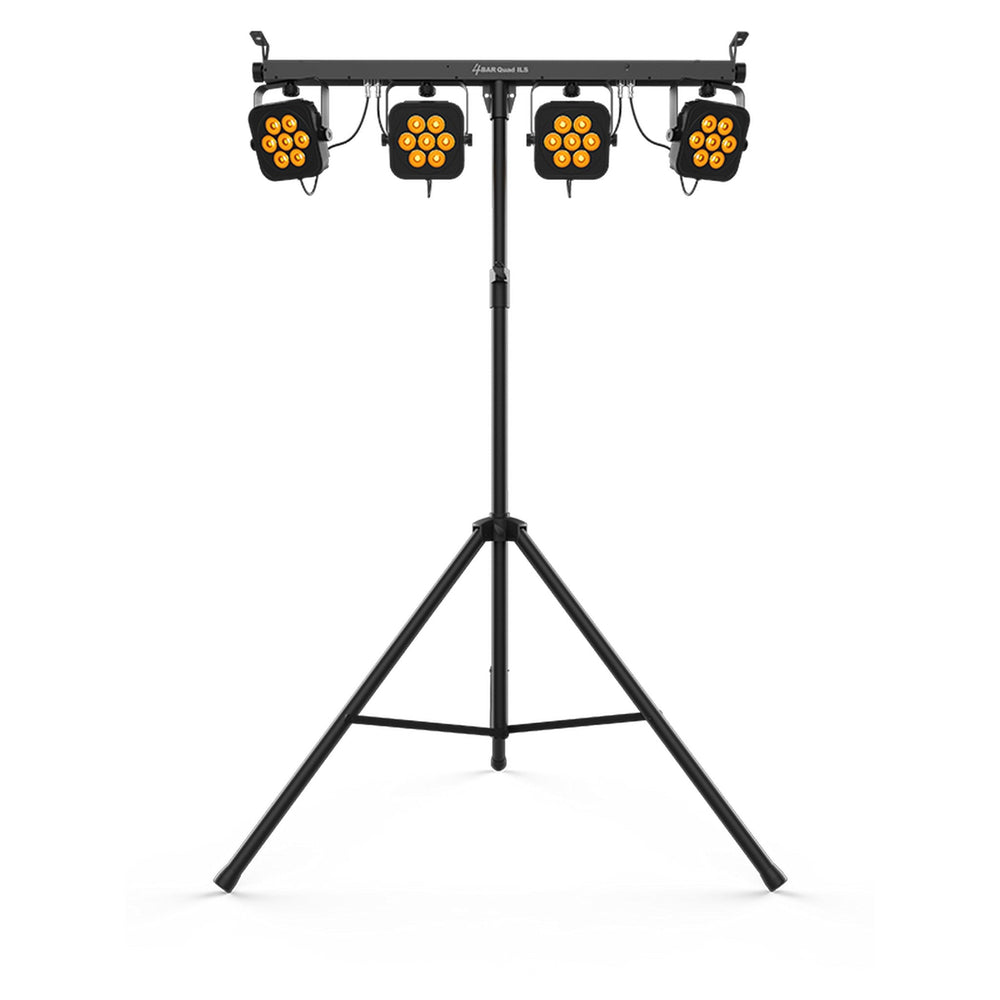

- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts
Product Specifications
DMX Channels: 4, 6 or 19
DMX Connectors: 3-pin XLR
Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 14Ā°
Field Angle: 23Ā°
Illuminance: 2,353 lux @ 2 m (per pod)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz; 78 W, 0.6 A @ 230 V, 50 Hz
Weight: 12.2 lb (5.5 kg)
Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
Approvals: CE, RoHS, UKCA
Operating Frequency (D-Fi): 2.412 to 2.484 GHz
Operating Frequency (foot switch): 433 MHz
Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
Footswitch battery: 9 V
Stand Height: 7 ft 4 in (2.2 m)
Fits Tripod Sizes: 1.5 in (36.80 mm)
Bracket Mounting Hole: M10 (1.5 mm pitch)
Weight (Controller): 1.2 lb (0.6 kg)
Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
Optional Controllers: IRC-6, D-Fi USB

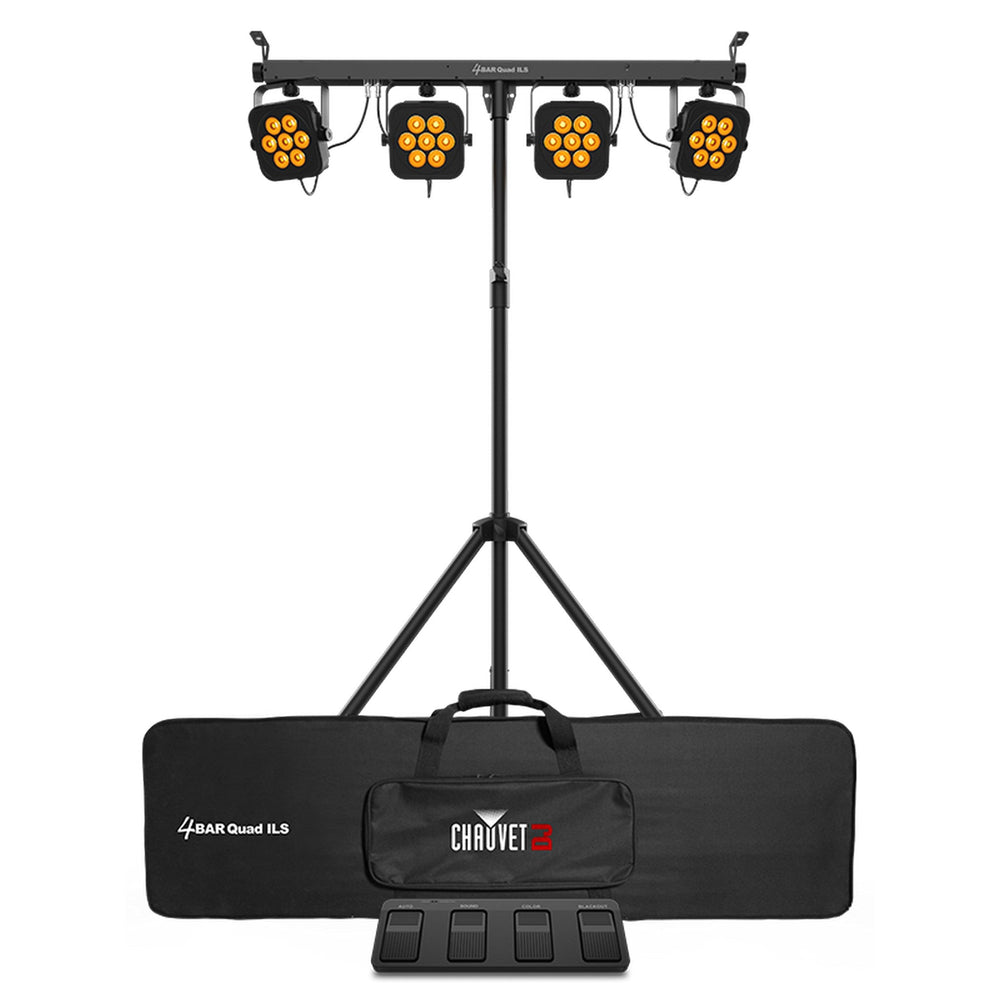

What's Included
- 4Bar Quad ILS
- Power cord
- Carrying bag
- Tripod
- Tripod Carry bag
- Wireless Footswitch
- Quick Reference Guide
