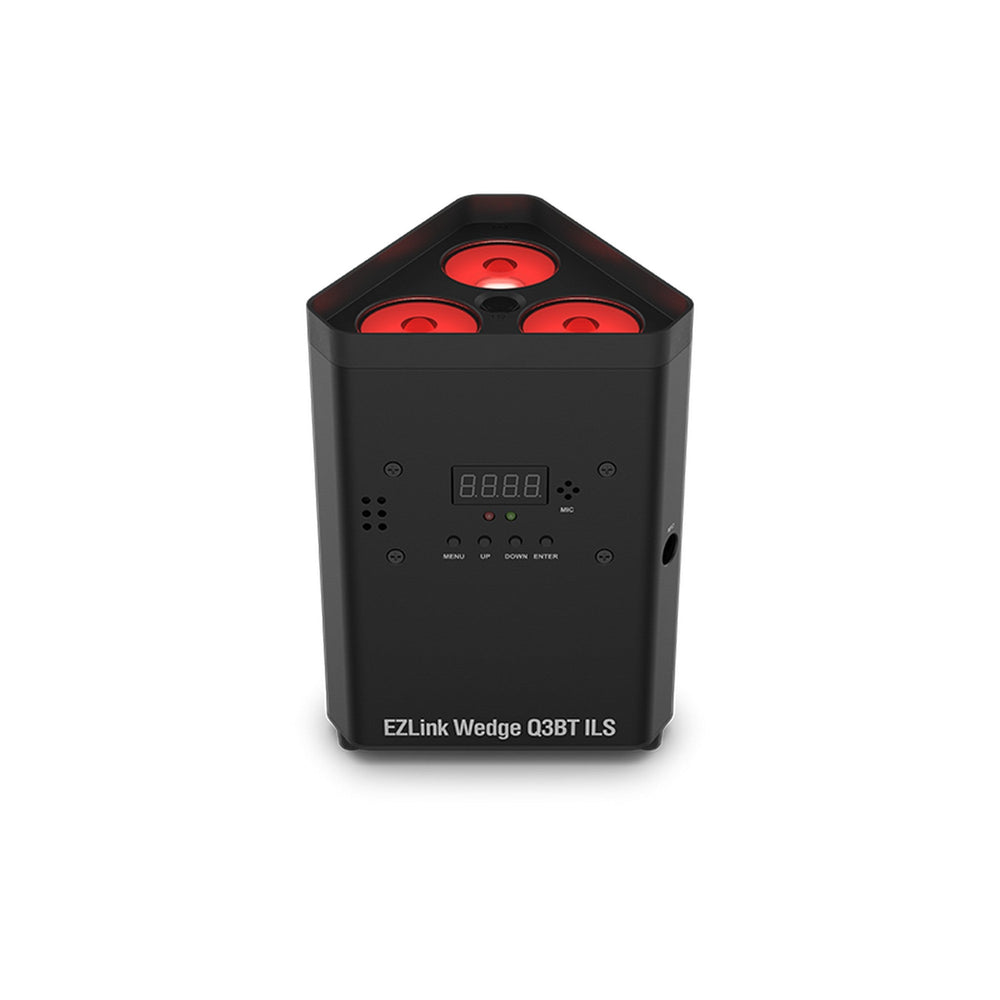

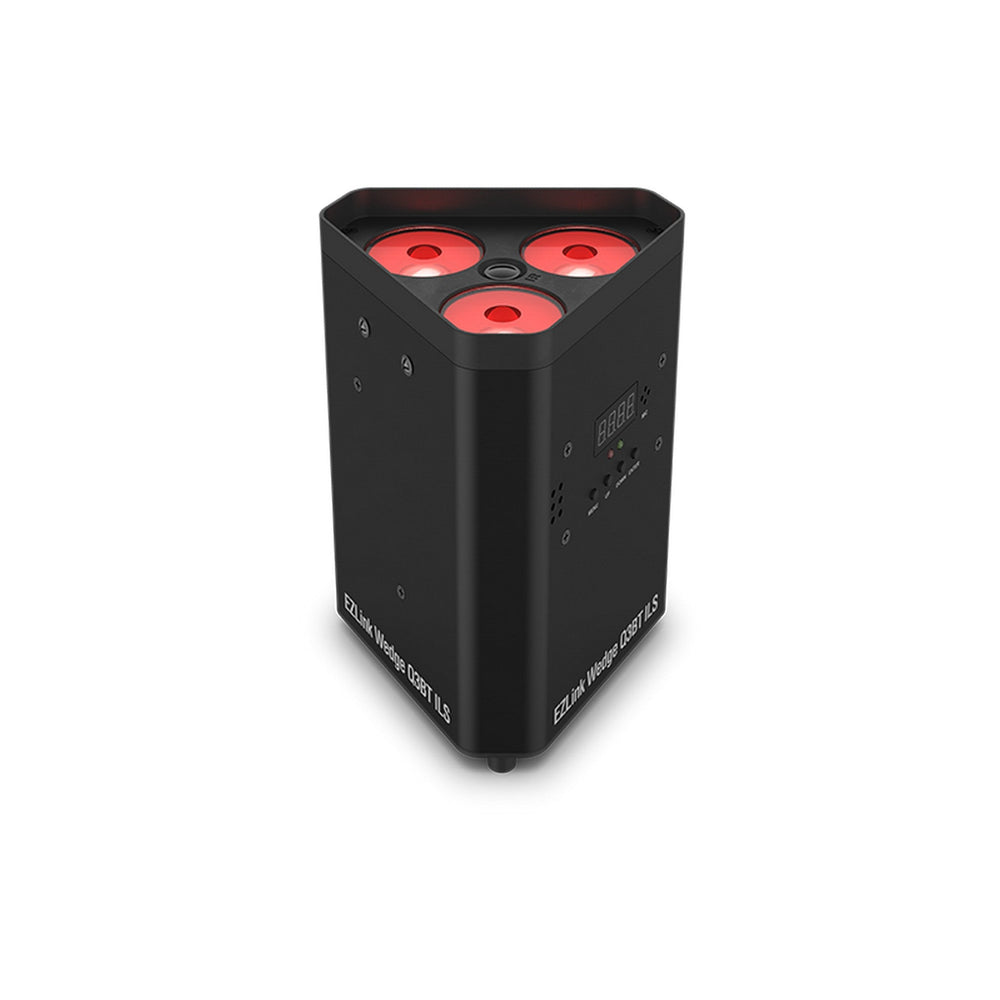

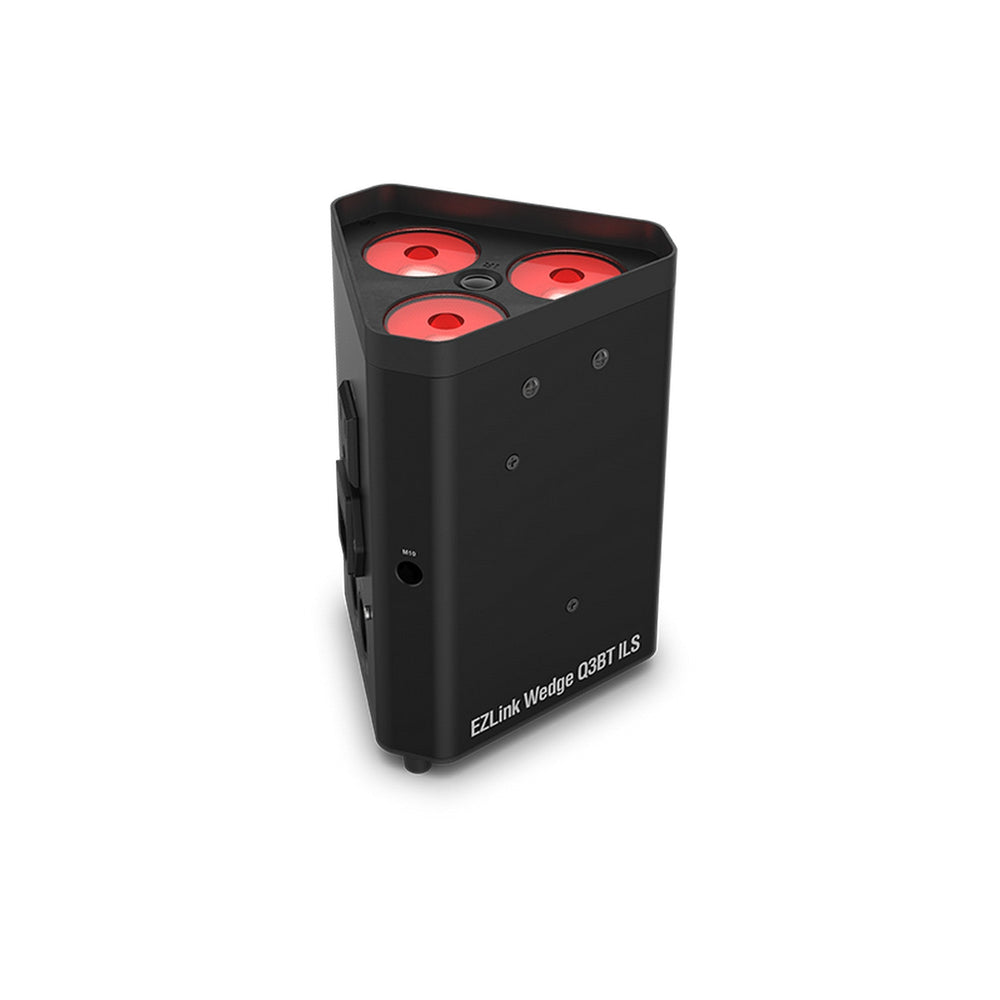

Chauvet DJ EZlink Wedge Q3BT ILS Battery Powered Quad Color Bluetooth RGBA LED Wash Light

The EZLink Wedge Q3BT ILS is a 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light solution. Its wedge-shaped design makes it the ideal fixture for venue corners, Truss Goal Post, and Arch Kit truss systems. Enjoy a wide range of control options including the IRC-6 remote, ILS, Bluetooth, and DMX.

Generate a broad spectrum of colors and achieve natural-looking color temperatures throughout your event thanks to punchy amber LEDs. The EZLink Wedge Q3BT ILS attaches to truss without the need for a bracket, using M10 or M12 threaded rig points, saving you time and effort.

With its versatile control options and compact design, the EZLink Wedge Q3BT ILS is an ideal choice for mobile entertainers and event professionals who value convenience and flexibility.

Key Features

• 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light with built-in Bluetooth wireless technology
• ILS compatibility for use in the ILS ecosystem
• Control directly from a smart phone or tablet without any additional hardware
• Convenient, wireless non-DMX control using the IRC-6 remote
• The wedge-shaped design makes it fit perfectly inside TRUSST Goal Post and Arch Kit truss systems
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Attaches to truss without the need for a bracket, using M10 or M12 threaded rig points
• Save time running cables and extension cords by power linking multiple units

Product Specifications

DMX Channels: 4 or 8

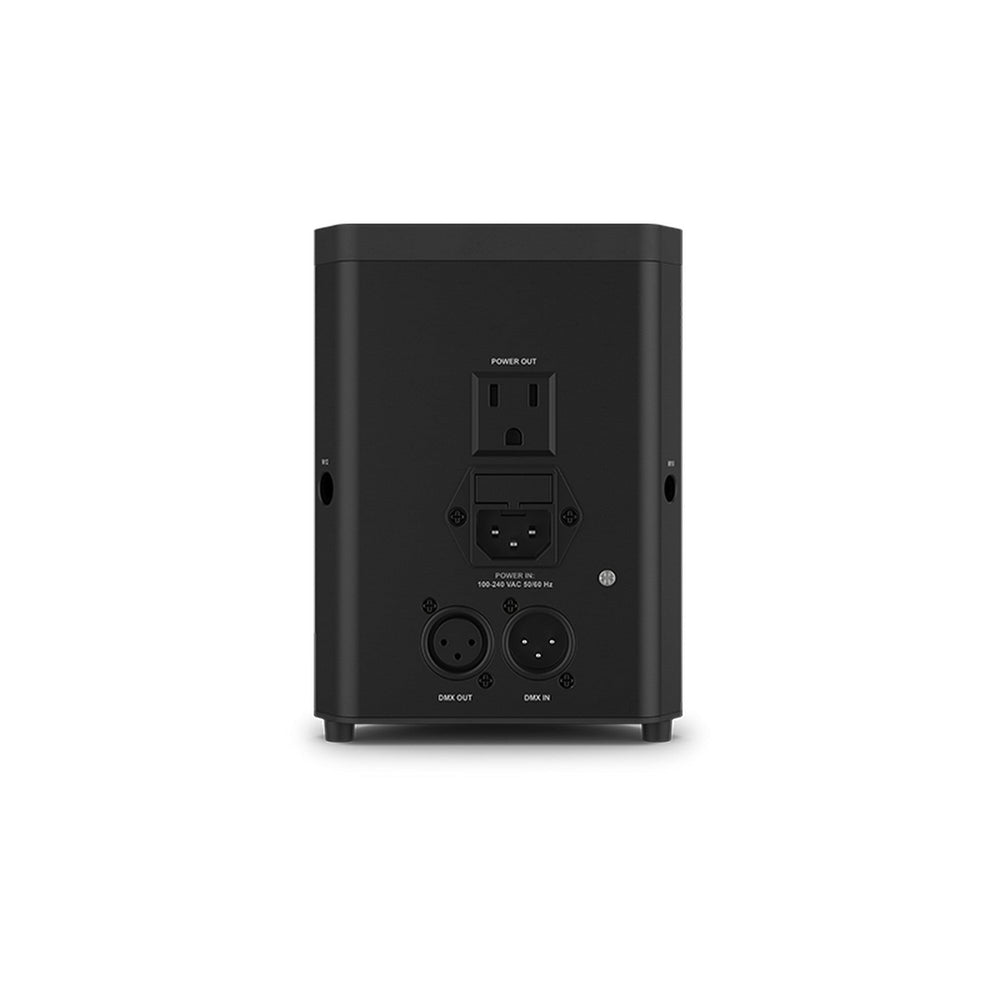

DMX Connectors: 3-Pin XLR

Light Source: 3 LEDs (quad-color RGBA) 5 W, (1.4 A), 50,000 hours life expectancy

Strobe Rate: 0 to 20 Hz

Beam Angle: 13°

Field Angle: 25°

Recharge Time: 5 hours

Illuminance: 1,400 lux @ 2 m

Power Linking: 16 units @ 120 V; 23 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Weight: 2 lb (0.9 kg)

Size: 4.3 x 4.3 x 6.8 in (109 x 109 x 171 mm)

Approvals: CE, RoHS, UKCA, FC

Optional Controllers: IRC-6

Maximum Run Time (all on): up to 9 hours

Maximum Run Time (single color): up to 20 hours

Power and Current: 30 W, 0.5 A @ 120 V, 60 Hz; 28 W, 0.3 A @ 230 V, 50 Hz

Bracket Mounting Hole: 13 mm

What's Included

• EZLink Wedge Q3BT ILS
• Power cord
• Quick Reference Guide
