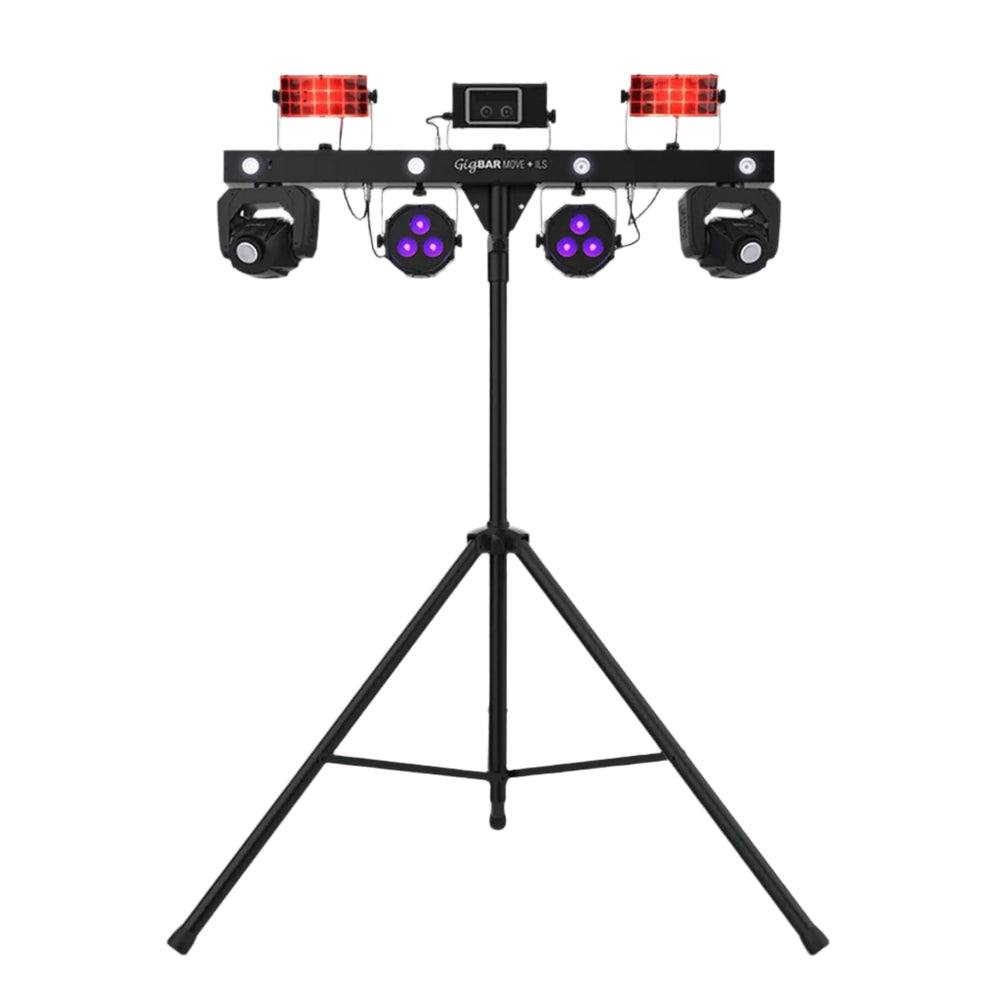

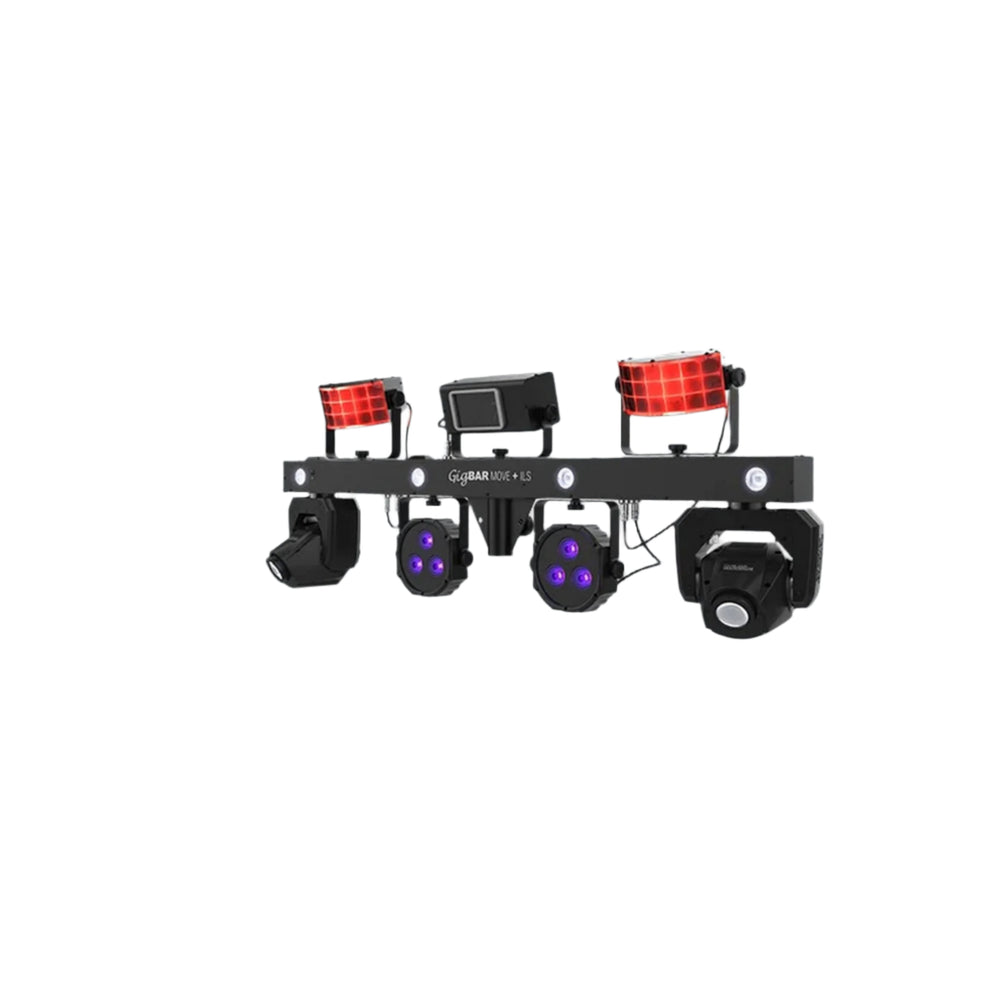

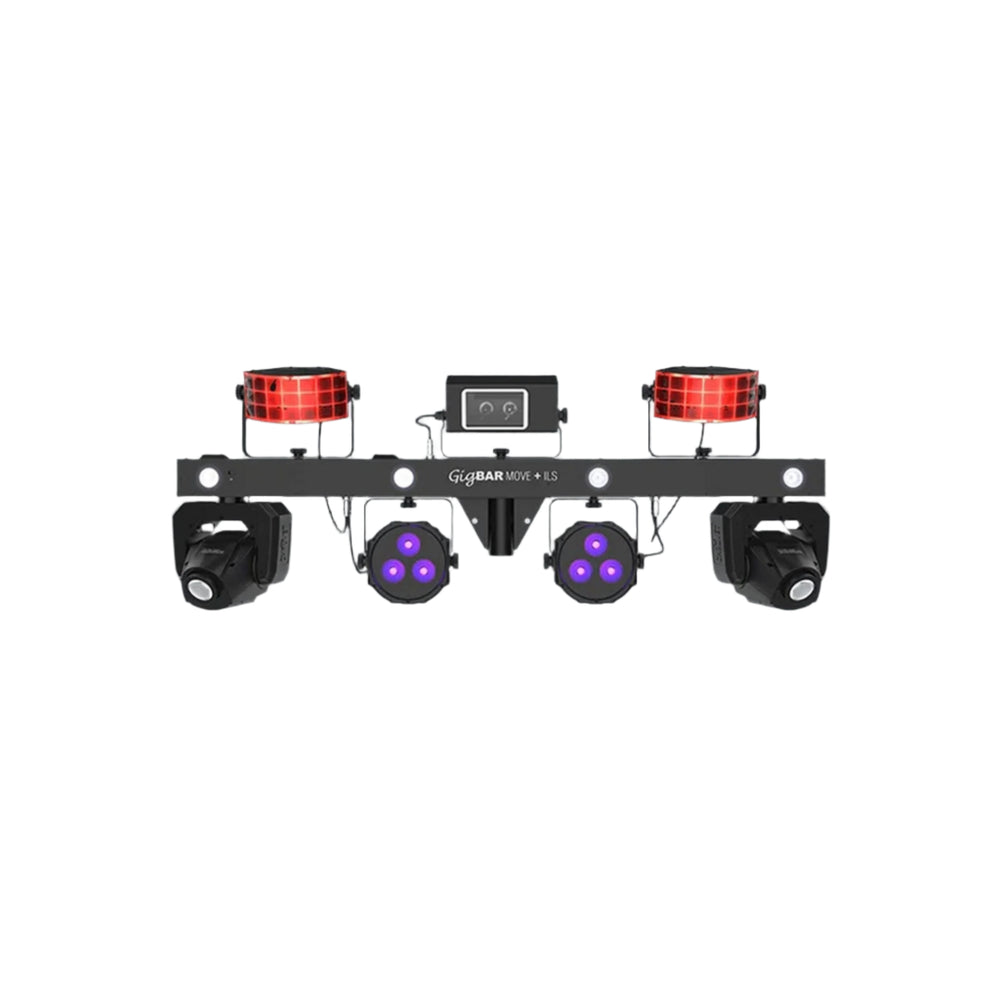

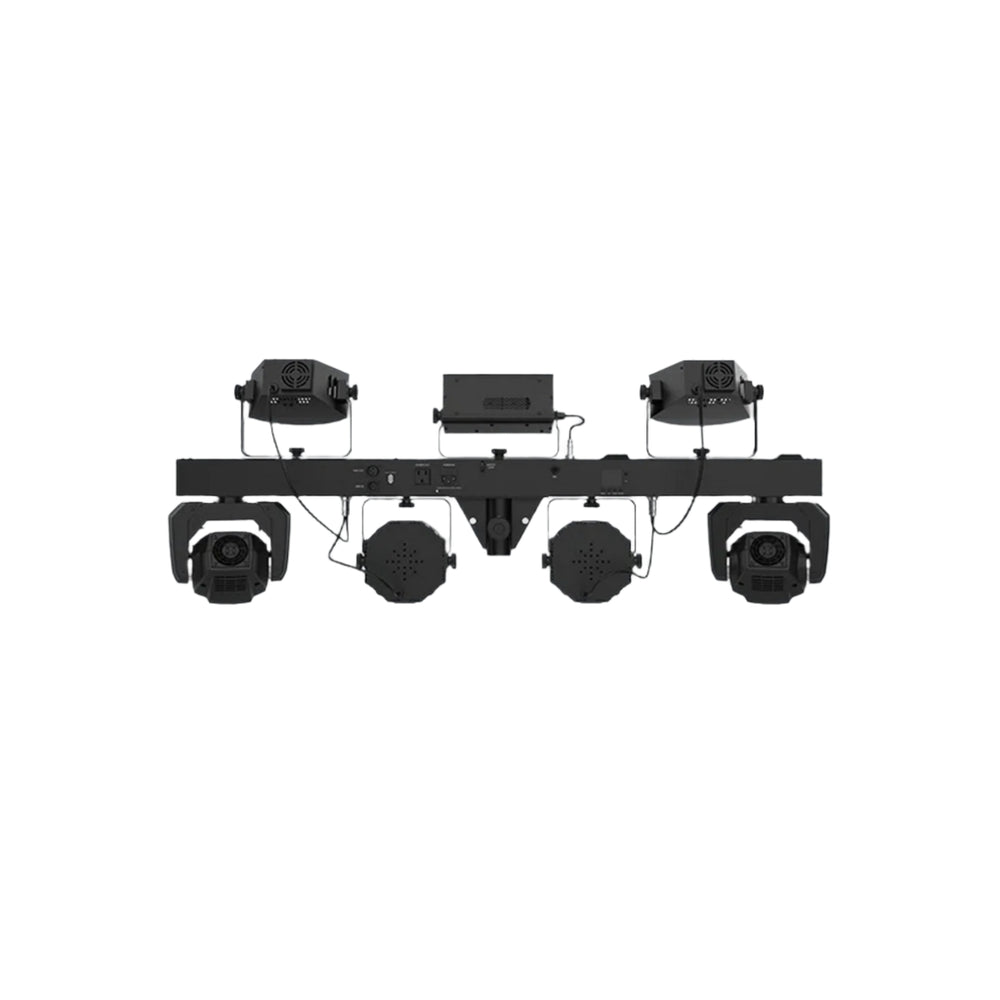

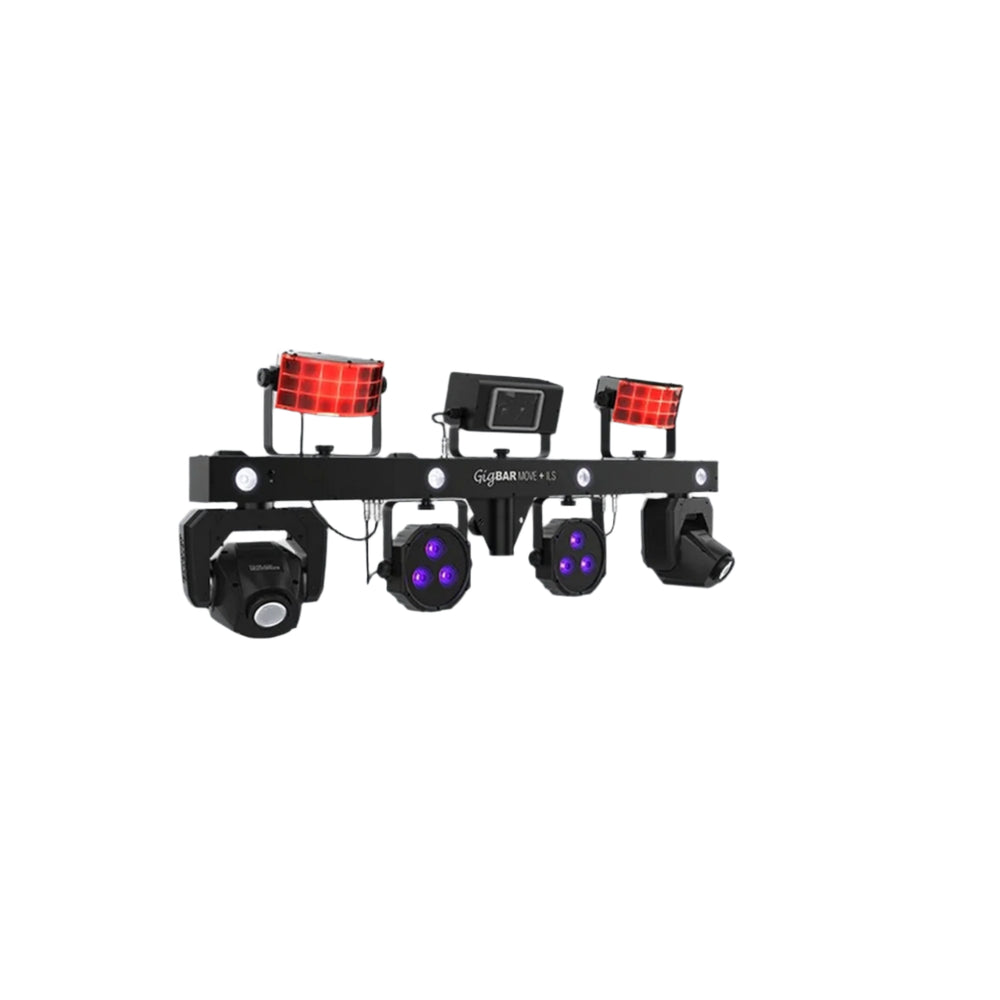

Chauvet DJ GigBAR Move + ILS 5-In-1 LED Lighting System with Strobes, Moving Heads, Washes

The future of easy lighting synchronization is here with GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects.

GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch.

The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup. Experience the future of lighting synchronization with this all-in-one solution that combines cutting-edge technology with unparalleled convenience.

Key Features:

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all moving head functions directly from the full-color LCD display
• Safely mounts to truss or ceilings using the 3/8 in threaded inserts
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Product Specifications:

DMX Channels: 3, 29, or 51

DMX Connectors: 3-pin XLR

Pan and Tilt: 540°/180°

Colors: (moving head): 9 + open, split colors, continuous scroll at variable speeds

Gobos: (moving head): 9 + open, continuous scroll at variable speeds

Light Source:
(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode

Strobe Rate: 0 to 30 Hz

Beam Angle:
(moving head): 17°
(pars): 22°
(strobe): 30°

Field Angle:
(pars): 33°
(strobe): 62°

Coverage Angle:
(derby): 131°
(laser): 93°

Fits Tripod Size: 1.5 in (37.4 mm)

Illuminance:
(pars): 1,205 lux @ 2 m (per par)
(moving head): 5,140 lux @ 2 m (per head)
(strobe): 130 lux @ 2 m

Power Linking: 7 units @ 120 V; 12 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:
250 W, 3 A @ 120 V, 60 Hz
248 W, 1.8 A @ 230 V, 50 Hz

Weight: (bar only) 31 lbs (14 kg)

Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)

Approvals: CE, UKCA, RoHS, FCC, FDA

Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)

Footswitch Operating Frequency: 433 MHz

Footswitch Max Unobstructed Distance: 100 ft (30.5 m)

Max Unobstructed Distance (D-Fi): 600 ft (183 m)

Footswitch Battery: 9 V alkaline

Included Controllers: RF remote, wireless footswitch

Cable Length: 10 ft (3 m)

Tripod Thickness: 1.37 in (35 mm)

Optional Controllers: RF

RF Remote Battery: 23A, 12 V alkaline

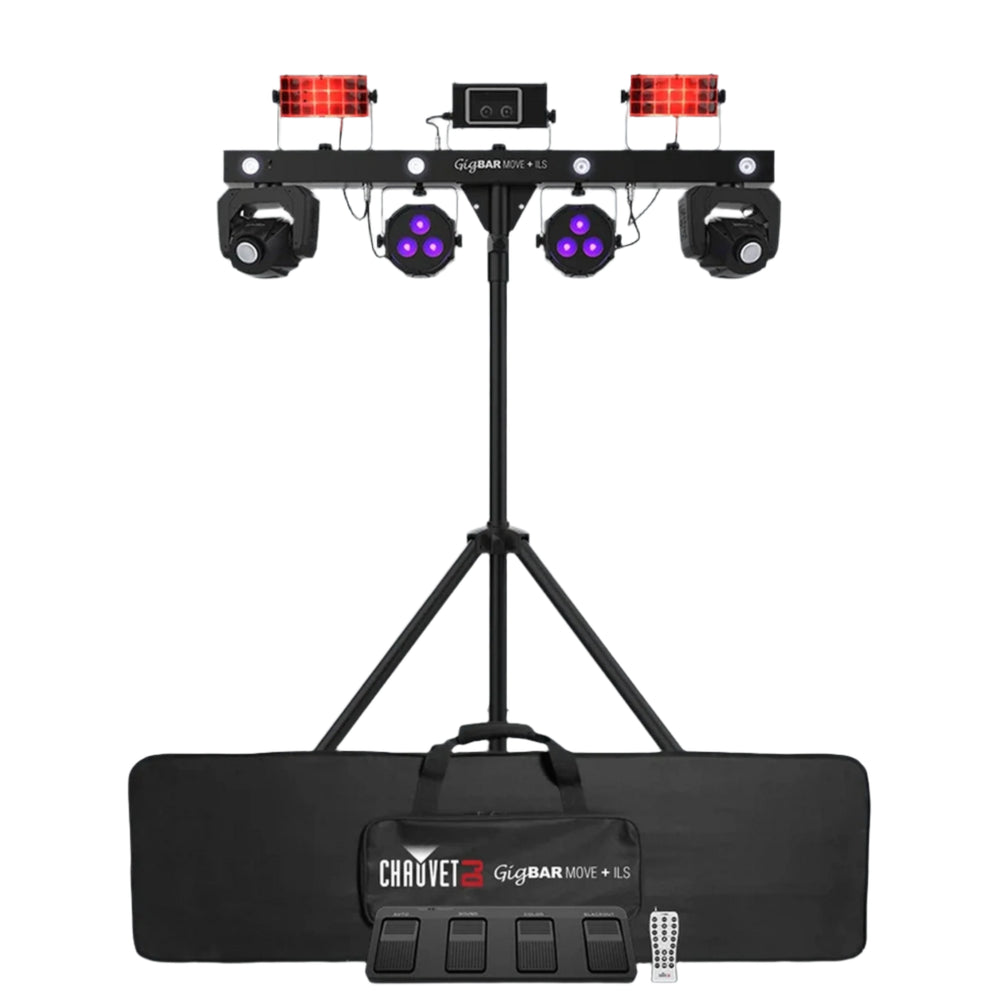

What's Included:

• GigBar Move Plus ILS
• Power cord
• RF Remote
• Carry bag
• Tripod
• Tripod carry bag
• Footswitch
• User Manual
