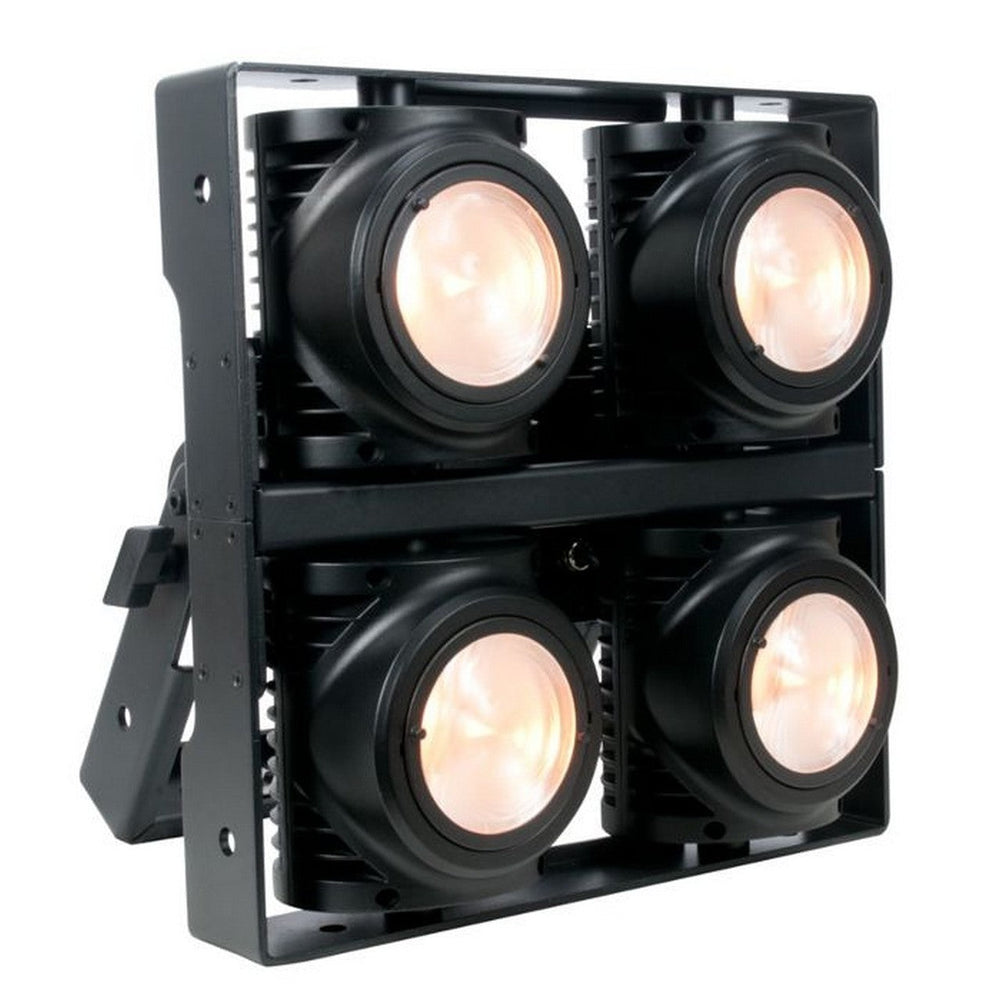

Elation DTW Blinder 700 IP LED Fixture
The IP65 rated DTW Blinder 700 IP features (4) high powered 175W 2-in-1 Warm White/Amber COB LEDs, a wide 67° beam angle, full color temperature range control plus independent Dim-to-Warm channel control (1,800K - 3,200K), easily attachable 15 deg narrow beam filters (included), pixel control, manual adjustable pan focus, variable dimming curve modes, strobe effects, flicker free operation for TV and Film, RDM (Remote Device Management), IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, integrated yoke and side mounting brackets, and a multi-voltage universal auto switching power supply (100-250v).
Key Features
- IP65 Rated
- Pixel Control
- 67 deg Wide Beam Angle
- 15 deg Narrow Beam Filters (included)
- Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
- RDM (Remote Device Management)
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Technical Specifications
SOURCE
(4) 175W 2-in-1 Warm White/Amber COB LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,719 LUX 717 FC (15 deg @ 9.8 ft / 3m w/Fresnel lens)
1,104 LUX 94 FC (67 deg @ 9.8 ft / 3m w/No Fresnel lens)
EFFECTS
Pixel Control
15 deg Narrow Beam Angle with included Fresnel Lens
67 deg Wide Beam Angle with Fresnel Lens Removed
Unique Dim-to-Warm Channel Control (1,800K - 3,200K)
Independent Dimming of Each COB LED Module
Electronic Strobe and Variable Dimming Curves
COLOR
Warm White / Amber
CONTROL / CONNECTIONS
(9) DMX Channel Modes (13 Total Channels)
RDM (Remote Device Management)
4 Button Control Panel and LCD Menu Display
IP Rated 5pin DMX In/Out
powerCON TRUE1 In/Out
SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 9.5" (241mm)
Horizontal Height: 16.1" (410mm)
Weight: 28.0 lbs. (12.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
680W Max Power Consumption
Multiple Unit Power Linking
5 deg F to 113 deg F (-15 deg C to 45 deg C)
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ACCESSORIES
(1) Power Cable
(4) 15 deg Narrow Beam Filters
