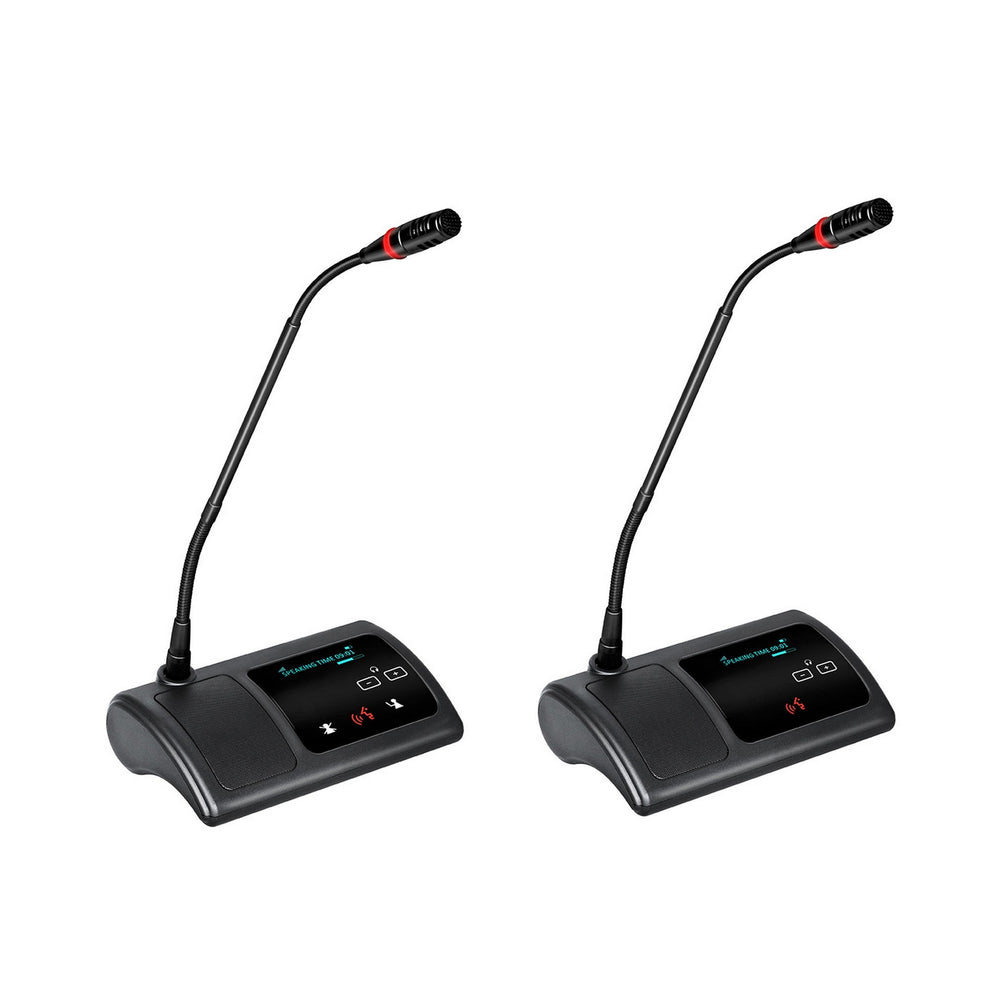

EWDC-T Chairman Unit and EWDD-T Delegate Unit - Premium Wireless Microphones

The EWDC-T Chairman unit and EWDD-T Delegate unit represent the pinnacle of advanced wireless microphone technology designed for professional conference environments. Both models are engineered to deliver exceptional audio performance, ease of use, and seamless integration into any meeting setup. These high-quality units are essential for ensuring clear and reliable communication during important discussions and meetings.

Featuring state-of-the-art wireless technology, the EWDC-T Chairman unit and EWDD-T Delegate unit offer superior sound clarity and robust connectivity. The EWDC-T Chairman unit is specifically designed for use by the chairman or leader of the meeting, providing additional control features to manage and moderate the conference effectively, such as a priority button and consent button for the delegates. On the other hand, the EWDD-T Delegate unit is tailored for use by other participants, offering intuitive operation and reliable performance for a smooth and uninterrupted conference experience.

Both units share several key features that enhance their functionality, including wireless connectivity, high-quality microphone performance, and user-friendly controls. However, they also have distinct features tailored to their specific roles in the conference setting. The EWDC-T Chairman unit includes advanced control options for chairpersons, such as the ability to mute other microphones and manage speaking turns, while the EWDD-T Delegate unit focuses on delivering clear audio and ease of use for general participants.

Key Features

• Advanced wireless technology for reliable performance
• High-quality microphone for clear audio transmission
• Intuitive controls for ease of use
• Seamless integration with conference systems
• Robust build quality for durability in professional settings
• OLED display for clear visual feedback
• Touch-sensitive interface for easy operation

Technical Specifications

Dimensions
7.68" x 4.72" x 2.36"
Weight
1.10 lbs (with microphone)
Frequency Response
20 Hz - 20 kHz
Wireless Range
Up to 98.4 ft
Power Supply
DC 5V
Interfaces
Pluggable gooseneck microphone base
2x 3.5mm stereo headphone jack
1x 3.5mm stereo input jack
Contactor for battery pack
DC Connector for power adaptor
Technical Parameters
Button: Touchable interface
Sound Pickup: Heart type capacitance
Display: OLED display 128 × 32
Sensitivity: -46 dBV / Pa
Maximum power consumption: 2.0W
Directivity: 0 ° / 180 °> 20 dB (1 kHz)
Headphone load: 16Ω
Headphone volume: 10mW
Headphone jack: 3.5mm stereo
Input impedance: 2kΩ
SNR: 70dB
Frequency response: 20 ~ 20000Hz
Equivalent noise: 20dBA (SPL)
Main material: ABS
Operating temperature: 0 °C to +55 °C
Color: Black
Maximum sound pressure: 125dB (THD <3%)
