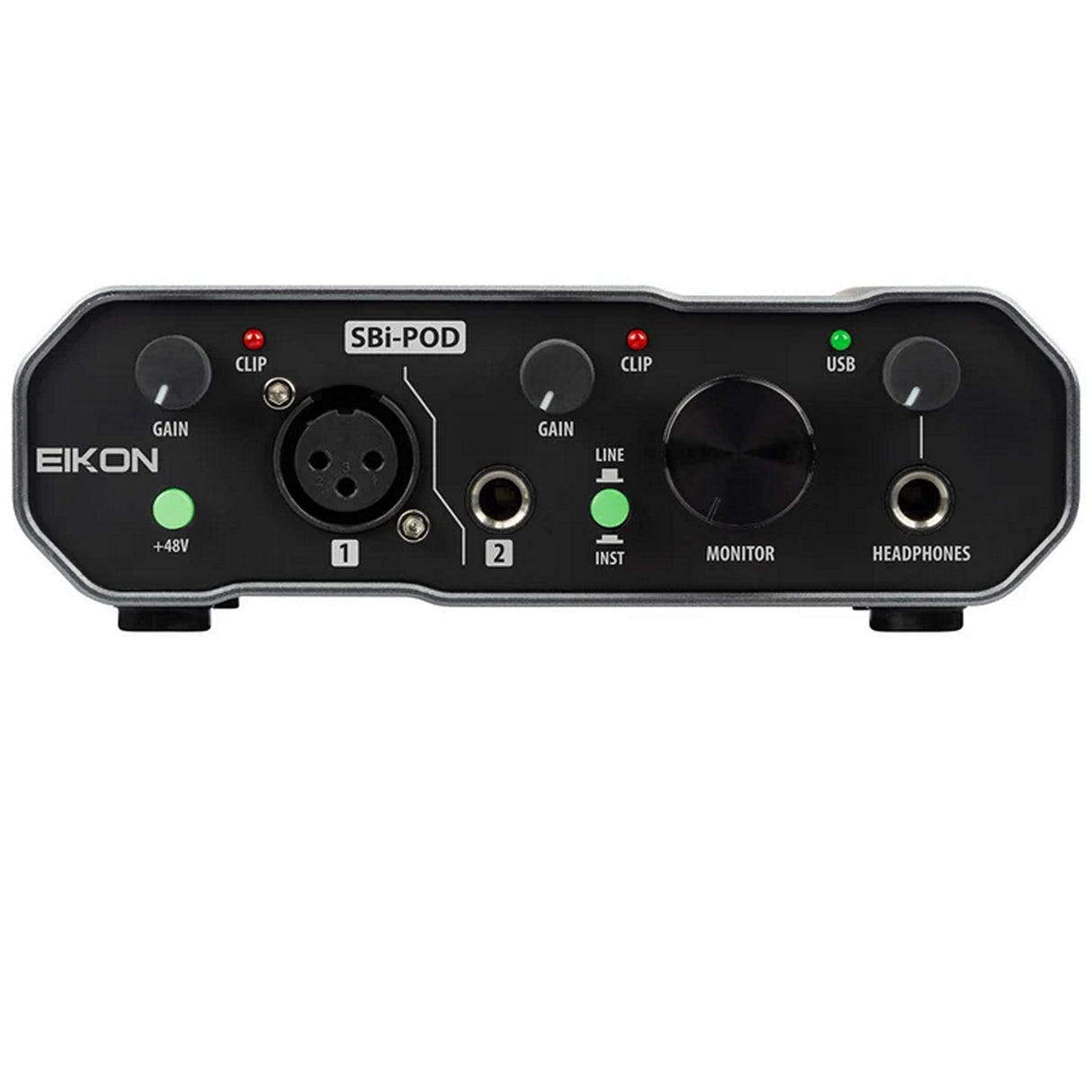

EIKON EKSBIPOD 2 x 2 USB 192KHz Audio Interface
SBi-POD is an USB audio interface designed to offer studio quality for home or mobile recording, live stream or podcasting. Utilizing high-grade components, premium circuitry and a compact and rugged design, it provides a full set of features and top performances for musicians, songwriters content creators and podcasters.
Key Features
- One XLR input and one TRS inputs with HI-Z switch for recording vocals and instrument together
- High-definition MIC preamp with extended dynamic range and 48V phantom power
- 2-in + 2-out high-resolution 24-bit/192KHz USB2.0 interface for a flawless audio quality
- Zero-latency DIRECT MONITORING with STEREO/MONO selector
- Analog outputs for connecting studio monitors
- Headphones output with separate level control
- Minijack AUX input/output for recording or podcasting applications directly on tablet or smartphone
- REC SOURCE selector
- USB bus powered for easy mobile recording (Type-B and Type-C connectors)
- Rugged, road-proof aluminum chassis for maximum protection
Technical Specifications
Type
XLR female, balanced
Frequency Response (Ā±3.0 dB)
10 Hz to 22 kHz
Input Impedance (Balanced)
1,32 kĪ©
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)
< 0.005%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)
> 94 dB
Common Mode Rejection Ratio (1 kHz, 40 dB Gain)
> 65 dB
Gain Control Range (Ā± 1 dB)
0 dB to 40 dB
Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N)
+0 dBu
Phantom Power (Ā±2 VDC)
+48 VDC
Line Input
Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N)
+14 dBu
Type
JACK 1/4" TRS female, balanced
Input Impedance
15 kĪ©
Instrument Input
Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N)
+14 dBu
Type
JACK 1/4" TS female, unbalanced
Input Impedance
1 MĪ©
Line Outputs
Type
JACK 1/4" TRS female, balanced
Output Impedance
600Ī©
Headphone Output
Type
JACK 1/4" TRS active stereo
Maximum Output
50 mW/ch. @ 32Ī© Load
Frequency Response (Ā±1.0 dB)
10 Hz - 25 kHz
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate)
107 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate)
108 dB
Bit Depth
16 / 24 /32
Reference Level for 0 dBFS
+14 dBu
Internal Sample Frequency Selections (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Power
USB bus-powered
Height
52 mm (2.05")
Depth
106 mm (4.17")
Width
160 mm (6.30")
Weight
0.53 kg (1.17 lbs)
