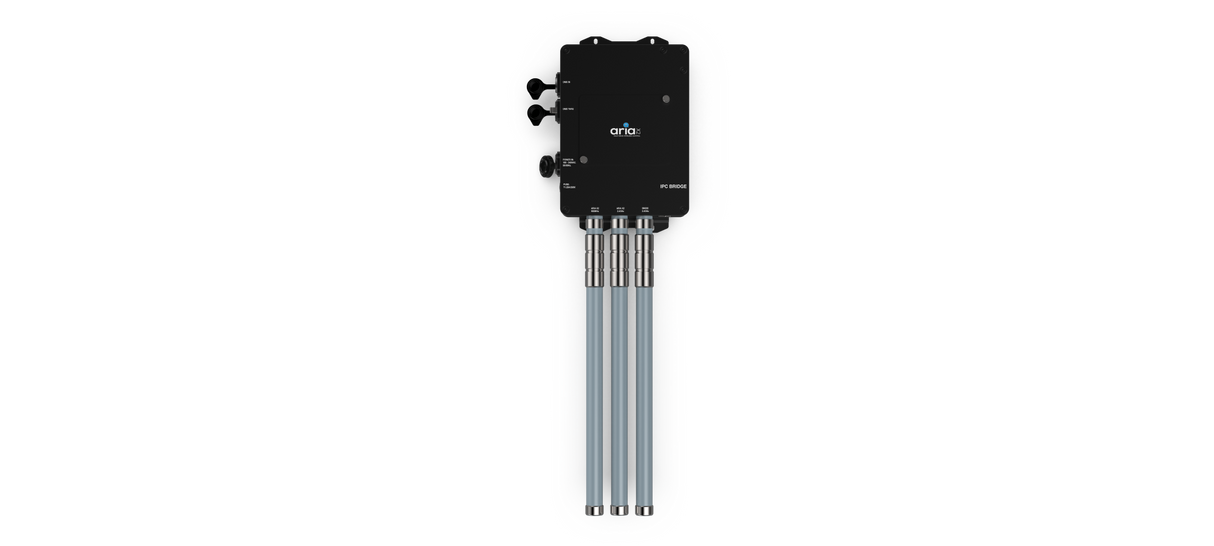

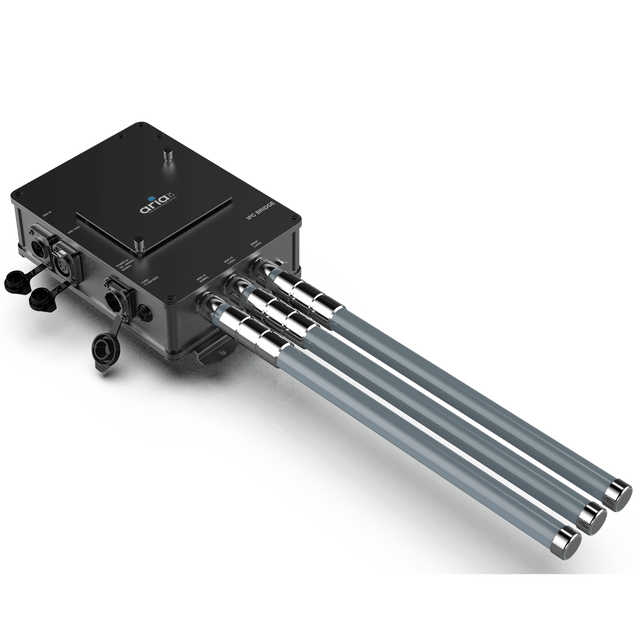

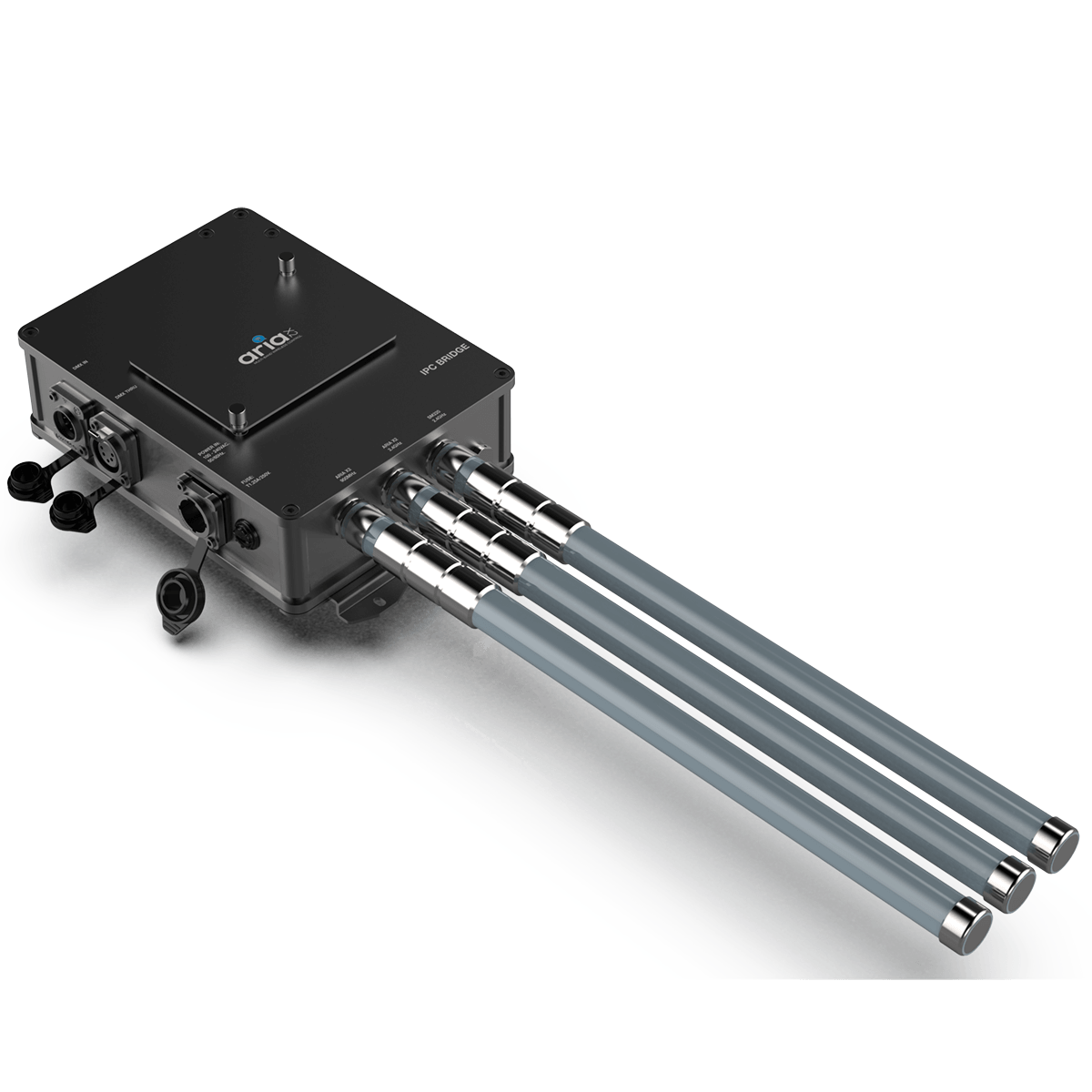

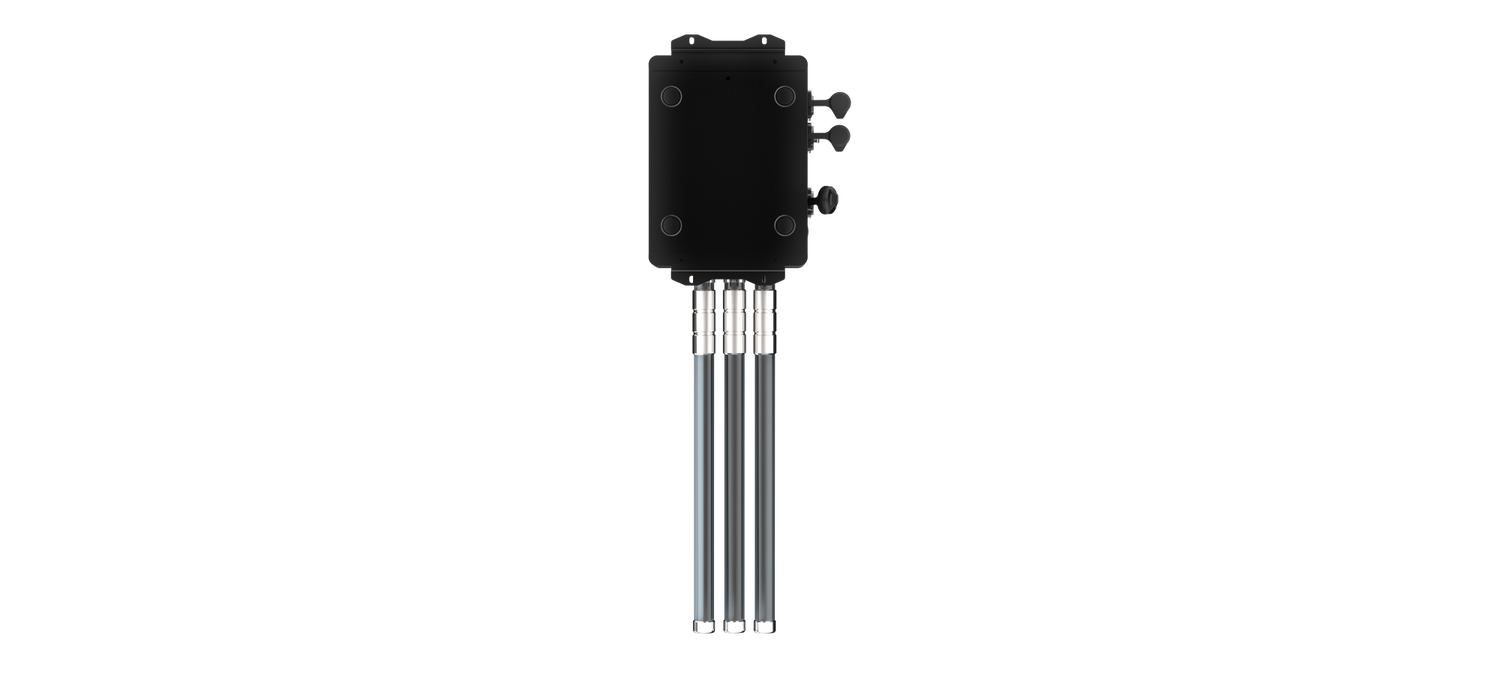

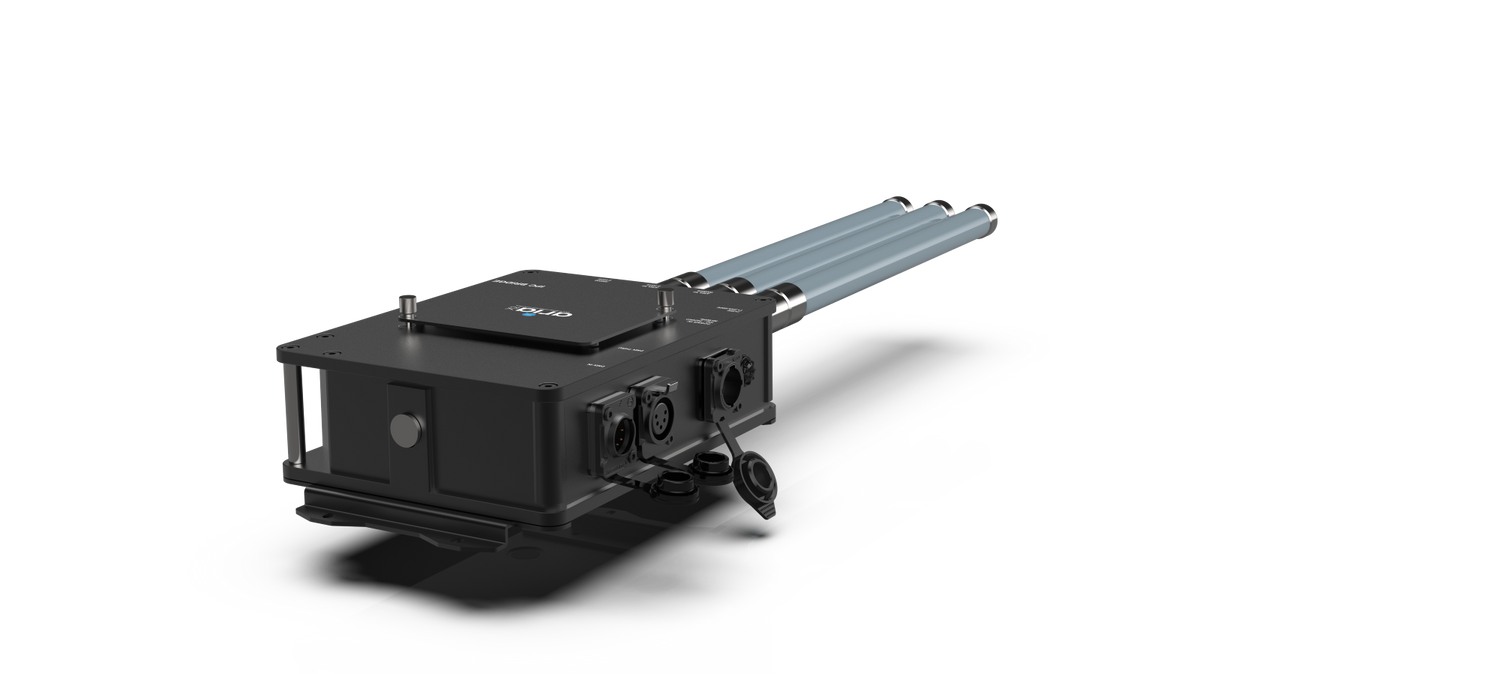

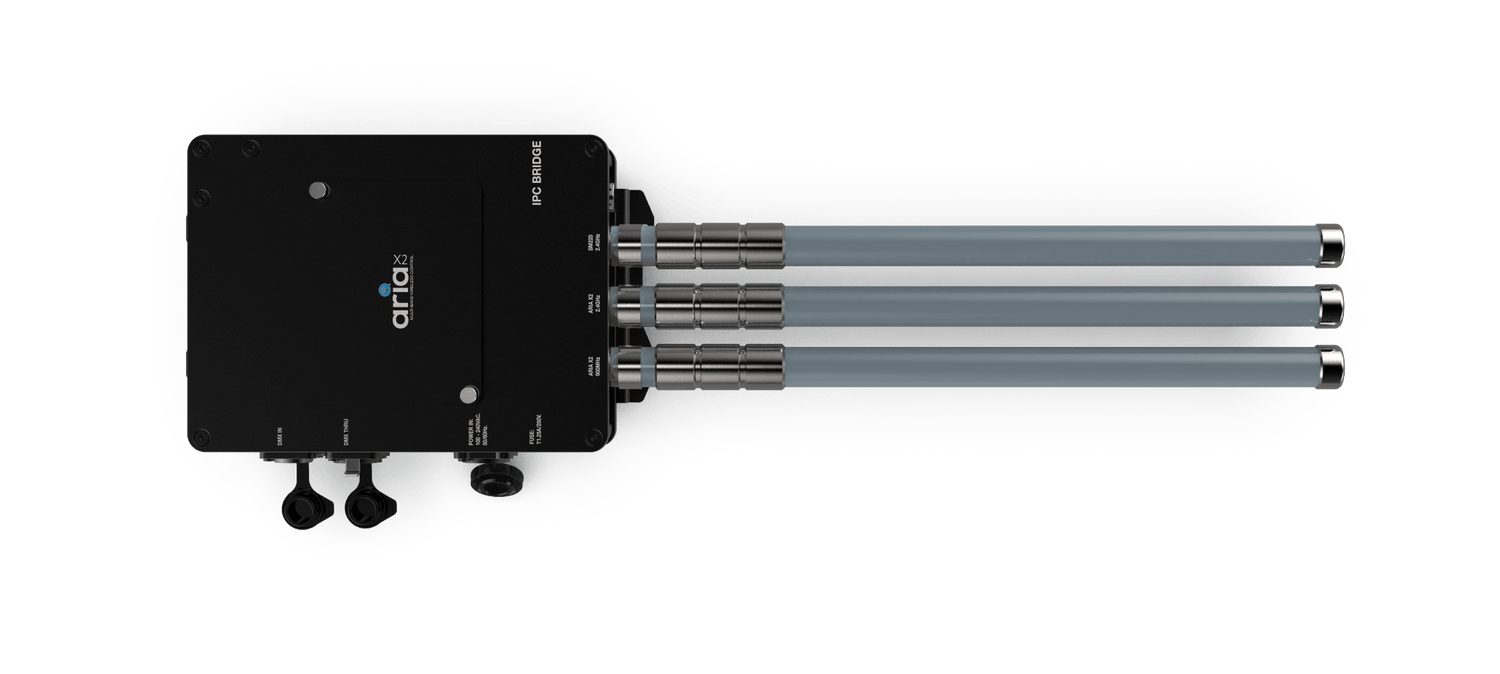

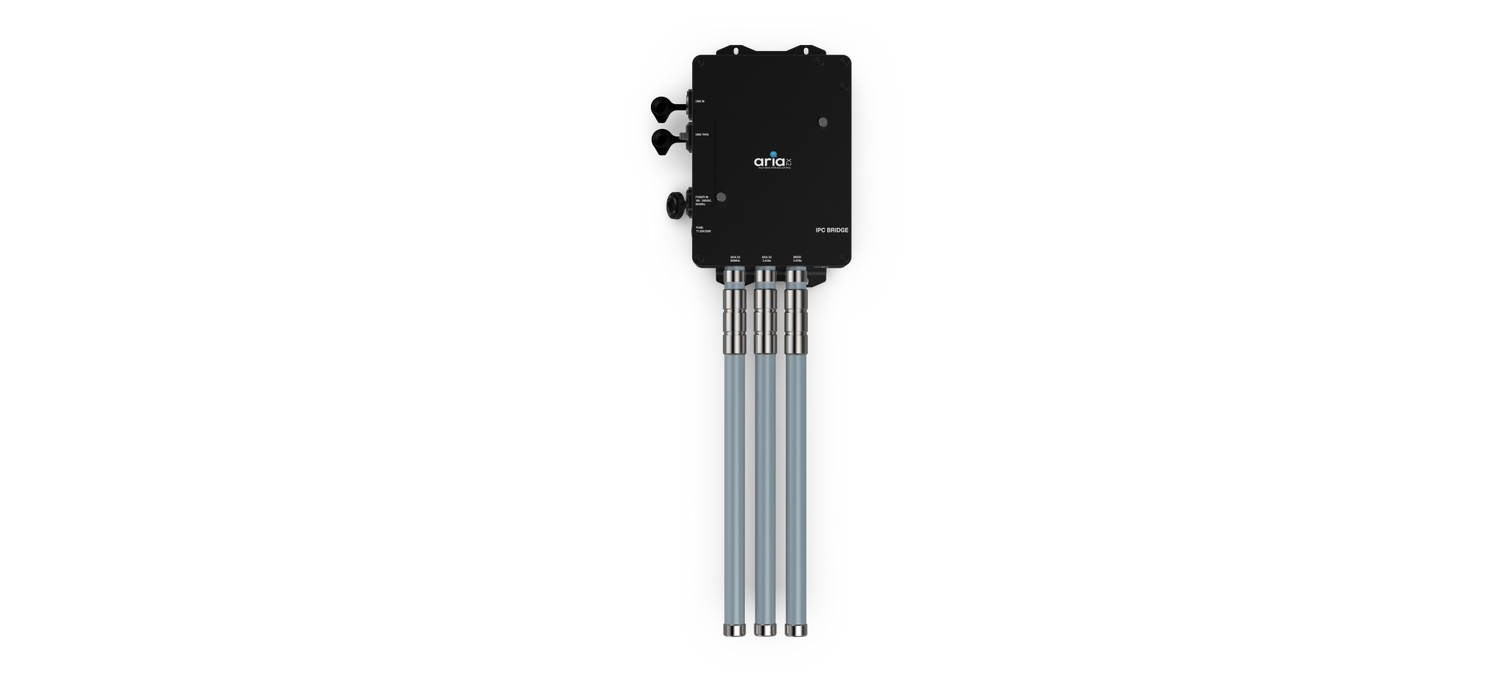

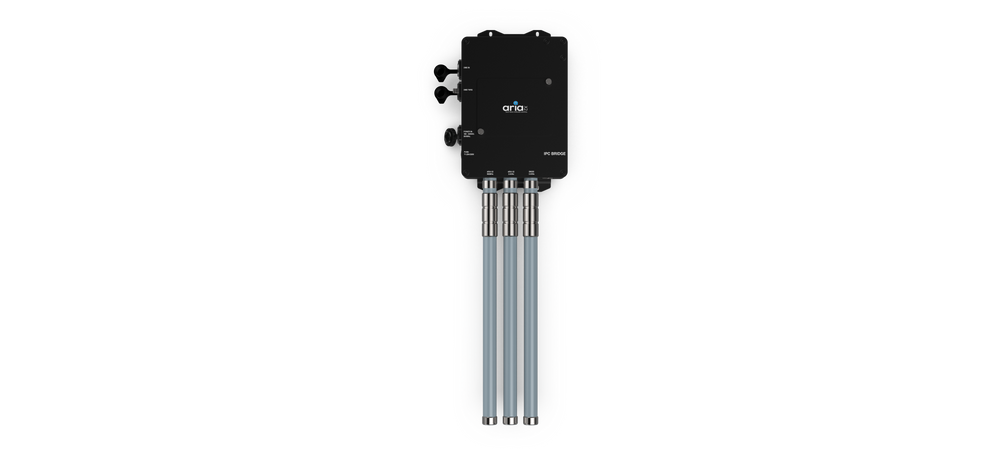

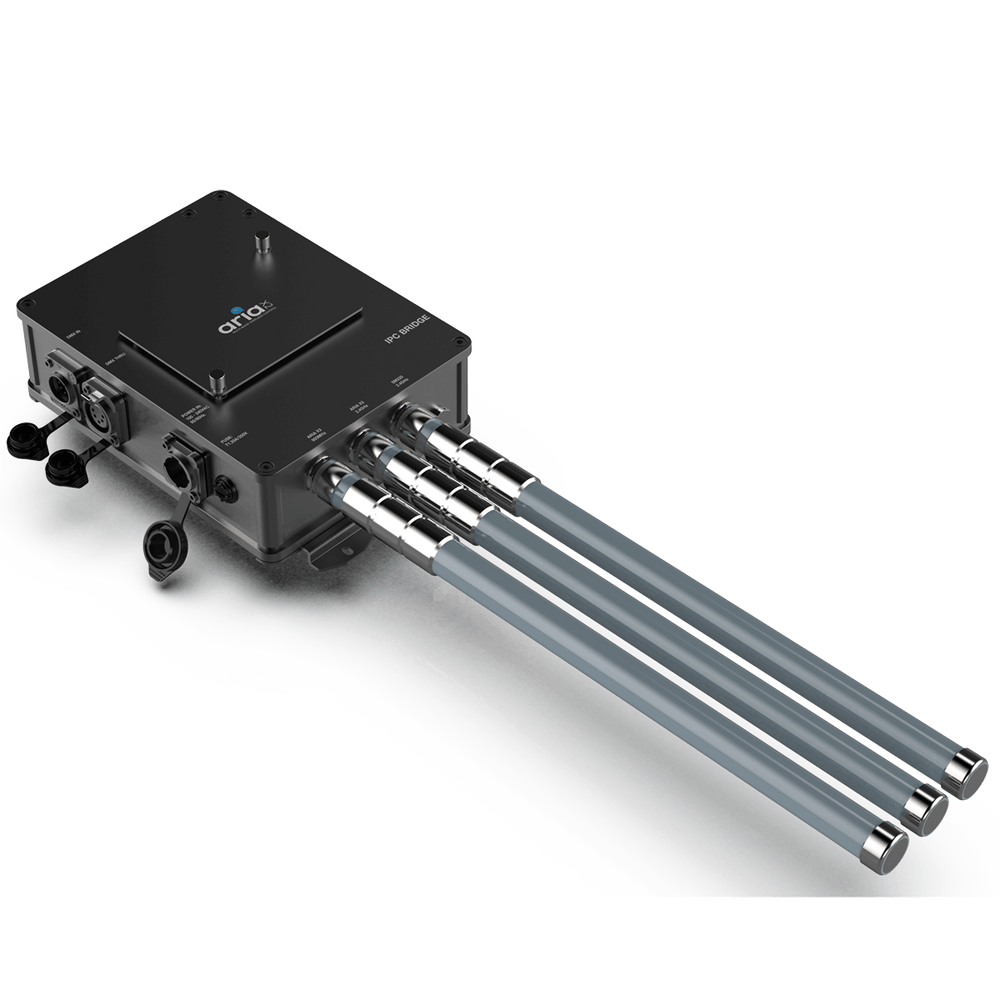

Elation Aria X2 IPC Bridge Wireless Lighting Control Interface
The Elation Aria X2 IPC Bridge is a professional-grade wireless lighting control interface designed for demanding stage, shop, and outdoor environments. It provides seamless bridging between wireless Aria X2 systems and traditional DMX fixtures with rugged IP65 housing and robust connectivity.
Boasting a single DMX universe and multi-band radio operation, this bridge supports Wi‑Fi, Bluetooth 5.2, and proprietary 802.15.4 mesh protocols. It features flexible configuration through front panel or app, Over‑The‑Air firmware updates, and compatibility across multiple wireless systems.
Key Features
- Universe: Single DMX Universe
- Frequency Bands: 900 MHz, 2.4 GHz (Wi‑Fi, Bluetooth) – supports 863–870 MHz (EU), 902–928 MHz (US)
- Protocols: DMX512, proprietary 802.15.4 (Aria X2 Mesh & Serial), Bluetooth 5.2 (BLE)
- Configuration: App (via BLE) or front panel
- Compatibility: Bridges between Aria X2 and SM220 systems (eFly, WiFly, MagFly, Acclaim Aria)
- Housing: IP65 rated with outdoor locking power and DMX connectors; front panel digital screen; M12 threads
- OTA Updates: Firmware and menu updates via cloud service
- Interference Mitigation: CSMA; adaptive frequency hopping – future implementation
- Standards Compliance: Health, safety, EMC, and radio regulatory standards across EN/IEC/ETSI series
Technical Specifications
- Dimensions (Retail): 9.53 × 6.32 × 3.25 in (242 × 160.6 × 82.3 mm)
- Weight (Retail): ~3.7 lbs (1.66 kg)
- RF Frequency Range: 2404–2480 MHz; 863–870 MHz (EU); 902–928 MHz (US)
- Power Input: AC 100–240 V 50/60 Hz
- Power Consumption: 2.2 W (19 mA @ 120 V/60 Hz; 10 mA @ 230 V/50 Hz)
- Power Fuse: T1.25 A/250 V (5 × 20 mm)
- Operating Temp: –4 °F to 113 °F (–20 °C to 45 °C); Humidity < 75%
- Storage Temp: 77 °F (25 °C)
