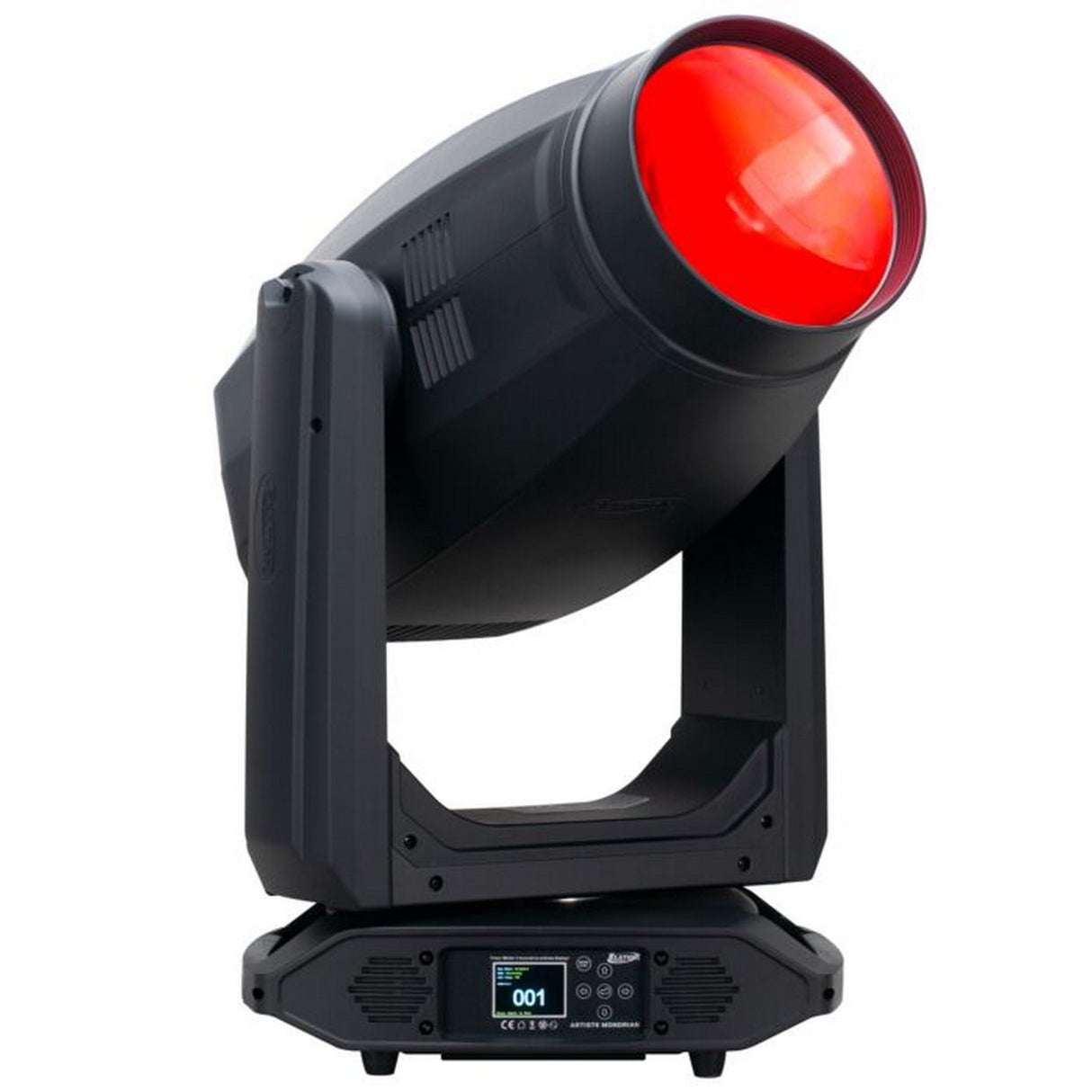

Elation Artiste Mondrian High Efficiency 950W 6,500K White Hotspot LED FX Fixture

Elation Artiste Mondrian High Efficiency 950W 6,500K White Hotspot LED FX Fixture

The Artiste Mondrian is an extremely bright, full-featured LED profile FX fixture offering high center intensity, narrow-beam angles and a wide color-mixing gamut through its variable SpectraColor engine. Providing up to 51,000 lumens from its efficient 950W 6,500K LED engine, the Mondrian is the ideal fixture for any application requiring superior output, bright and powerful narrow beams, and quiet operation, as well as stunning effects and colors. Mondrian integrates Elation's new SpectraColor system, which offers traditional CMY mixing but adds a variable RGB color mix for rich, saturated primaries. In combination with the variable CTO, the Mondrian allows for colors that were previously impossible to achieve, from theatrical pastels to the most vibrant red or blues ever produced by a color mixing system. The Artiste Mondrian’s wide color gamut is achieved by seven color-mixing flags with 16-bit precision for artistic possibilities that are truly inspiring. The fixed color wheel offers UV and high CRI options to round out the amazing color range of the fixture.

Key Features

• High Efficiency 950W 6,500K White Hotspot LED Engine
• Up to 51,000 Total Lumen Fixture Output
• Hotspot engine for powerful beams and high center intensity
• SpectraColor CMYRGB Array and Variable Linear CTO
• 6-Position Color Wheel, High CRI, UV Filter
• Complete FX System: 2x Rotating Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost
• Full Blackout Framing System with 360 Continuous Index and Rotation of Shapes
• Narrow Beams to Wide Washes from 3 to 45
• Large 226mm (8 3/4") Clear Plano Convex (PC) Lens

Technical Specifications

SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
51,000 Total Lumen Fixture Output
CRI 72+ (84+ with HCRI Filter)
Zoom Range 3 - 45
Beam Angle 2.8 - 34.9
Field Angle 4 - 46.1
EFFECTS
Motorized Zoom (226mm / 8 3/4" front lens)
4 Rotating Full Blackout Framing Blades
360 Continuous Framing Index and Rotation
Full 360 Bi-Directional Animation Wheel
2 Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
COLOR
SpectraColor CMY + RGB Color Mixing Array
6 Dichroic Colors including High CRI Filter and UV
Linear CTO Color Correction
GOBOS
2 Gobo Wheels
12 Rotating / Indexing Interchangeable Glass Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (42/ 68)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
Hibernation Mode (Power Save)
Locking 5pin XLR DMX, RJ45 Ethernet, and Power
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length
18.55 in. (472mm)
Width
26.5 in. (673mm)
Height
34.2 in. (870mm)
Weight
104.7 lbs. (47.5kg)
