Elation CW Profile HP High Powered 130W Cool White LED Ellipsoidal ...

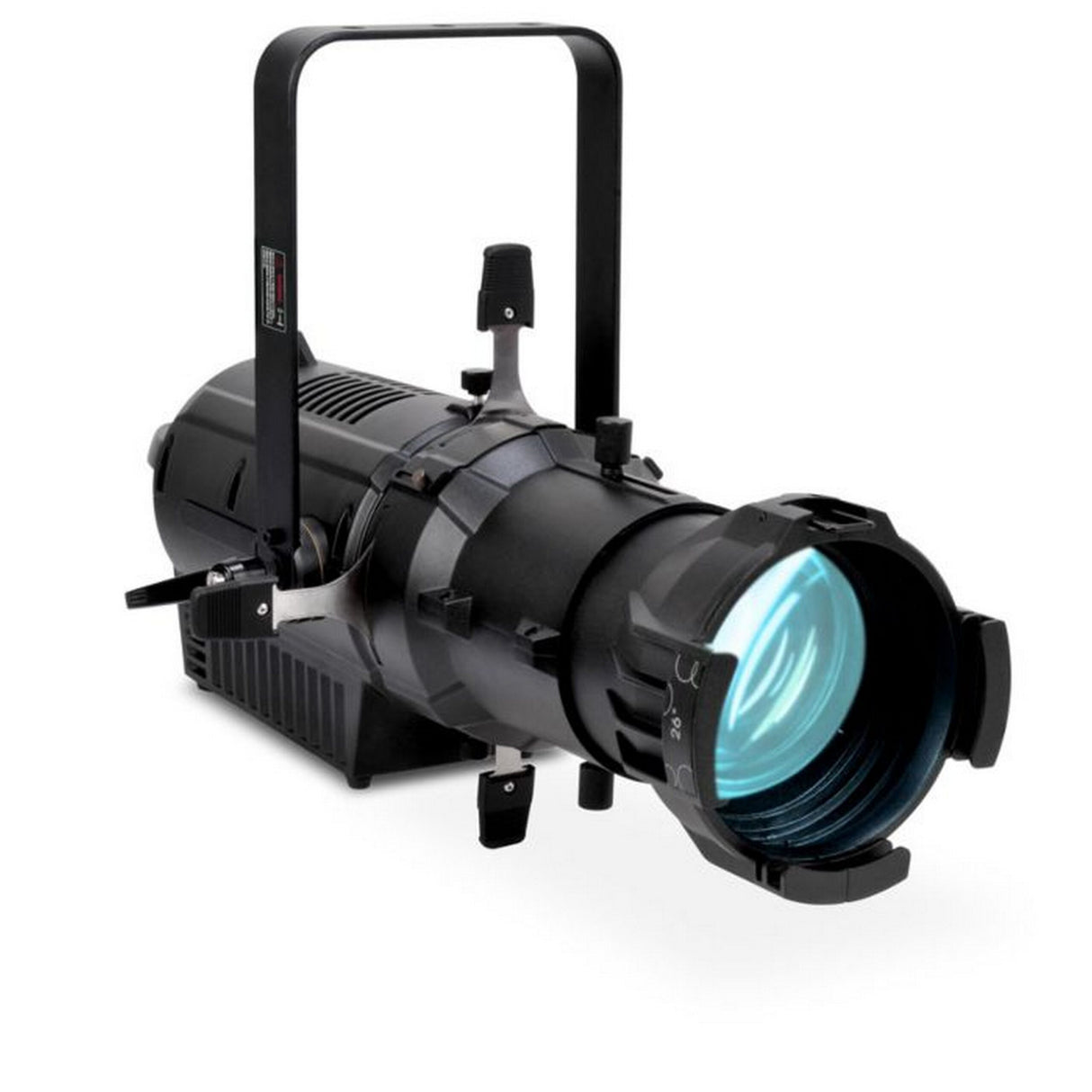

Elation CW Profile HP High Powered 130W Cool White LED Ellipsoidal Fixture
The CW Profile HP ellipsoidal features a High Powered 130W Cool White >90CRI 5,600K LED engine producing 11,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and FILM, 3/5pin DMX and powerCON TRUE1 in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).
Key Features
- High Power 130W Cool White 5,600K LED Engine
- >90CRI | 11,000+ Total Lumens
- Interchangeable Lens Options (19°, 26°, 36°, 50°) (not included)
- (4) Blade Manual Framing Shutters
- Supports B Size Metal or HT Transparency Gobos (not included)
- DMX Controlled Electronic Strobe and 16bit Dimming
- Selectable Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Adjustable LED Refresh Rate and Gamma Brightness
- Quiet Fan Cooling
Technical Specifications
SOURCE
High Power 130W Cool White 5,600K LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>90CRI | 11,000+ Total Lumens
EFFECTS
Electronic Strobe
Variable Dimming Curve Modes
GOBOS
Supports "B" Size Metal, HT Transparency Gobos**
**Gobo Holder Not Included
CONTROL / CONNECTIONS
2 DMX Channel Modes (4 total channels)
4 Button Control Panel
LED Menu Display
3/5pin DMX In/Out
powerCON TRUE 1 In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 24.3" (618mm)
Width 12.2" (310mm)
Vertical Height: 15.7" (398mm)
Weight: 21.0 lbs. (9.5kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50-60Hz
160W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
