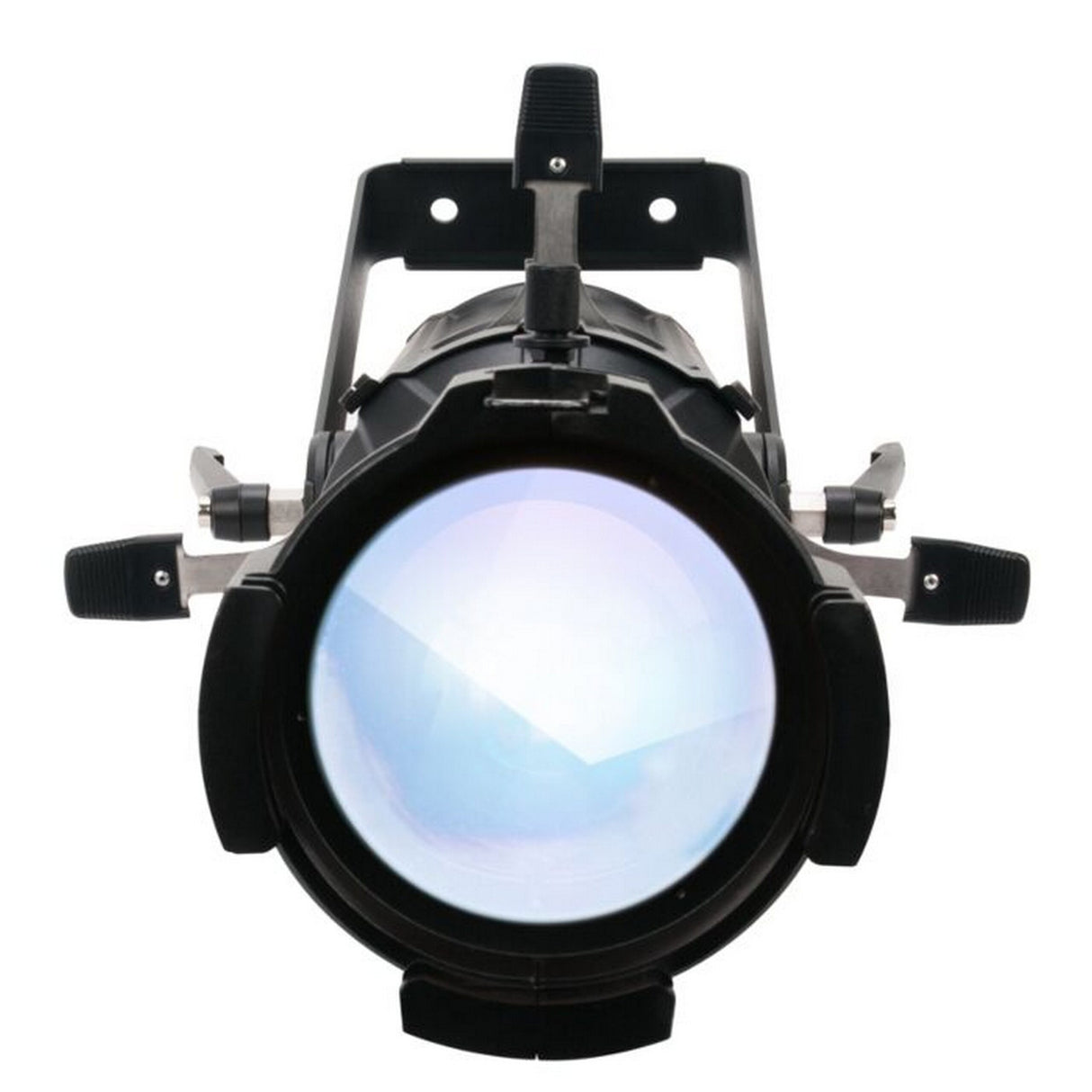

Elation CW Profile HP IP High Power 130W Cool White 5,600K Spotlight
Elation CW Profile HP IP High Power 130W Cool White 5,600K Spotlight
The IP65 rated CW Profile HP IP ellipsoidal features a High Power 130W Cool White 5,600K LED engine producing >90CRI 12,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, supports B size metal gobos (2 sample gobos included, single gobo holder not included) and an optional IP65 rated DMX controlled dual gobo rotator (sold separately), manual focus, DMX controlled electronic strobe, 16bit dimming and selectable dimming curve modes, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, IP rated 5pin DMX and IP65 Locking Power Cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).
Key Features
- IP65 Rated High Power 130W Cool White 5,600K LED Engine
- >90CRI and 12,000+ Total Lumens Output
- Interchangeable Lens Options* 19°, 26°, 36°, 50°
- Supports B Size Metal Gobos**
- IP65 DMX Controlled Dual Gobo Rotator*
- (4) Blade Manual Framing Shutters
- DMX Controlled Electronic Strobe and 16bit Dimming
- Selectable Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Adjustable Refresh Frequency and Gamma Brightness
- Quiet Fan Cooling
- Holder not included
Technical Specifications
SOURCE
High Power 130W Cool White LED Engine
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
>90CRI | 12,000+ Total Lumens
EFFECTS
Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes
GOBOS
Supports “B” Size Metal Gobos**
IP65 Rated DMX Controlled Dual Gobo Rotator***
**Gobos and Holder not included. ***Rotator Sold Separately
CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 3 / 6 / 8)
Adjustable Refresh Rates
Adjustable Gamma Brightness
4 Button Control Panel / LED Menu Display
IP Rated 5pin DMX In/Out / IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 29.6” (753mm)
Width: 13.9” (353mm)
Vertical Height: 18.9” (480mm)
Weight: 24 lbs. (11kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
170W Max Power Consumption
14° to 113°F (-10° to 45°C)
