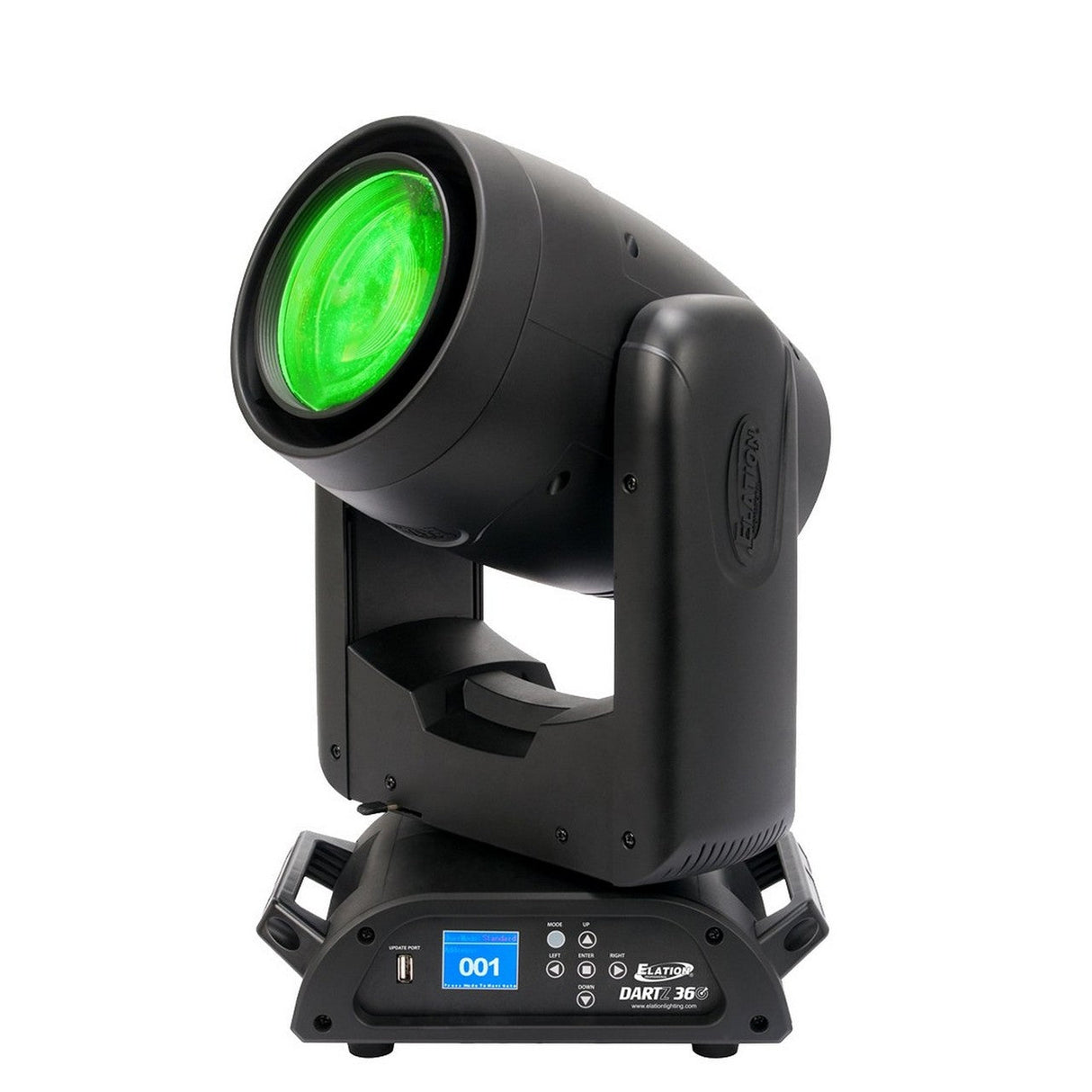

Elation DARTZ 360 50W RGB LED Fixture
Elation DARTZ 360 50W RGB LED Fixture
Free Shipping
Elation DARTZ 360 50W RGB LED Fixture
The DARTZ 360 features a new 50W RGB LED engine with advanced optics producing an impressive 61.300 lux at 5 meters, a 3 deg beam aperture, fast and precise 16-bit continuous 360 deg pan and tilt rotation, 15 static-stamped metal gobos, 6-facet and 8-facet rotating prisms with prism morphing and individual prism rotation, 0-100% linear frost filter, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and Film, DMX, RDM (Remote Device Management), and Art-NET protocol support, USB update port, Elation’s E-FLY internal wireless DMX transceiver, 5pin XLR in/out, RJ45 etherCON in/out and powerCON TRUE1 in/out connections, full color 180 deg reversible menu display with multi-button control panel, battery backup for display power and a multi-voltage universal auto switching power supply (100-240v).
Key Features
- Compact Beam Moving Luminaire
- 3” Sharp Beam Aperture
- Newest LED Technology: 50W RGB LED Chip
- Endless Pan and Tilt Rotation
- Motorized Focus and Linear Frost
- Linear and 8-Facet Individual Rotating Prisms
- Prism Morphing Effect
- Adjustable Refresh Rate (900-25,000 Hz)
- Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
- Variable Dimming Curves
- Flicker Free Operation for TV and Film
- Art-NET and sACN (DMX over Ethernet)
- RDM - Remote Device Management
Technical Specifications
SOURCE
50W RGB LED
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
61.300 Lux @ 5M
EFFECTS
Strobe: 1-25fps
Dimming: 0% - 100%
Variable Dimming Curves
COLOR
RGB Color Mixing
GOBO
15 Static Stamped Metal Gobo’s
CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 22 / 25)
360 deg Continuous Pan and Tilt Movement
RDM (Remote Device Management)
Adjustable Refresh Rate (900-25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
6 Button Touch Control Panel
Full Color 180 deg Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
E-Fly Internal Wireless DMX Transceiver
5pin DMX In/Out
RJ45 etherCON In/Out (Art-NET and sACN)
powerCON TRUE1 Power In/Out
SIZE / WEIGHT
Length: 7.9” (196mm)
Width: 11.0” (276mm)
Vertical Height: 18.1" (462mm)
Weight: 28.2 lbs. (12.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
130W Max Power Consumption
5F to 113 deg F (-15 deg C to 45 deg C)
