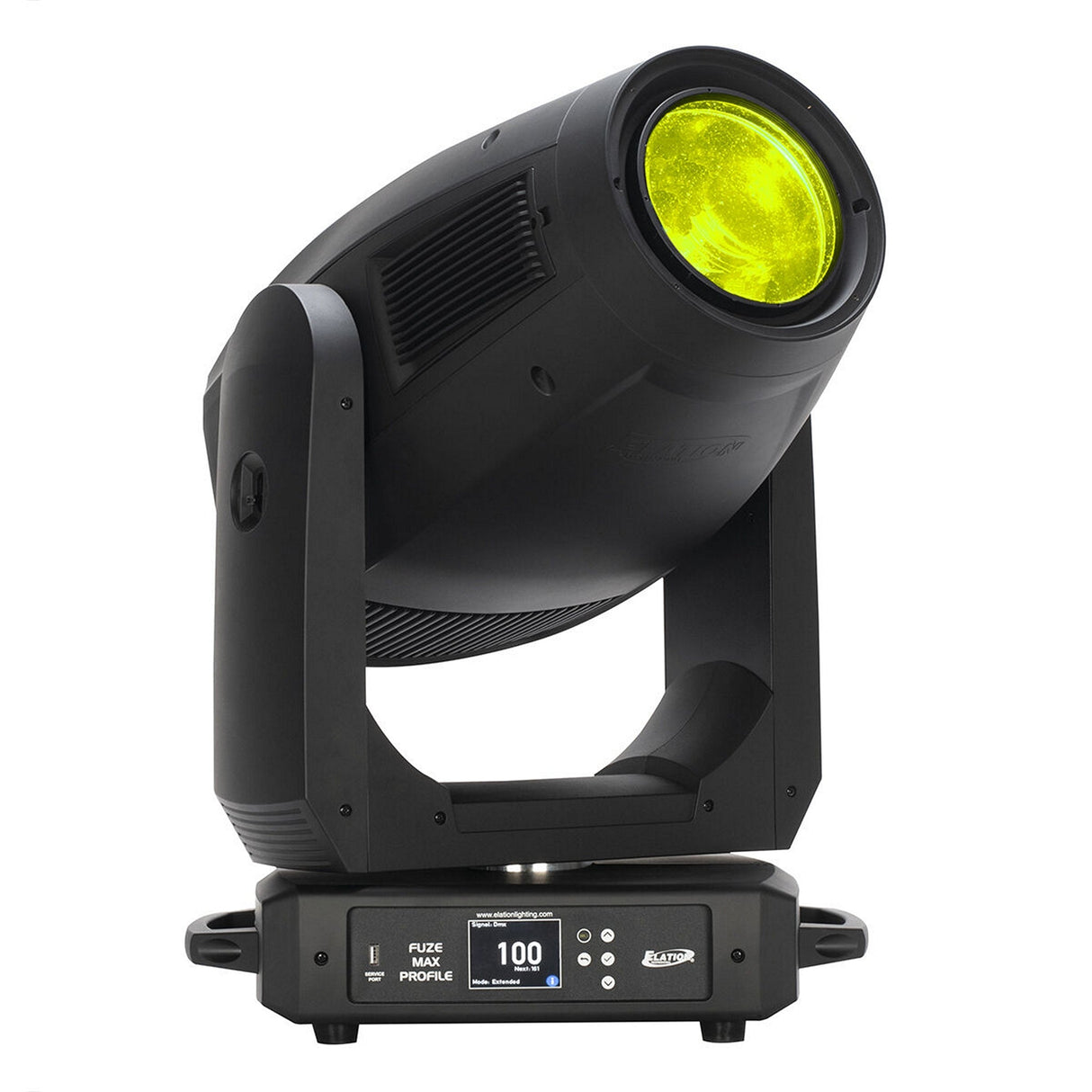

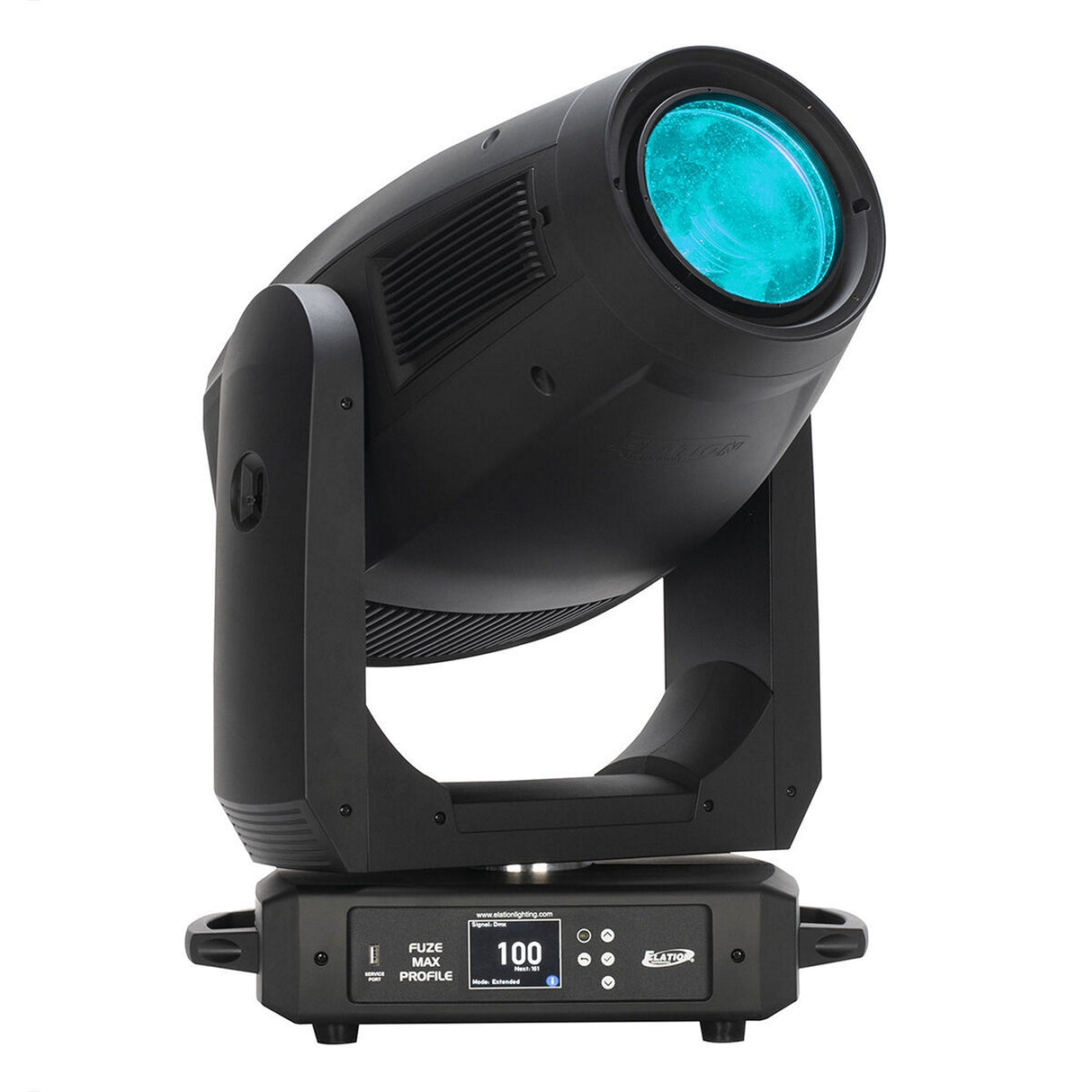

Elation Fuze MAX Profile 800W RGBMA LED Framing Fixture
The FUZE MAX PROFILE is a full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whIt's while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.
The FUZE MAX PROFILE is designed for any application where fully automated framing fixture with outstanding and compelling color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.
Key Features
- Full Spectrum 800W RGBMA LED Engine
- Precise dynamic whIt's from 2400 - 8500K
- Instant color changes, Natural color transitions
- Rich and intense primary colors
- Rotating and Fixed Gobos plus Animation Wheel
- Full Blackout Framing System
- Iris, Prism, and Dual Frost
- Wide Zoom Range from 7 Degrees to 53 Degrees
- Large 140mm front aperture
Technical Specifications
SOURCE
800W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
21.000 Total Lumen Output
CRI 92
Zoom Range
7 Degrees - 53 Degrees
Beam Angle
6.6 Degrees - 50.3 Degrees
Field Angle
7.8 Degrees - 55 Degrees
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60 Degrees Index
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Interchangeable Glass Gobos
Animation Wheel
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, Art-NET, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180 Degrees Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement

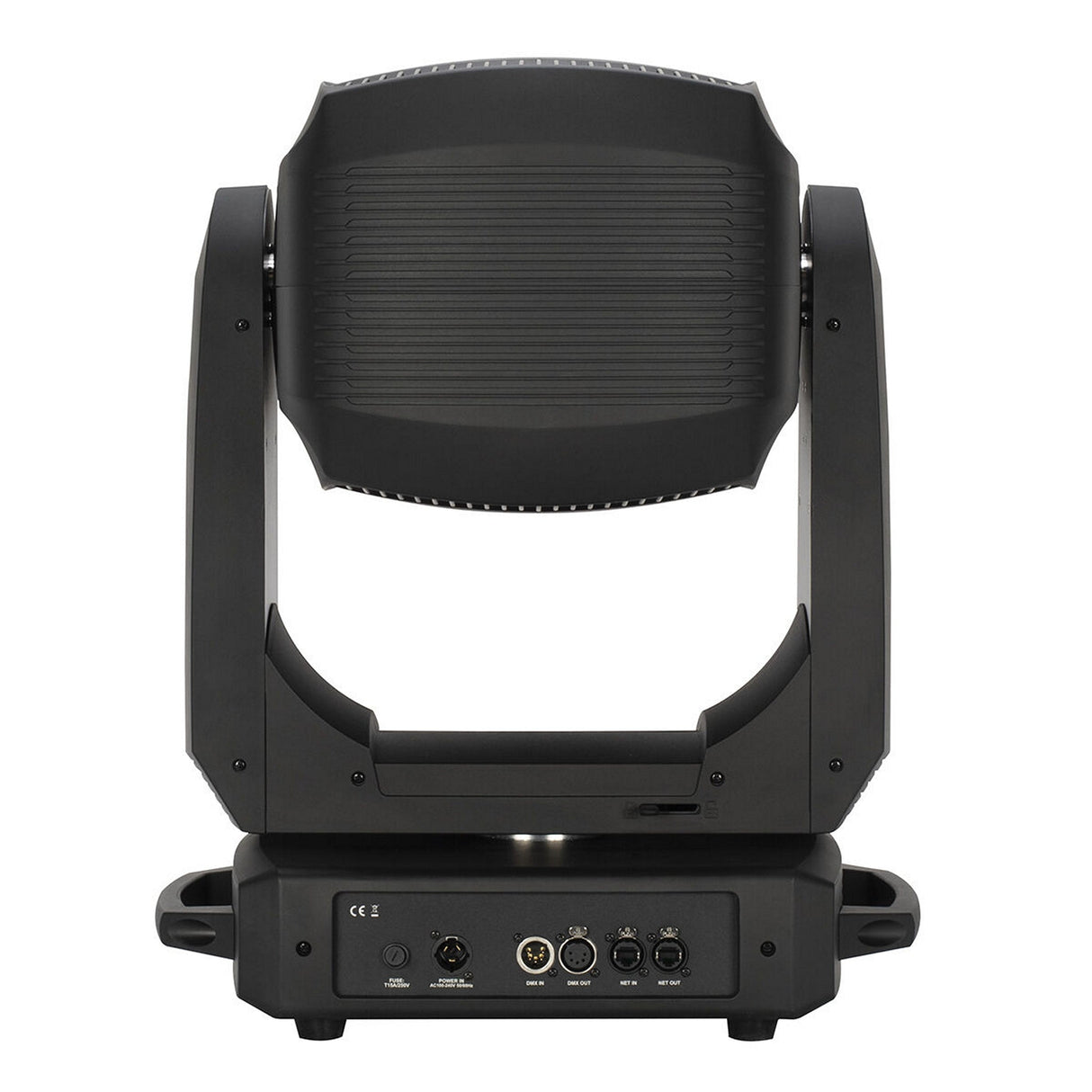

5pin DMX In/Out
Locking Ethernet in/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
18.19” (462mm)
Width
21.26” (540mm)
Width with Snoot
23.2” (590mm)
Vertical Height
28.3” (719mm)
Vertical Height with Snoot
30.4” (771mm)
Weight
76.4 lbs. (34.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1126W Max Power Consumption
14 Degrees F to 113 Degrees F (-10 Degrees C to 45 Degrees C)
APPROVALS / RATINGS
CE | cETLus | IP20
