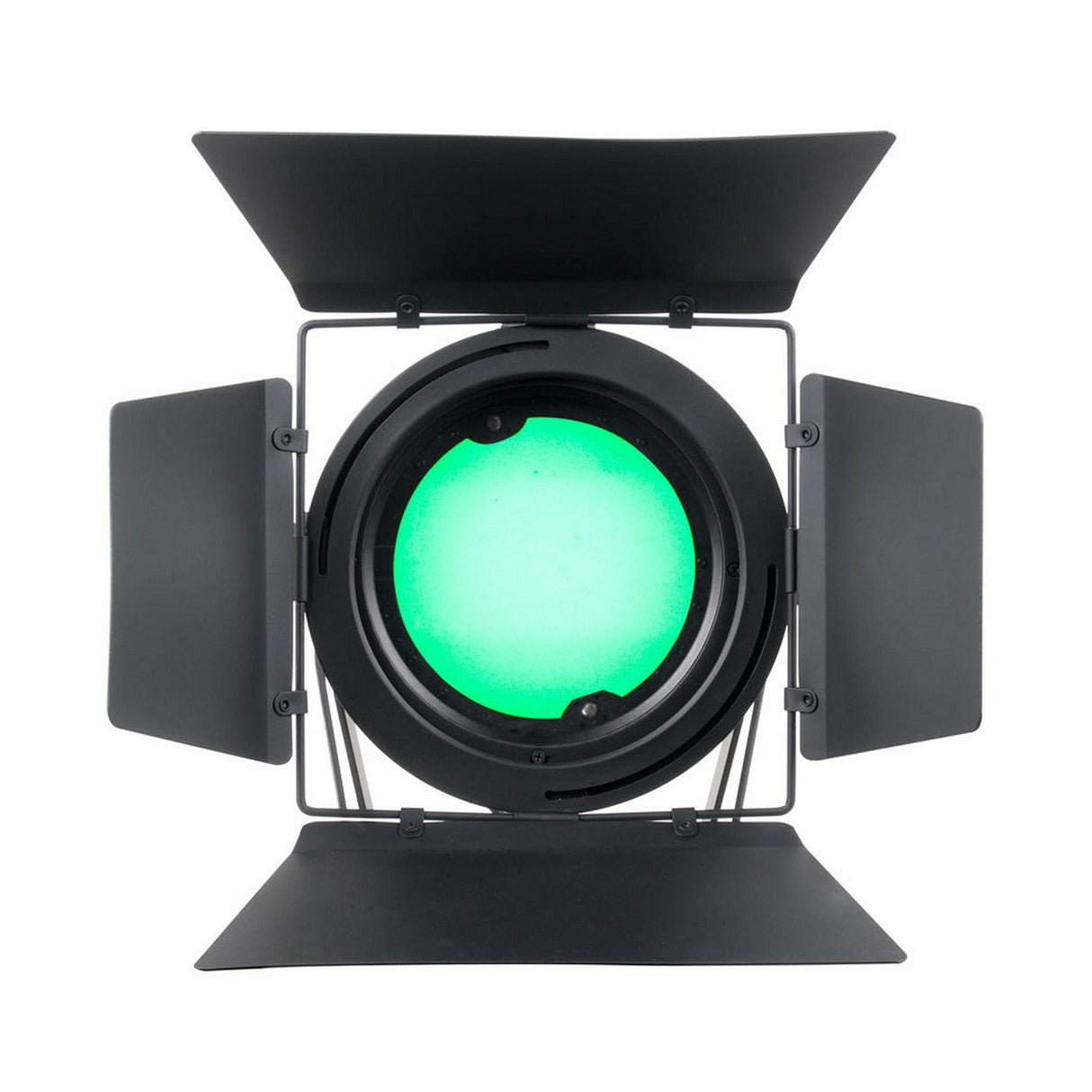

Elation FUZE PAR Z120 IP 120W Quad Color RGBW COB LED Par Luminaire

The IP65 rated FUZE PAR Z120 IP is a single source silent operating par luminaire with a 120W Quad Color RGBW COB LED. Features 7 deg to 55 deg motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and powerCON TRUE1 in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.

Key Features

• IP65 Rated
• 120W RGBW COB LED Par Luminaire
• 7 deg to 55 deg Motorized Zoom Range
• Silent Operation
• RGBW Color Mixing
• Dual Adjustable Yokes
• Multiple Unit Power Linking
• Flicker Free Operation for Broadcast TV and FILM

Technical Specifications

SOURCE
120W RGBW COB LED
100,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,112 LUX 847 FC @9.8’ (3m) (7 deg Full ON)
428 LUX 40 FC @9.8’ (3m) (55 deg Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
7 deg - 55 deg Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and powerCON TRUE1 In/Out
SIZE / WEIGHT
Length: 11.69" (283.7mm)
Width: 14.05" (356.8mm)
Vertical Height: 14.14" (359.2mm)
Weight: 19 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
158W Max Power Consumption
Multiple Unit Power Linking
5 degF to 113 degF (-15 degC to 45 degC)
APPROVALS / RATINGS
CE | RoHs | IP65
INCLUDED ITEMS
powerCON TRUE1 Power Cable
Gel Frame
Barn Door
