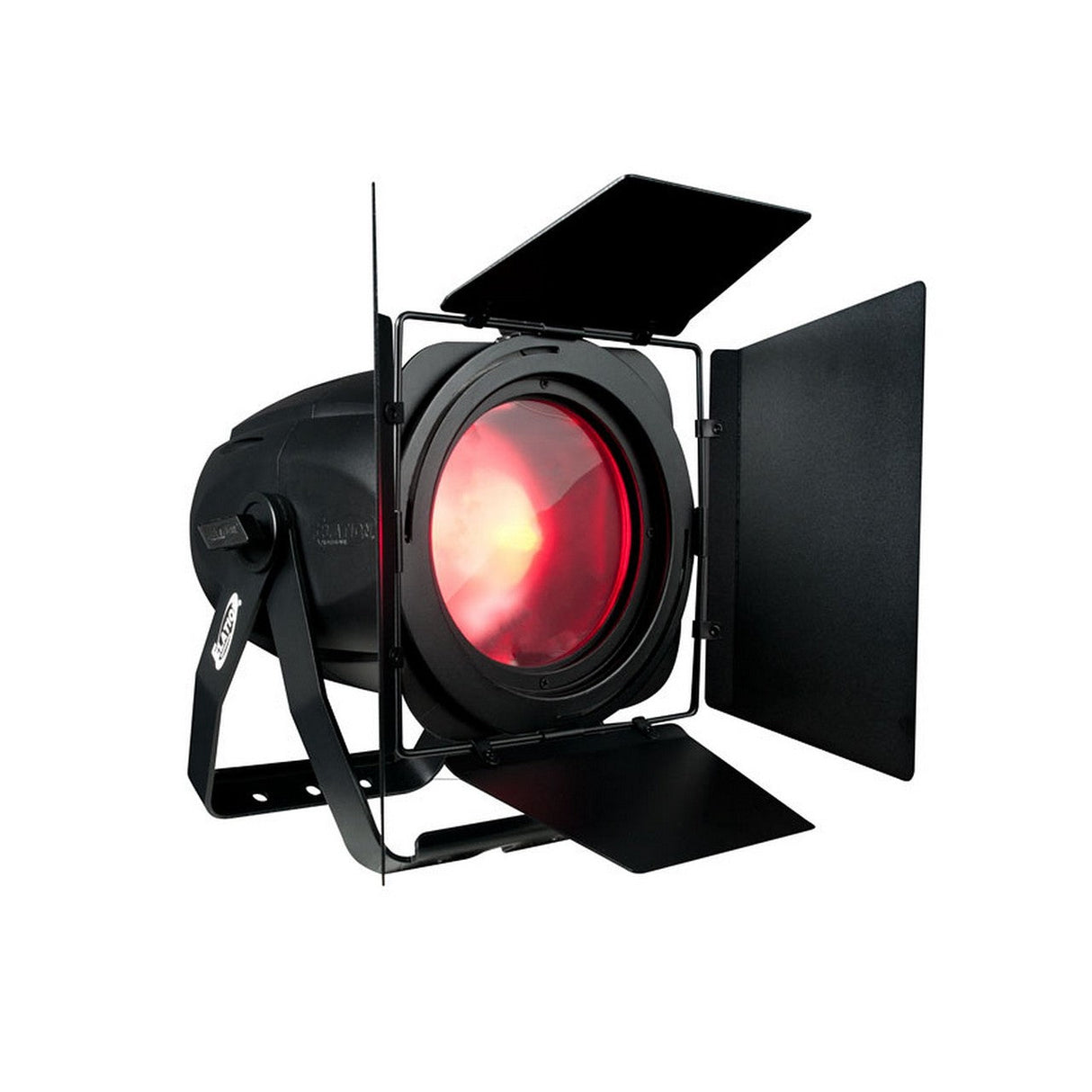

Elation Fuze Par Z175 175W RGBW COB Par with Zoom
Elation Fuze Par Z175 175W RGBW COB Par with Zoom
Elation Fuze Par Z175 175W RGBW COB Par with Zoom
The FUZE PAR Z175 is a single source silent operating par with zoom. Featuring a 175W RGBW COB LED engine, 8° to 35° motorized zoom, an advanced cooling system, smooth RGBW color mixing, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, flicker free operation for TV and FILM, 3/5pin DMX and powerCON in/out connections, (4) button LCD control display panel, integrated dual rigging yokes, and a multi-voltage universal auto switching power supply (100-240v). Gel frame and barn doors included.
Key Features
- Single Source Silent Operating Par
- 175W RGBW COB LED Engine
- 8° to 35° Motorized Zoom
- Advanced Cooling System
- Smooth RGBW Color Mixing
- Variable 16-Bit Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Gel Frame and Barn Doors Included
Technical Specifications
SOURCE
175W RGBW COB LED
50,000 Hour Average LED Life
PHOTOMETRIC DATA
15,026 LUX 1396 FC @6.6 ft (2m) (Full ON 8°)
3,481 LUX 323 FC @6.6 ft (2m) (Full ON 35°)
EFFECTS
8° - 35° Motorized Zoom
64 Color Presets and Color Macro Programs
Electronic Strobe
16-bit Variable Dimming Curve Modes
COLOR
RGBW
CONTROL / CONNECTIONS
12 DMX Channel Modes (14 Total Channels)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
5pin DMX and powerCON TRUE1 In/Out
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
200W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP30
INCLUDED ITEMS
Gel Frame
Barn Doors
powerCON Power Cable
