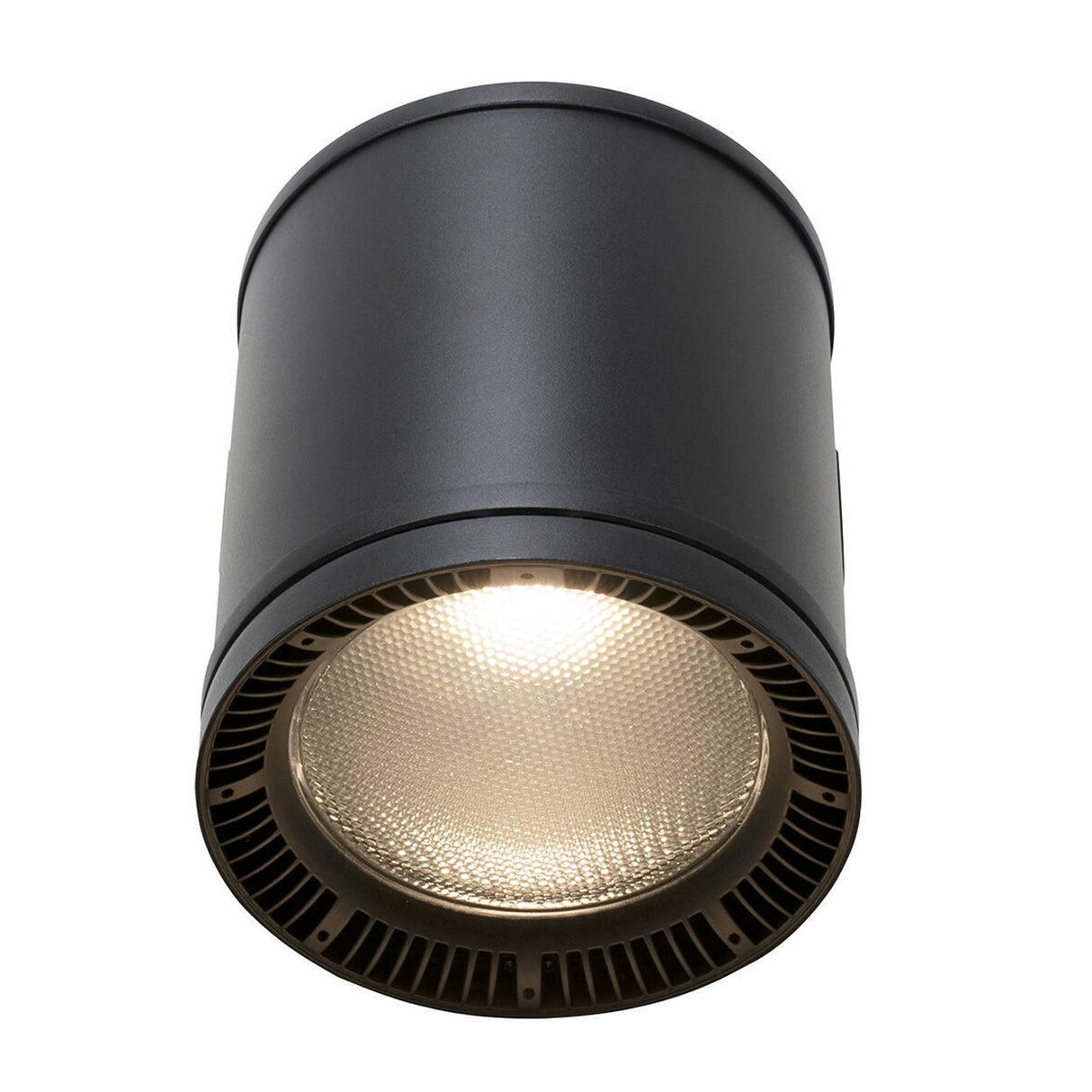

Elation Fuze Pendant Compact 144W 5-In-1 RGBWL LED Array Light

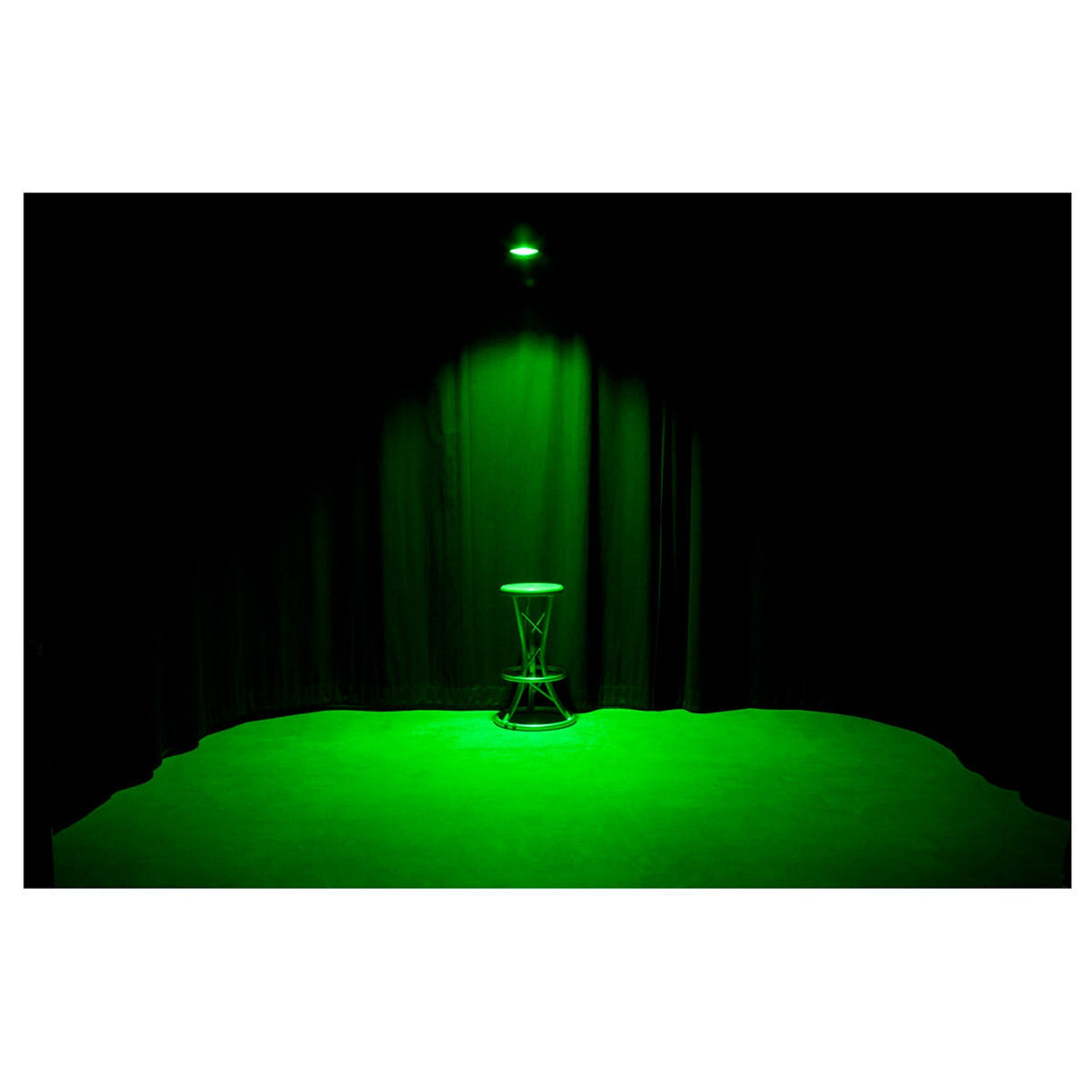

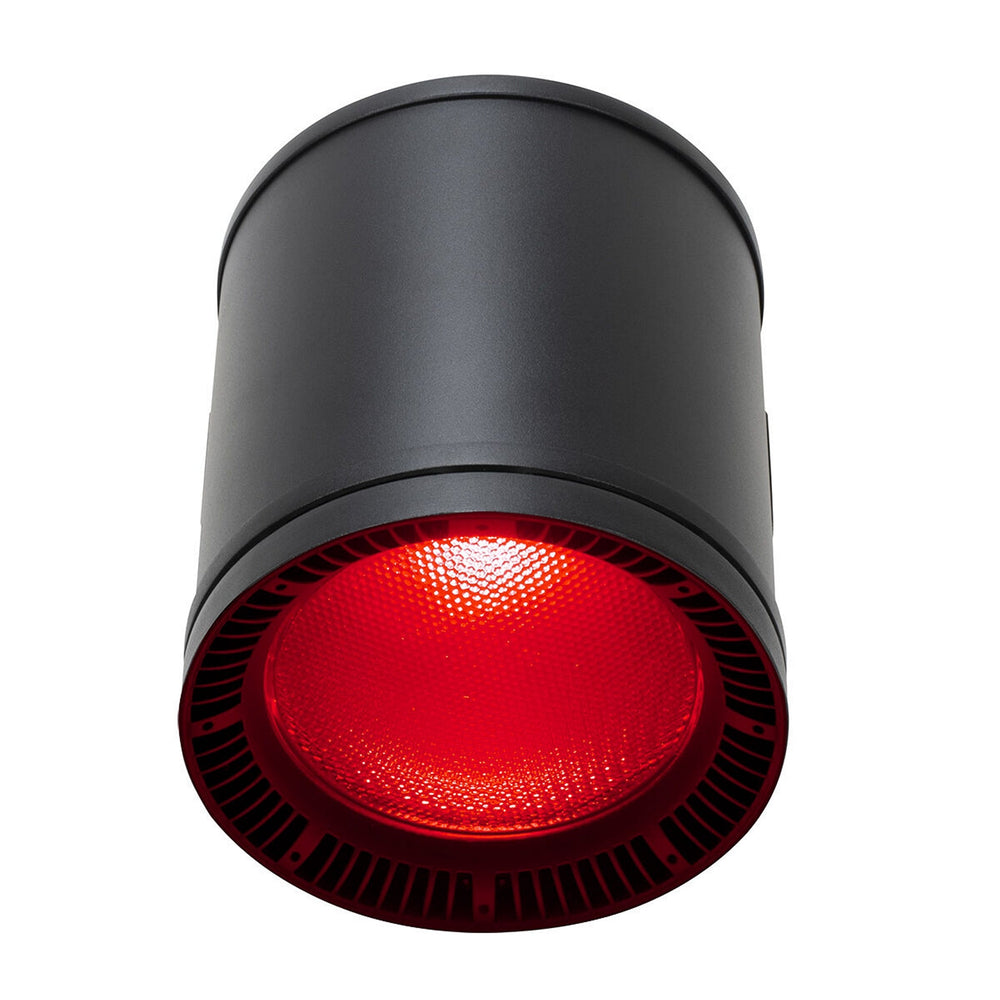

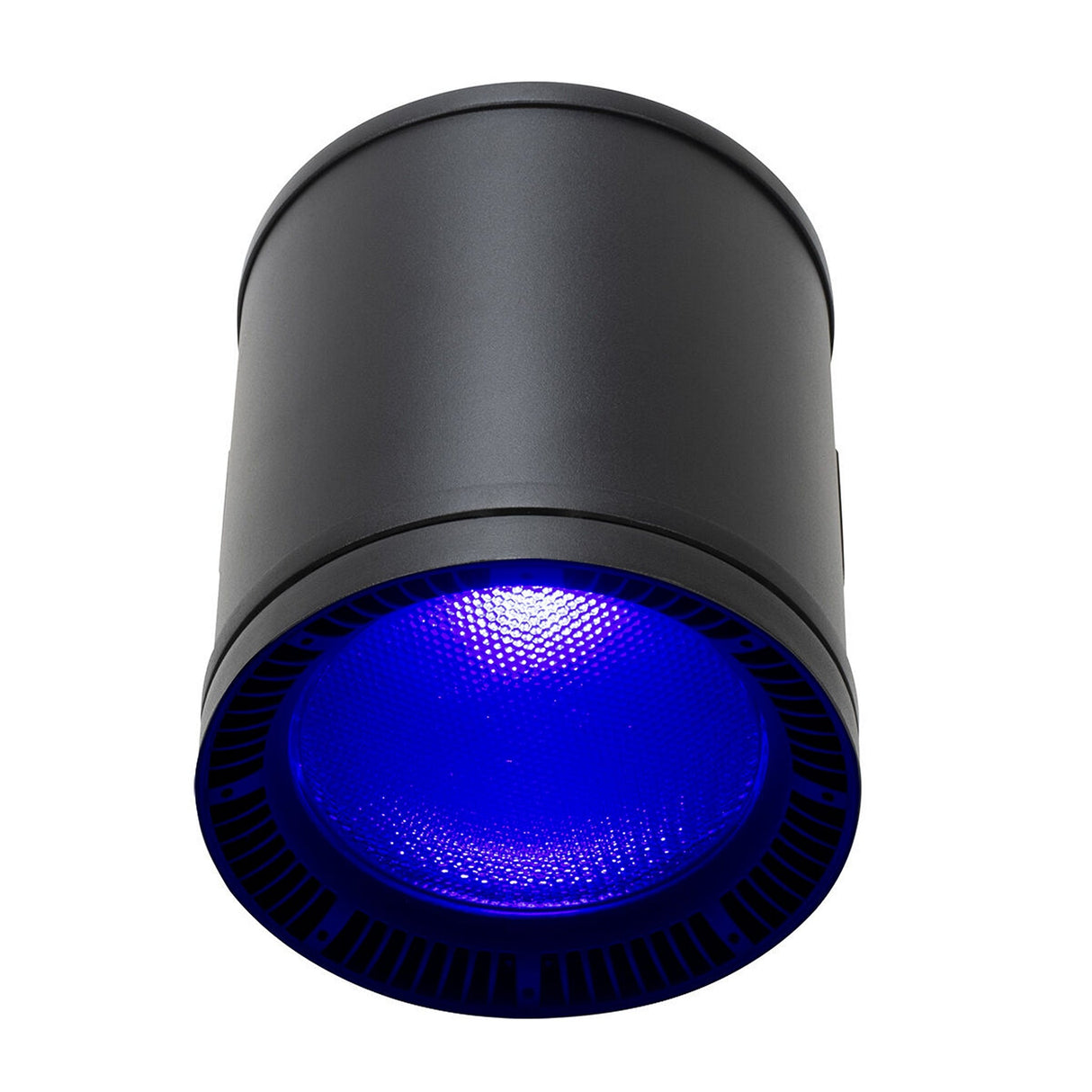

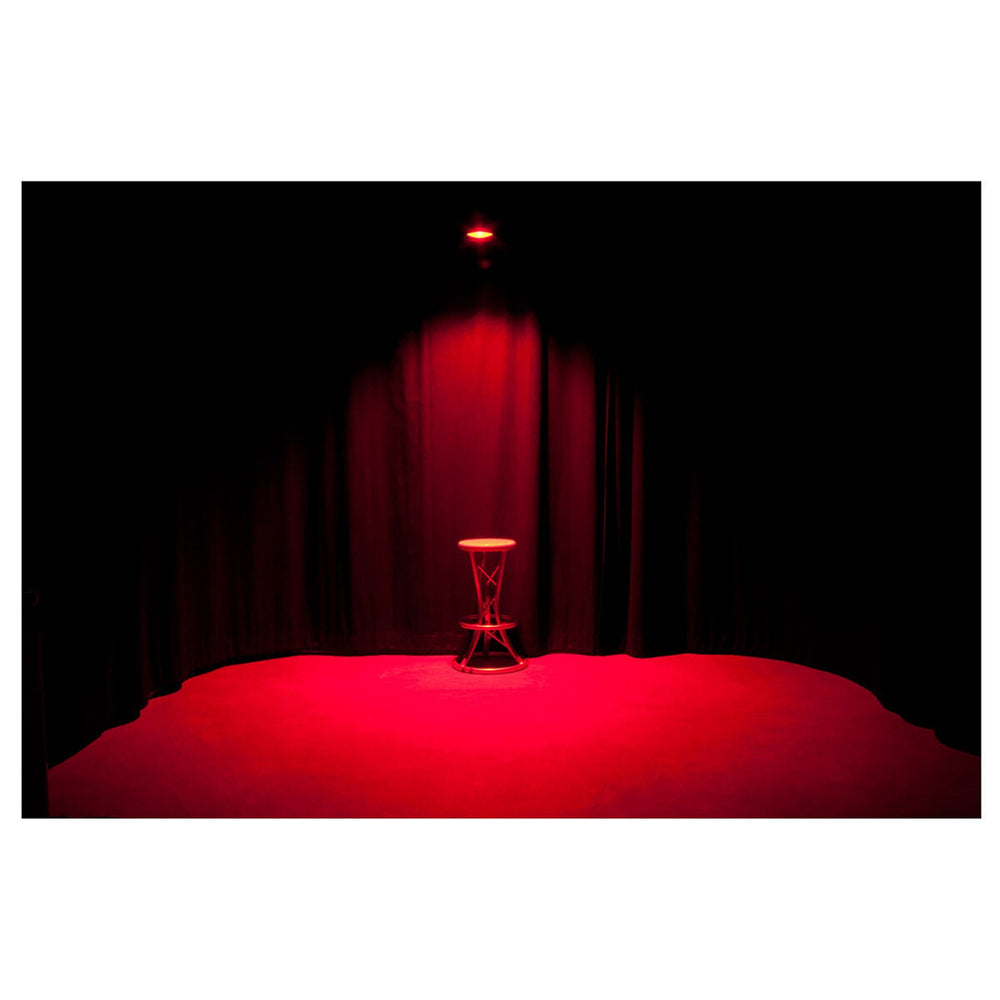

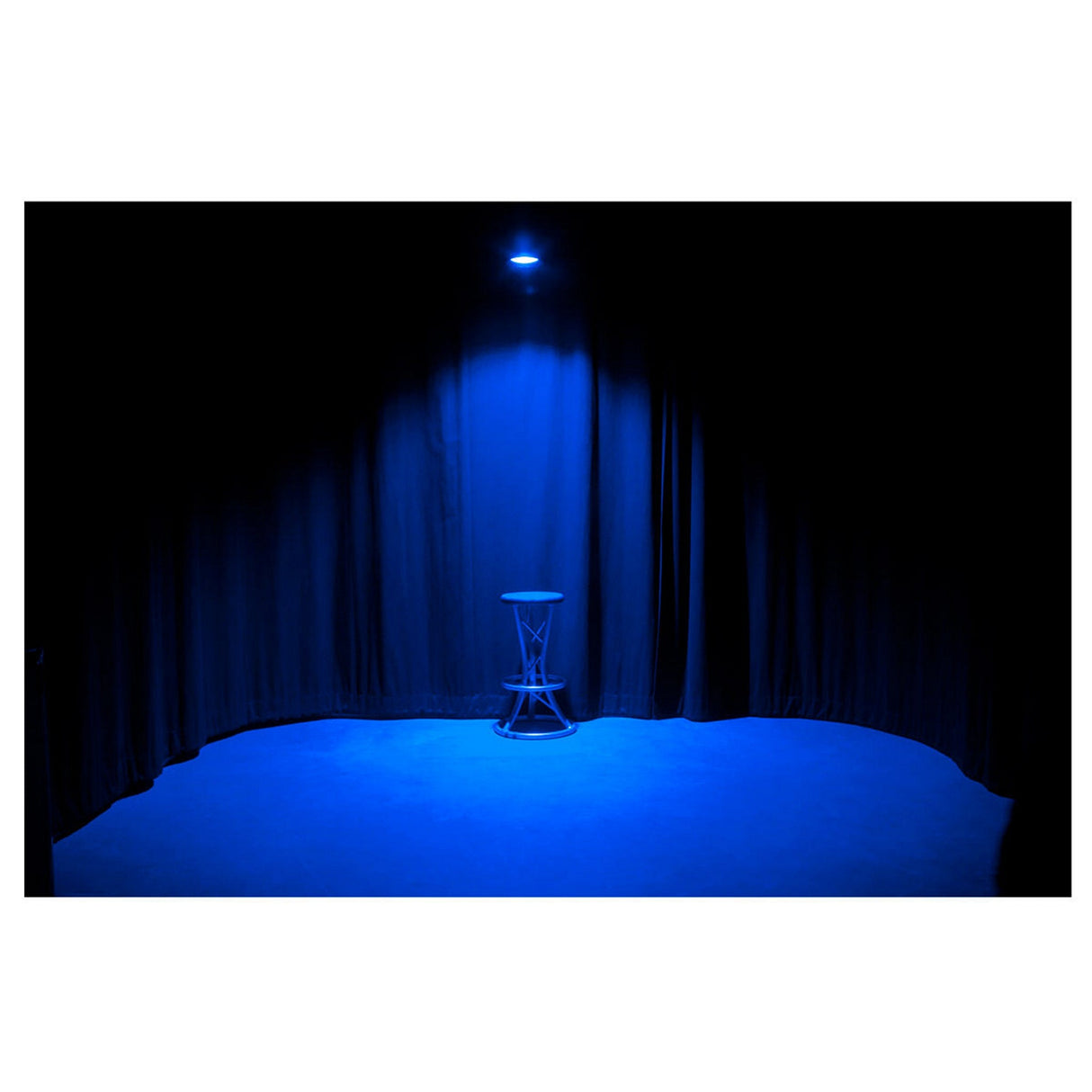

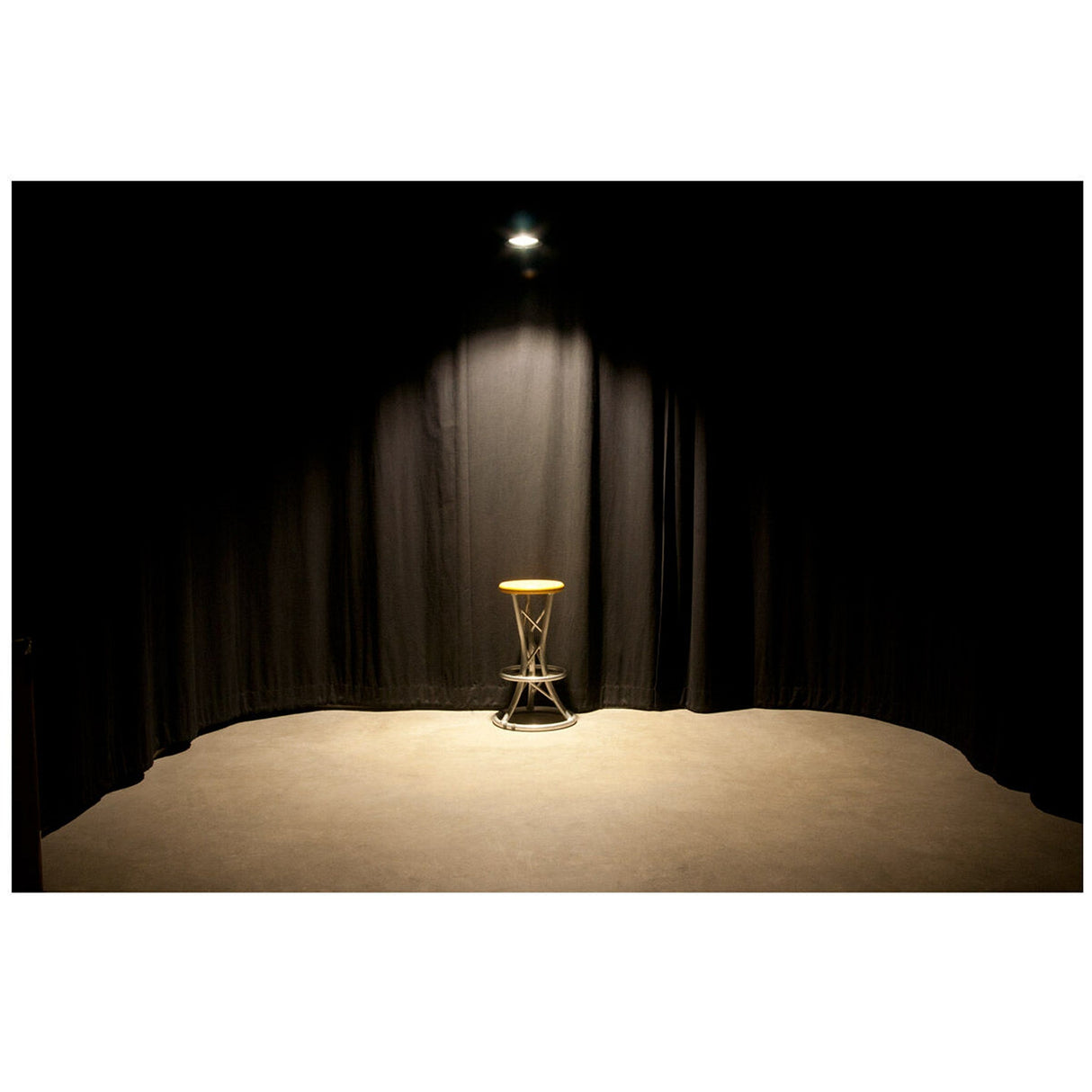

The FUZE PENDANT Compact provides powerful illumination for a variety of house and area lighting applications. Crisp whIt's with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 7,200 lumens, the FUZE PENDANT Compact is ideal for a variety of ceiling height applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.
Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45 Degrees included, 25 Degrees, 40 Degrees or 50 Degrees optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.
Key Features
- Full Spectrum 144W 5in1 LED Array
- 2,400 - 8,500K Color Temperature
- CRI 90 @ 3,200K
- 7,200 Total Lumen Fixture Output
- 45 Degrees Lens Included
- Optional 25 Degrees, 40 Degrees, and 50 Degrees Lens Available
- Compact Fanless Design
- DMX, RDM, 0-10V and E-FLY Wireless Support
- 48V Emergency Battery Input
- Bare Wire Block Terminal Connections (connectors included)

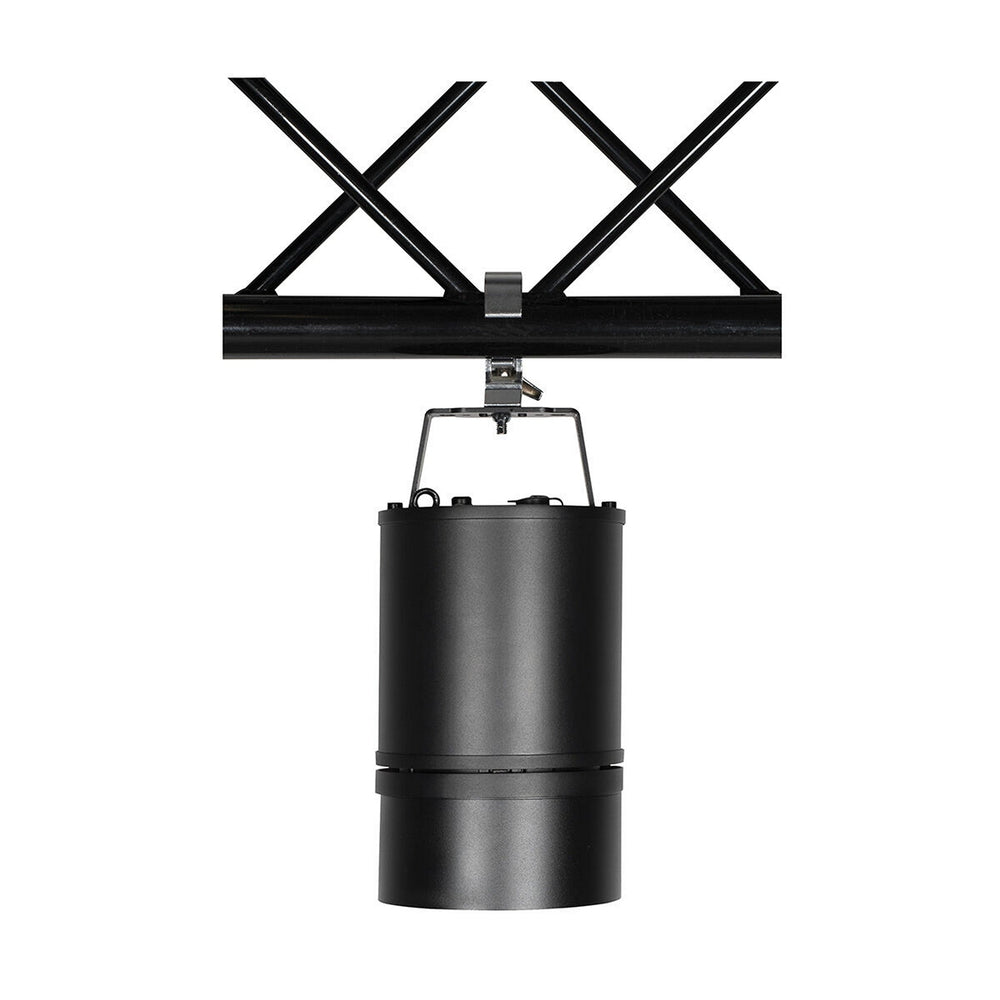

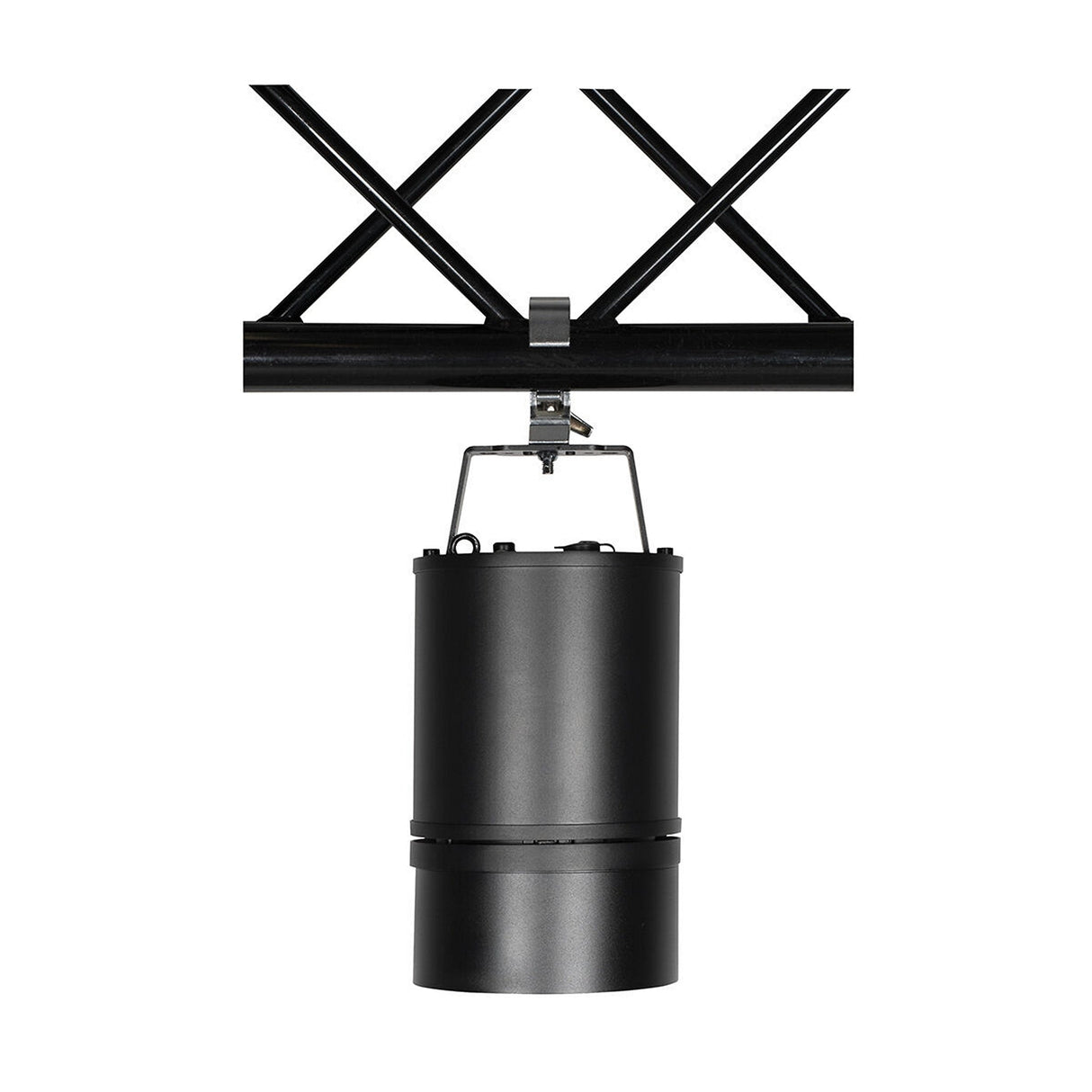

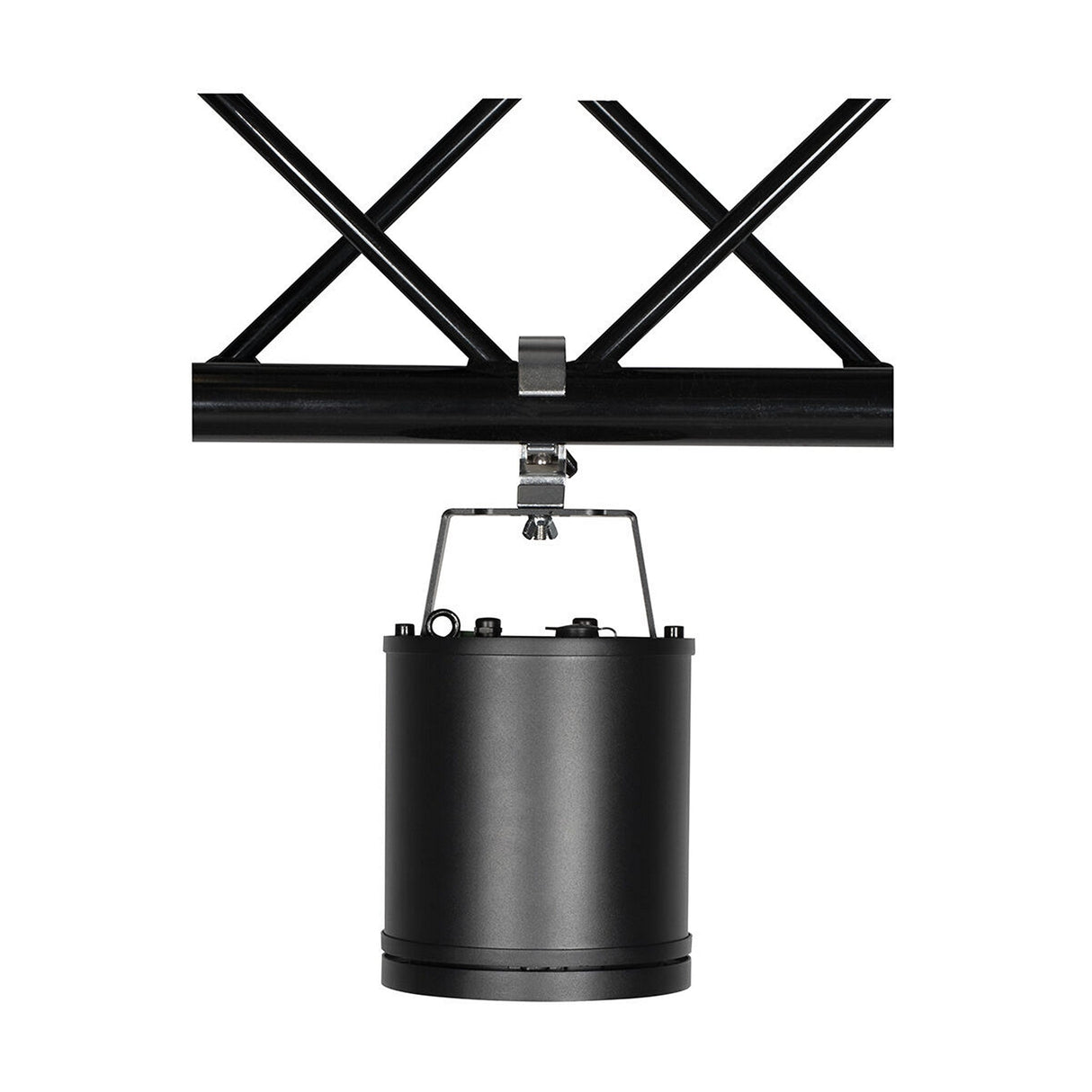

- Pendant Bracket (included)
Technical Specifications
SOURCE
144W 5-in-1 RGBWL (Red, Green, Blue, White, LimeLED Array
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
7,200 Total Lumen Fixture Output
CRI 90 @ 3,200K
45 Degrees Lens Included
EFFECTS
Color Temperature Control 2,400K - 8,500K
Virtual Color Swatch Book
Dimmer, RGB, RGBWL and HSI Control Options
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX and Menu adjustable LED Refresh Rate Frequency

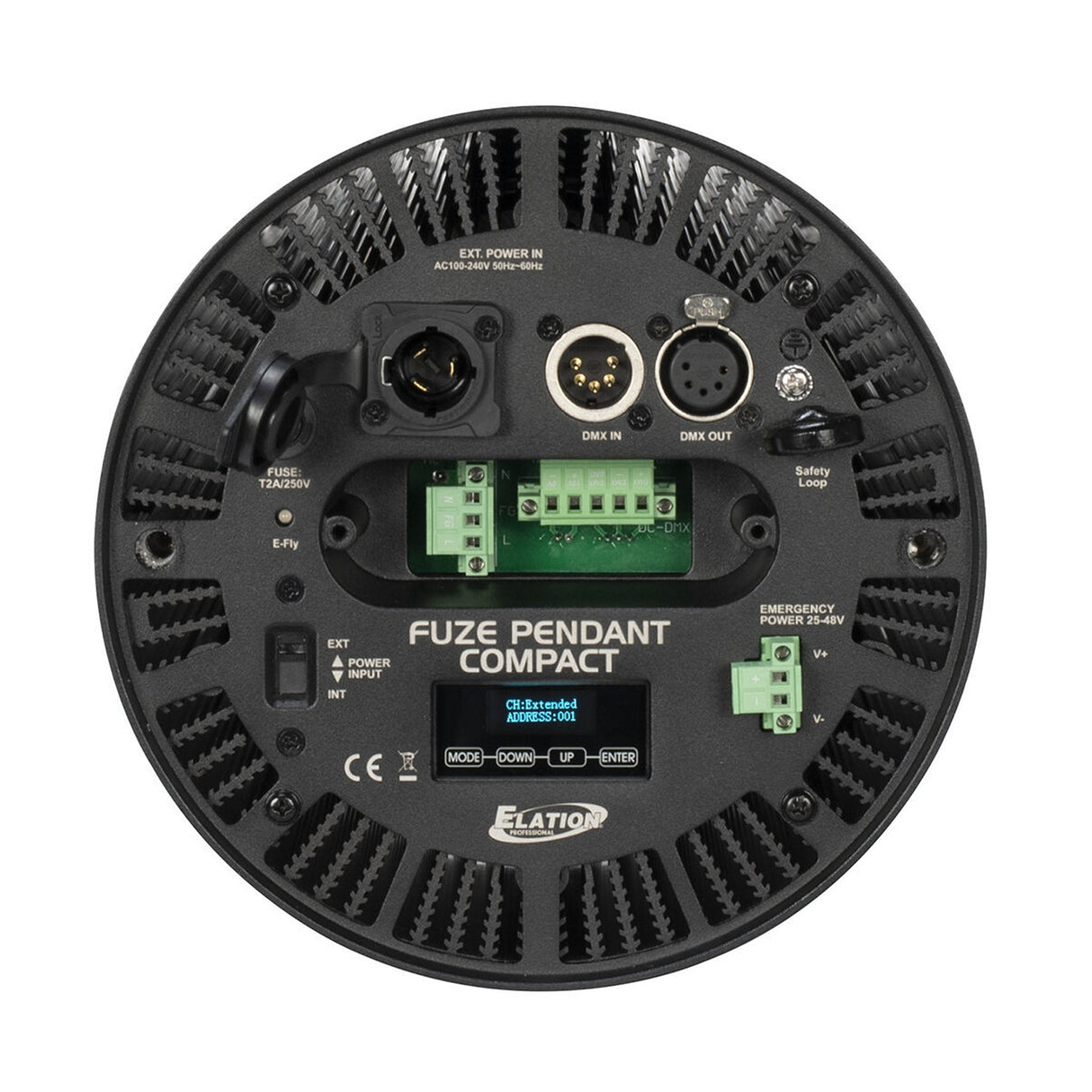

CONTROL / CONNECTIONS
8 DMX Channel Modes
Standalone and Primary/Secondary Modes
RDM (Remote Device Management)
0-10V Dimming (Current-Sink)
E-FLY Internal Extended Range Wireless DMX Transceiver
4 Button Control Panel and OLED Menu Display

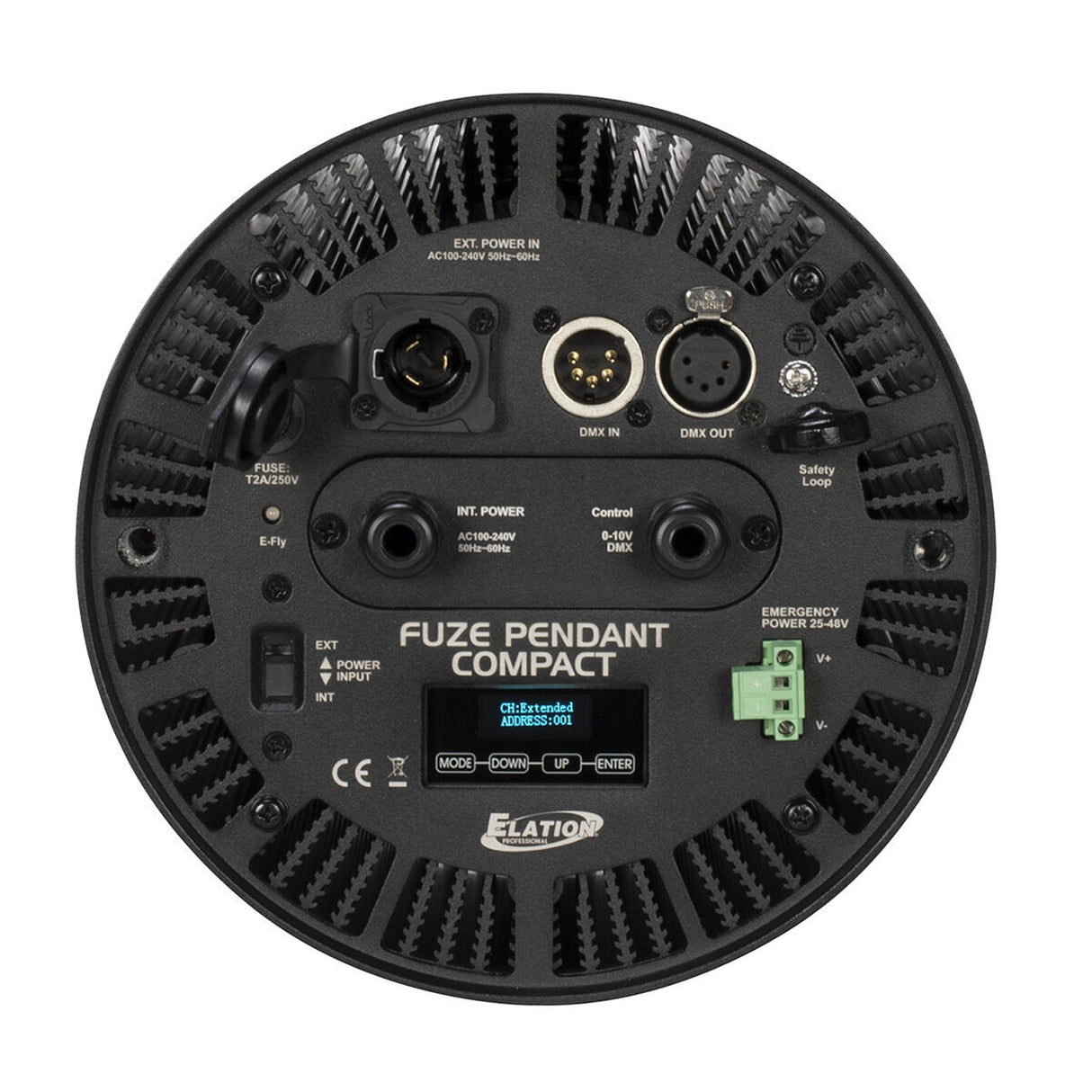

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In
3pin Bare Wire Terminal Block for Power
5pin Bare Wire Terminal Block for 0-10V, DMX
2pin Bare Wire Terminal Block for 48V Emergency Battery Input
SIZE / WEIGHT
Length
8.75” (222.25mm)
Diameter
7.8” (197mm)
Weight
11.4lbs. (5.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 145W
14 Degrees F to 113 Degrees F (-10 Degrees C to 45 Degrees C)
APPROVALS / RATINGS
CE | cETLus | IP20 | FCC
OPTIONAL ACCESSORIES
FPL25- 25 Degrees Lens
FPL40- 40 Degrees Lens
FPL50- 50 Degrees Lens
FPCMK- Ceiling Mount Kit
FPYMK- Yoke Mount Kit

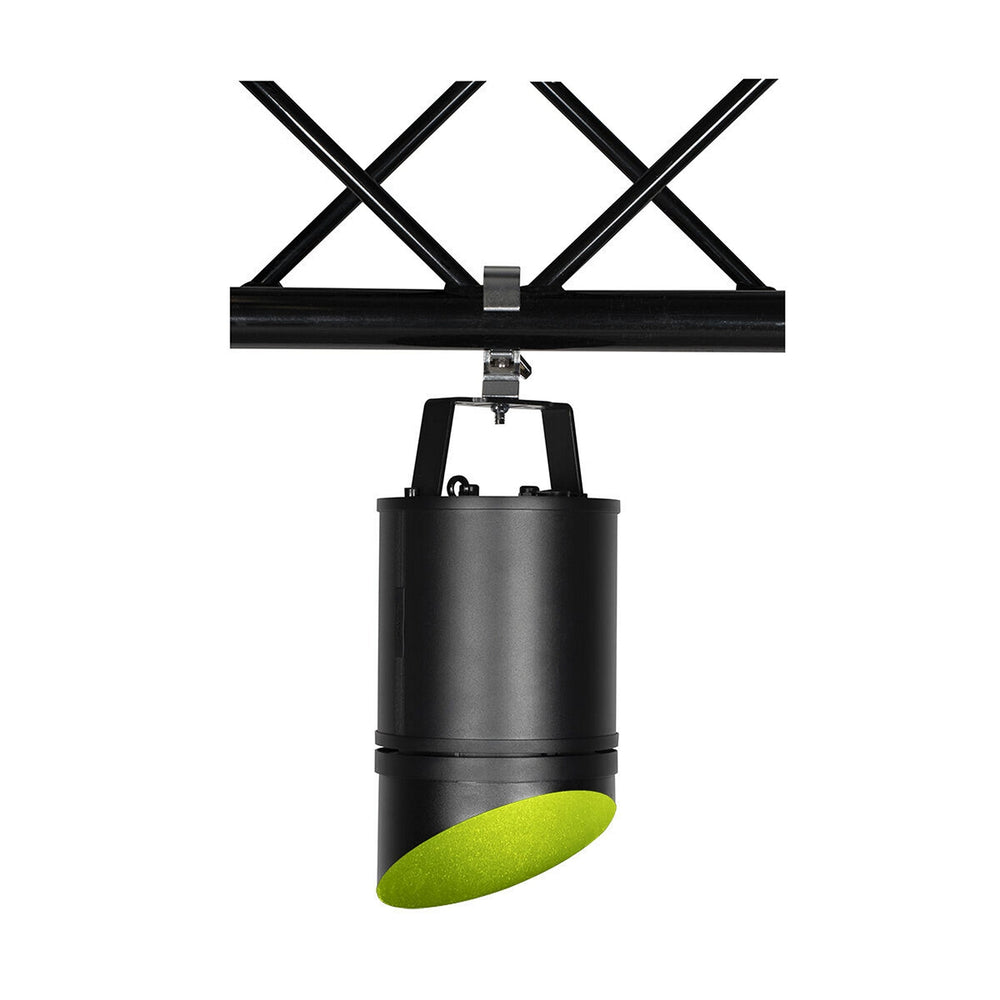

FPHS- Half Snoot
FPFS- Full Snoot
