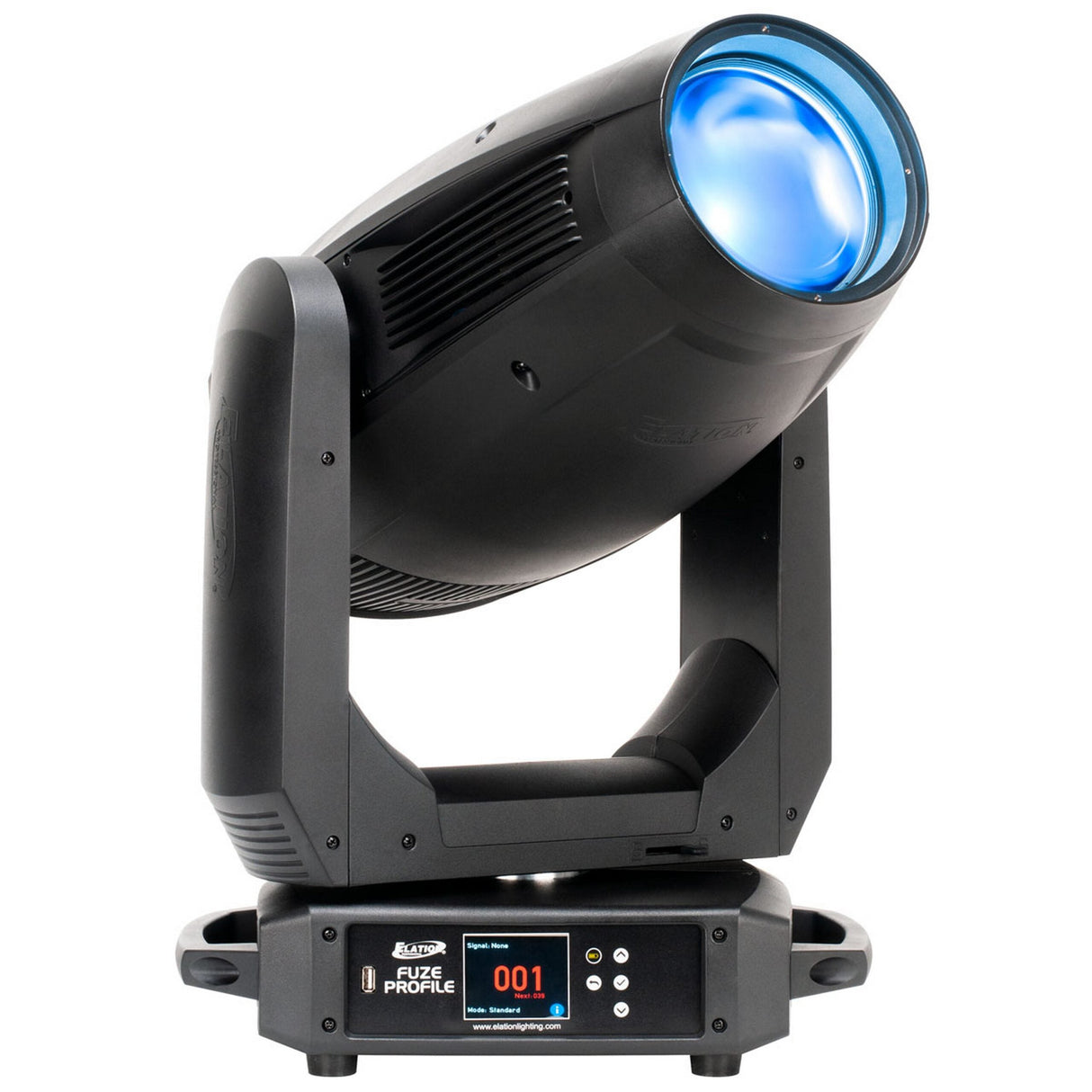

Elation Fuze Profile RGBMA LED Framing Fixture with Rotating Fixed Gobos

The FUZE PROFILE is an automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

Key Features

• Extended color RGBMA LED Engine, 92 CRI
• Rotating and Fixed Gobos plus Animation Wheel
• Full Blackout Framing System
• Iris, Prism, and Frost
• Wide Zoom Range from 7° to 42°

Technical Specifications

SOURCE
305W 6,500K RGBMA LED Engine, 92 CRI
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
10,000+ Total Lumen Output
EFFECTS
7° - 42° Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 45 Index
Variable Frost Filter
4 Facet Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 38 / 59) (CMY 36 / 55)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
5pin DMX In/Out
Neutrik powerCON TRUE1 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length
16.0” (407mm)
Width
10.1" (256mm)
Vertical Height
27.4" (698mm)
Weight
55.1 lbs. (25kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
540W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
