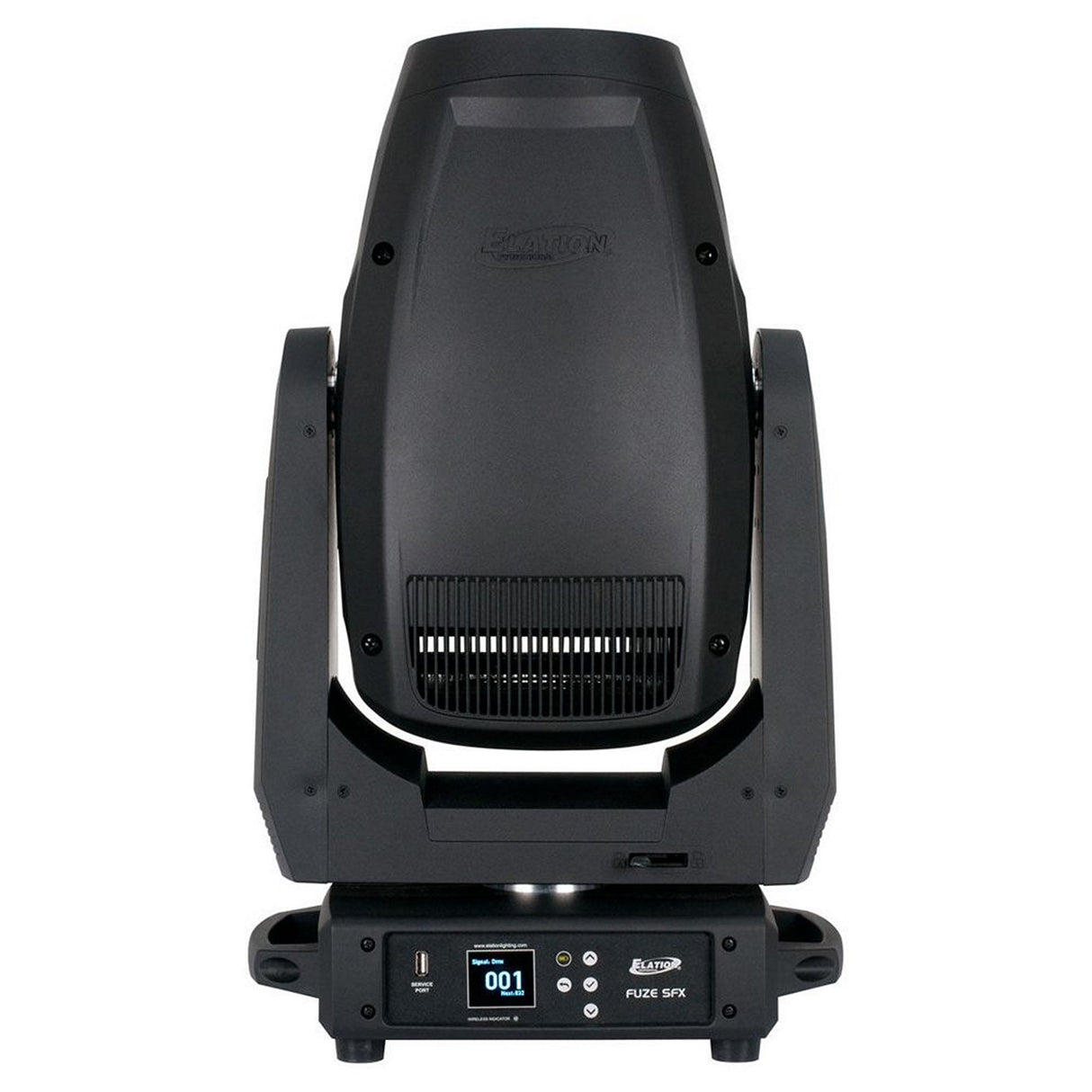

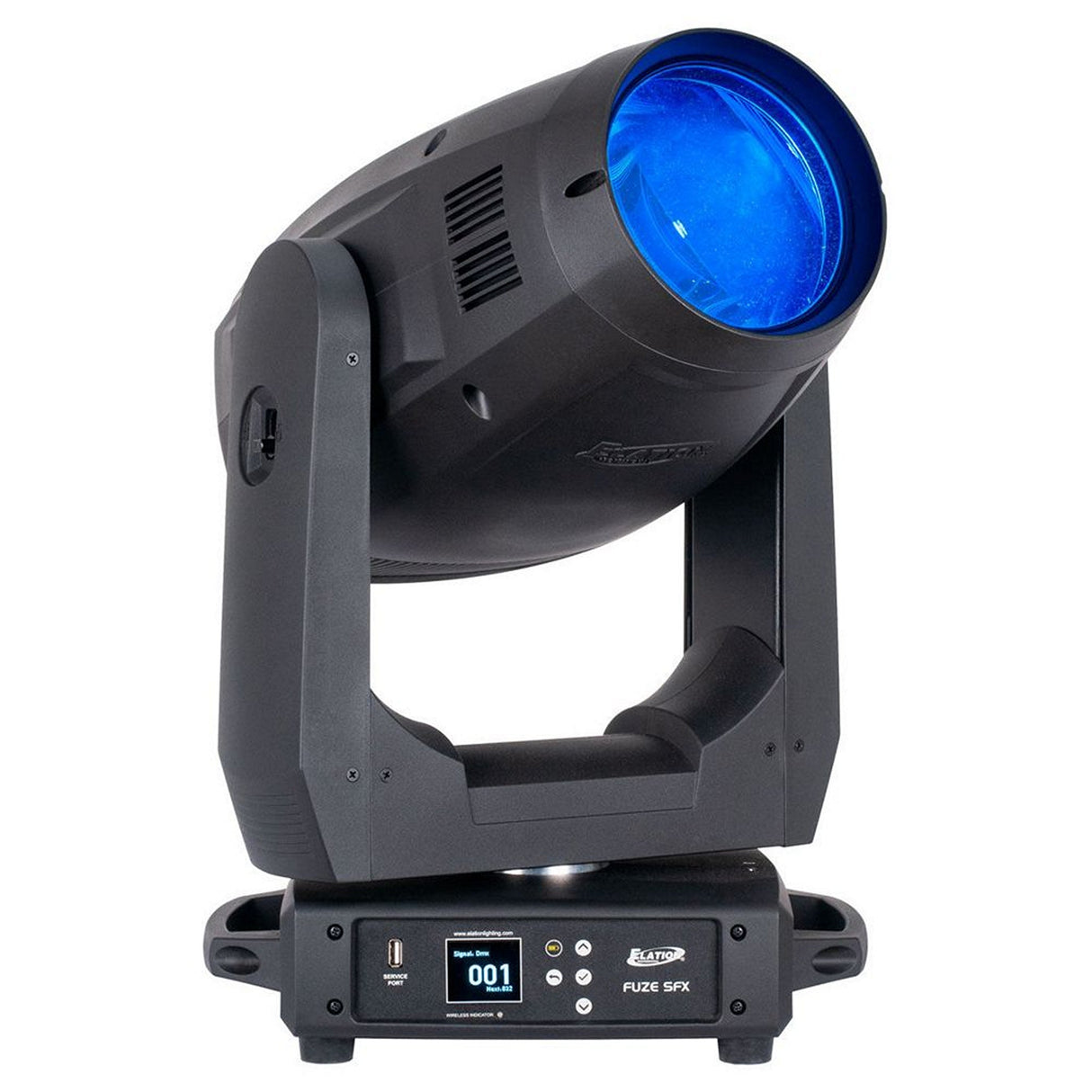

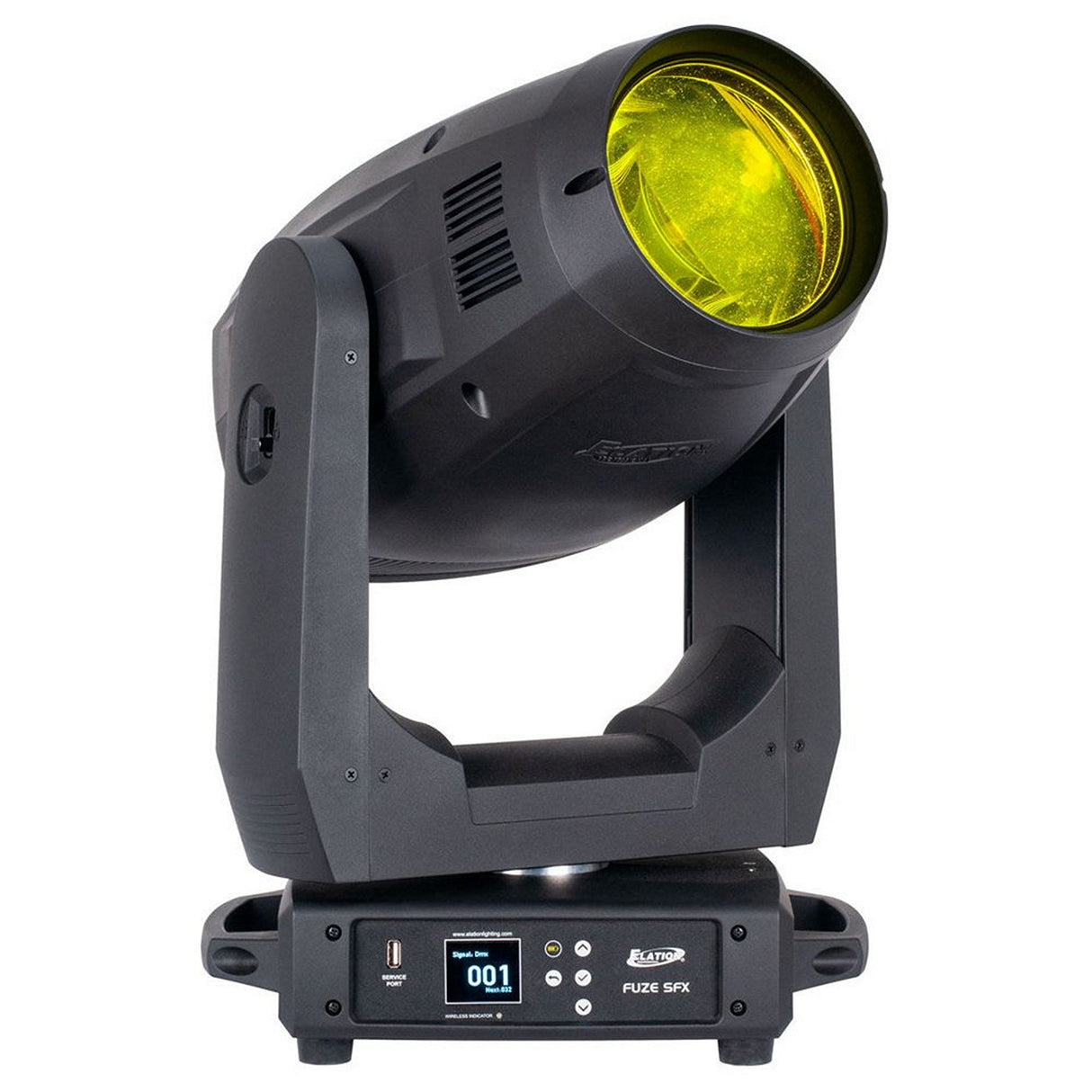

Elation Professional Fuze SFX 300W LED Moving Head Spot FX
The Elation Professional Fuze SFX is a versatile and powerful 300W LED moving head spot FX fixture designed to deliver exceptional performance in a compact, feature-rich design. With its 6,600K bright white LED engine, the Fuze SFX produces over 12,000 lumens of output, providing bright and impactful illumination for a variety of applications, from tight beams to wide washes. This fixture is perfect for creating dynamic stage effects, mid-air projections, and vibrant color washes, making it an ideal choice for concerts, theater productions, live events, and broadcast environments.
At the heart of the Fuze SFX is its efficient optical system, featuring a zoom range of 4.5° to 38°, allowing for precise beam control. The motorized zoom provides a smooth transition from narrow, sharp beams to wide, soft washes, while the remote focus ensures sharp and clear projections. The fixture's variable CMY color-mixing system, combined with a 7-position color wheel, allows for smooth and seamless color transitions, providing a wide array of beautiful colors. Additionally, the fixture includes a high CRI (Color Rendering Index) filter and a CTO (Color Temperature Orange) filter, ensuring accurate color representation and the ability to adjust the color temperature for different lighting needs.
The Fuze SFX excels in creating stunning visual effects, thanks to its 18 carefully designed gobos. With 8 rotating, interchangeable glass gobos and 10 fixed gobos, this fixture is capable of producing a wide variety of image projections and mid-air effects. The two independent rotating prisms, a 6-facet linear and a 6-facet round, provide layering capabilities, allowing for even more complex and dynamic effects. The motorized iris and variable frost filter offer additional control over the beam's intensity and softness, enabling the creation of everything from crisp, defined patterns to smooth washes.
Designed for precise control, the Fuze SFX supports a wide range of DMX protocols, including DMX, RDM, E-FLY wireless, Art-Net, and sACN, ensuring compatibility with various lighting control systems. The fixture offers 31 DMX channels and supports 16-bit pan, tilt, and dimming control for smooth, precise movements. The 540° pan and 270° tilt angles provide a full range of motion, while the high-speed electronic shutter and strobe effects add excitement and drama to live performances. The fixture's advanced control features are easily accessed via a 4-button touch control panel and a full-color, 180° reversible LCD menu display, providing clear and intuitive operation.
Key Features
- Powerful Light Source: 300W 6,600K white LED engine producing 12,135 lumens total fixture output
- Versatile Beam Control: 4.5° to 38° zoom range with motorized zoom and remote focus
- Comprehensive Color System: Variable CMY color mixing plus 7-position color wheel with high CRI and CTO filters
- Advanced Effects: 18 gobos (8 rotating, 10 fixed), dual independent rotating prisms, motorized iris, and variable frost
- Precise Movement: 16-bit pan (540°), tilt (270°), and dimming control for smooth, accurate positioning
- Versatile Control Options: Support for DMX, RDM, E-FLY wireless, Art-Net, and sACN protocols
- User-Friendly Interface: 4-button touch control panel with full-color 180° reversible LCD menu display
- Weather-Resistant Connections: IP65-rated locking power connectors for secure operation
- Durable Construction: Compact design weighing 46.3 lbs with professional-grade components
Technical Specifications
- Light Source: 300W 6,600K Bright White LED Engine with 20,000 Hour Average LED Life
- Output: 12,135 Total Lumen Output
- Color Quality: CRI 68+ (Standard), High CRI Filter (CRI 84), CTO Filter (3200K, CRI 77)
-
Beam Properties:
- Zoom Range: 4.5° - 38°
- Beam Angle: 4.6° - 38.2°
- Field Angle: 5.6° - 42.2°
-
Effects:
- Motorized Zoom and Remote Focus
- Variable Frost Filter
- Dual Independent Prisms (6 Facet linear & 6 Facet round)
- Motorized Iris
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
- Pan Angle: 540°/630°
- Tilt Angle: 270°
-
Color System:
- CMY Variable Color Mix
- 7 Position Color Wheel
-
Gobos:
- Wheel #1: 8 Rotating/Interchangeable Glass Gobos
- Wheel #2: 10 Static Gobos
-
Control/Connections:
- 31 DMX Channels
- DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
- Locking 5pin XLR Connector In/Out
- Locking RJ45 Ethernet Connector In/Out
- IP65 Locking Power Connector In/Out
- USB Connection (Firmware Updates)
- Dimensions: 14.3" (L) × 9.2" (W) × 23.4" (H)
- Weight: 46.3 lbs
-
Electrical/Thermal:
- AC 100-240V - 50/60Hz
- 432W Max Power Consumption
- Operating Temperature: 14°F to 113°F (-10°C to 45°C)
- BTU/hr: 1473.12
- Certifications: CE and cETLus approvals
Package Contents
- Elation Professional Fuze SFX 300W LED Moving Head Spot FX Fixture
- Power Cable
- User Manual
