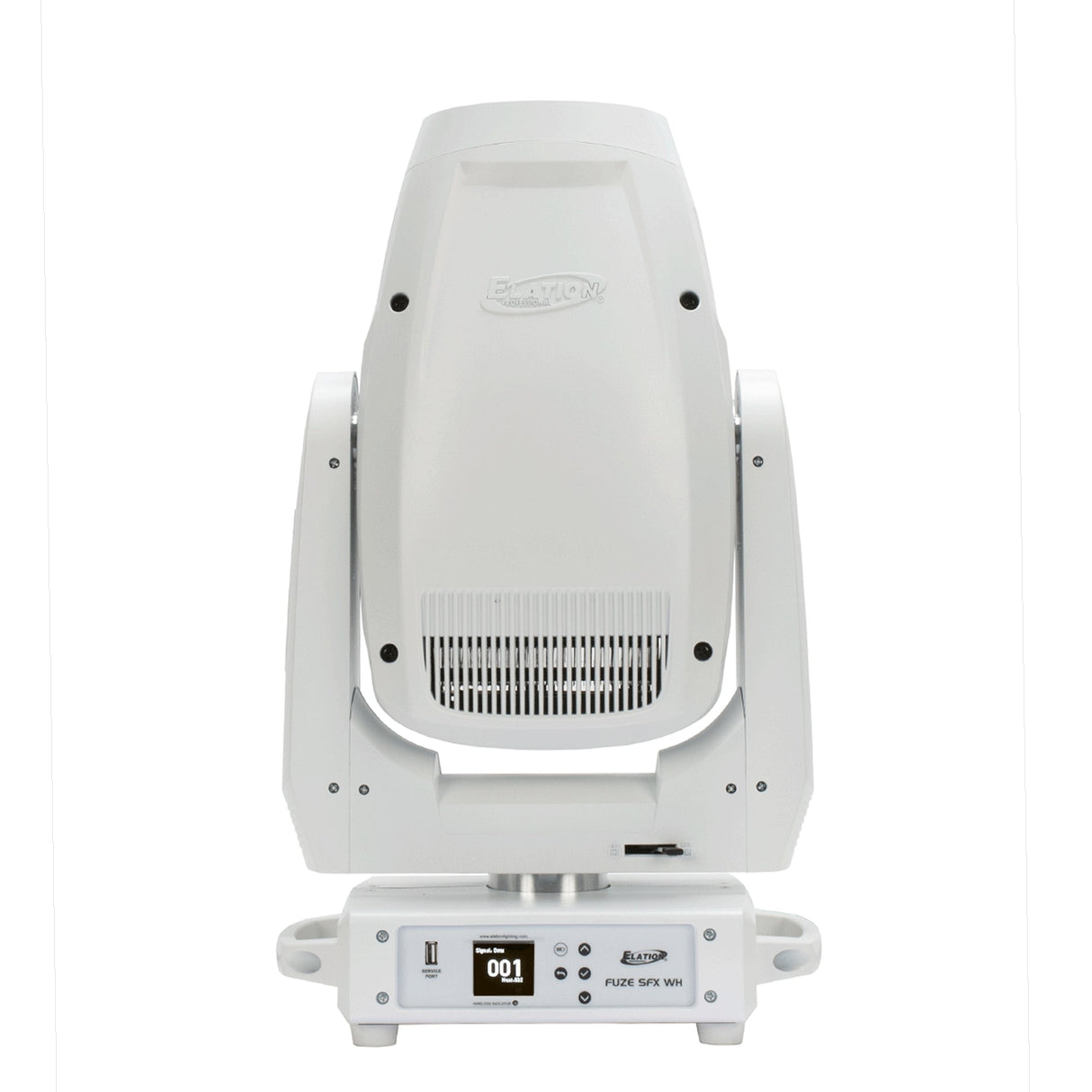

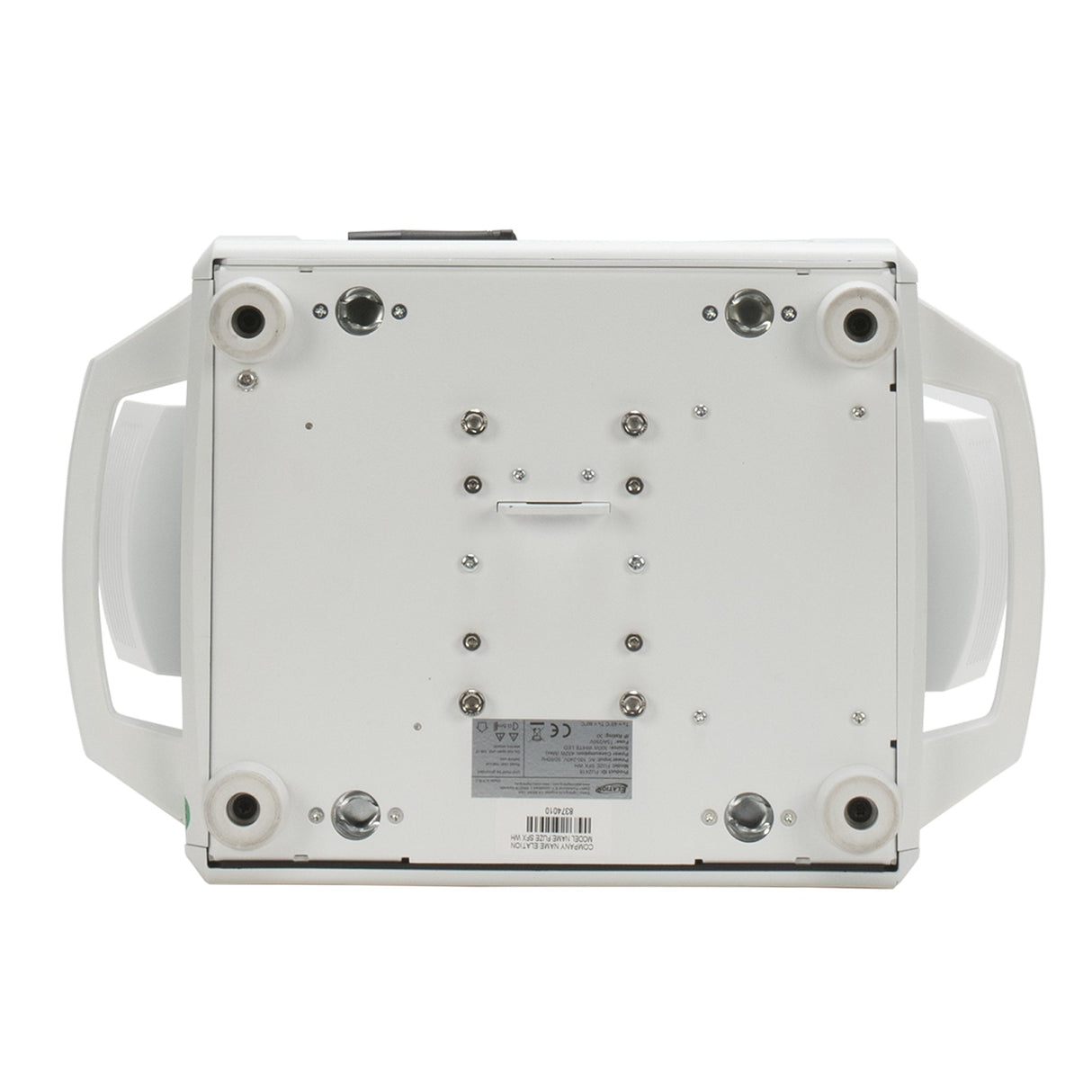

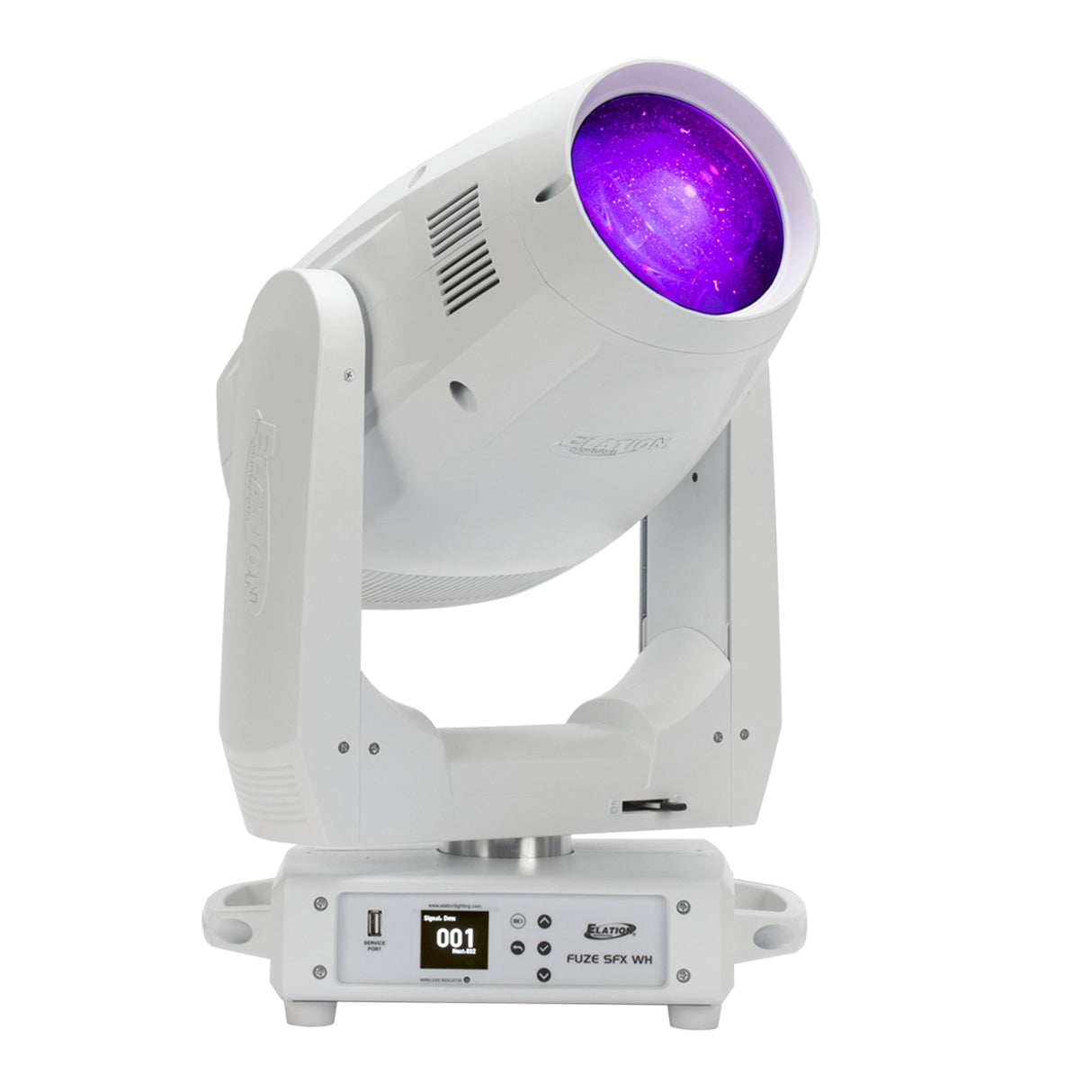

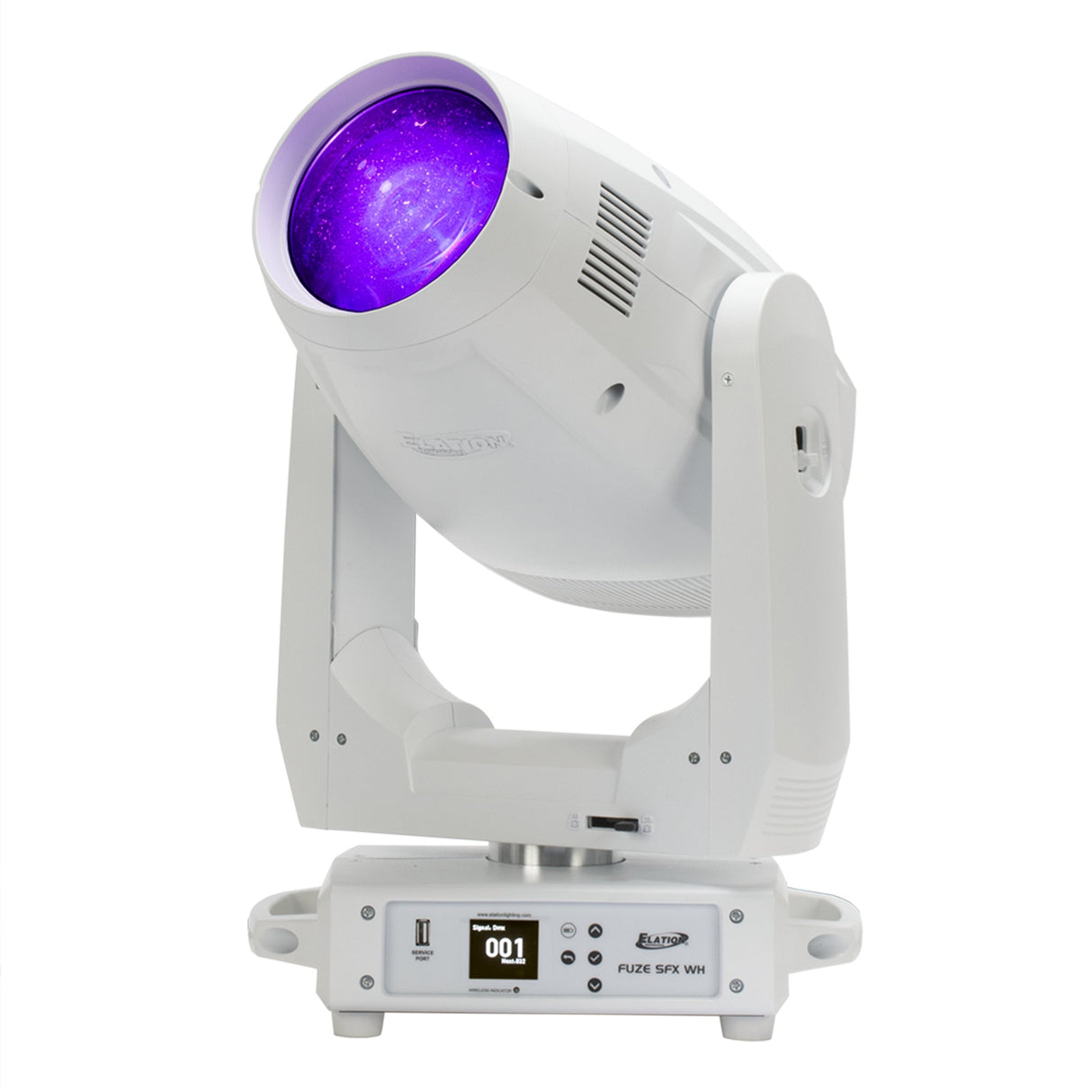

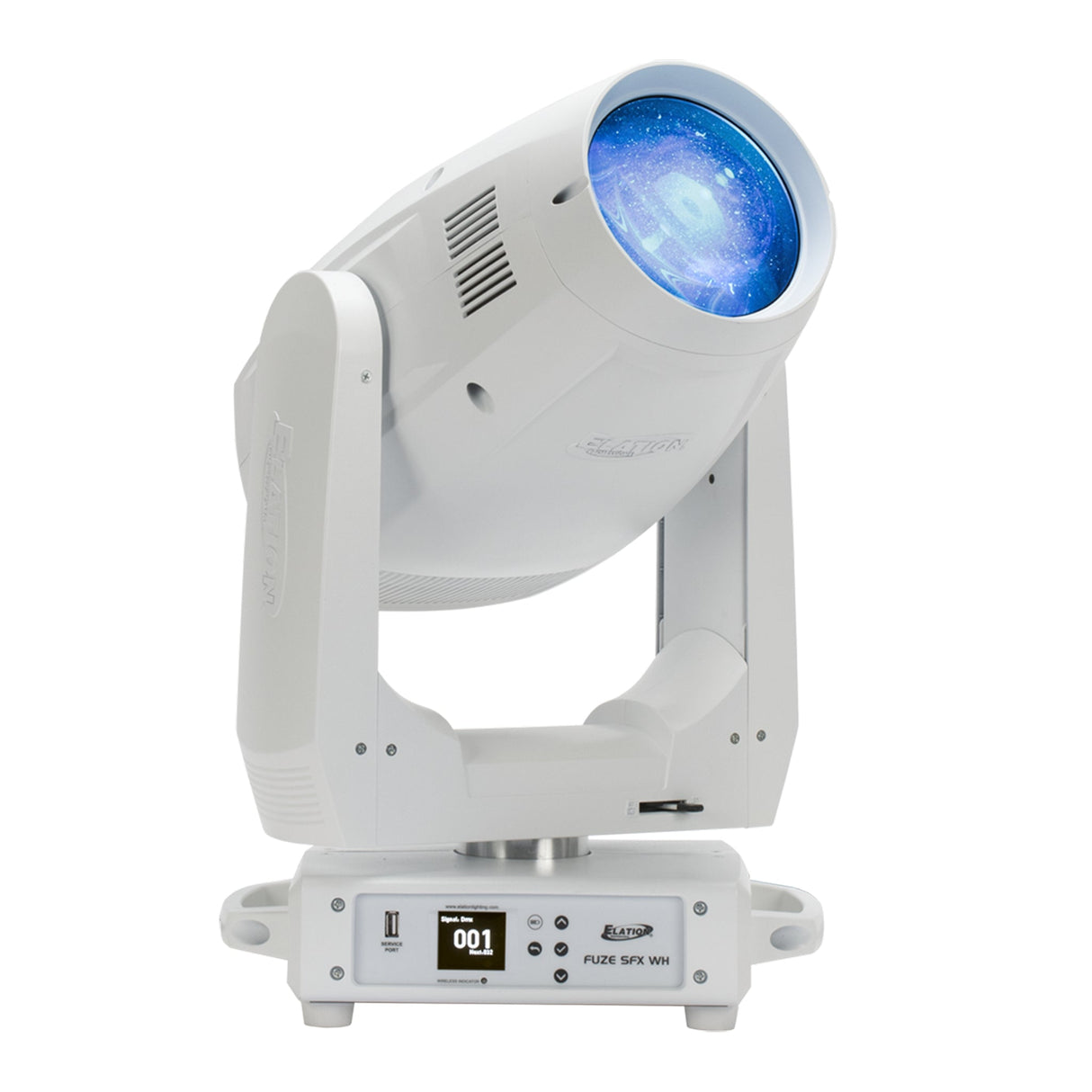

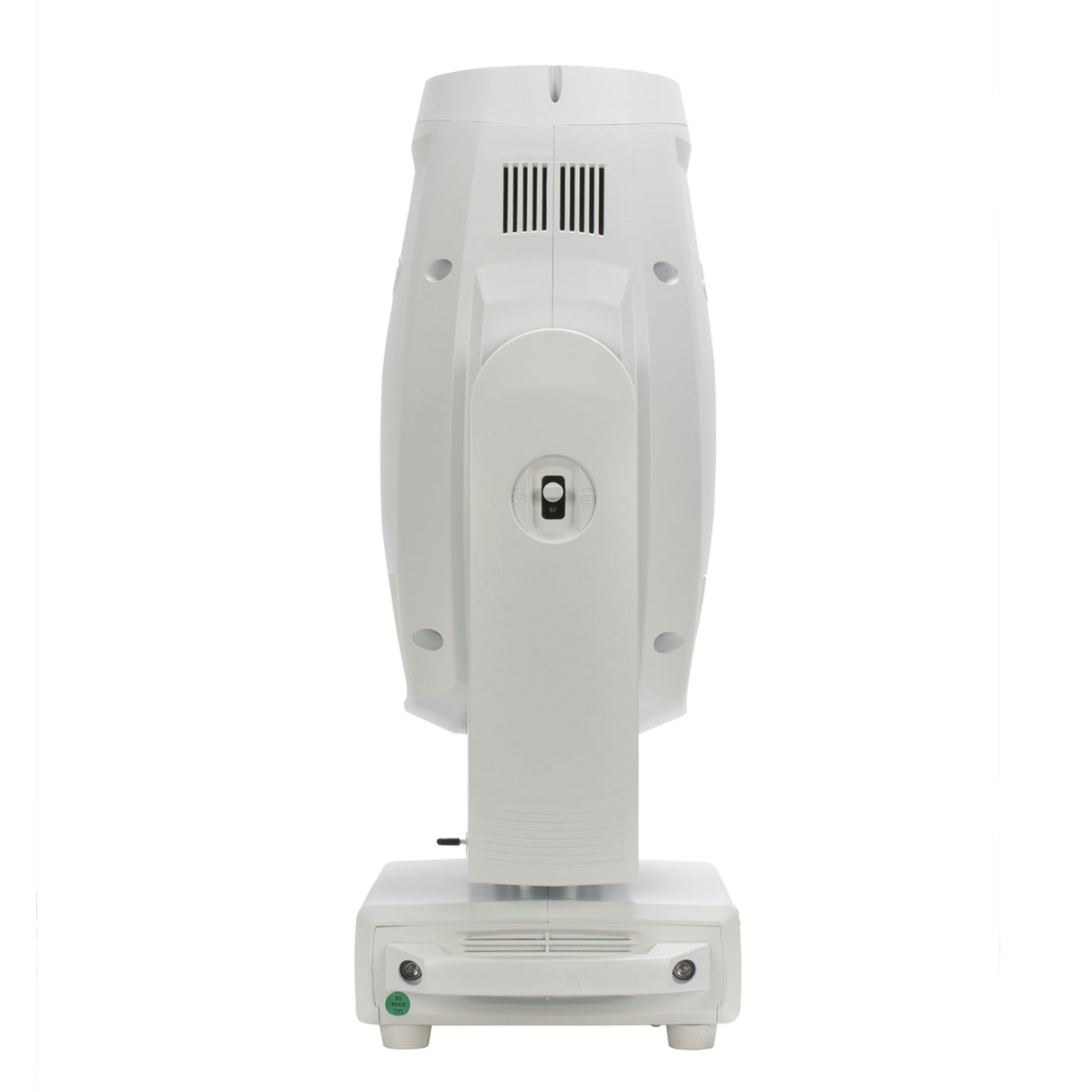

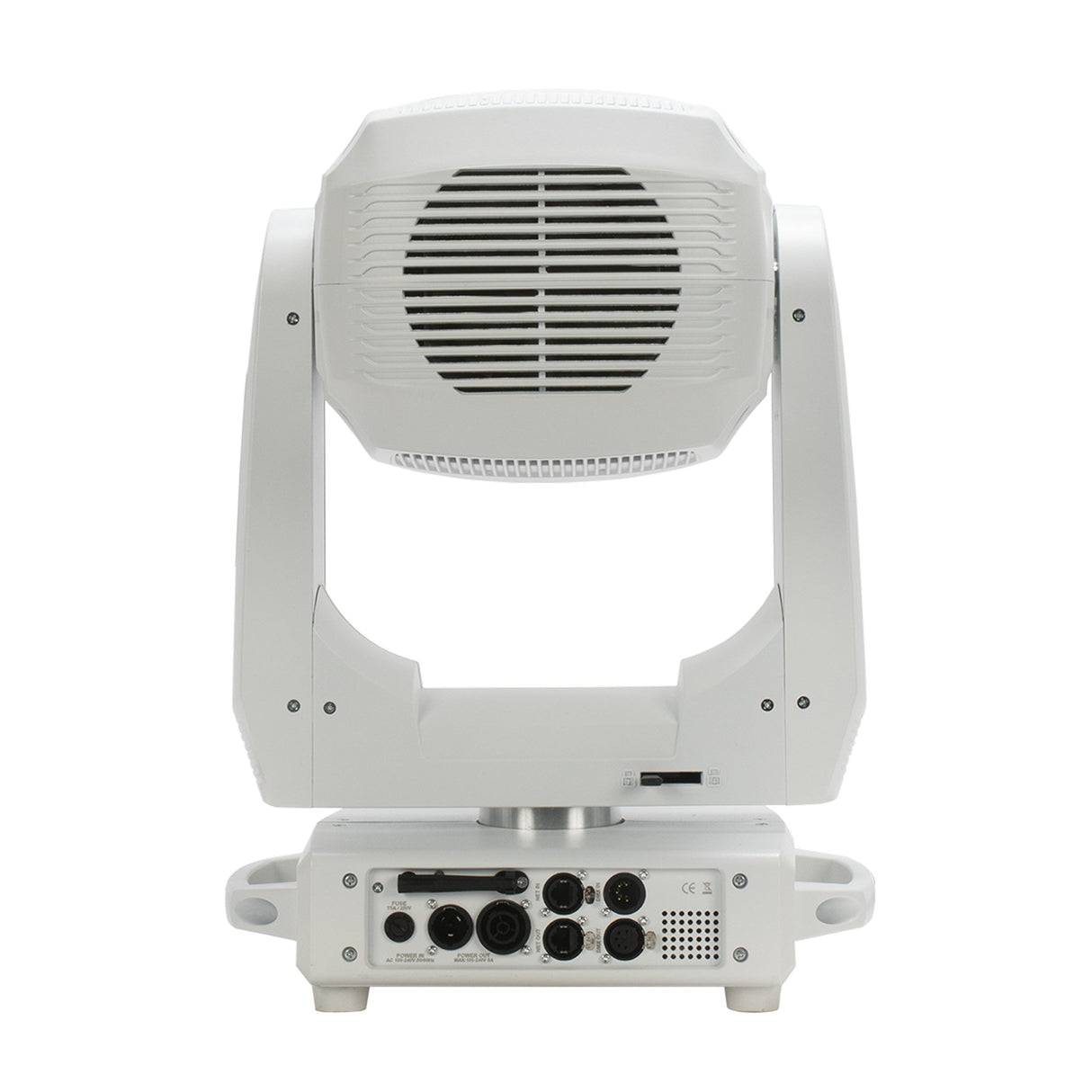

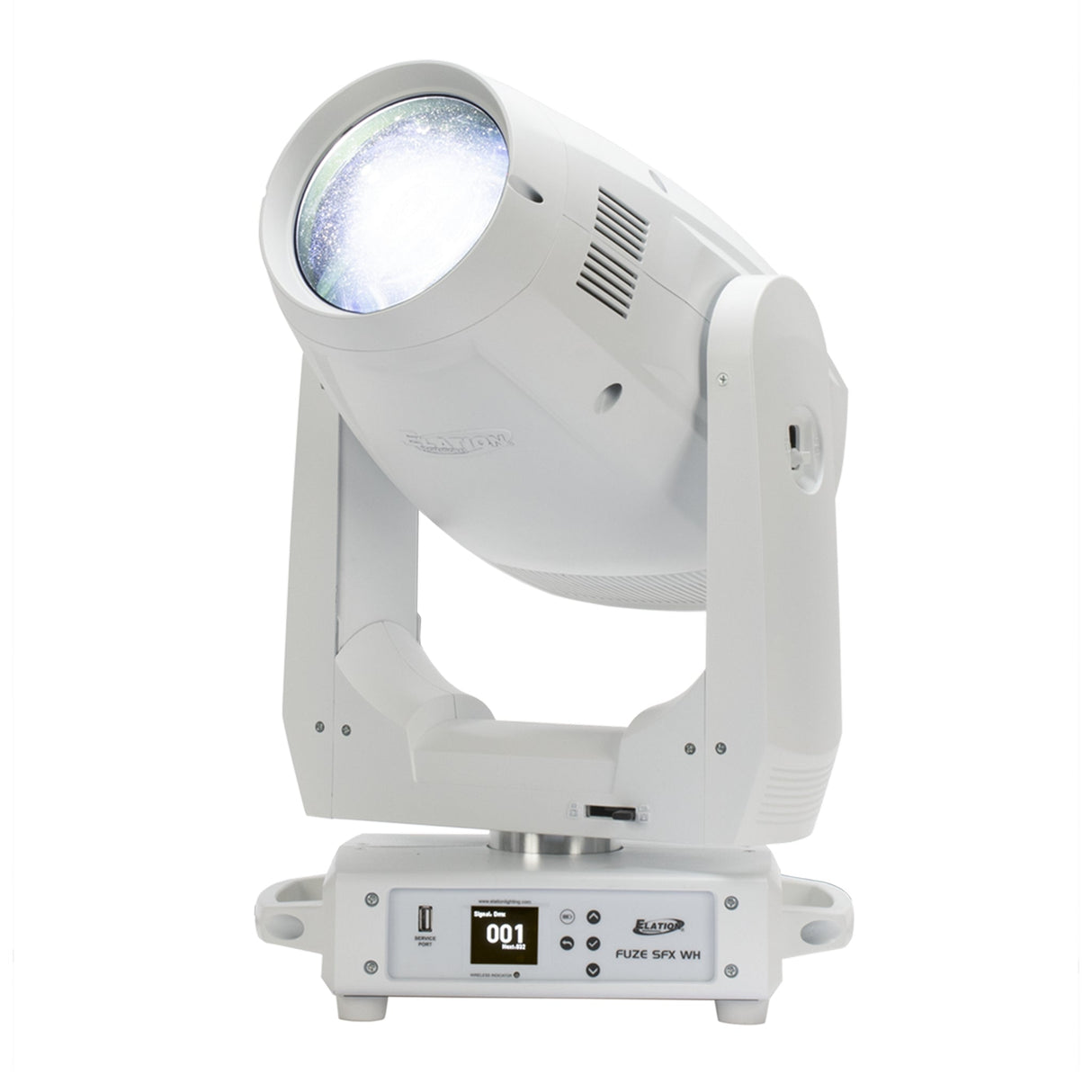

Elation Fuze SFX WH 300W LED 6600K Spot FX Fixture, White
The FUZE SFX WH is a compact LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.
Housing 18 carefully designed gobos and a 4.5 Degrees to 38 Degrees zoom, the FUZE SFX WH can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.
A truly remarkable compact powerhouse for any application, the FUZE SFX WH is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.
Key Features
- 300W LED 6,600K White LED Engine
- 12,000 Total Lumen Fixture Output
- Spot and Effects Fixture
- Zoom Range from 4.5 Degrees to 38 Degrees
- Variable CMY and 7-Position Color Wheel
- High CRI and CTO Filter
- 8 Rotating and 10 Fixed Gobos
- Dual Independent Prisms for Layering
- Motorized Iris
- Variable Wash Frost Filter
Technical Specifications
SOURCE
300W 6,600K Bright White LED Engine
20,000 Hour Average LED Life*
PHOTOMETRIC DATA
12,135 Total Lumen Output
CRI 68+
Zoom Range
4.5 Degrees - 38 Degrees
Beam Angle
4.6 Degrees - 38.2 Degrees
Field Angle
5.6 Degrees - 42.2 Degrees
EFFECTS
Motorized Zoom
Remote Focus
Variable Frost Filter
Dual Independent Prisms (6 Facet linear & 6 Facet round)
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
CMY Variable Color Mix
7 Position Color Wheel
High CRI Filter, CRI 84
CTO Filter, 3200K, CRI 77
GOBOS
2 Gobo Wheels
Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
Wheel #2 with 10 Static Gobos
CONTROL / CONNECTIONS
31 DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180 Degrees Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length
14.3” (362mm)
Width
9.2” (233mm)
Vertical Height
23.4” (595mm)
Weight
46.3 lbs. (19.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
432W Max Power Consumption
14 Degrees F to 113 Degrees F (-10 Degrees C to 45 Degrees C)
BTU/hr (+/- 10%) 1473.12
APPROVALS / RATINGS
CE | cETLus | IP20
