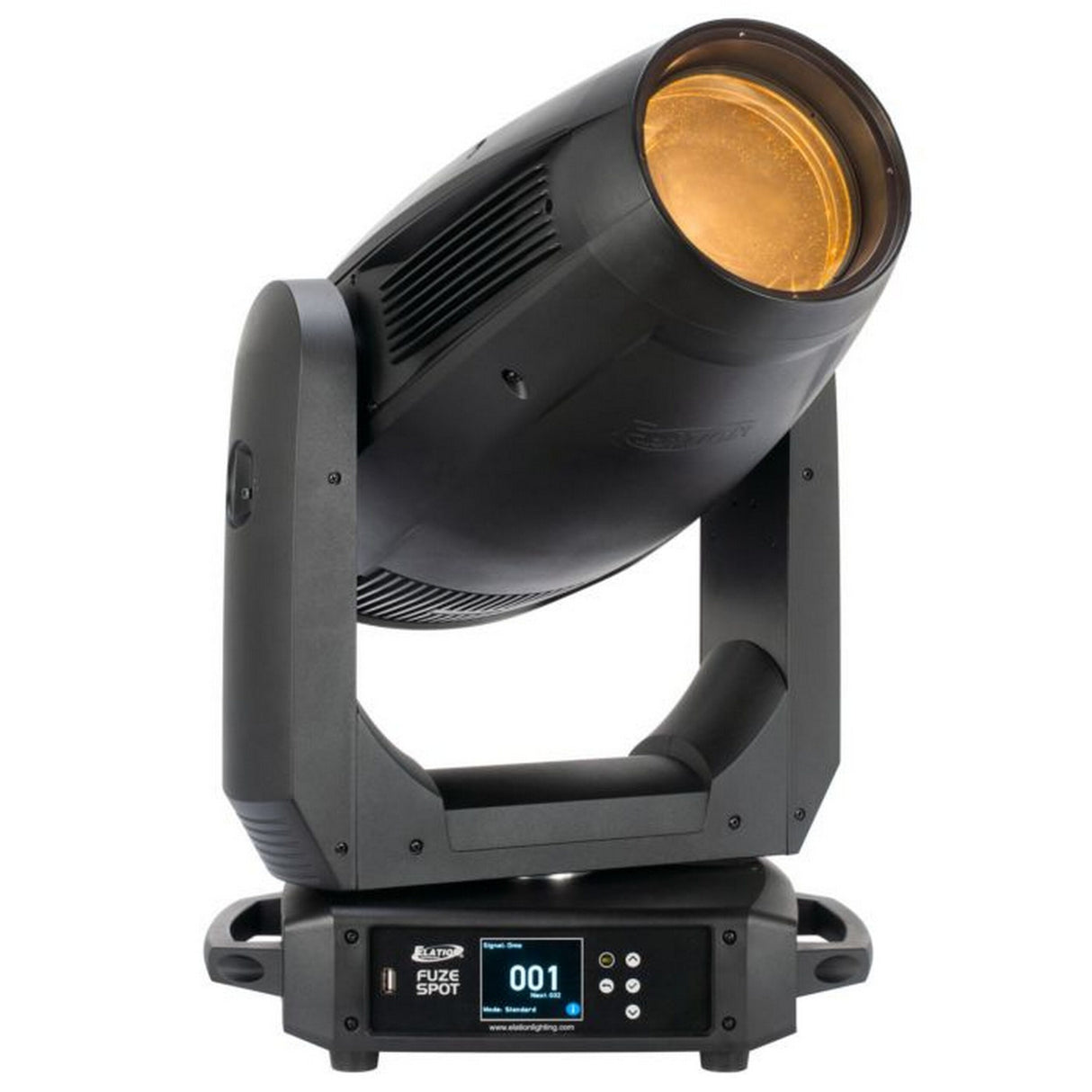

Elation Fuze Spot 305 Watt RGBMA Full Color LED Spot Light Fixture
Elation Fuze Spot 305 Watt RGBMA Full Color LED Spot Light Fixture
The FUZE SPOT is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications.The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensures accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.
Key Features
- Extended color RGBMA LED Engine, 92 CRI
- Two rotating Gobo Wheels plus Animation Wheel
- Iris, Prism, and Frost
- Wide Zoom Range from 7° to 42°
Technical Specifications
SOURCE
305W 6,500K RGBMA LED Engine, 92 CRI
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
10,000+ Total Lumen Output
EFFECTS
7° - 42° Motorized Zoom
Variable Frost Filter
4 Facet Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
2x 6 Rotating / Indexing Interchangeable Glass Gobos
Animation Wheel
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
5pin DMX In/Out
Neutrik powerCON TRUE1 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length
16.0” (407mm)
Width
10.1" (256mm)
Vertical Height
27.4" (698mm)
Weight
46.3 lbs. (21kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
466W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
