Elation Fuze Wash 500 RGBMA 500W LED Fresnel Wash Fixture
Description
Description
Elation Fuze Wash 500 RGBMA 500W LED Fresnel Wash Fixture
The FUZE WASH 500 is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 17,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.
The FUZE WASH 500 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required. An optional indexable ovalizer lens is available for additional beam control.
Key Features
- 500W Full Spectrum RGBMA LED Engine
- Up to 17,000 Total Lumen Fixture Output @ 6,500K
- CRI up to 92
- Wide Zoom Range from 10 Degrees to 45 Degrees
- Variable 16-bit Dimming Curve Modes
- CMY Emulation
- Virtual Color Correction
- Green/Magenta Shift
- Virtual Gel Swatch Book
Technical Specifications
SOURCE
500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
17,000 Total Lumen Fixture Output
CRI 92
Zoom Range 10 Degrees - 45 Degrees
EFFECTS
Motorized Zoom

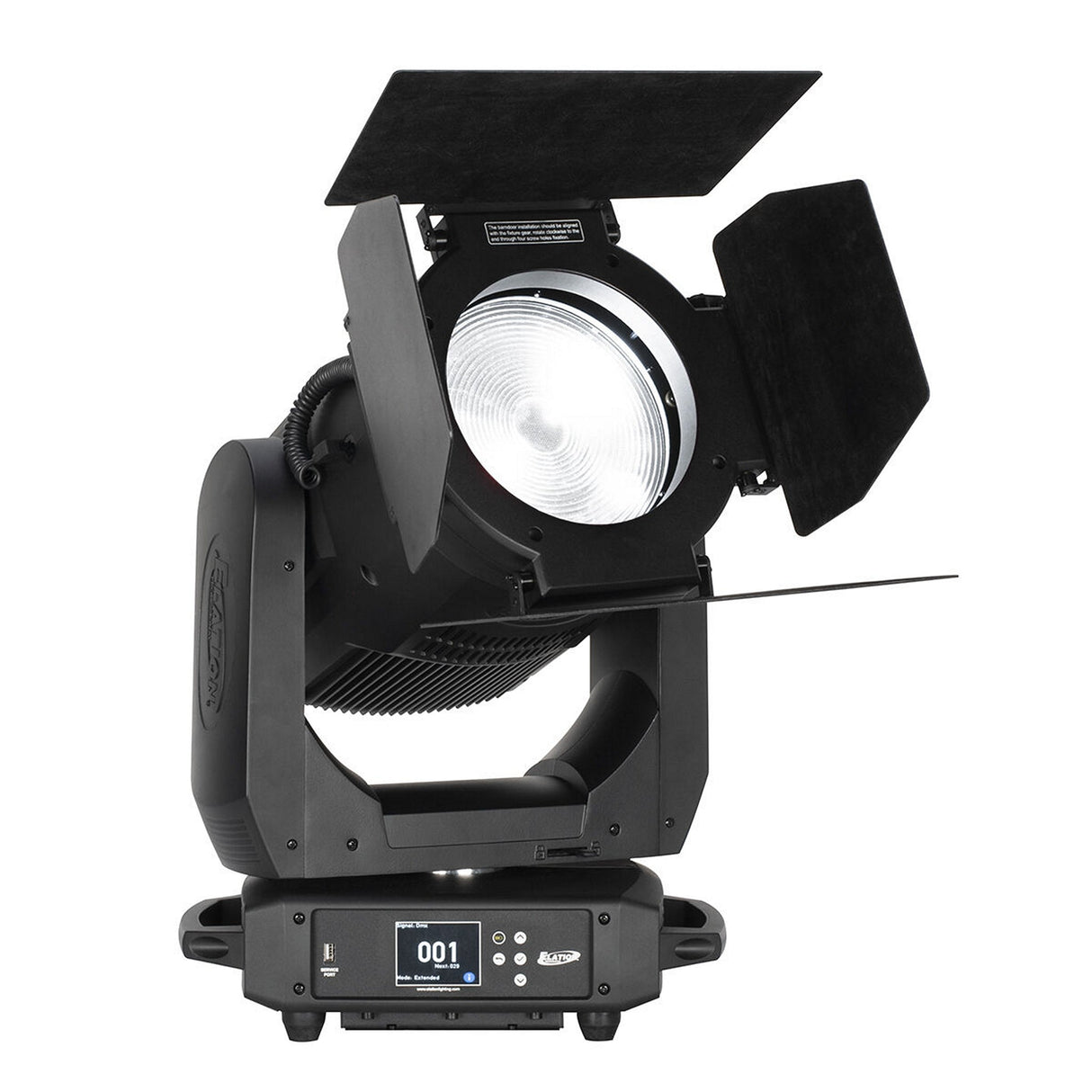

Optional Indexable Ovalizer Lens
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 21/ 28) (CMY 19 / 24)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180 Degrees Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates)
SIZE / WEIGHT
Length
16.06” (408mm)
Width
10.07” (256mm)
Vertical Height
21.7” (550mm)
Weight
40.8 lbs. (18.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption
609W
14 Degrees F to 113 Degrees F (-10 Degrees C to 45 Degrees C)
BTU/hr (+/- 10%) 2151.71
APPROVALS / RATINGS
CE | cETLus | IP20
