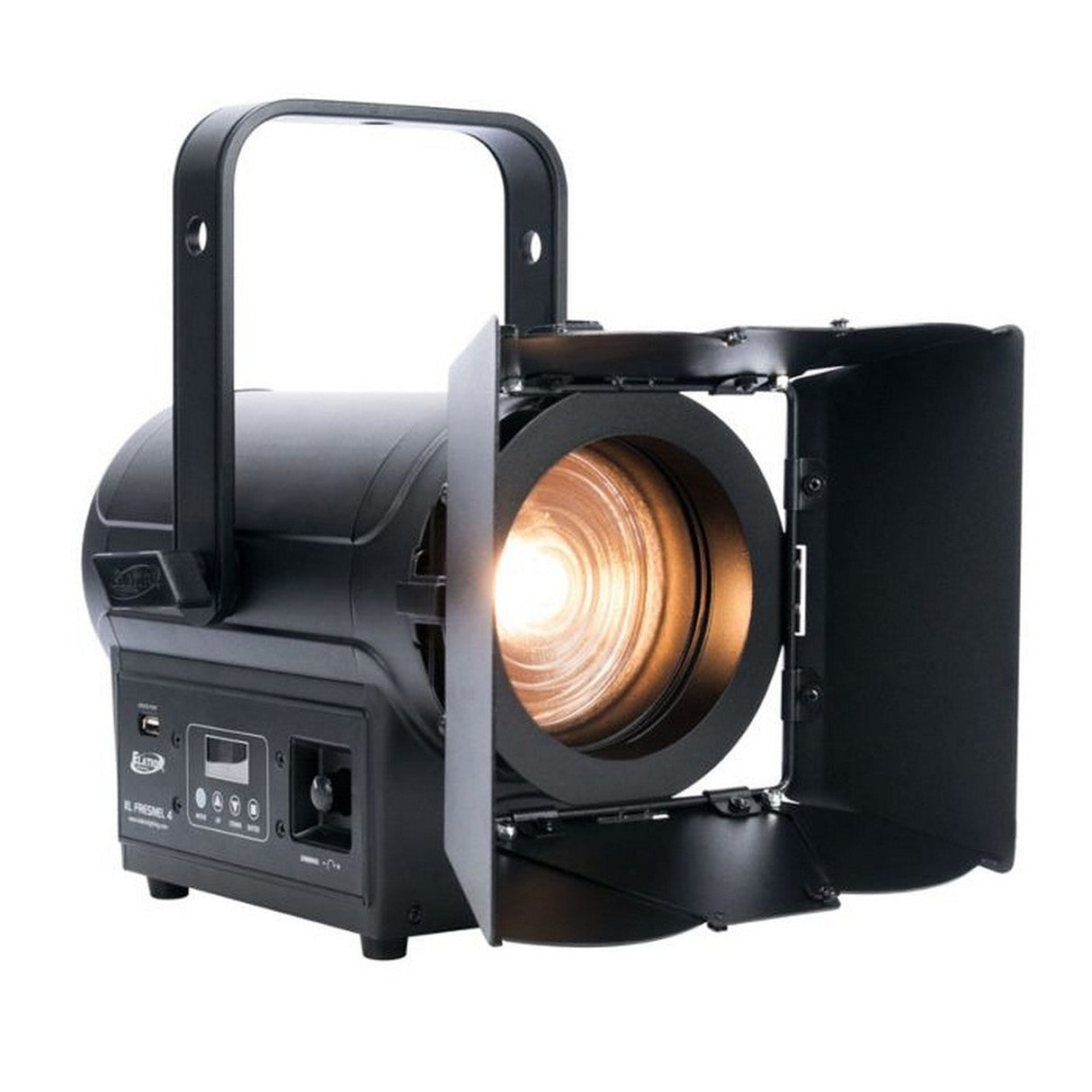

Elation KL Fresnel 4 50 Watts Warm White LED Fresnel
KL FRESNEL 4 is a 50W 3,000K >97CRI Warm White LED fresnel, producing over 1,900 total lumens output, on par with compatible tungsten halogen models. Features include 14 to 30 wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming curve modes, LED refresh rate frequency and gamma brightness adjustment for flicker free operation for TV and FILM, RDM (remote device management) protocol support, 5pin DMX and powerCON in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating barn doors (included), and a 3 clamp position adjustable mounting yoke.
Key Features
- 50W 3,000K >97CRI Warm White LED Engine
- 1,900+ Total Lumens Output
- On Par with Tungsten Halogen Models
- 14 to 30 Wide Manual Zoom
- Manual and DMX Controlled Dimmer and Shutter
- Dimmer and Zoom Rotary Dials
- Smooth 16-bit Selectable Dimming Curve Modes
- LED Refresh Rate and Gamma Brightness Adjustment
- Flicker Free Operation for TV and FILM
- RDM (Remote Device Management)
- Gel Frame and Rotating Barn Doors (included)
- 3 Clamp Position Adjustable Mounting Yoke
Technical Specifications
SOURCE
50W 97CRI 3,000K Cool White LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
6,837 LUX 635 FC @6.6’ (2m) (14 Full ON)
1,791 LUX 166 FC @6.6’ (2m) (30 Full ON)
EFFECTS
14 - 30 Manual Zoom
Electronic Strobe
Variable 16-bit Dimming Curve Modes
COLOR
Warm White 3,000K
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
(4) DMX Channel Modes (1 / 2 / 3 / 4)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
5pin DMX and powerCON TRUE1 In/Out
SIZE / WEIGHT
Length: 13.6” (345mm)
Width: 7.9” (201mm)
Vertical Height: 11.4” (289mm)
Weight: 9.0 lbs. (4.08 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
50W Max Power Consumption
Multiple Unit Power Linking
5F to 113F (-15C to 45C)
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
powerCON TRUE1 Power Cable
Barn Doors and Fixture Safety Cables
APPROVALS / RATINGS
CE | IP30
