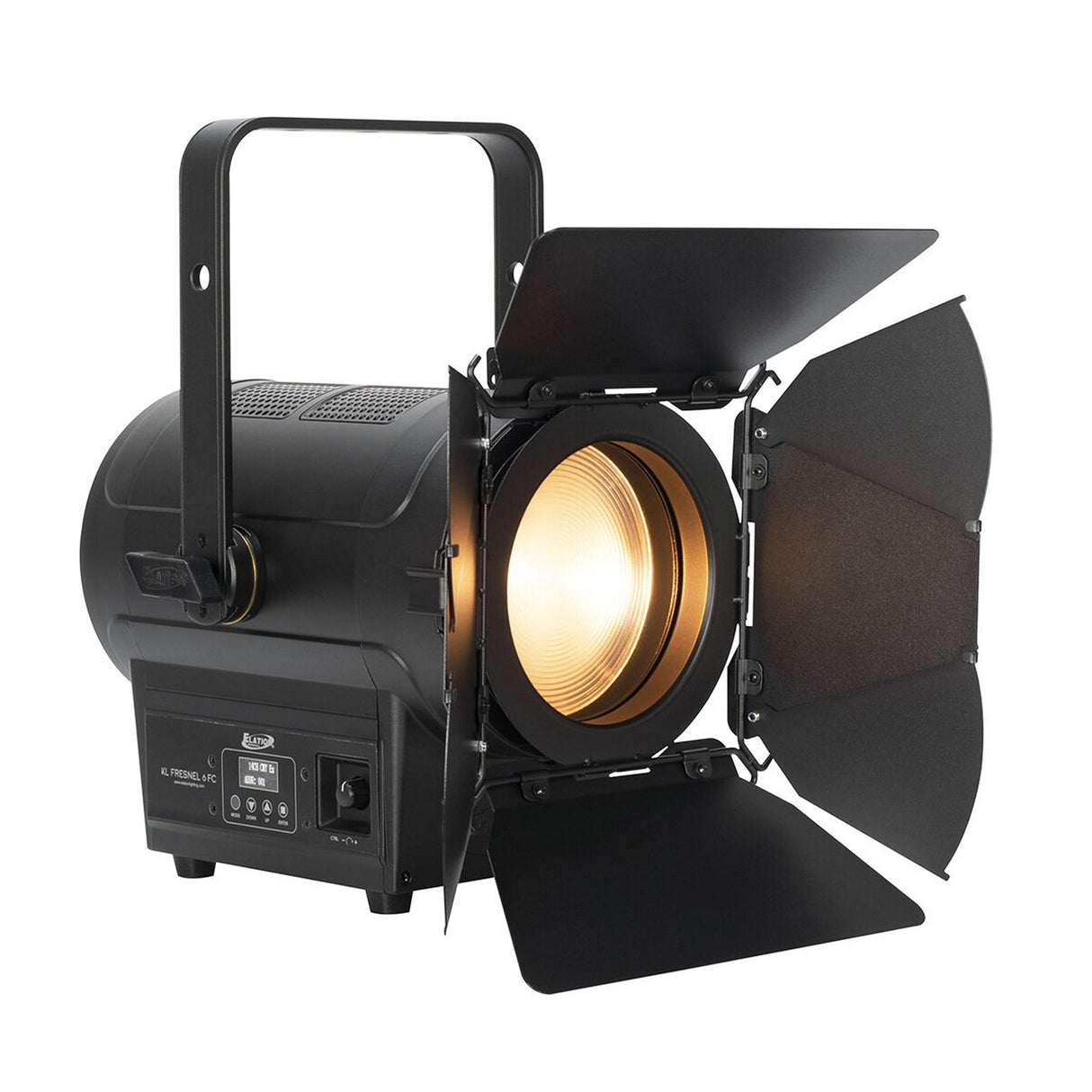

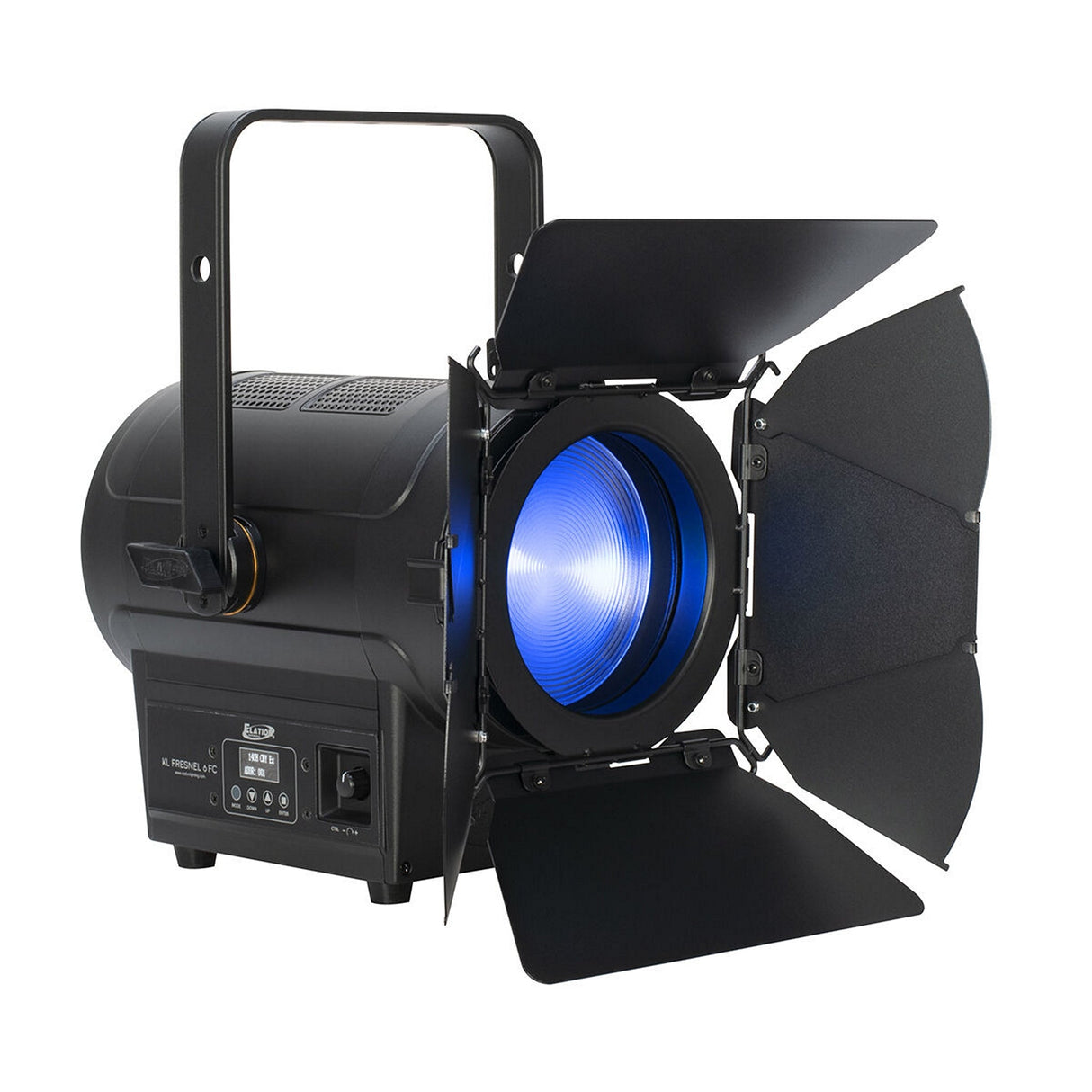

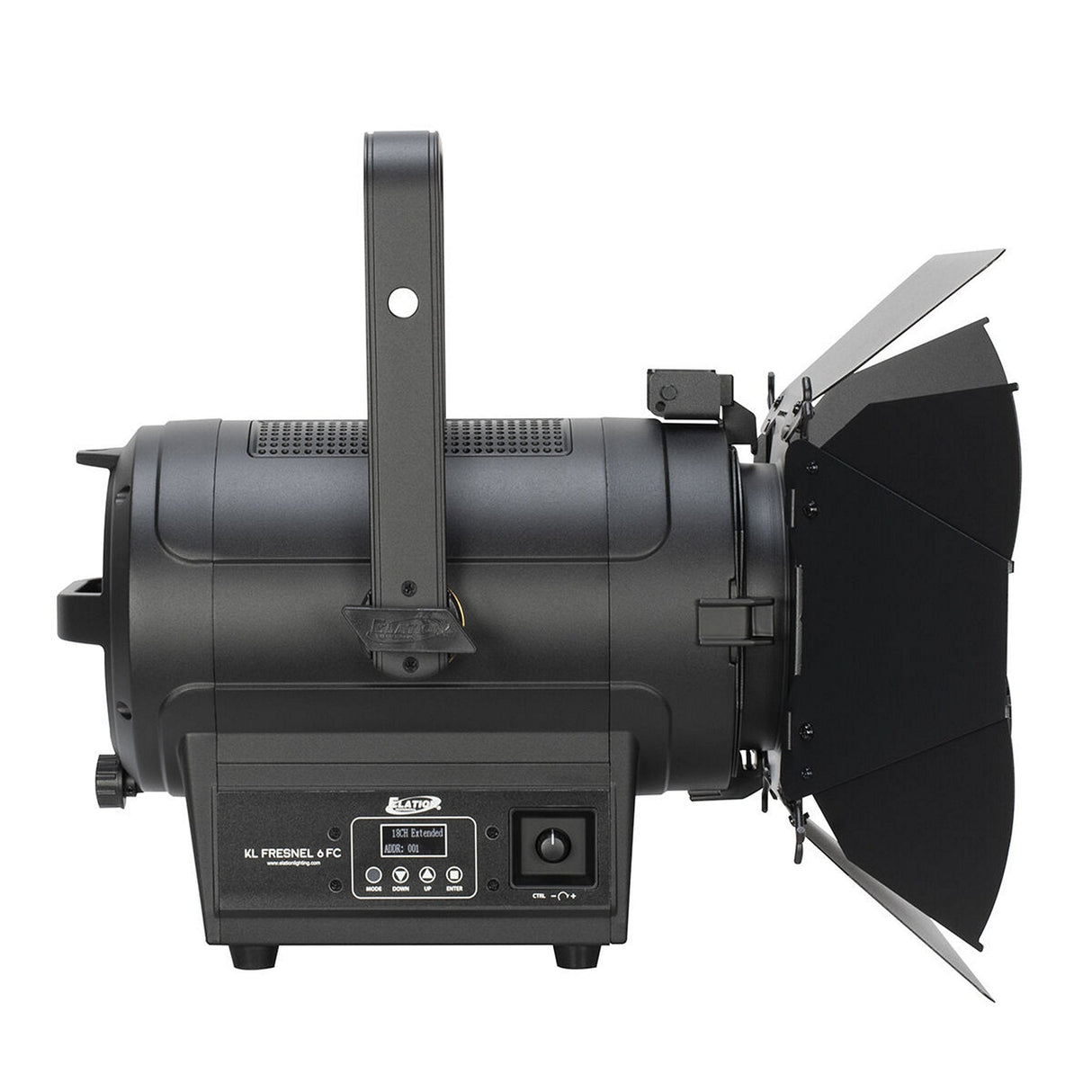

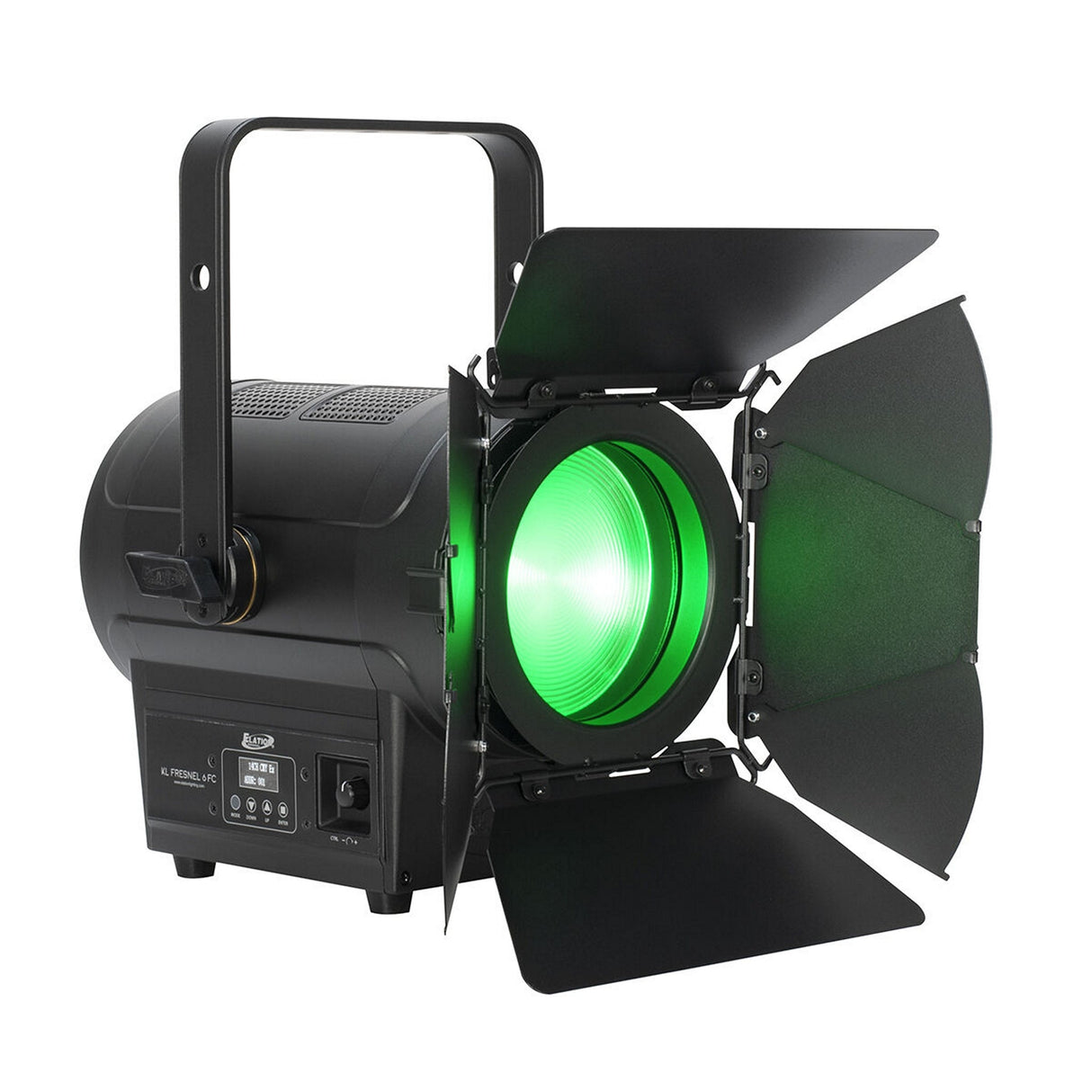

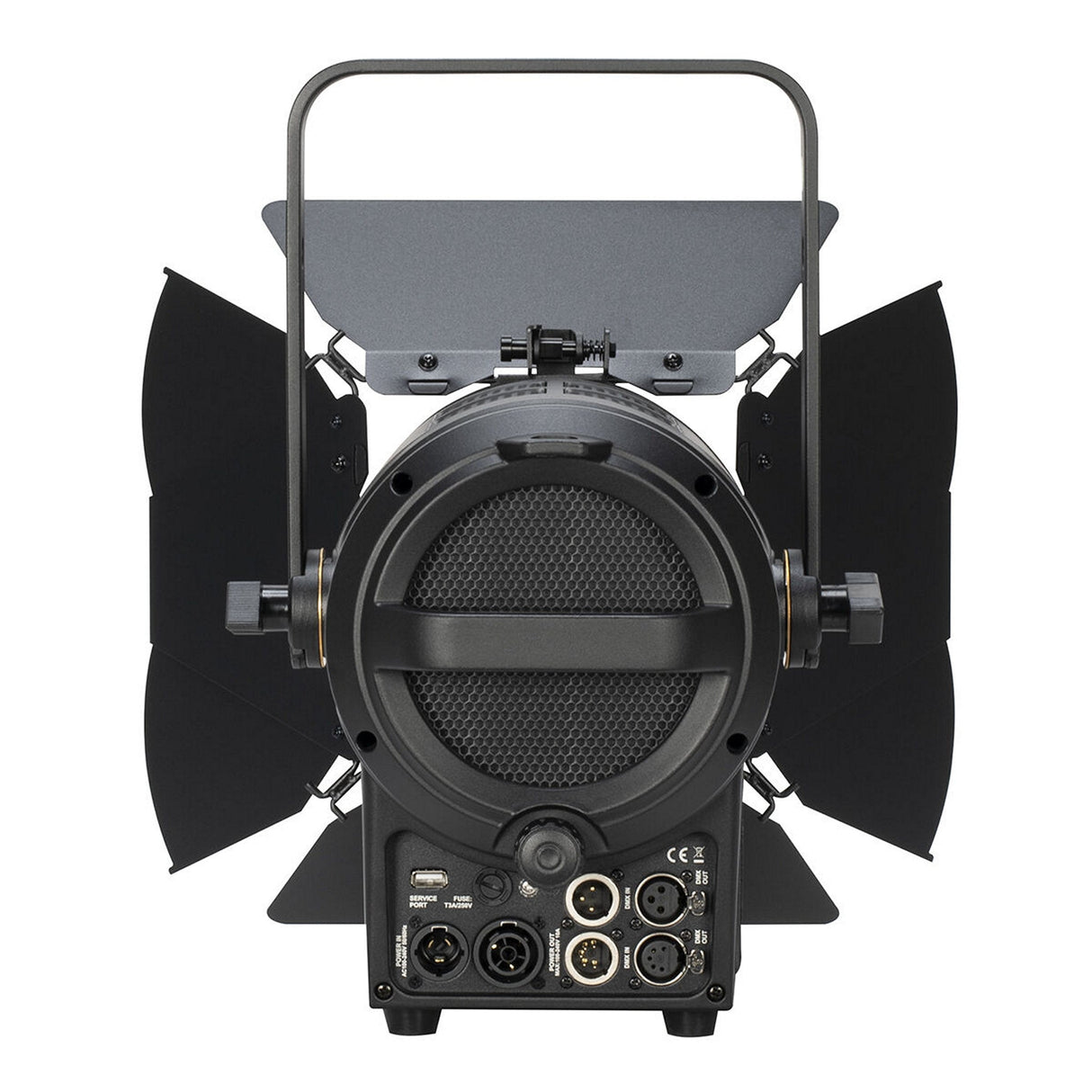

Elation KL Fresnel 6 FC 220W RGBMA LED Fixture
Description
Description
Elation KL Fresnel 6 FC 220W RGBMA LED Fixture
The KL Fresnel 6 FC is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.
The KL Fresnel 6 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 8,000 field lumens with a manual Zoom range of 10 Degrees to 32 Degrees. Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.
The KL Fresnel 6 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, Color temperature, green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.
Key Features
- 220W RGBMA LED Engine
- Dynamic White + Full Spectrum Color Control
- 8,000 Total Fixture Lumen Output
- 10 Degrees to 32 Degrees Wide Manual Zoom
- Stand-Alone control with Encoder and LED Display
- Smooth 16-bIt'selectable Dimming Modes and Curves
- LED Refresh Rate Adjustment
- Flicker Free Operation for TV and FILM
- RDM (Remote Device Management)
- 8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8” - 28mm) included
Technical Specifications
SOURCE
220W 6500K RGBMA LED Engine
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
8,000 Total Lumen Output
CRI 92.2
Zoom Range
10 Degrees - 32 Degrees
Beam Angle
9.7 Degrees - 32.2 Degrees
Field Angle
18.7 Degrees - 49.3 Degrees
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 to 18 channels)
Manual and DMX Controlled Dimmer, Color and Zoom
Direct Access Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection
SIZE / WEIGHT
Length
13.5” (344mm)
Width
10.7” (272mm)
Vertical Height
15.6” (398mm)
Weight
15.9 lbs. (7.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
219W Max Power Consumption
5 Degrees F to 113 Degrees F (-15 Degrees C to 45 Degrees C)
INCLUDED ITEMS
Gel Frame and Rotating 8-leaf Barn Doors
Junior Pin (1 1/8” - 28mm)
IP65 Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | IP20
