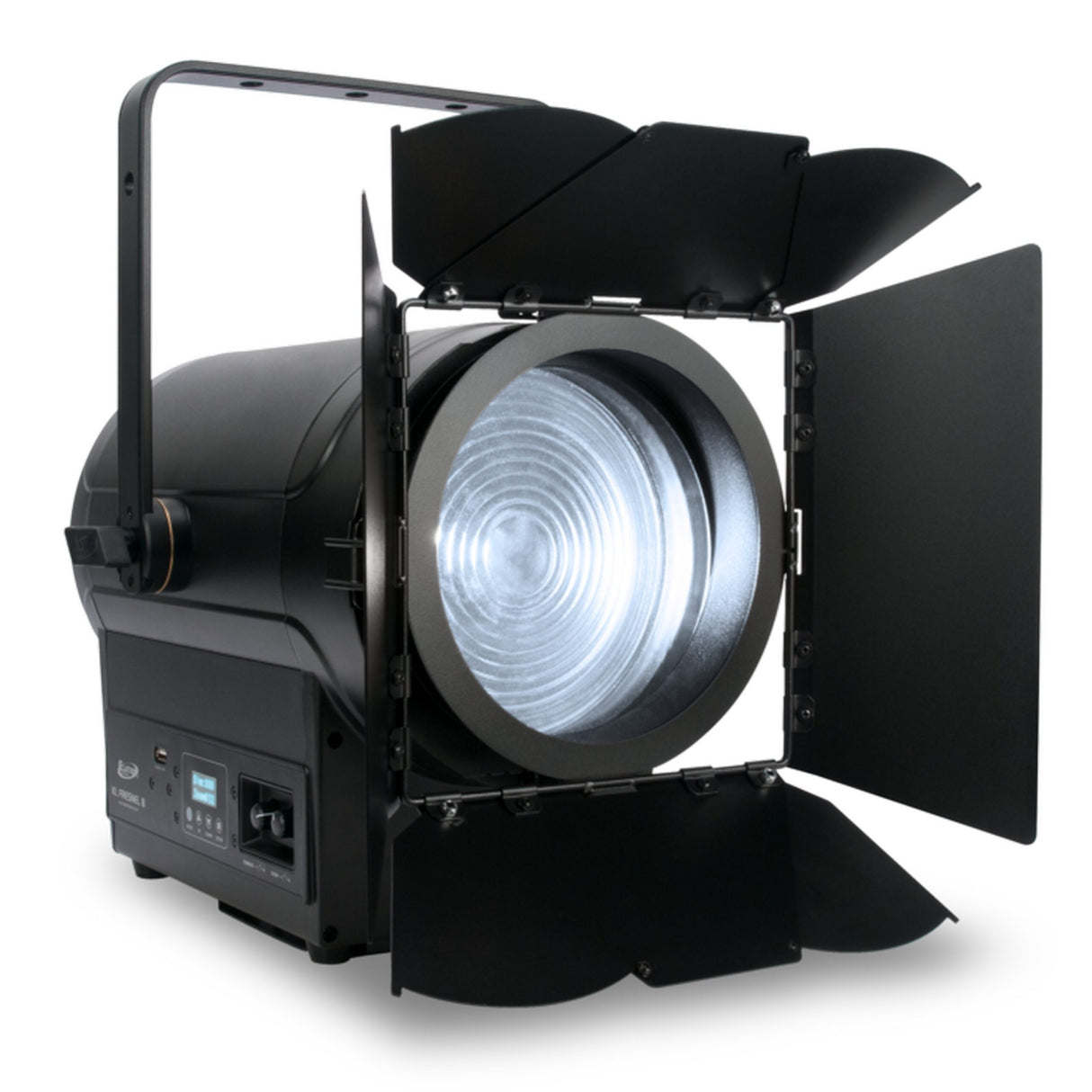

Elation KL Fresnel 8 CW 350W 5600K Cool White LED Fresnel
KL FRESNEL 8 is a 350W 5,600K >97CRI Warm White LED fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11 to 56 wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).
Key Features
- 5,600K Cool White LED Fresnel Luminaire
- 350W Single Source LED
- Manual and DMX Controlled Dimming
- Quick Single Press Light Output for Focusing
- 11 - 56 Motorized Zoom
- Including 8-Leaf Barn Doors and Gel Frame Holder
- Adjustable Refresh Frequency
- Silent Operation
- Variable Dimming Curves, Dim Modes and Dimming Delays
- Flicker Free Operation for Broadcast TV and Film
- RDM (Remote Device Management)
- Gel Frame and Rotating Barn Doors (included)
- 3 Clamp Position Adjustable Mounting Yoke
Technical Specifications
SOURCE
350W Cool White LED Engine, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 9.8ā (3m) (Min. Zoom)
1462 LUX 136 FC @ 9.8ā (3m) (Max. Zoom)
Zoom Range 11 - 56
Beam Angle 11 - 56.2
Field Angle 17.9 - 77
EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.5ā (445mm)
Width: 12.89ā (327.5mm)
Vertical Height: 17.95ā (456mm)
Weight: 28.0 lbs. (12.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
430W Max Power Consumption
5F to 113F (-15C to 45C)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | IP30
