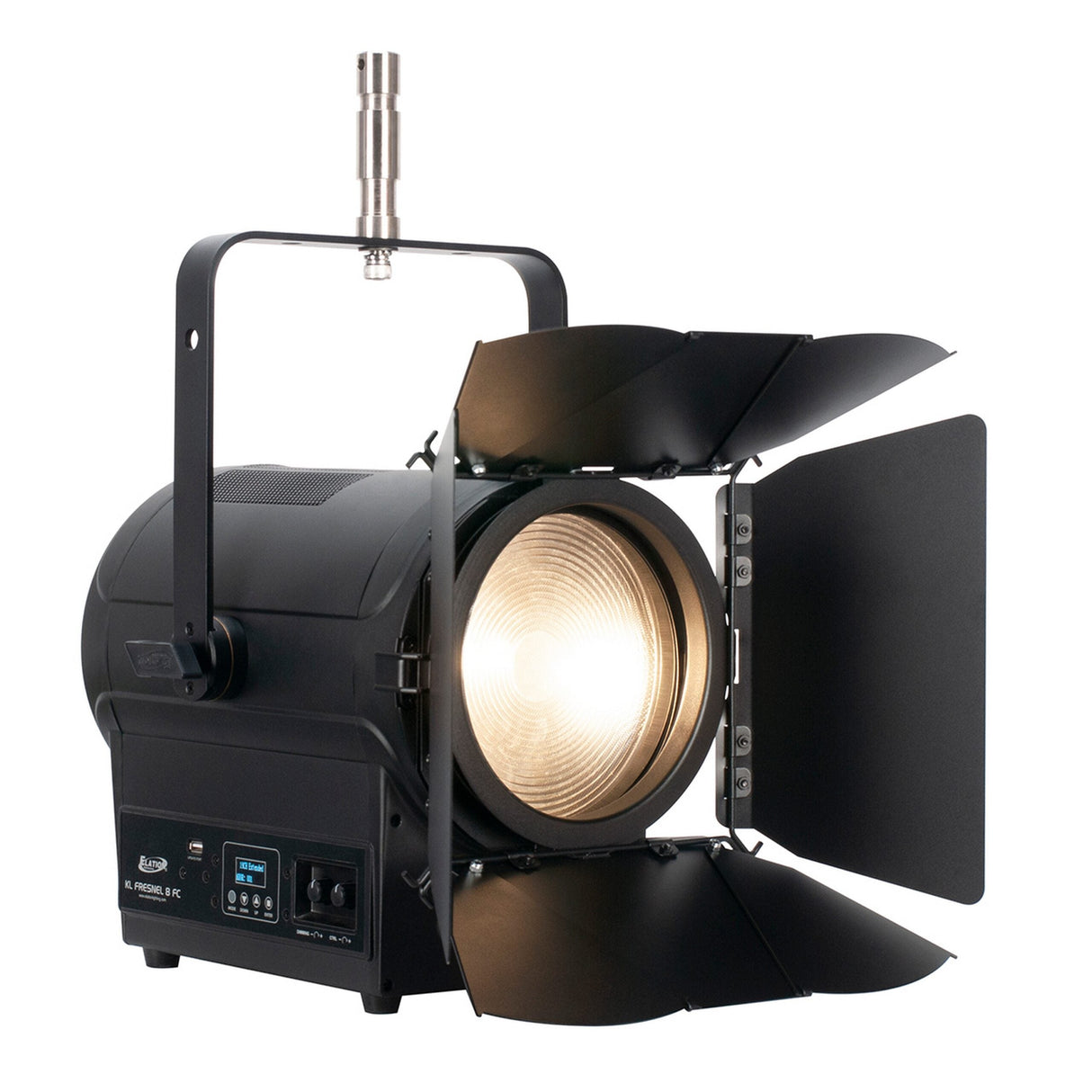

Elation KL Fresnel 8 FC RGBMA Dynamic White LED Fixture Light
Description
Description
Elation KL Fresnel 8 FC RGBMA Dynamic White LED Fixture Light
The KL Fresnel 8 FC is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full spectrum color rendering and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels. The KL Fresnel 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces over 18,000 field lumens with a motorized Zoom range of 10 to 50. Outstanding color rendering quality, precise CCT presets and remotely adjustable LED refresh frequency makes this unit the perfect choice for todays fast paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass through for easy linking of multiple units.
Key Features
- RGBMA LED Engine
- Dynamic White + Full Spectrum Color Control
- 18,000+ Total Fixture Lumen Output
- 10 to 50 Wide Motorized Zoom
- Stand-Alone control with 2 Encoders and LED Display
- Smooth 16-bit Selectable Dimming Modes and Curves
- LED Refresh Rate Adjustment
- Flicker Free Operation for TV and FILM
- RDM (Remote Device Management)
- 8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8” - 28mm) included
Technical Specifications
SOURCE
6500K RGBMA LED Engine
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
18,000+ Total Lumen Output
CRI 92
TLCI 95
Zoom Range 10 - 50
Beam Angle 10.5 - 49.9
Field Angle 21 - 66.6
EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 to 18 channels)
Manual and DMX Controlled Dimmer, Color and Zoom
Dual Rotary Dials
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection
SIZE / WEIGHT
Length
15.1” (382.5mm)
Width
12.9” (326.5mm)
Vertical Height
17.9” (455mm)
Weight
23.15 lbs. (10.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
514W Max Power Consumption
5F to 113F (-15C to 45C)
INCLUDED ITEMS
Gel Frame and Rotating 8-leaf Barn Doors
Junior Pin (1 1/8” - 28mm)
IP65 Locking Power Cable
