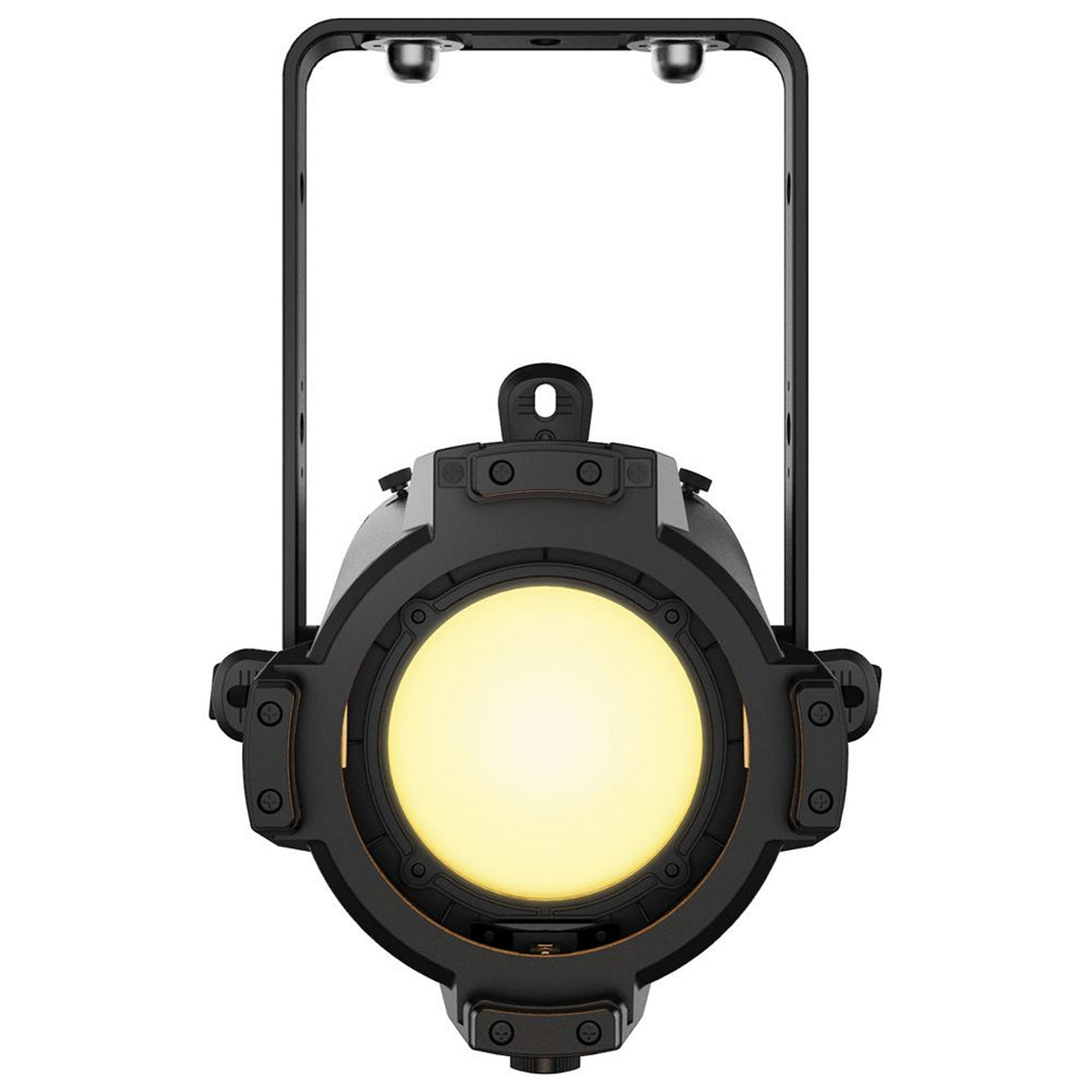

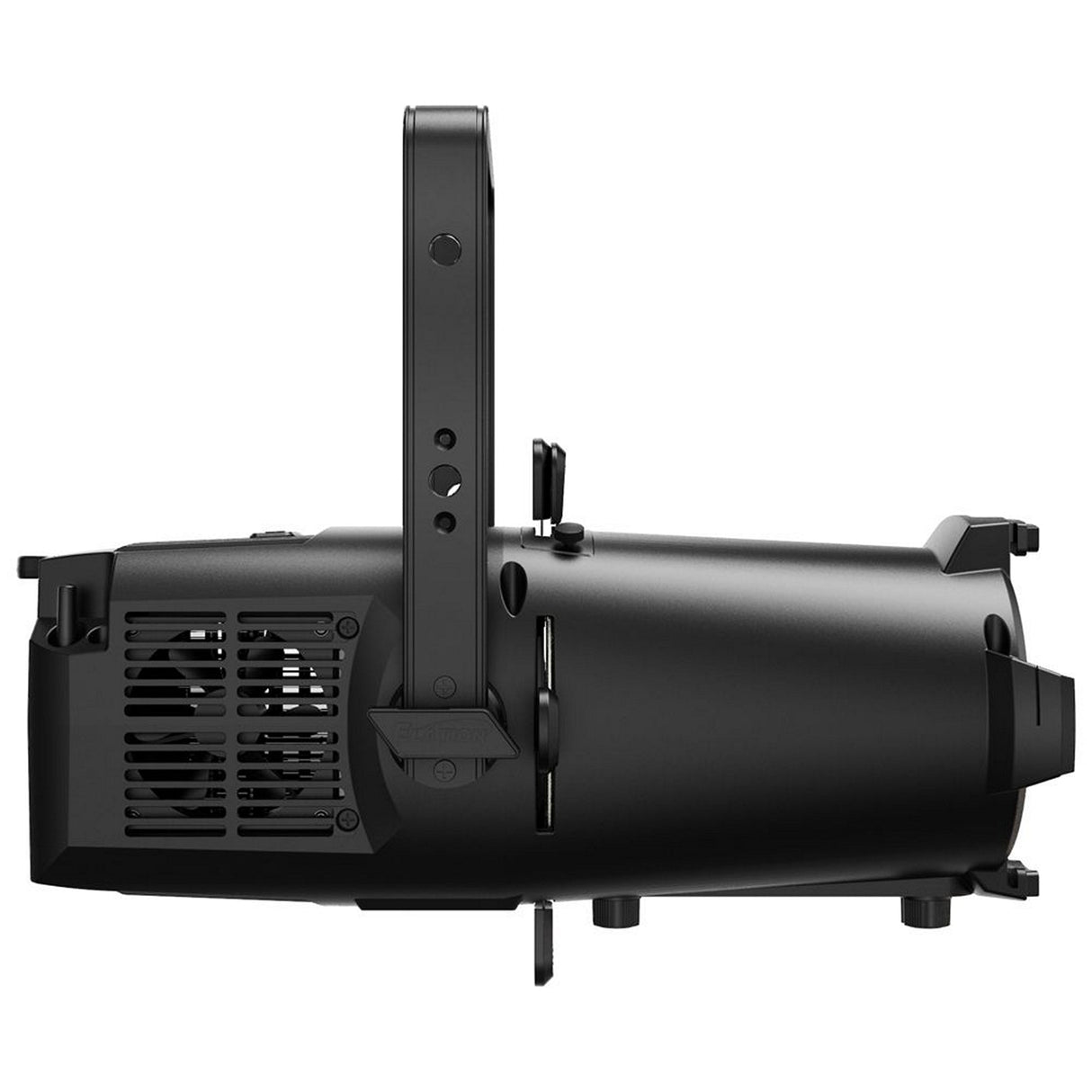

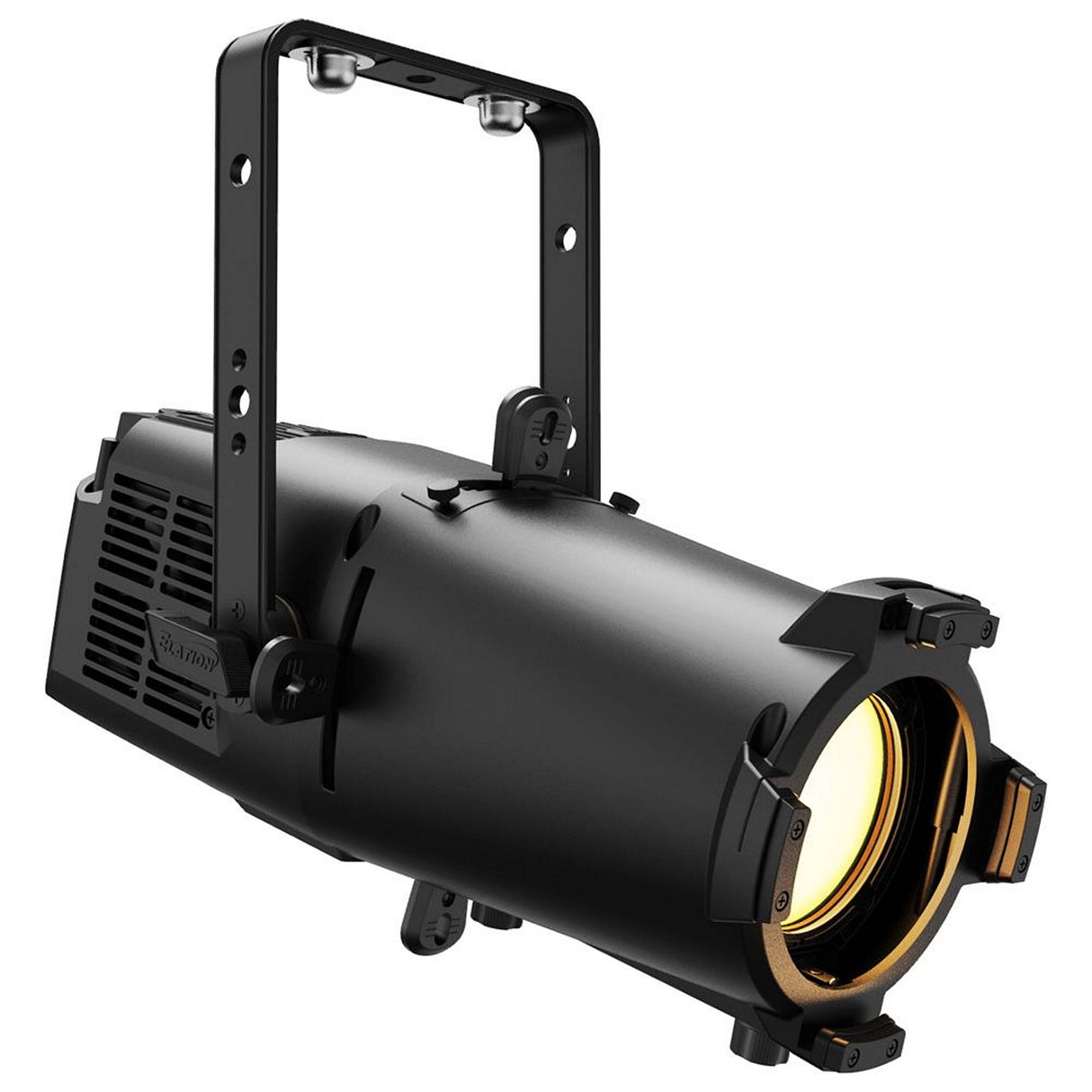

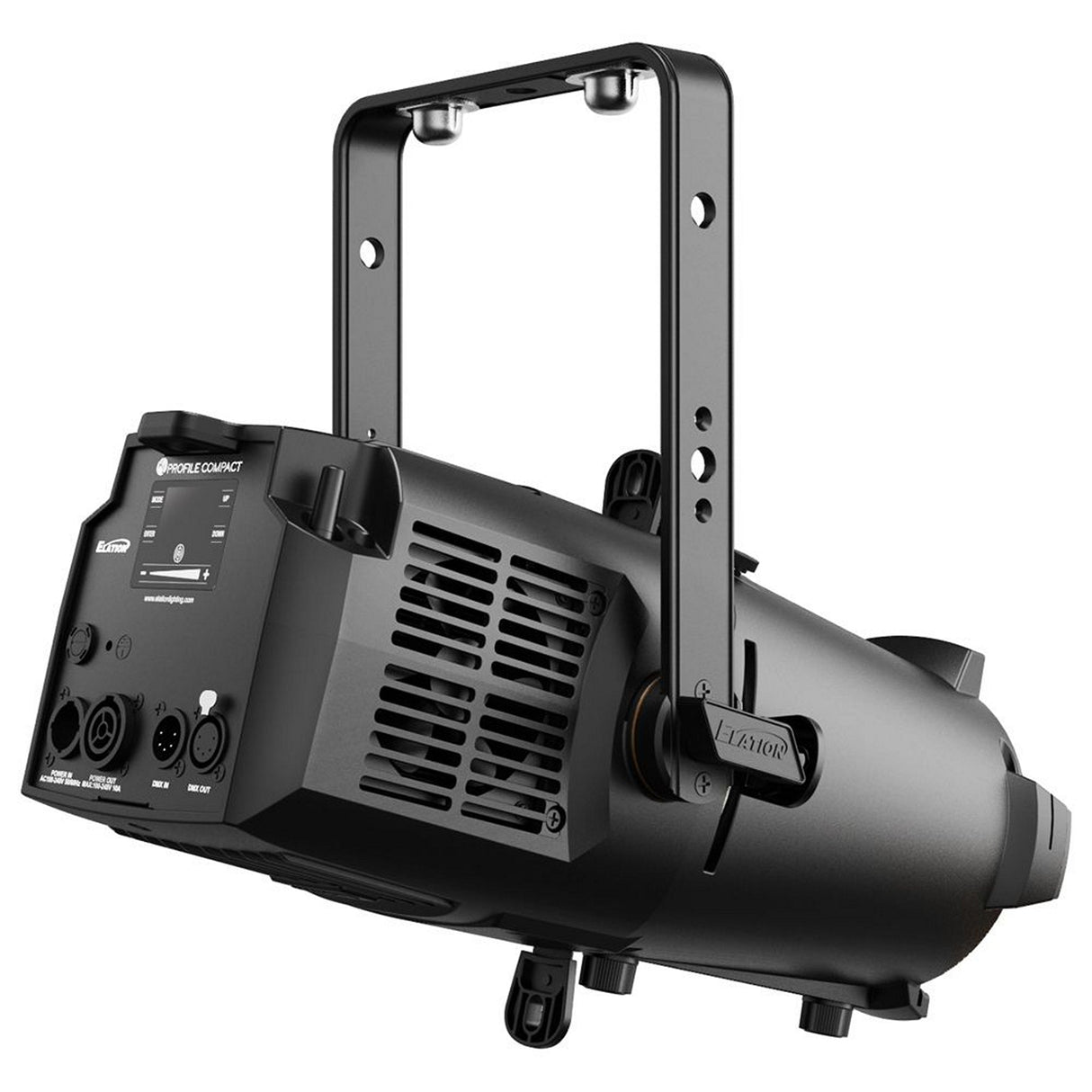

Elation Professional KL Profile Compact 225W RGBMA LED Ellipsoidal
The Elation Professional KL Profile Compact delivers exceptional lighting precision in a versatile, compact design for theaters, live events, and performance venues. Powered by a high-performance 250W 6,000K RGBMA LED engine producing 5,880 lumens, this ellipsoidal fixture features advanced ColourTune Technology with remarkable color accuracy (CRI 94.9/TLCI 95) and fully variable CCT control from 2400K to 8500K. The manual zoom range of 25° to 50° provides flexible beam control for everything from sharp, detailed projections to wider washes, while the fixture's superior optical design ensures flawless projections without color shifting or aberrations at any zoom, focus, or framing position.
Designed for maximum creative control, the KL Profile Compact includes four manual framing shutters for precise beam shaping, allowing lighting designers to highlight specific areas or create custom shapes with exceptional accuracy. The fixture offers sophisticated effects capabilities including variable strobe rate (1-20Hz), dim-to-warm/red shift emulation, and smooth 16-bit selectable dimming curves for flicker-free transitions essential in film and theater environments. With its ultra-quiet Mute Mode, comprehensive DMX control options, RDM support, Aria x2 wireless device management, and NFC configuration, the KL Profile Compact integrates seamlessly into professional lighting systems. Housed in a durable yet manageable form factor (18" × 9.9" × 9.75") weighing just 14.3 lbs, this IP20-rated fixture combines professional-grade performance with practical usability for demanding lighting applications.
Key Features
- Superior LED Technology: 250W 6,000K RGBMA LED engine delivering 5,880 lumens with exceptional color accuracy (CRI 94.9/TLCI 95) for true-to-life color reproduction in theater, broadcast, and event applications
- Versatile Beam Control: Manual zoom range from 25° to 50° with precise focus adjustment and four manual framing shutters for creating custom shapes, sharp edges, and perfectly defined projections
- Advanced Color Management: ColourTune Technology offering 16-bit variable CCT control (2400K-8500K), green/magenta shift adjustment, and virtual gel swatch book for precise color temperature matching and creative flexibility
- Professional Effects Suite: Variable strobe rate (1-20Hz), dim-to-warm/red shift emulation, and multiple 16-bit dimming modes/curves for smooth, flicker-free transitions in any performance environment
- Comprehensive Control Options: 10 DMX channel modes, RDM support, Aria x2 wireless device management, and NFC configuration with intuitive onboard controls for seamless integration and operation
Technical Specifications
- Dimensions: 18" (L) × 9.9" (W) × 9.75" (H); 21.2" (L with Yoke 0°) × 15.4" (H with Yoke 90°)
- Weight: 14.3 lbs
- Light Output: 5,880 lumens total output
- Electrical: AC 100-240V - 50/60Hz, 290W max power consumption, power-thru capacity for 4 units @115V or 10 units @240V
- Operating Range: -15°C to 45°C (5°F to 113°F)
Package Contents
- Elation Professional KL Profile Compact Fixture
- Gel Frame
- Size 'M' Metal Gobo Holder
- Safety Cable
- IP65 Locking Power Cable
