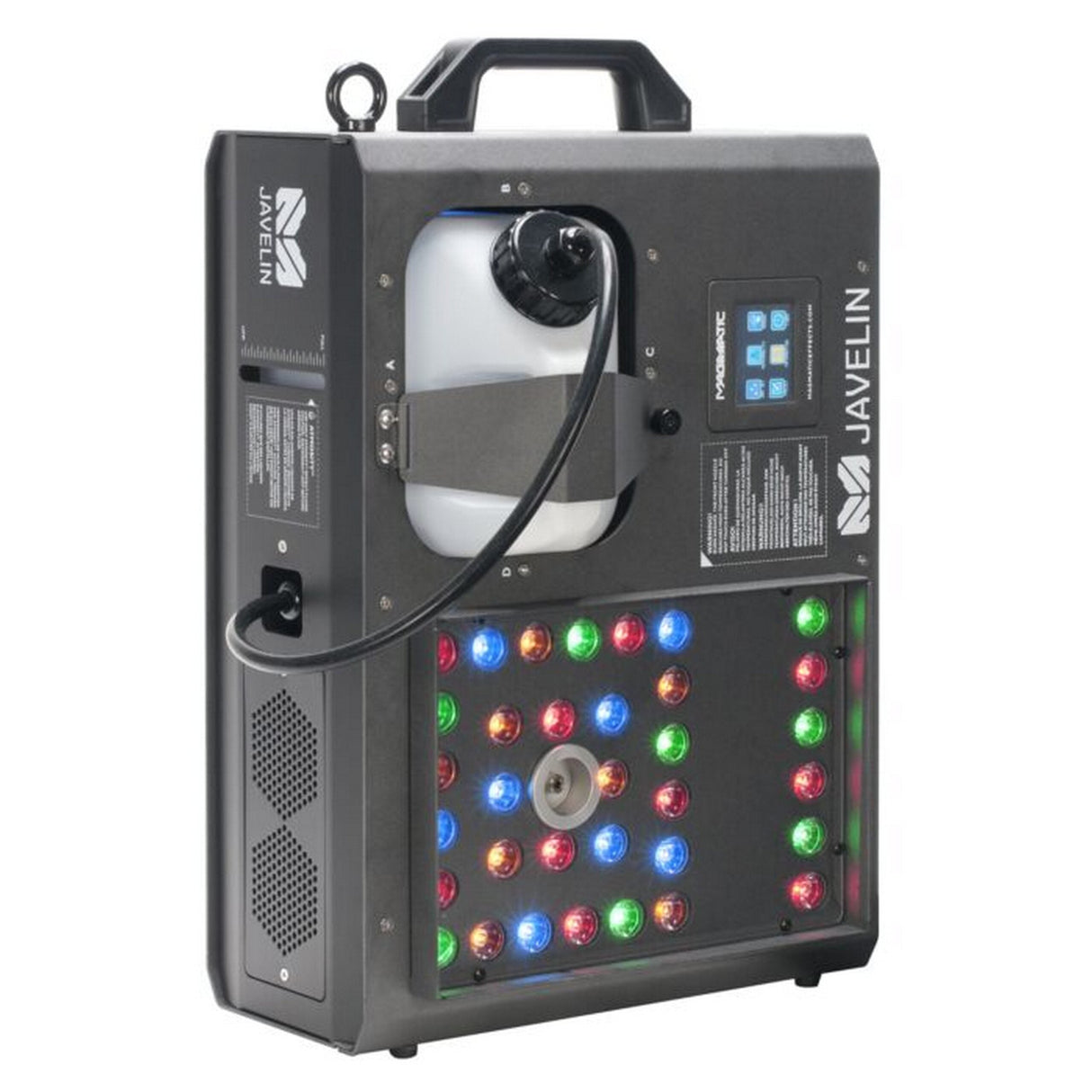

Elation Magmatic Javelin CO2 Simulator Fog Machine

A member of Magmatic’s Rocket series of CO2 cryogenic simulation effects, the Magmatic Javelin is a high-velocity CO2 simulator fog machine for high-impact moments. Featuring 34 x 2-watt RGBA LEDs for throws of dynamic colored effect, the Javelin can rotate 90-degrees for horizontal or vertical bursts of fog. Wrapped in a durable aluminum housing, the Javelin is intuitively controllable via DMX-512 and RDM and houses an easy-to use onboard LCD touch screen control panel. Wired and wireless remote control options are available.

Key Features

• High-velocity CO2 simulator fog machine
• Four, 10-second 20-ft bursts
• Vertical and horizontal bursts of fog
• 34 x 2-watt RGBA LEDs
• Durable tour-ready aluminum housing

Technical Specifications

PERFORMANCE
Rated Power
1450W
Max Output
50,000 CFM* (cu ft/min.)
Fog Burst (Distance)
5-6m / 3 sec.
Ready Time
Initial = 9 Minutes*
Fluid Capacity
0.66 gallons (2.5 liters)
Fluid Consumption
6.09 oz/min (180 ml/min) *approximate
COMPATIBLE FLUID
Atmosity Flash Fog Fluid (AFF-4L)
Atmosity Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
4 DMX Channel Modes (1 / 4 / 7 / 12)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
19.3 in. (490mm)
Width
14.96 in. (380mm)
Height
8.47 in. (215mm)
Weight
28.7 lbs. (13kg)
ELECTRICAL
AC 100-120V - 50/60Hz
20A (NFB)
Max Power Consumption: 1580W
THERMAL
Maximum Ambient Temperature (Ta max) 104F (40C)
Exterior Surface Temperature, Steady State: 140F (60C)
