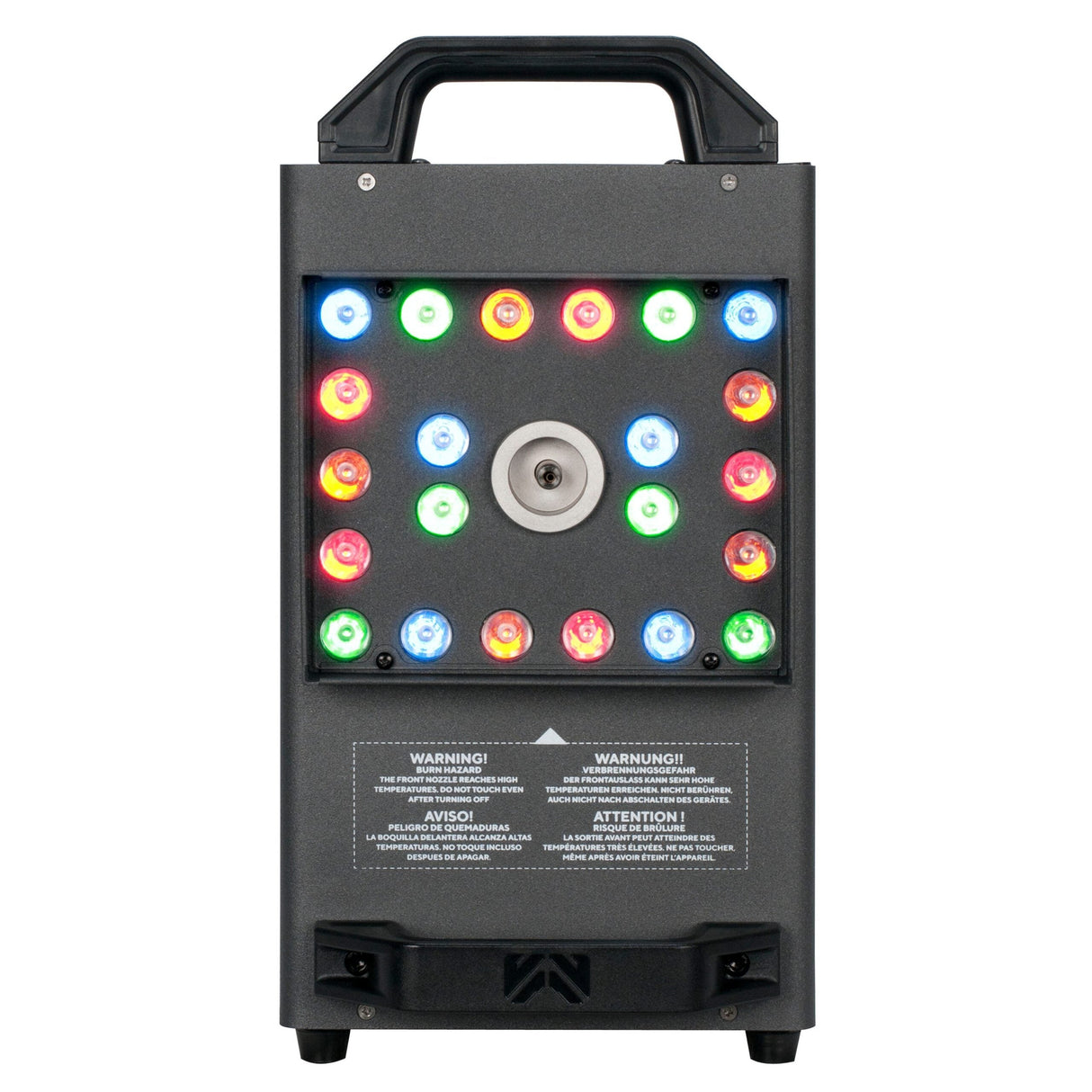

Elation Magmatic Sidewinder CO2 Simulator Fog Machine
The Magmatic Sidewinder is a high velocity CO2 simulator fog machine. Including 22 x 2 watt RGBA LEDs. The Sidewinder can burst fog in multiple positions, rotating 180 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.
Key Features
- 50,000 cu.ft per minute
- Four, 10-second 20-ft bursts
- 180 multi position fog burst
- 22, 3watt RGBA LED's
- Durable, tour-ready, aluminum housing
Technical Specifications
PERFORMANCE
Rated Power
1450W
Max Output
50,000 CFM* (cu ft/min.)
Max Continuous Output
10 Seconds @ Full
Max Throw Distance
20 Feet
Initial Ready Time
9 Minutes
Cycling Ready Time
1 Minute
Fluid Capacity
2.5L
Fluid Consumption
180ml/min.
COMPATIBLE FLUID
Atmosity Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
3 DMX Channel Modes (1 / 4 / 7)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes
CONNECTIONS
5-pin locking XLR, In/Out Data Connectors
IP65 Locking Input Power Connector
With Wired Digital Communication Network
SIZE / WEIGHT
Length
14.80 in. (376mm)
Width
7.60 in. (193mm)
Height
16.26 in. (413mm)
Weight
31.06 lbs. (14.08kg)
ELECTRICAL
AC 100-120V - 50/60Hz
9A (NFB) Resettable Breaker
Max Power Consumption: 1560W
THERMAL
Maximum Ambient Temperature (Ta max) 104F (40C)
Exterior Surface Temperature, Steady State: 140F (60C)
