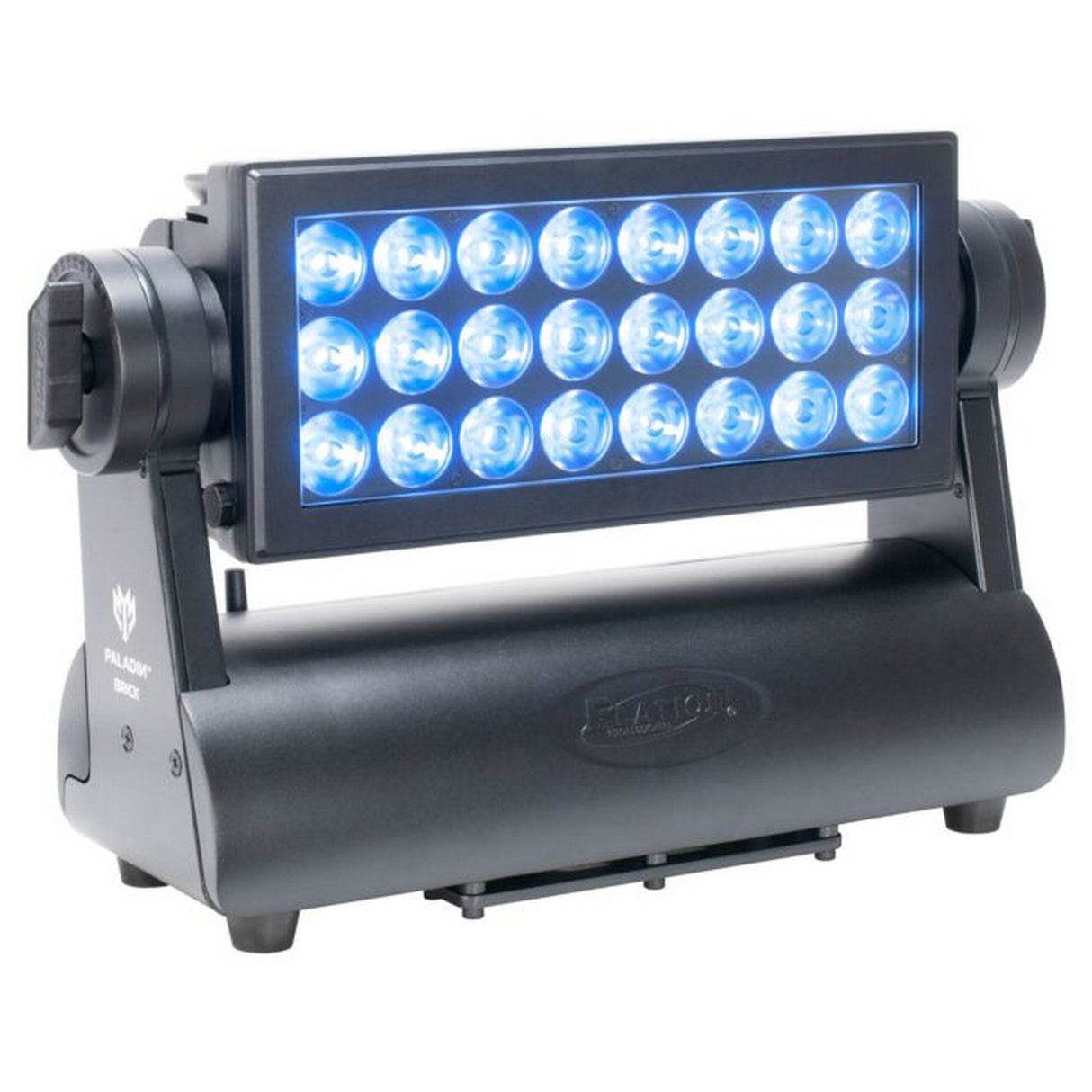

Elation PALADIN BRICK 24 x 15 Watt RGBW IP65 Wash
Description
Description
Elation PALADIN BRICK 24 x 15 Watt RGBW IP65 Wash
The PALADIN Brick is a compact and powerful outdoor flood light for a wide variety of applications. Using 24x15W RGBW cells it provides a total output of up to 8,200 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN Brick also a versatile effects fixture or audience blinder.
Key Features
- 360W RGBW Flood Light
- 3x2 Cell Control
- Rugged IP65 Design for Outdoor Events
- Floor Standing or Mountable in any Orientation
Technical Specifications
SOURCE
24x 15W RGBW LED Emitters
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
6,000K Color Temperature
8,200 Total Lumen Output
14 Beam 23 Field Angle (without diffuser)
22 Beam 45 Field Angle (with diffuser)
CONTROL / CONNECTIONS
11 DMX Channel Modes (56 Total Channels)
3x2 Cell Control
Manual Tilt Adjustment
DMX, RDM Protocol Support
Standalone and Master / Slave Operation
4 Button OLED Control Display
IP65 5pin DMX In/Out
IP65 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length
17.2” (438mm)
Width
5.8” (147mm)
Height
11.3” (286mm)
Weight
21 lbs (9.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
390W Max Power Consumption
5F to 113F (-15C to 45C)
