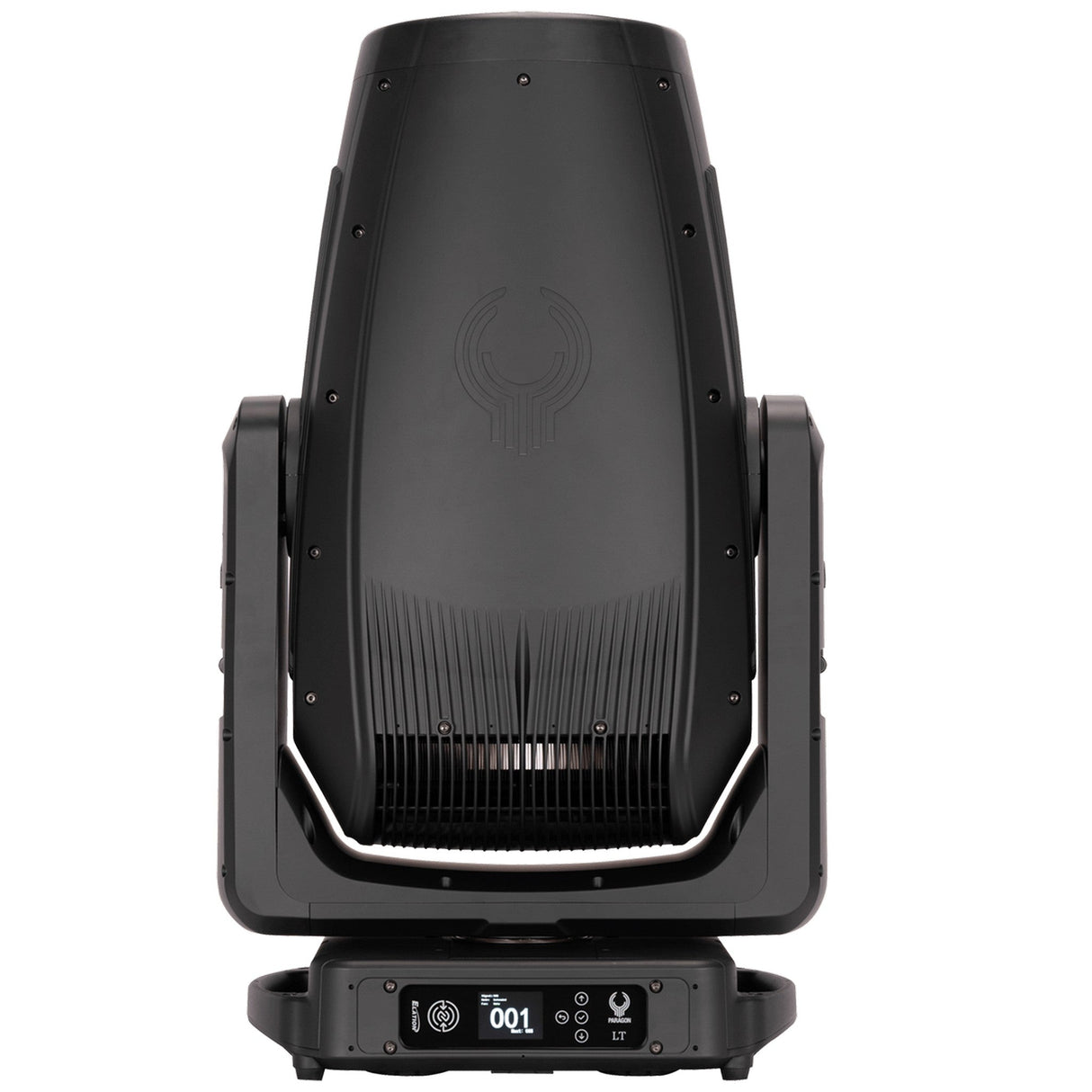

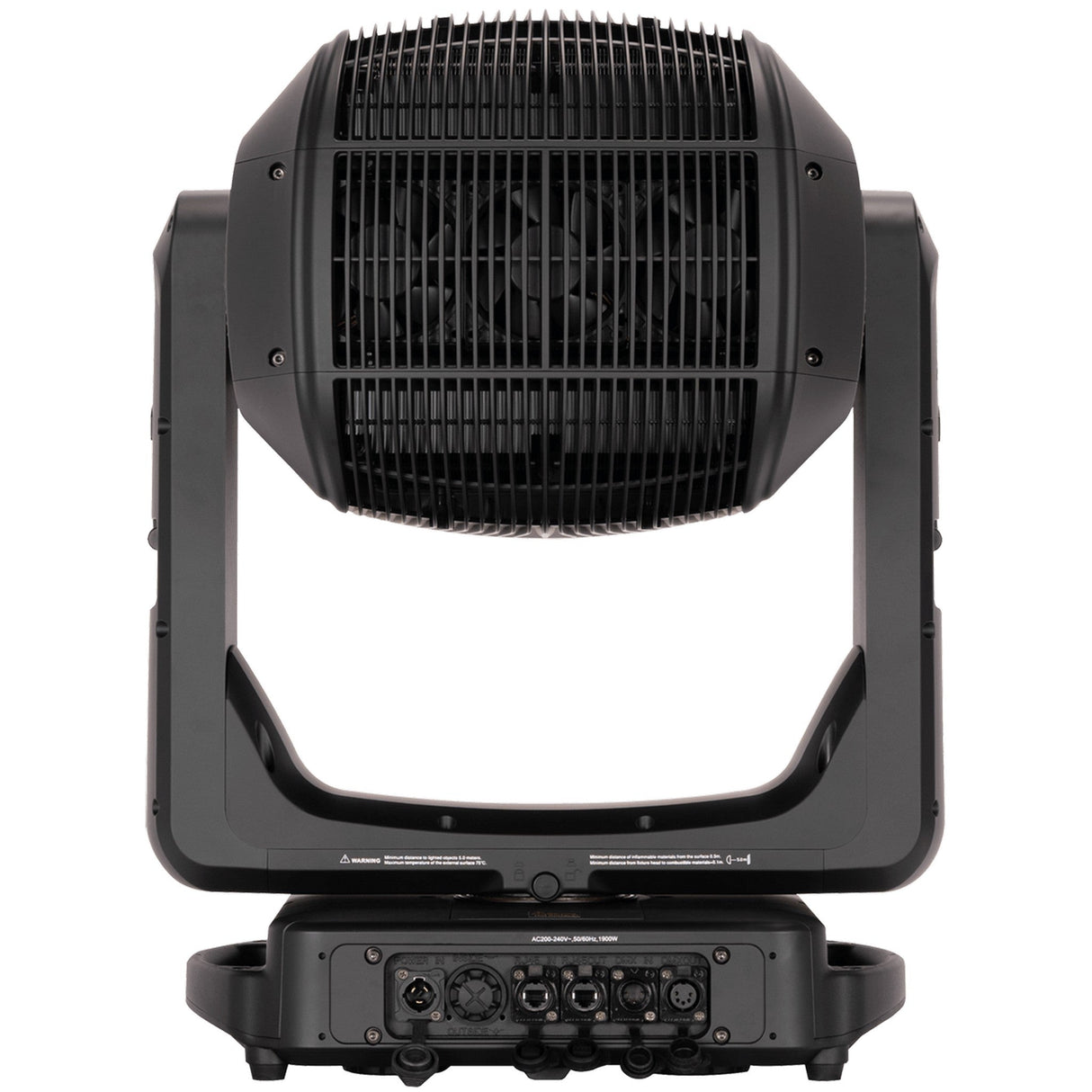

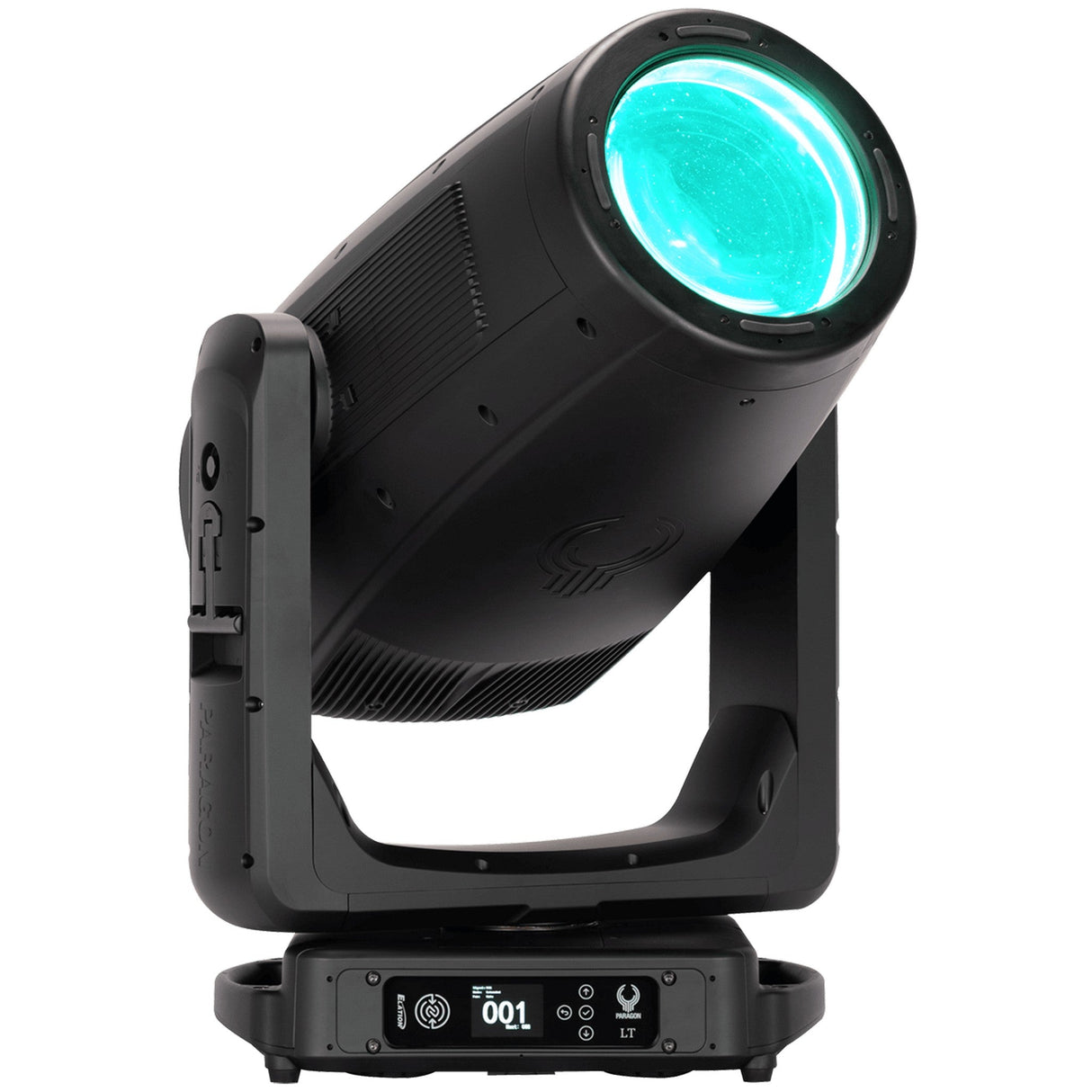

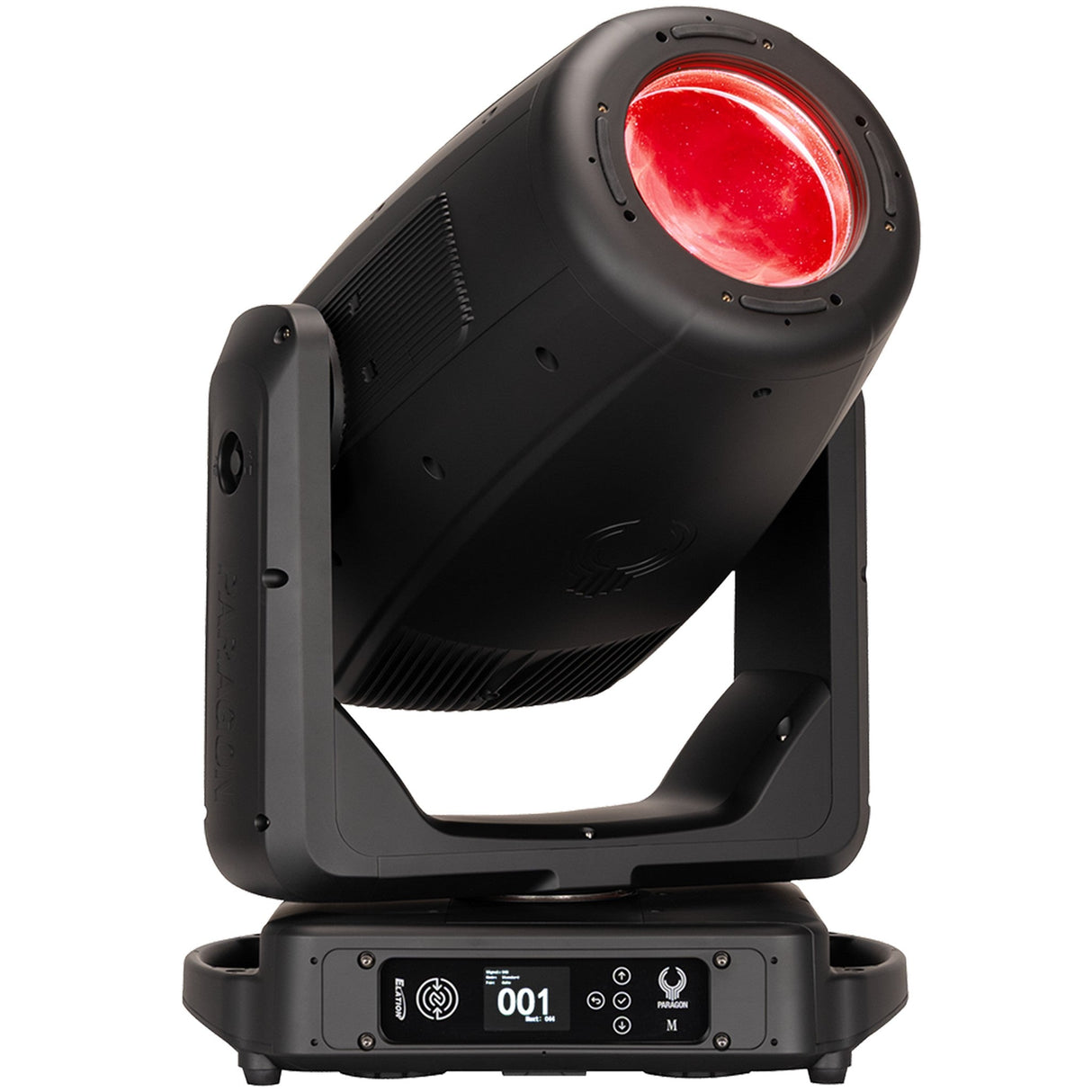

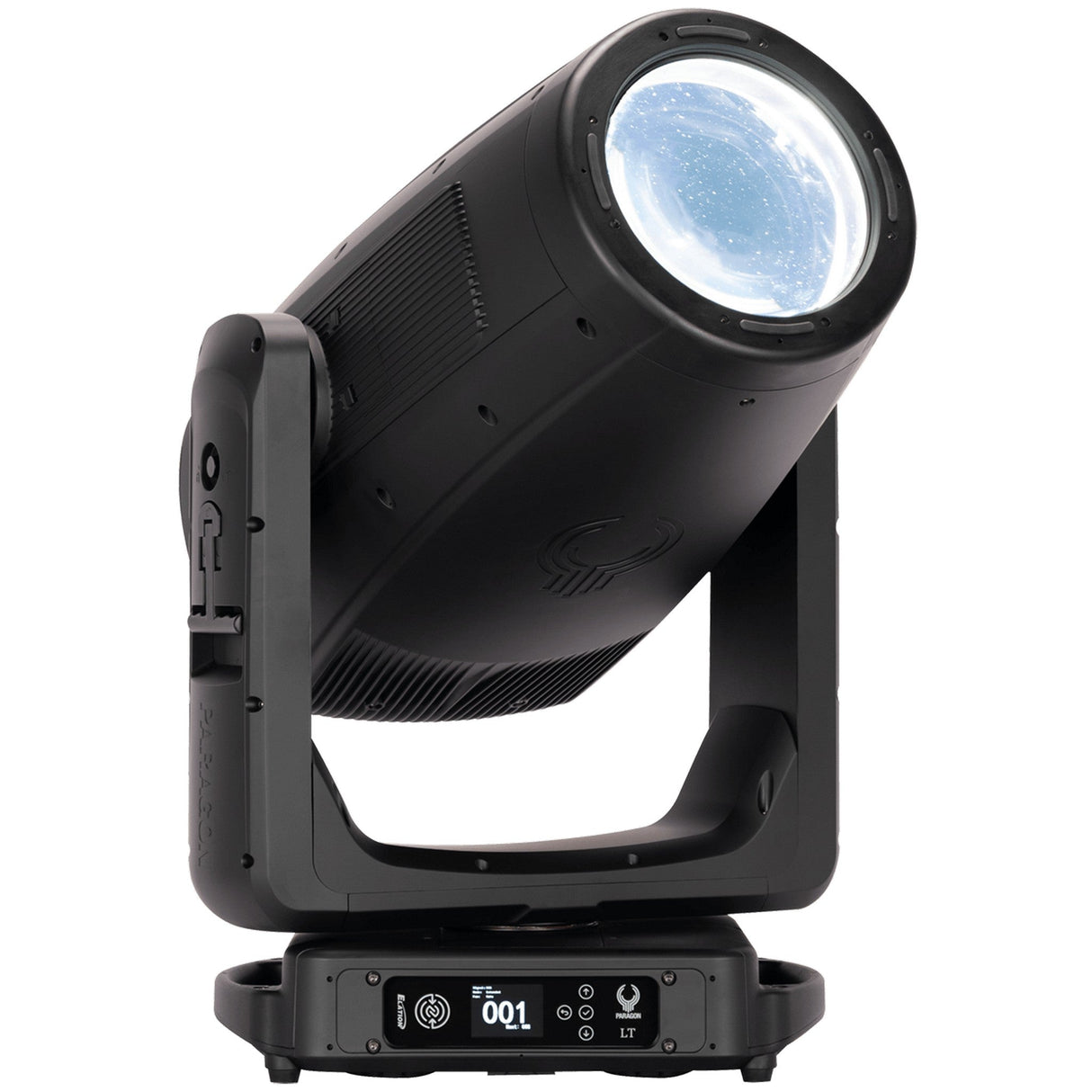

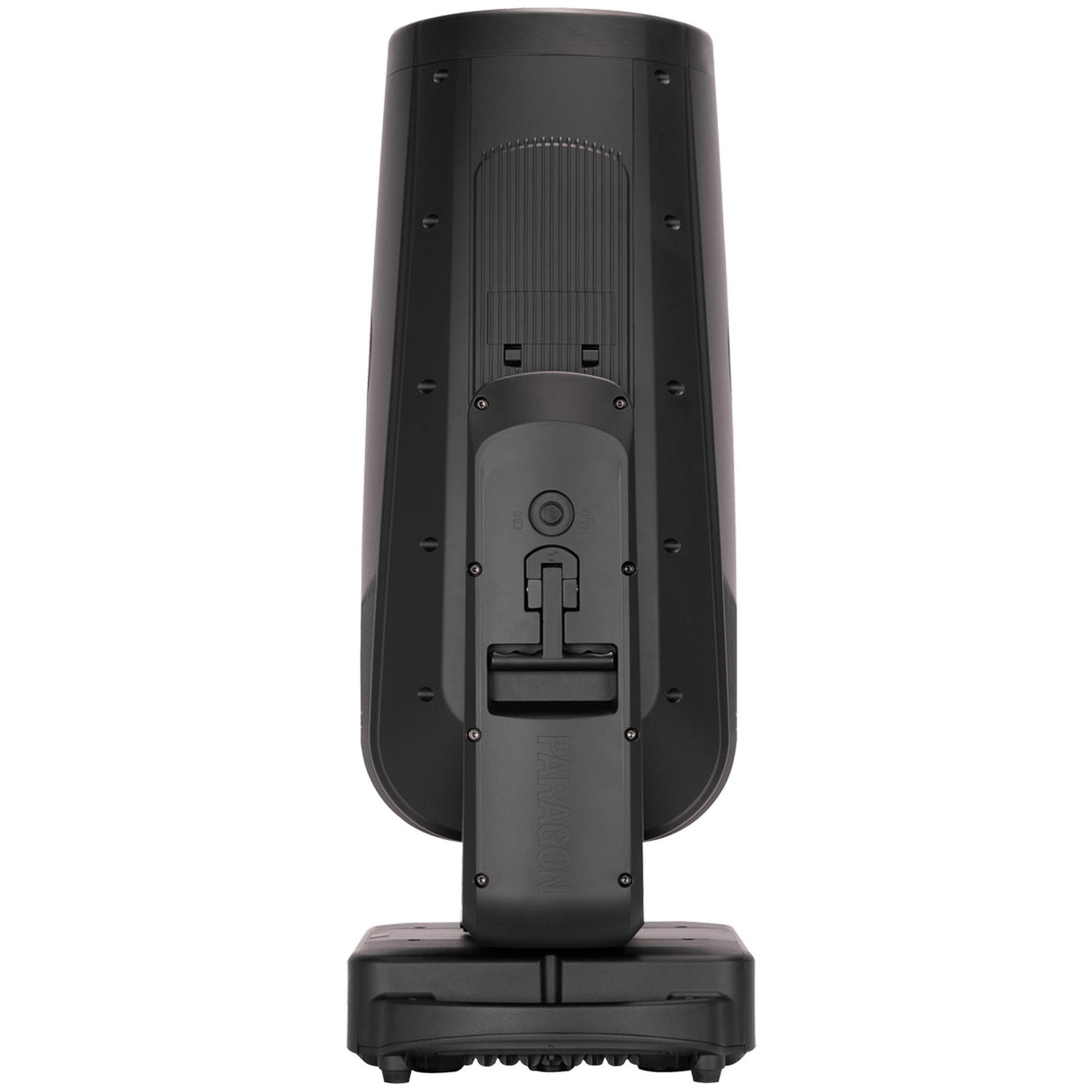

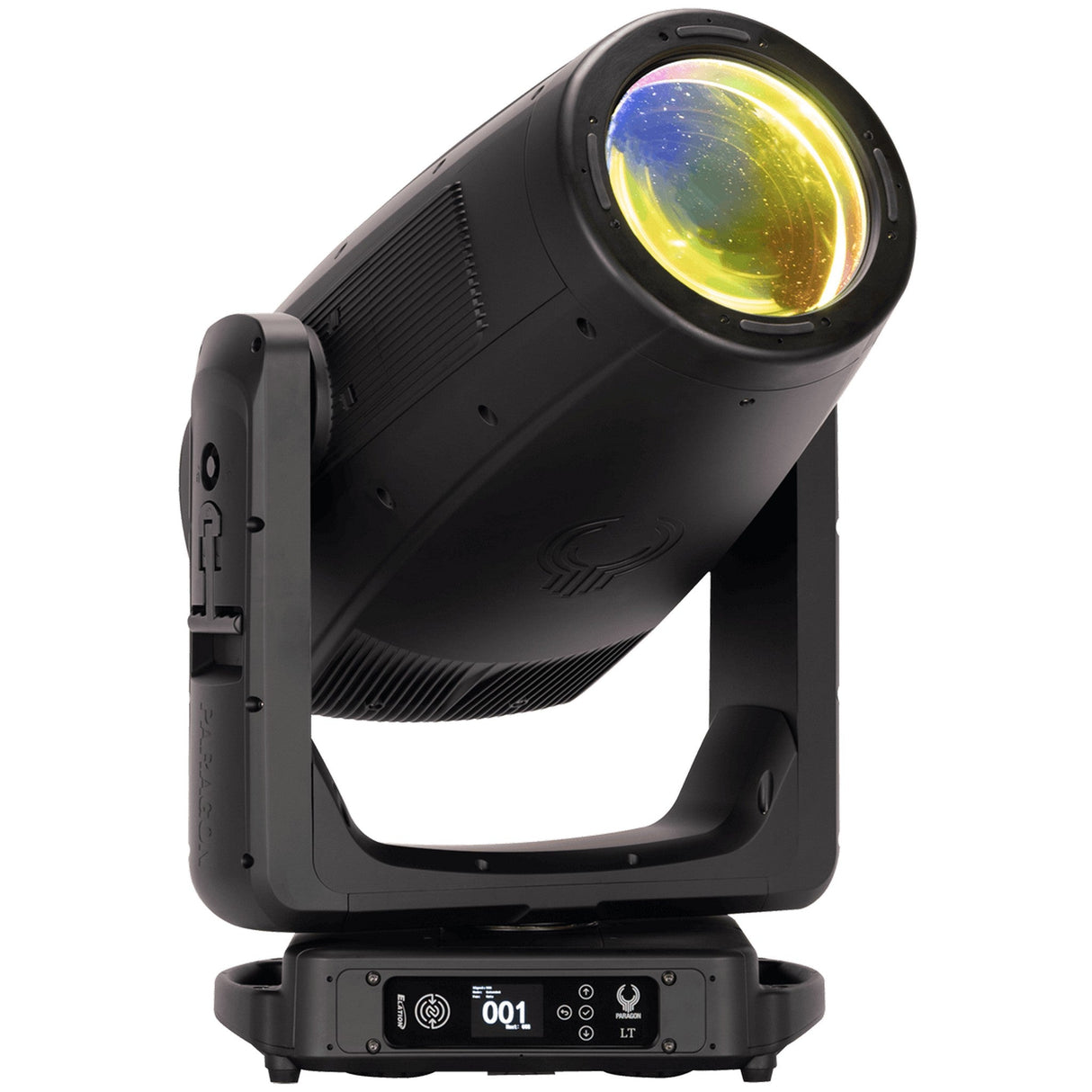

Elation PARAGON LT 1300W 50,000 Lumens Profile, Beam, Wash Fixture
The Elation PARAGON LT is a state-of-the-art LED profile luminaire engineered for the most demanding professional lighting applications. BuiLT with an advanced 1300W 7700K White LED engine, this fixture delivers exceptional brightness, precision, and versatility. Whether used in large-scale concerts, theaters, houses of worship, or outdoor productions, the PARAGON LT ensures uncompromising performance with stunning output and dynamic effects.
Designed for reliability, the PARAGON LT provides a powerful 44,000 total lumen fixture output at CRI 80, with the ability to reach up to 50,000 lumens in Turbo Mode (CRI 78). Its TruTone variable CRI system allows adjustment up to CRI 93, ensuring color rendering accuracy that meets the needs of film, broadcast, and live event professionals. The fixture’s advanced optical system, paired with its interchangeable lens options (Profile, PC, and Fresnel), gives unmatched flexibility in shaping and controlling light.
The PARAGON LT is buiLT for creative expression, offering extensive effects including motorized zoom, full-frame shuttering, muLTiple prisms, frost fiLTers, iris control, high-speed strobing, and a bi-directional animation wheel. With robust IP65 protection, it is ideal for both indoor and outdoor environments. Intuitive control is provided through DMX, RDM, Art-Net, and sACN, with a full-color LCD interface and NFC capability for easy setup and management.
Key Features
- 1300W 7700K Variable CRI White LED Engine
- 44,000 lumen fixture output (up to 50,000 lumen in Turbo Mode)
- IP65 rated for reliable outdoor use
- TruTone variable CRI adjustment up to CRI 93
- MuLTiple lens options: Profile (standard), PC (optional), Fresnel (optional)
- Full framing shutters with +/-120° rotation
- CMY color mixing, optional SpectraColor RGB module, and linear CTO correction
- Extensive gobo system: 3 wheels, rotating & fixed gobos
- Advanced effects including prisms, frost, iris, and animation wheel
- MuLTi-protocol control: DMX, RDM, Art-Net, sACN
Technical Specifications
Source: 1300W 7700K (+350K) Variable CRI White LED Engine
Average LED Life: 20,000 Hours*
*Test lab conditions. May vary depending on environment, usage patterns, power/voLTage, and control/dimming.
Photometric Data:
44,000 Total Lumens @ CRI 80
50,000 Total Lumens in Turbo Mode (CRI 78)
TruTone Variable CRI up to CRI 93

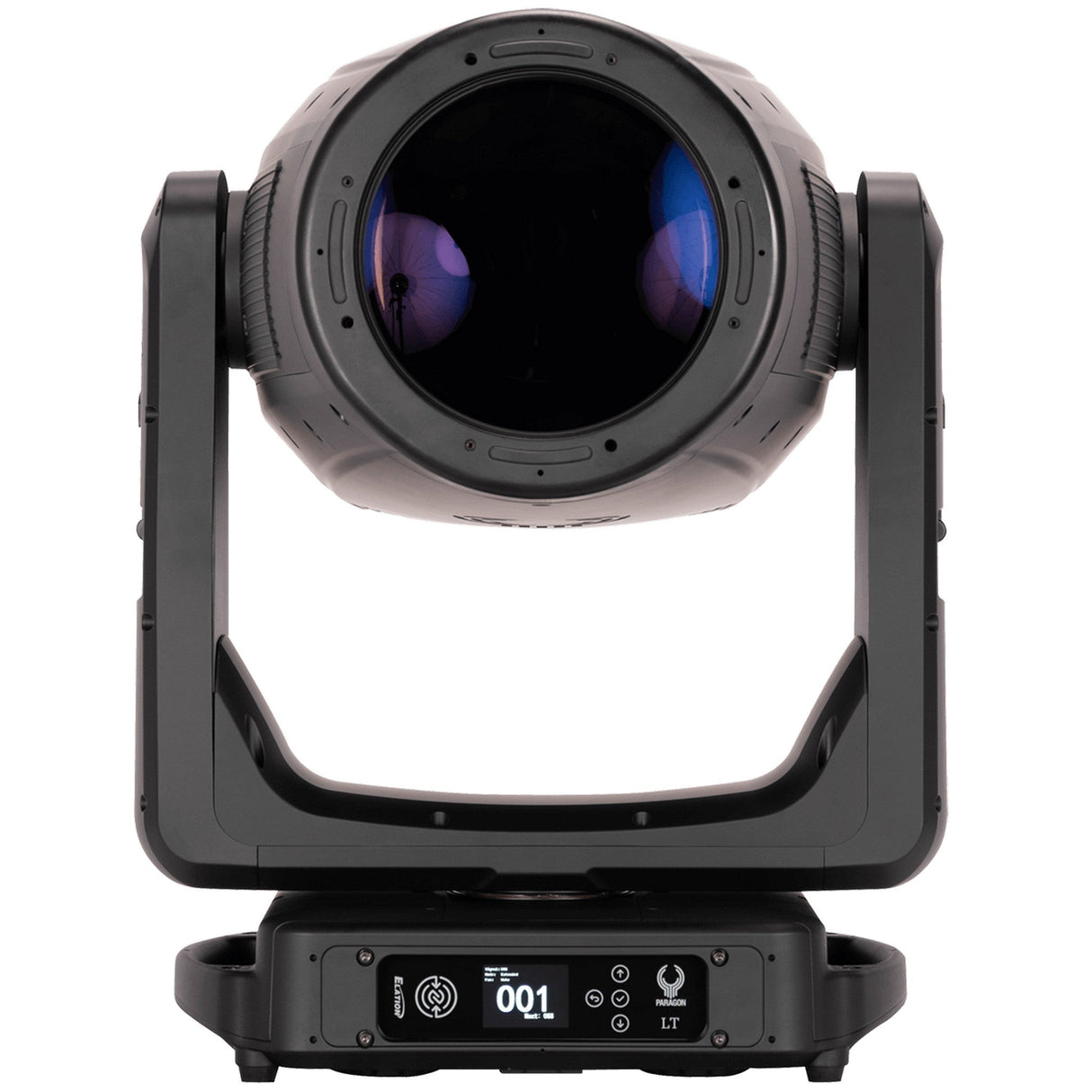

Front Lens: 8" (200mm)
Profile Lens (Standard):
Zoom Range: 3.7° - 49.2°
Beam Angle: 3.4° - 43.9°
Field Angle: 3.7° - 46.9°
Cutoff Angle: 3.8° - 47.8°
PC Lens (Optional):
Zoom Range: 3.5° - 47.2°
Beam Angle: 3.5° - 43.4°
Field Angle: 5.6° - 47.2°
Cutoff Angle: 6.5° - 48.6°
Fresnel Lens (Optional):
Zoom Range: 5° - 52.9°
Beam Angle: 5° - 46.7°
Field Angle: 10° - 52.9°
Cutoff Angle: 15.1° - 59.9°
Effects:
Motorized Zoom
4 Full Blackout Framing Blades, +/-45° Index
+/-120° Framing Index
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost FiLTers (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curves
High-Speed Electronic Shutter & Strobe
DMX Controllable LED Refresh Rate
ULTra Dimming 25,000Hz
Pan: 540° | TiLT: 260° | Motionless Reset
Color:
CMY Color Mixing Array
Optional SpectraColor RGB Array
Linear CTO Correction
5 Dichroic Colors including Quad Color
Gobos:
3 Gobo Wheels
(2x) 7 Rotating/Indexing Interchangeable Glass Gobos
(1x) 5 Fixed Metal Gobos
Control / Connections:
4 DMX Channel Modes (44/67/47/73)
16-bit Pan, TiLT, and Dimming Control
Motorized Focus & Auto-Focus Presets
DMX, RDM, Art-Net, sACN Support
(4) Button Touch Control Panel
Full Color 180° Reversible LCD Menu
NFC Support
Hibernation Mode (Power Save)
IP65 Locking 5pin XLR In/Out
IP65 Locking RJ45 Ethernet In/Out
IP65 Locking Power In
Size / Weight:
Length: 19.4" (492mm)
Width: 12.4" (315mm)
Height: 32.7" (830mm)
Weight: 96.1 lbs (43.6 kg)
Weight (w/ RGB Module): 97.9 lbs (44.4 kg)
Electrical:
AC 200-240V 50/60Hz
Max Power Consumption: 1900W
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Included Items:

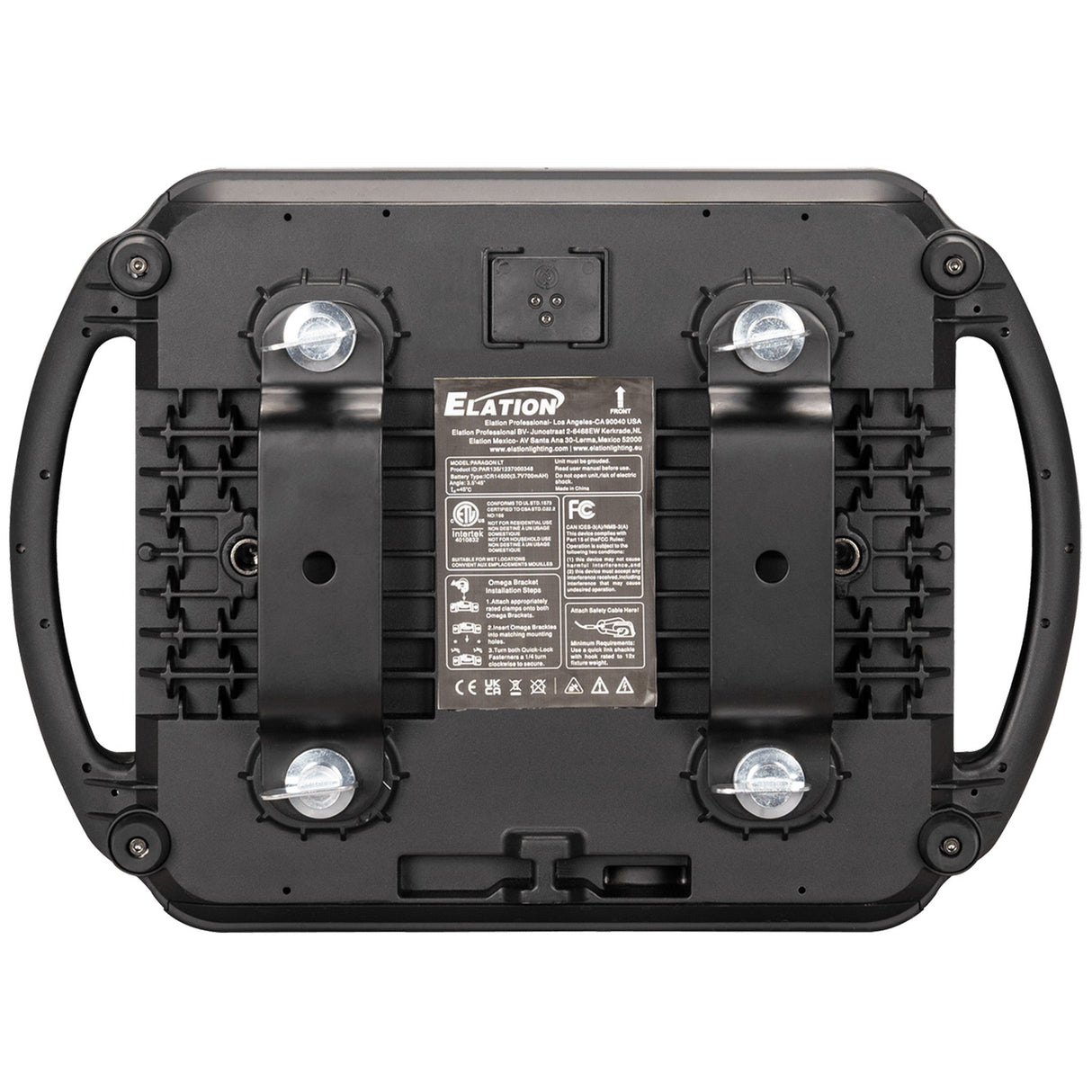

(2) Omega Brackets
IP65 Rated Locking Power Cable
Stainless Steel Safety Wire
Foam Inlay
Optional Items:
PARAGON LT RGB Module
PARAGON LT PC Lens
PARAGON LT Fresnel Lens
PARAGON LT Snoot
Approvals / Ratings: CE | cETLus | FCC | UKCA | IP54
