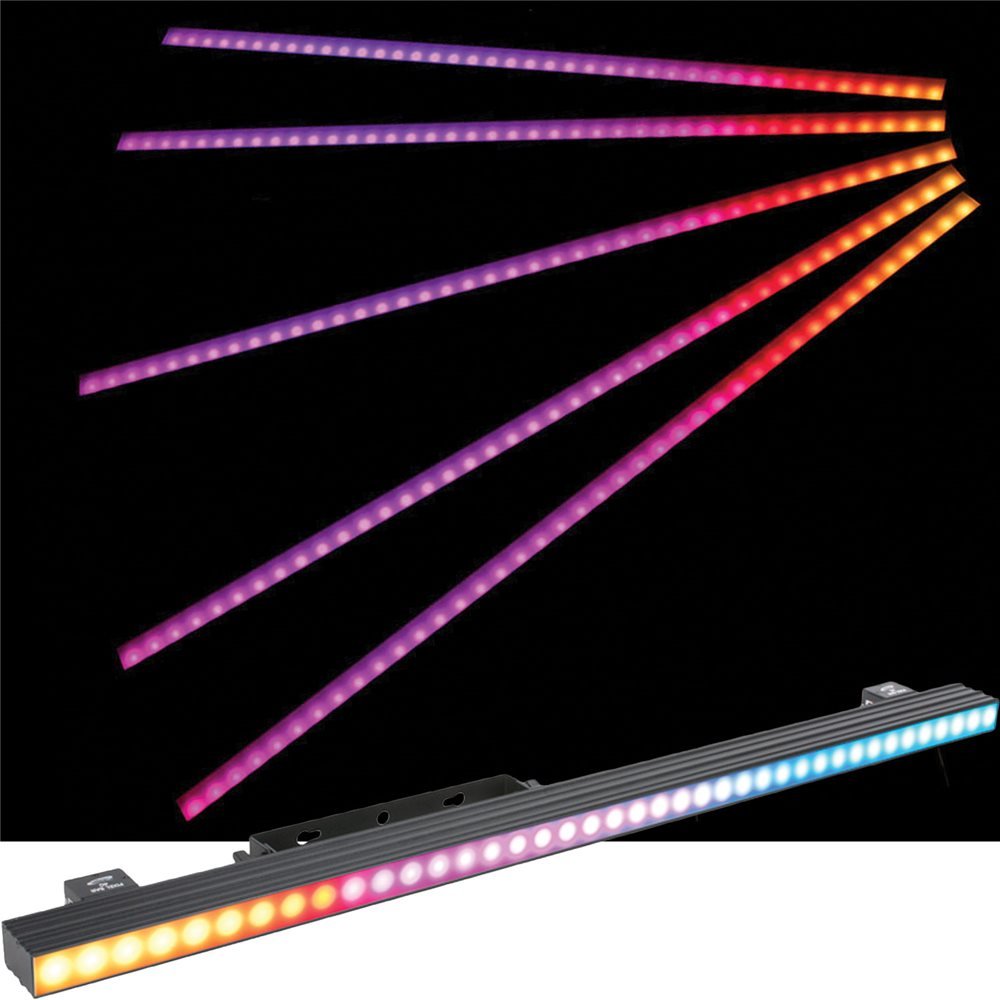

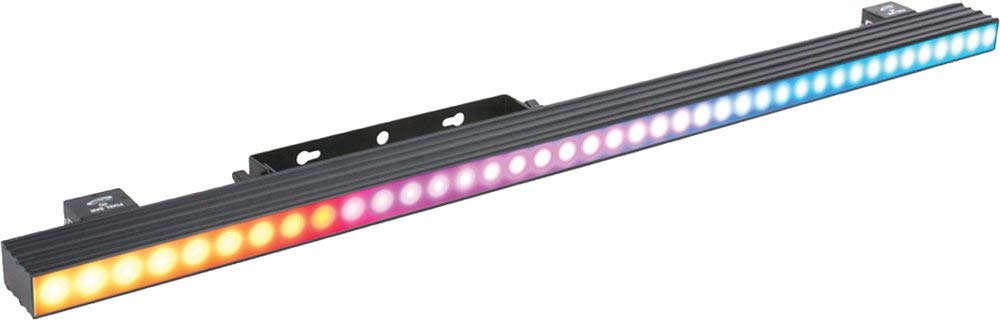

Elation Pixel Bar 12 3-In-1 SMD LED Light
Elation Pixel Bar 12 3-In-1 SMD LED Light
Free Shipping
Elation Pixel Bar 12 3-In-1 SMD LED Light
The Pixel Bar series is available in 12, 20, or 40 pixels lengths, all featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.
Key Features
- 25mm Pixel Pitch
- 850 NITs / 2000Hz Refresh Rate
- Extruded Aluminum Housing
Technical Specifications
SOURCE
Pixel Bar 12 (12) 3-in-1 SMD LEDs
PHOTOMETRIC DATA
82 LUX 8 FC @1.6’ (0.5m) 120° Full ON
COLOR
16.7 Million Colors / 8 Bits Per Color
CONTROL / CONNECTIONS
Pixel Bar 12 - 36 DMX Channels
Multiple Unit Linkable (52 per PIXEL NET 4 device)
With Wired Digital Communication Network
SIZE / WEIGHT
Pixel Bar 12
Length
13.1” (333mm)
Width
1.5” (38.2mm)
Vertical Height
3.6” (92.6mm)
Weight
2.5 lbs. (1.12kg)
ELECTRICAL / THERMAL
DC-24V
Pixel Bar 12
4.8W Max Power Consumption
32°F to 104°F (0°C to 40°C)
APPROVALS / RATINGS
CE | cETLus | IP20
