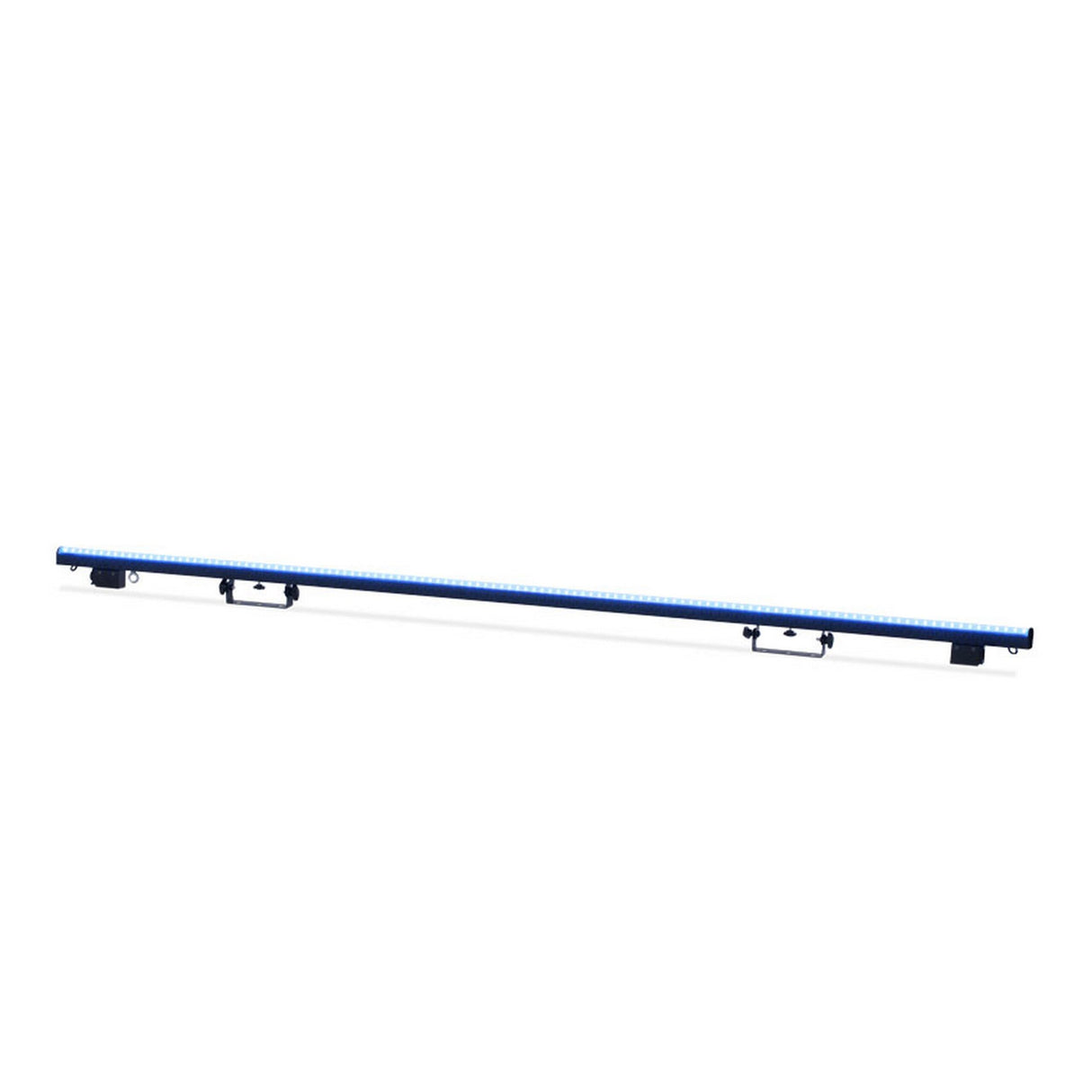

Elation PIXEL BAR 120IP Tri-Color RGB SMD IP65 Rated LED Pixel Bar
Elation PIXEL BAR 120IP Tri-Color RGB SMD IP65 Rated LED Pixel Bar
Elation PIXEL BAR 120IP Tri-Color RGB SMD IP65 Rated LED Pixel Bar
The PIXEL BAR 120IP is an outdoor IP65 rated LED pixel bar featuring (120) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 2 meter (6.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.
Key Features
- Outdoor IP65 Rated
- (120) RGB SMD LEDs | 2 meter / 6.6 feet
- 16mm Pixel Pitch | 44,000Hz PWM
- Flicker Free Operation for Broadcast TV and FILM
- Magnetic End Caps - Seamless End-to-End Spacing
- Integrated Adjustable Mounting Brackets (x2)
- Square and Rounded Frosted Lens Included
- 2ft (0.6m) Power/Data Jumper Cable included
Technical Specifications
SOURCE
0.2 SMD RGB 3-in-1 LEDs
Color Resolution
8 bits per color (24 bits per pixel)
Viewing Angle
120 x 120 degrees
Pixels Per Meter
60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation)
44,000Hz
CONNECTIONS
4pin Power/Data In/Out
SIZE / WEIGHT
Length
75.9ā (1928mm)
Width
1.3ā (34mm)
Height
3.3ā (83mm)
Weight
4.4 lbs. (2.0kg)
