Elation Pixel Driver 170 DMX512, 12-24VDC LED Tape Driver
Elation Pixel Driver 170 DMX512, 12-24VDC LED Tape Driver
Elation Pixel Driver 170 DMX512, 12-24VDC LED Tape Driver

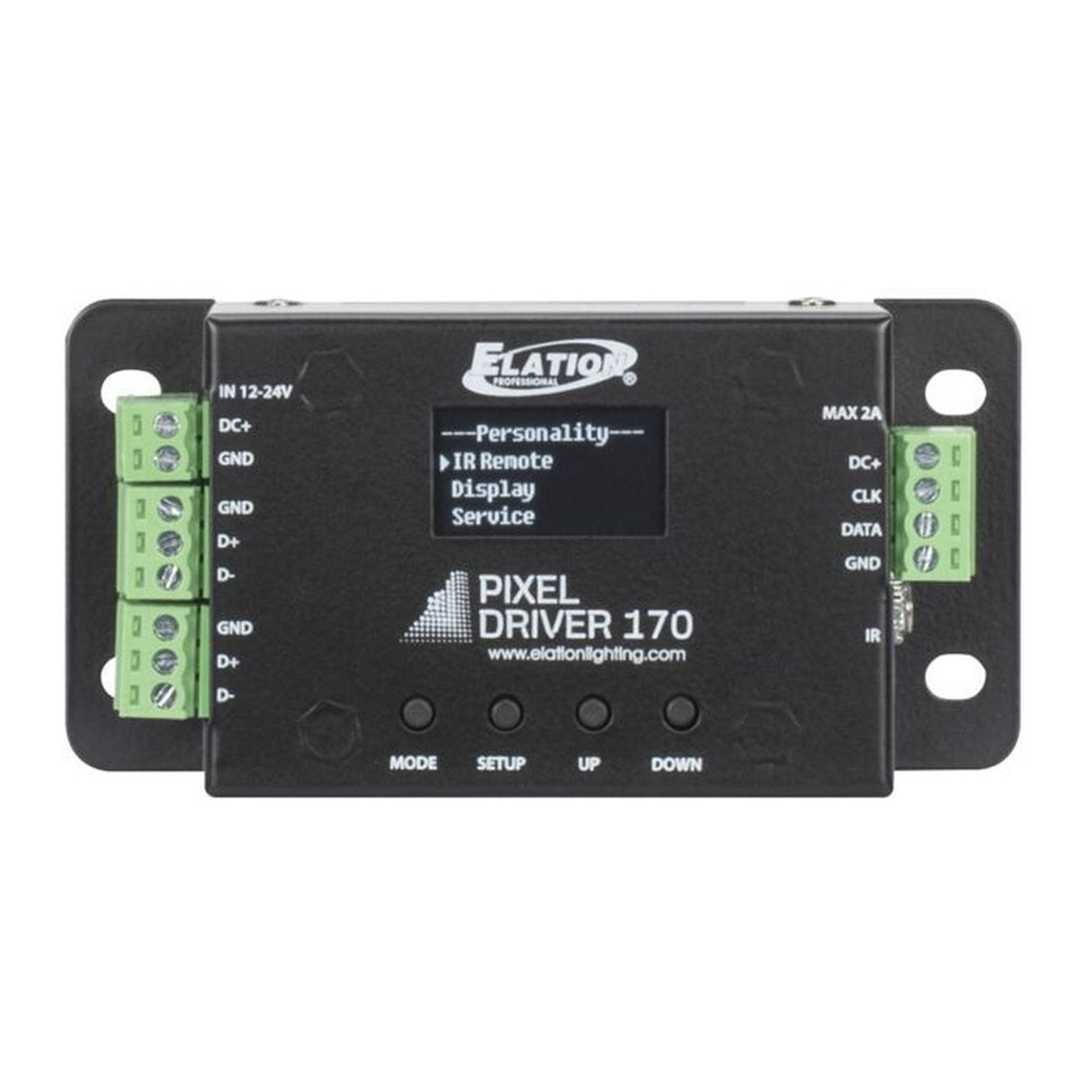

Pixel Driver 170 is a professional tape driver specificallydesigned for the Elation Pixel Tape 16IP and Pixel Tape 40IP. This driverprovides simple and easy control options including a 3-button OLED Display, ELIR Remote (included), and one full universe of DMX control (170 pixels). ThePixel Driver 170 features an easy-to-use OLED display, Pixel grouping, separate3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output,and a 2pin terminal block for 12-24VDC power IN. The unit also includes onePIX-AD3 adapter to connect between LED tape out and Pixel Tape 16IP & PixelTape 40IP.
Key Features
- 3-Button OLED Display
- 1 DMX Universe (170 Pixels)
- EL IR Remote (Included)
- DMX Input via 3pin Phoenix connector block
- DMX Output via 3pin Phoenix connector block
- LED Tape Out via 4pin Phoenix connector block
Technical Specifications
CONTROL / CONNECTIONS
3-Button OLED Display
1 DMX Universe (170 Pixels)
EL IR Remote (Included)
DMX Input via 3pin Phoenix connector block
DMX Output via 3pin Phoenix connector block
LED Tape Out via 4pin Phoenix connector block
SIZE / WEIGHT
Length
3.98ā (101mm)
Width
1.97ā (50mm)
Height
1.03ā (26.2mm)
Weight
0.29lbs (0.133kgs)
ELECTRICAL
DC Input 12-24VDC, 2A (Requires separate power supply)
48W Max Power Consumption
