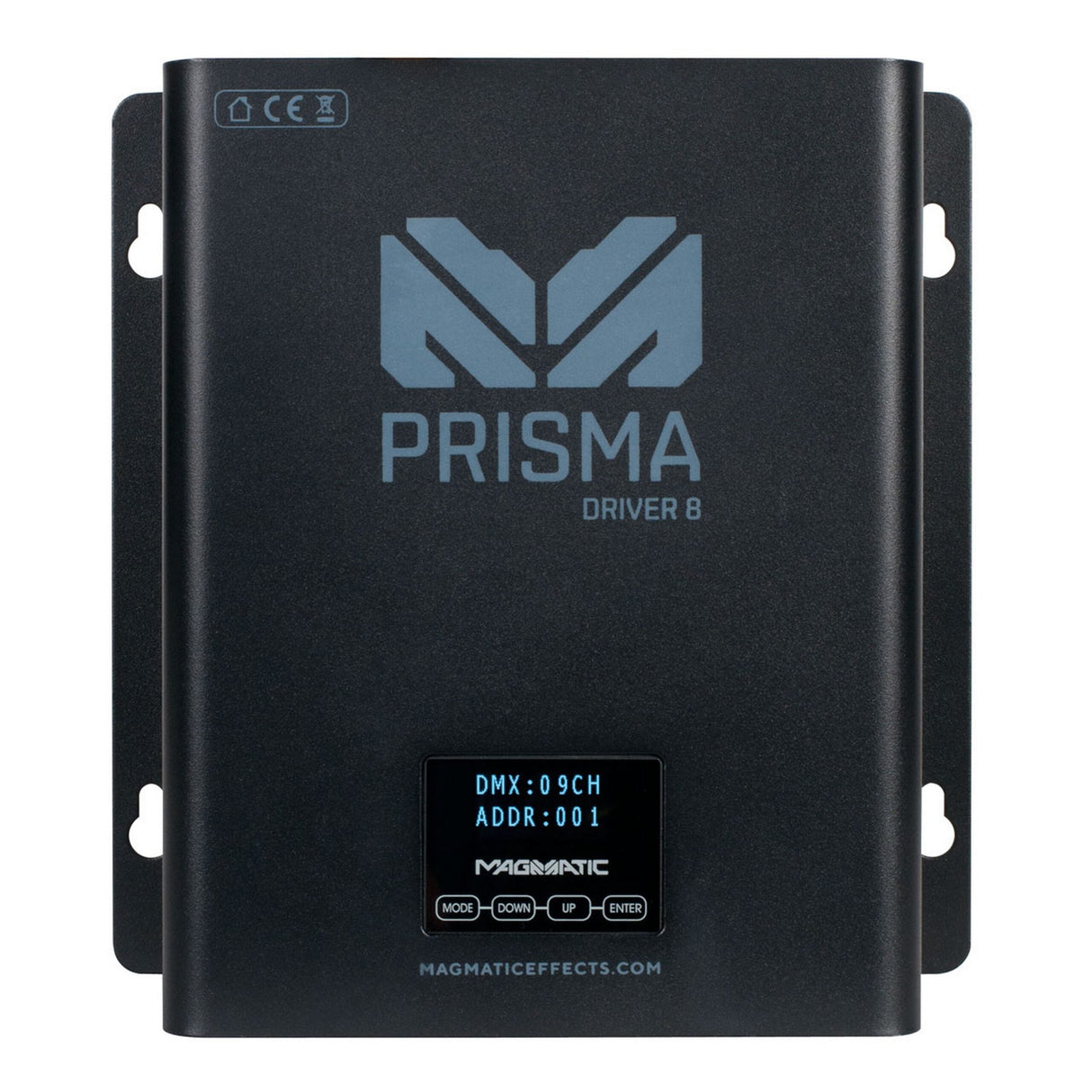

Elation Prisma Driver 8 48VDC Power Driver for 8 Prisma Mini UV Fixtures
PRISMA DRIVER 8 is an easy to use 48VDC driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20, PRISMA MINI PAR 45, and the PRISMA MINI BAR 20. Features include a rugged aluminum housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 2pin bare wire terminal blocks, DMX 5pin locking XLR in/out, and locking power in/out.
Key Features
- 48VDC Power Driver for up to 8 PRISMA MINI UV LED Fixtures
- 2pin Bare Wire Block Terminal Connections (x8)
- DMX-512 and Manual Control
Technical Specifications
CONSTRUCTION
Rugged Aluminum Housing
Easy Keyhole Slots for Wall/Surface Mounting
CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
CONNECTIONS
8x 2pin Bare Wire Block Terminals (8 PRISMA MINI fixtures max)
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length
8.9 in. (225mm)
Width
8.4 in. (212mm)
Vertical Height
3.5 in. (88mm)
Weight
5.7 lbs. (2.6 kg)
ELECTRICAL
AC100-240V 50-60Hz
48VDC 8.3A
167W Max Power Consumption
THERMAL
Ambient Temperature (Ta max) 104F (40C)
