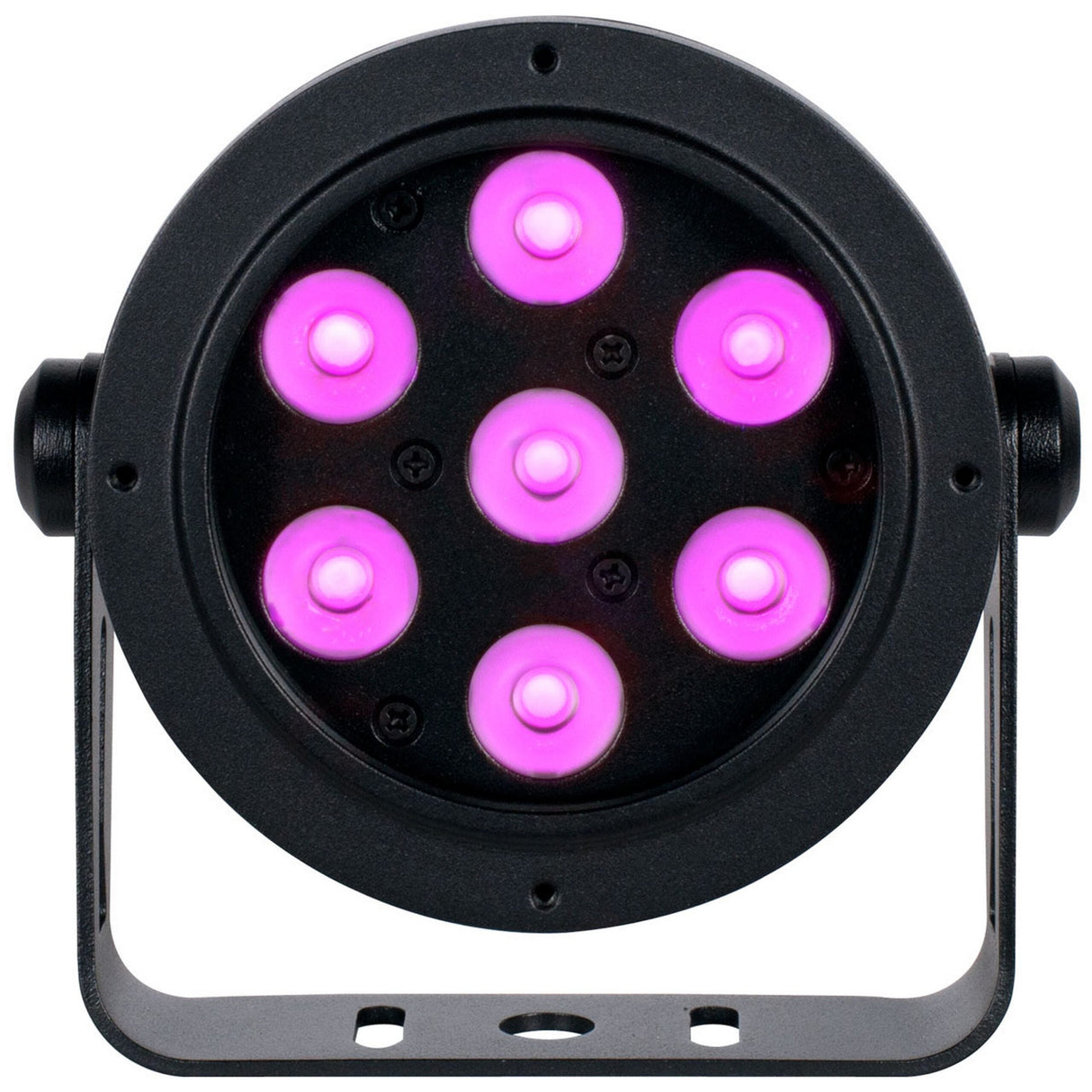

Elation Prisma Mini Par 20 IP65 Exterior High-Power UV Wash Par Luminaire
PRISMA MINI PAR 20 is is an IP65 rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.
Key Features
- IP65 Rated Exterior high-power UV Wash Par Luminaire
- 20 Degree Narrow Beam Angle
- 365nm True UV Peak Wavelength
- Zero Visible Light Output
- IP Rated Power/Data Pigtail Cable Attached
Technical Specifications
SOURCE
(7) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Yoke
CONTROL
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support
CONNECTIONS
6 ft (1.8m) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 5.70 in. (145mm)
Width: 2.75 in. (70mm)
Vertical Height: 5.6 in. (144mm)
Weight: 1.98 lbs. (0.9kg)
ELECTRICAL
AC100-240V 50-60Hz
19W Max Power Consumption
THERMAL
14F to 113F (-10C to 45C)
Air Cooled
