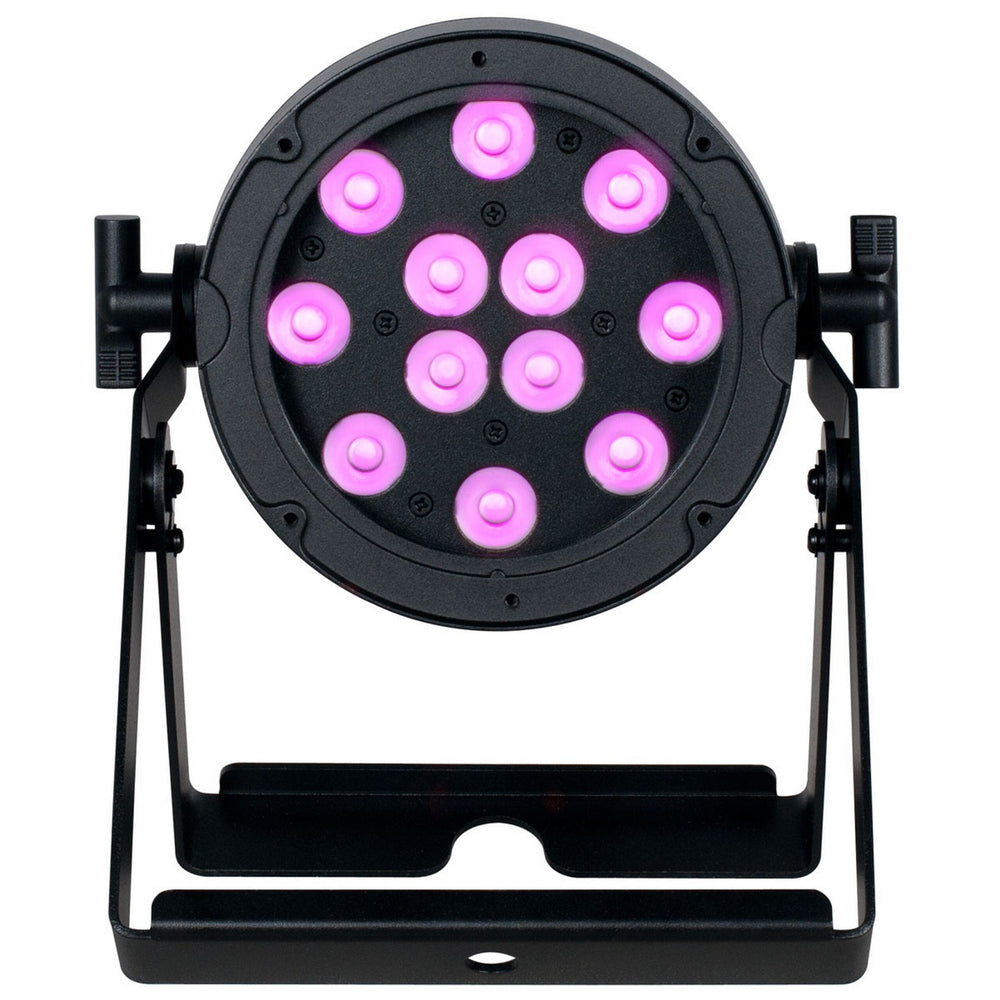

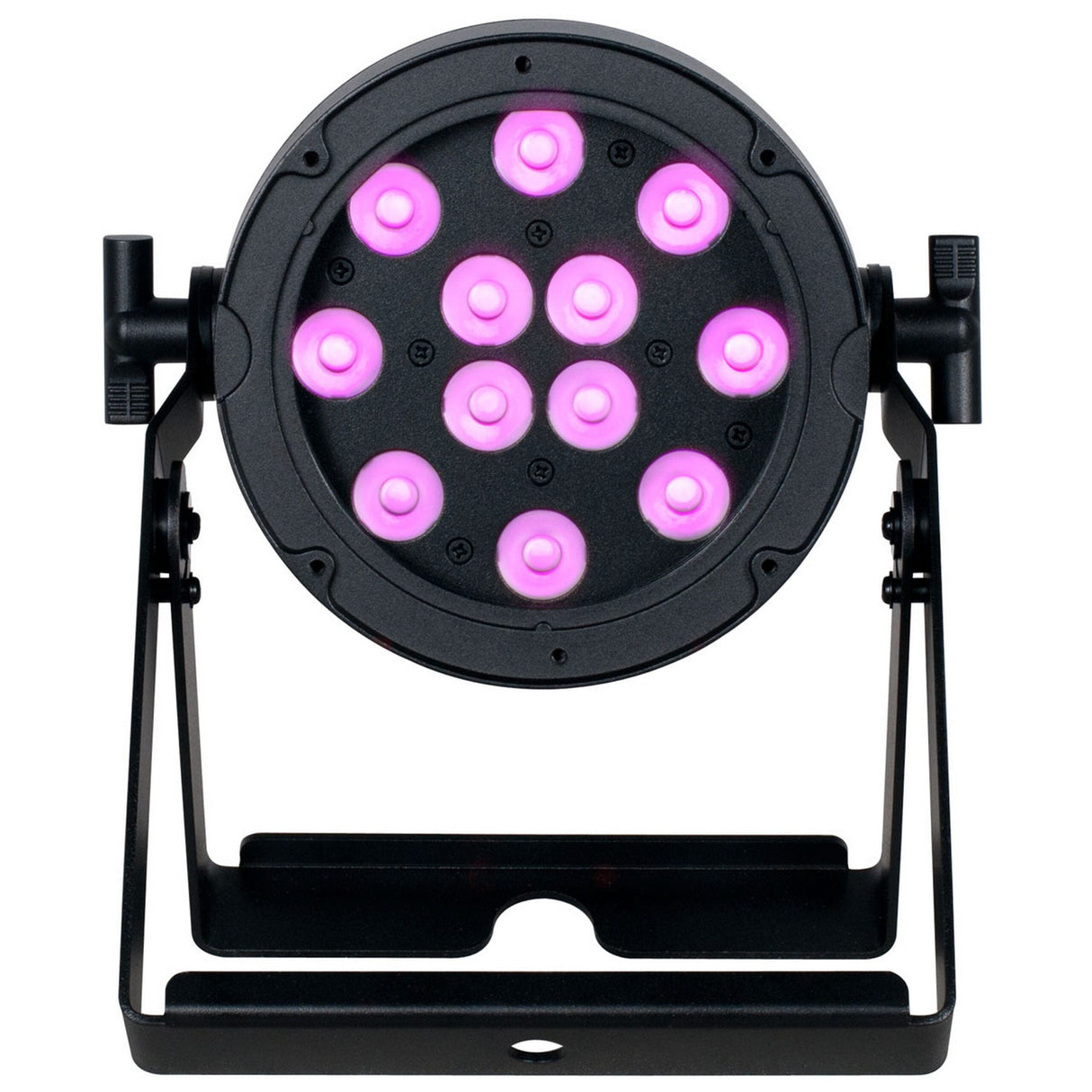

Elation Prisma Par 20 IP65 Exterior High-Power UV Wash Par Luminaire
PRISMA PAR 20 is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20 degree narrow beam angle, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5pin XLR and locking power in/out connections.
Key Features
- IP65 Rated Exterior high-power UV Wash Par Luminaire
- 20 Degree Narrow Beam Angle
- 365nm Peak True UV Wavelength
- Zero Visible Light Output
Technical Specifications
SOURCE
(12) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Housing
Dual Adjustable Mounting Yokes
CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
8.58 in. (218mm)
Width
5.90 in. (150.6mm)
Vertical Height
9.72 in. (246.6mm)
Weight
5.29 lbs. (2.40kg)
ELECTRICAL
AC100-240V 50-60Hz
27W Max Power Consumption
THERMAL
14F to 113F (-10C to 45C)
Air Cooled
