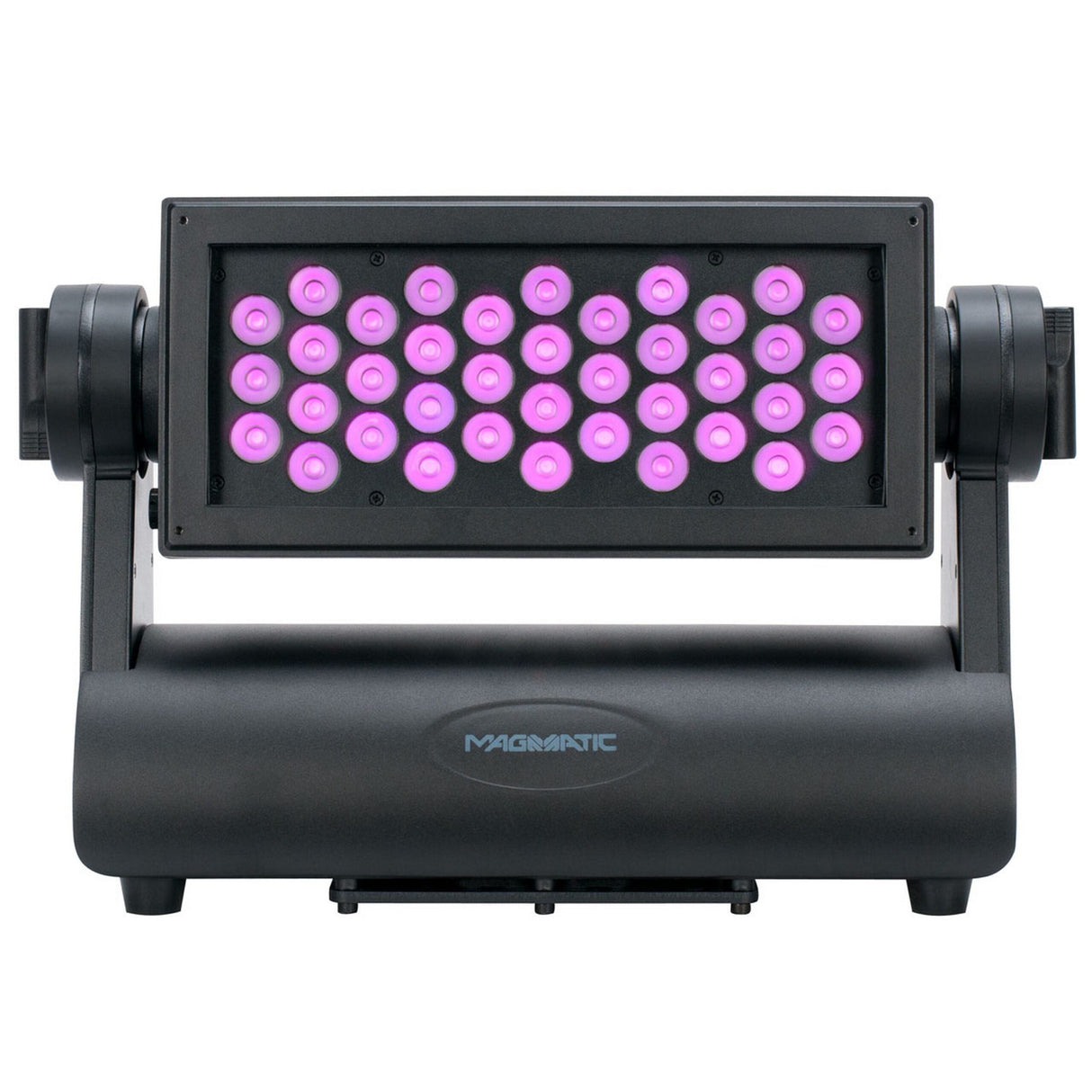

Elation Prisma Wash 25 IP65 Exterior High-Power UV Wash Luminaire
PRISMA WASH 25 is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 25 degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control.
Key Features
- IP65 Rated Exterior high-power UV Wash Luminaire
- 25 Degree Wide Beam Angle
- 365nm Peak True UV Wavelength
- Zero Visible Light Output
- Optional Black Glass Diffusion Filter
Technical Specifications
SOURCE
(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
PHOTOMETRIC DATA
25 Degree Wide Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Manual Adjustable Tilt Position
CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
17.5ā (445mm)
Width
5.9ā (150mm)
Vertical Height
11.29ā (287mm)
Weight
19 lbs. (8.62 kg)
ELECTRICAL
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption
THERMAL
14F to 113F (-10C to 45C)
Air Cooled
