Description

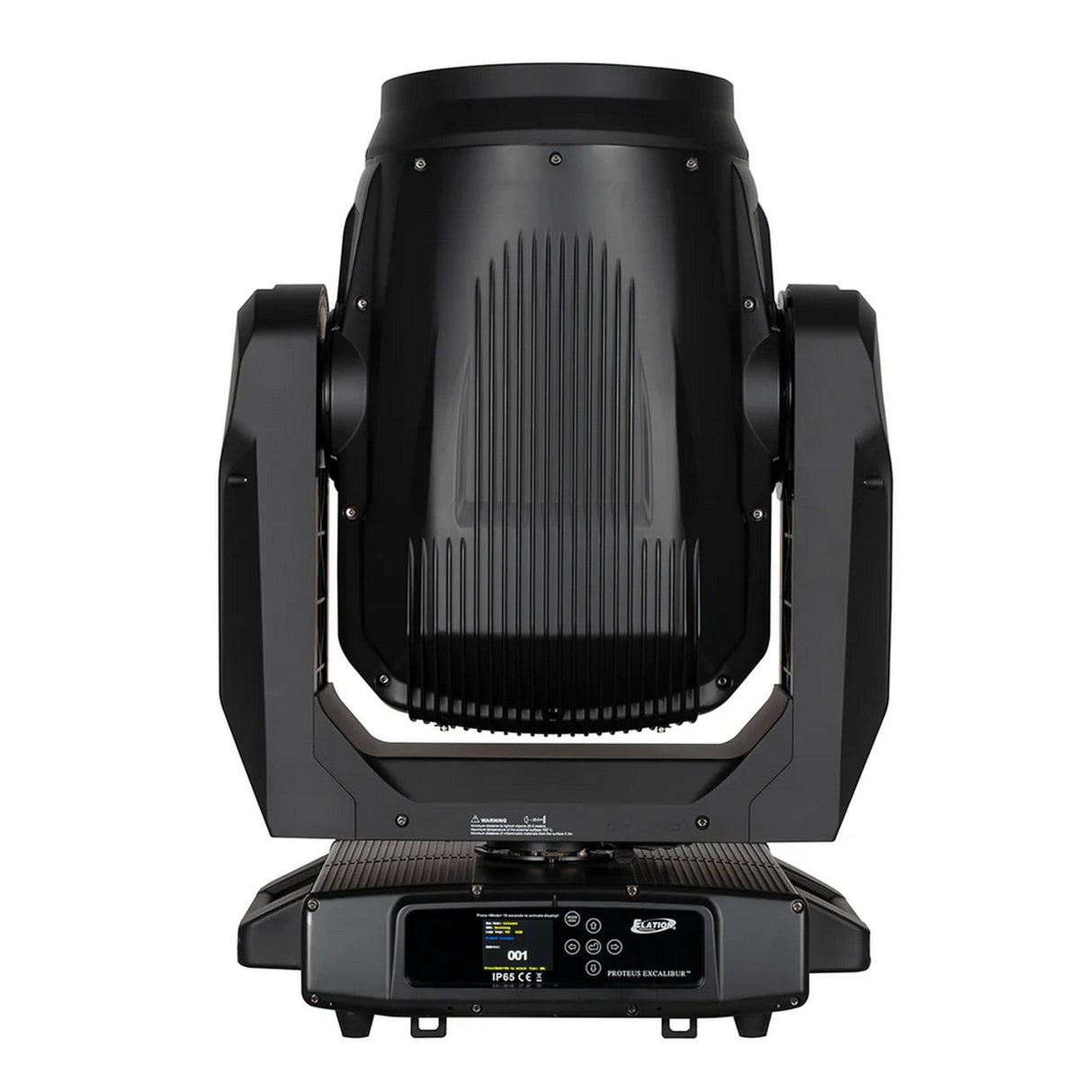

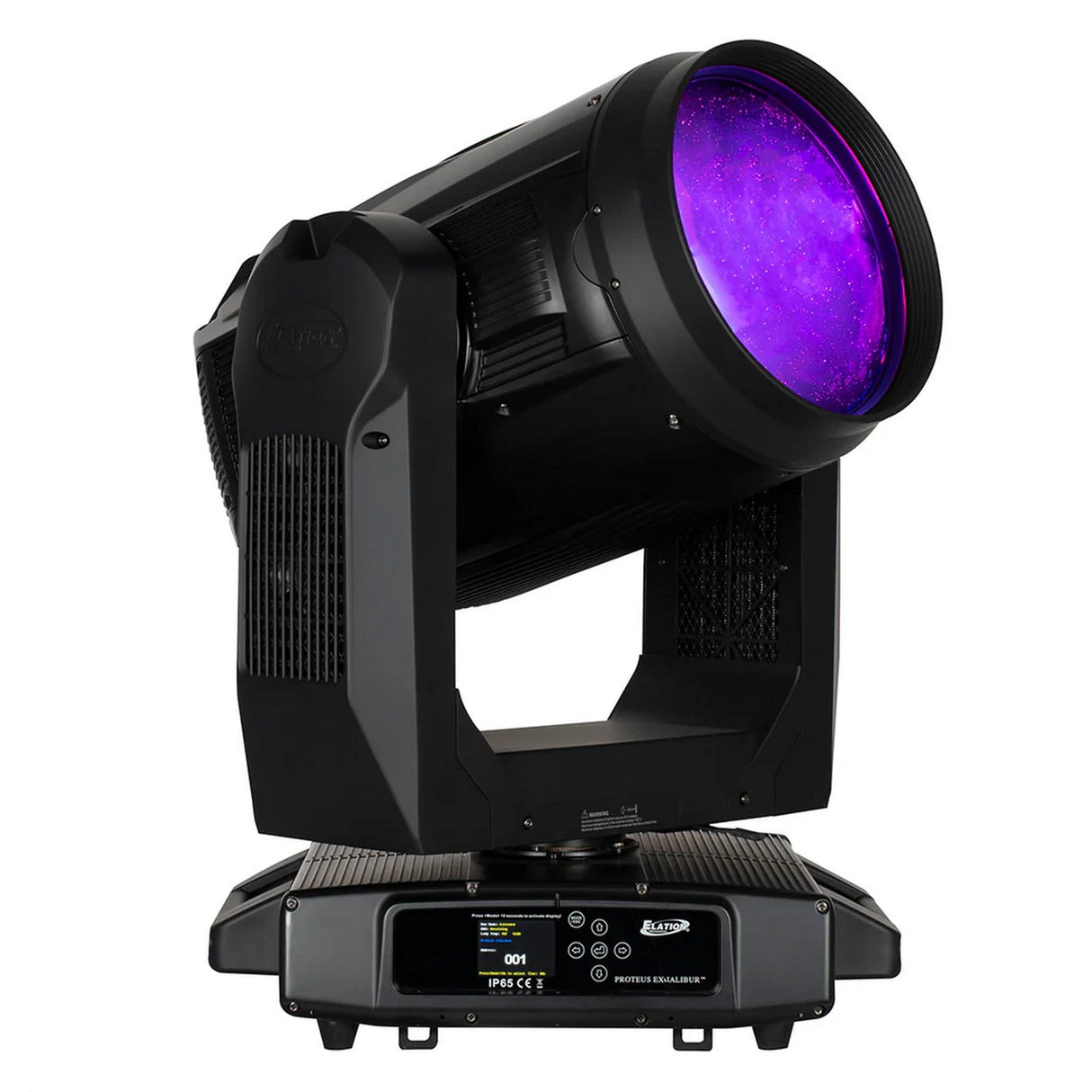

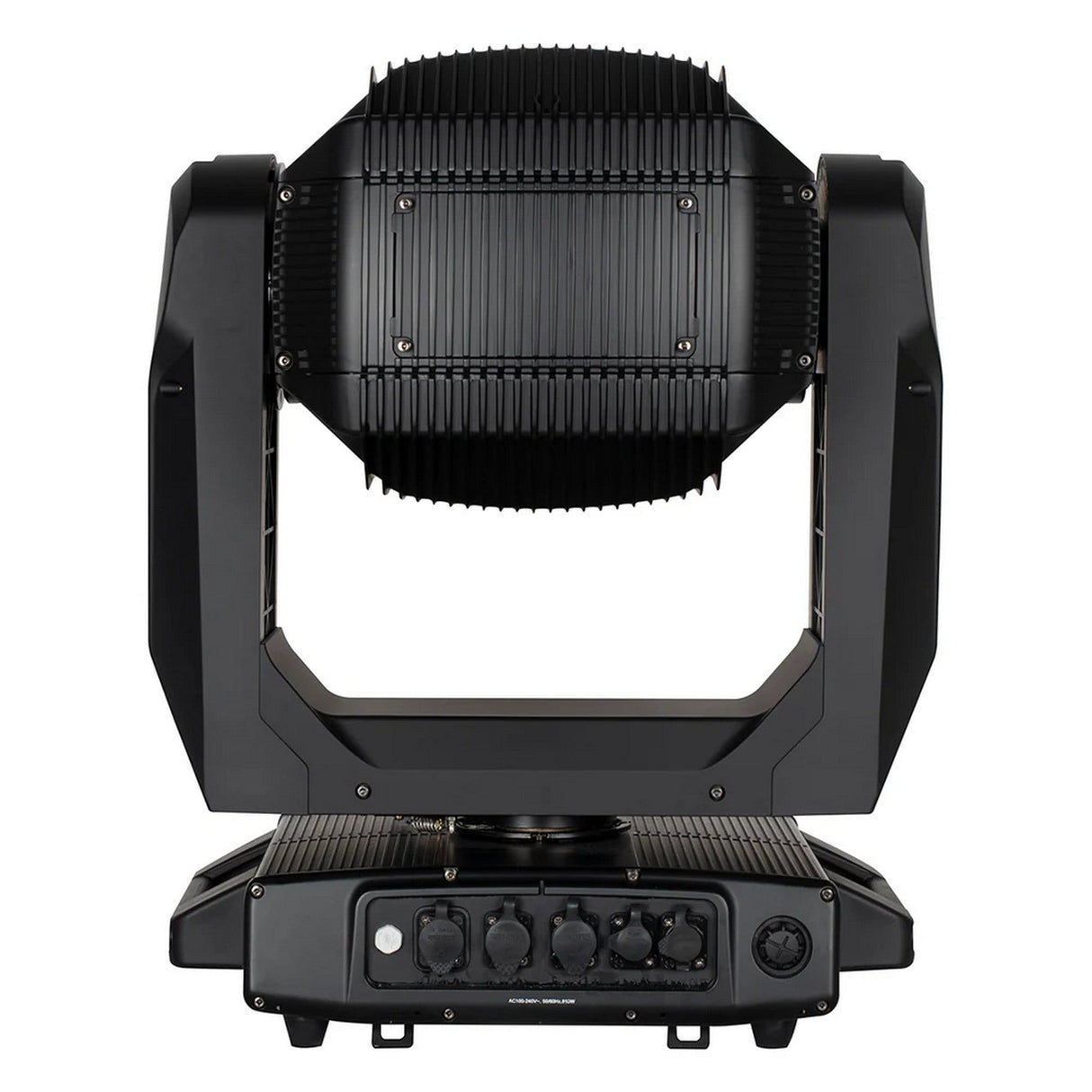

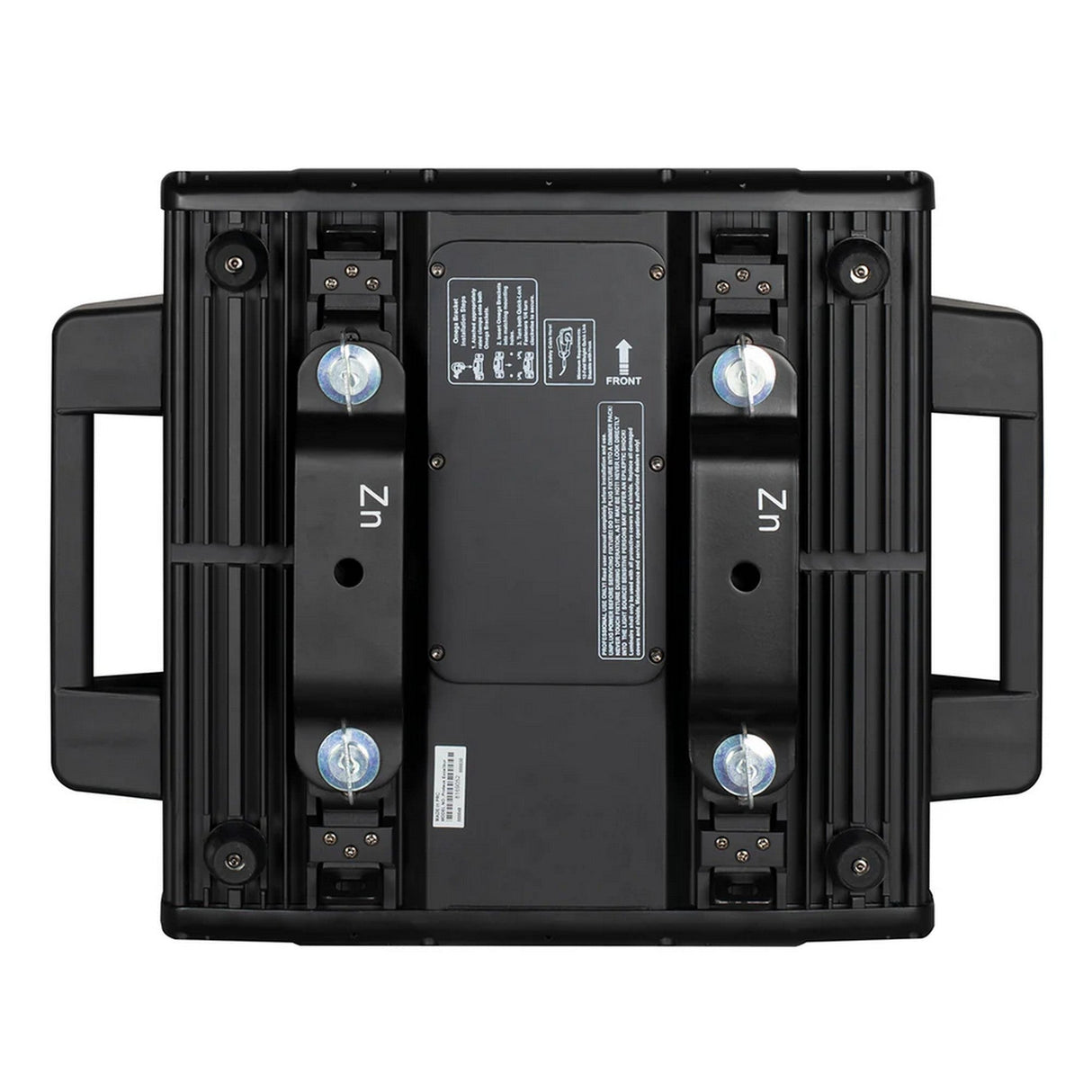

Elation PROTEUS EXCALIBUR 550W Long Life Discharge IP65 Beam with CMY
The ELATION PROTEUS EXCALIBUR is an extreme long-throw moving head fixture, engineered for high-impact aerial effects and outdoor productions. Designed to deliver intense, precise beams over great distances, the EXCALIBUR integrates a 550W Philips MSD Platinum 500L Flex lamp capable of producing 20,000 lumens at 7000K with a CRI of 77+. With a 0.8° beam angle and 3.5° beam expander lens, it’s perfect for sky-painting, stadium events, cruise ships, or large-scale theatrical applications.
EXCALIBUR’s innovative optical system features dual rotating prisms, prism macros, and dual frost filters for hybrid wash effects, providing lighting designers full control over both hard beams and atmospheric washes. Its motorized focus, high-speed mechanical shutter, and strobe effects allow for dramatic, dynamic presentations that can be precisely tailored for any environment. Variable lamp power and automated lamp hibernation ensure efficient energy use without compromising performance, with up to 4,000 hours of lamp life under standard conditions.
The fixture also offers robust outdoor and weather-resistant operation thanks to its IP65-rated housing, allowing safe deployment in harsh environments. Extensive control options, including DMX, RDM, Art-Net, sACN, and Sky Motion Standalone mode, combined with a full-color 180° reversible LCD display and 6-button touch panel, make EXCALIBUR highly versatile for both automated and manual control scenarios.
Key Features
- High-intensity 550W Philips MSD Platinum 500L Flex lamp - variable lamp power with automated hibernation and instant recovery.
- Ultra-narrow 0.8° beam angle with 3.5° beam expander lens - perfect for long-throw skybeam effects.
- 20,000 lumens total output - 335,000 lux at 15 m (31,100 fc at 49 ft) and 7,500 lux at 100 m (700 fc at 330 ft).
- Dual rotating prisms and prism macros, dual frost hybrid wash effects, motorized focus, high-speed mechanical shutter and strobe.
- Full CMY color mixing and 14 dichroic colors including CTO and UV.
- Extensive gobo options - 8 rotating/indexing glass gobos and 17 static-stamped metal gobos.
- Robust IP65-rated housing - ideal for outdoor or harsh environment applications.
- Advanced control - DMX, RDM, Art-Net, sACN, and Sky Motion Standalone mode; 16-bit pan, tilt, and dimming; 6-button touch panel with 180° reversible LCD.
Technical Specifications
Source: Philips MSD Platinum 500L Flex 550W Lamp; Variable lamp power; Automated lamp hibernation with instant recovery; Up to 4,000-hour lamp life.
Photometric Data: 0.8° beam angle; 1.6° field angle; 3.5° beam expander lens; 20,000 lumens total output; 7000K, CRI 77+; 335,000 lux @ 15 m (31,100 fc @ 49 ft); 7,500 lux @ 100 m (700 fc @ 330 ft).
Effects: Beam expander, motorized focus, dual rotating prisms with prism macros, dual frost filter hybrid wash, high-speed mechanical shutter and strobe; Pan angle 540° / 630°; Tilt angle 250°.
Color: 14 dichroic colors including CTO and UV; Full CMY color mixing.
Gobos: 8 interchangeable rotating/indexing glass gobos; 17 static-stamped metal gobos.
Control / Connections: Single DMX mode (26 ch); Sky Motion Standalone mode; 16-bit pan, tilt, dimming; motorized focus; DMX, RDM, Art-Net, sACN support; 6-button touch panel; full-color 180° reversible LCD; hibernation mode; IP65 5-pin DMX In/Out; IP65 RJ45 etherCON In/Out; locking IP65 power input.
Size / Weight: Length 19.4"; Width 15.1"; Vertical height 27.4"; Center spacing 23.3"; Weight 108 lb.
Electrical / Thermal: AC 100–240 V, 50/60 Hz; Maximum power consumption 800 W; Operating temperature range –4 °F to 113 °F.
