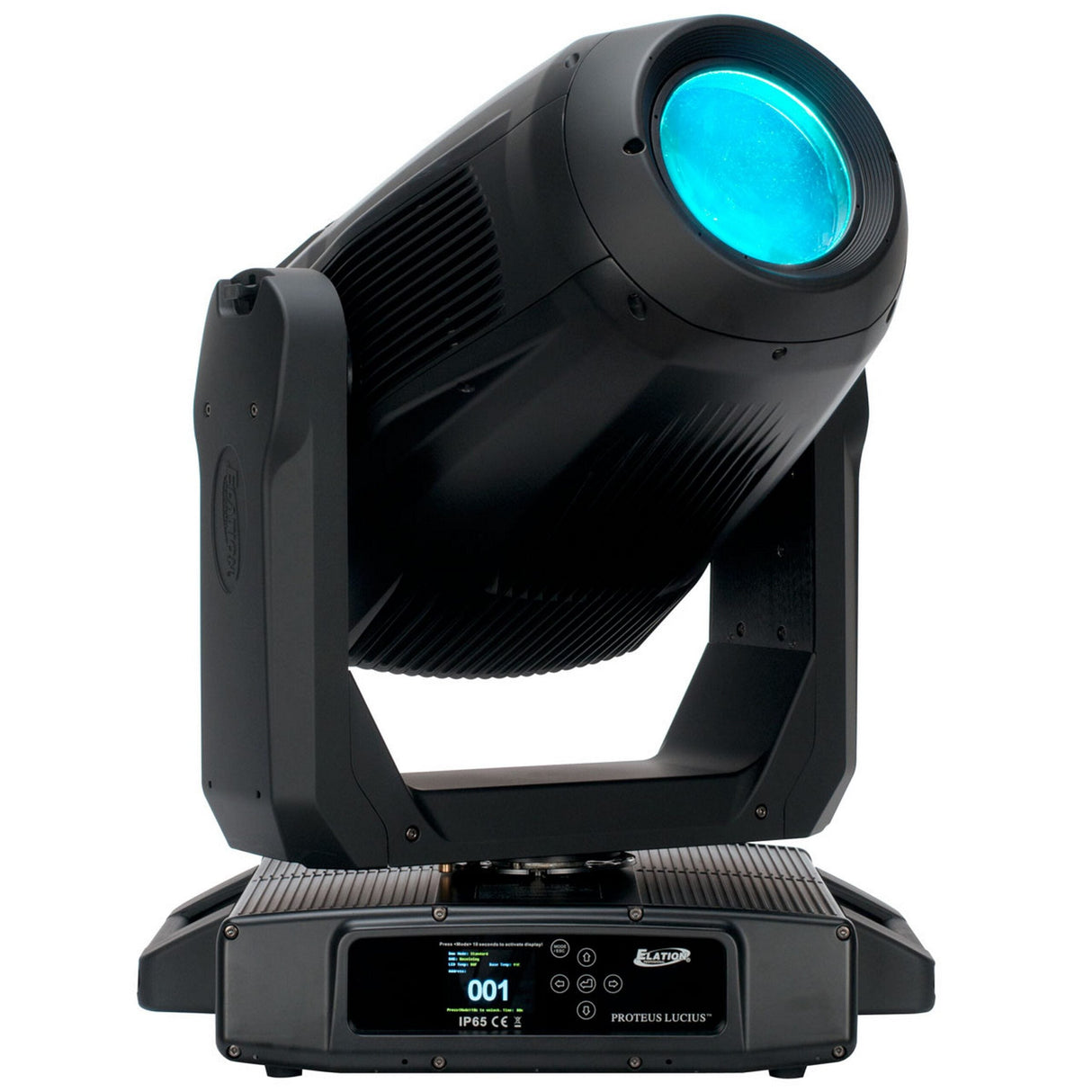

Elation Proteus Lucius 580 Watt 6500K LED Fixture

The PROTEUS LUCIUS is a powerful yet compact IP65-rated LEDprofile fixture offering outstanding projection and beam qualities in anyenvironment. Providing up to 33,500 lumens output from its custom-designedhotspot 580W 6,500K LED engine, the PROTEUS LUCIUS is the ideal fixture for anyoutdoor or indoor application requiring superior output, bright and powerfulbeams, and quiet operation, as well as stunningly precise gobos and colors.PROTEUS LUCIUS provides the designer a comprehensive FX package with 13rotating and 7 fixed glass gobos, full animation wheel, overlapping dualprisms, dual frost and a high-speed iris. Its indexable framing system allowsfull-blackout shutter cuts for precise beam shape control.

Key Features

• IP65 Outdoor Rated
• High Efficiency 580W 6,500K White LED Engine
• Up to 33,500 Total Lumen Fixture Output
• Hotspot engine for powerful projection at long distances
• CMY Color Mixing and Variable CTO
• 5-Position Color Wheel with High CRI Filter
• Complete FX System featuring Dual Rotating and Fixed GoboWheel, Animation, Iris, Dual Prism, Dual Frost
• Indexable Full Blackout Framing System
• Wide Zoom Range from 5.5 to 50

Technical Specifications

SOURCE
580W 6,500K Bright White Hotspot LED Engine
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
33,500 Total Lumen Fixture Output
CRI 71+ (85+ with HCRI Filter)
2.5:1 Hotspot Ratio
Zoom Range
5.5 - 50
Beam Angle
6 - 36.7
Field Angle
7.6 - 51.3
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-45 Framing Indexing
Full 360 Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
COLOR
CMY Color Mixing
Linear CTO Color Correction
5 Dichroic Colors including High CRI Filter
GOBOS
3 Gobo Wheels
6 Rotating Gobo (Wheel #1)
7 Rotating Gobos (Wheel #2)
7 Static Gobos (Wheel #3)
CONTROL / CONNECTIONS
2 DMX Channel Modes (43/68 Ch.)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
Hibernation Mode (Power Save)
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
18.41 in (467.67mm)
Width
14.57 in (370mm)
Height
26.8 in (680.60mm)
Weight:
89.9 lbs. (40.8 kg)
