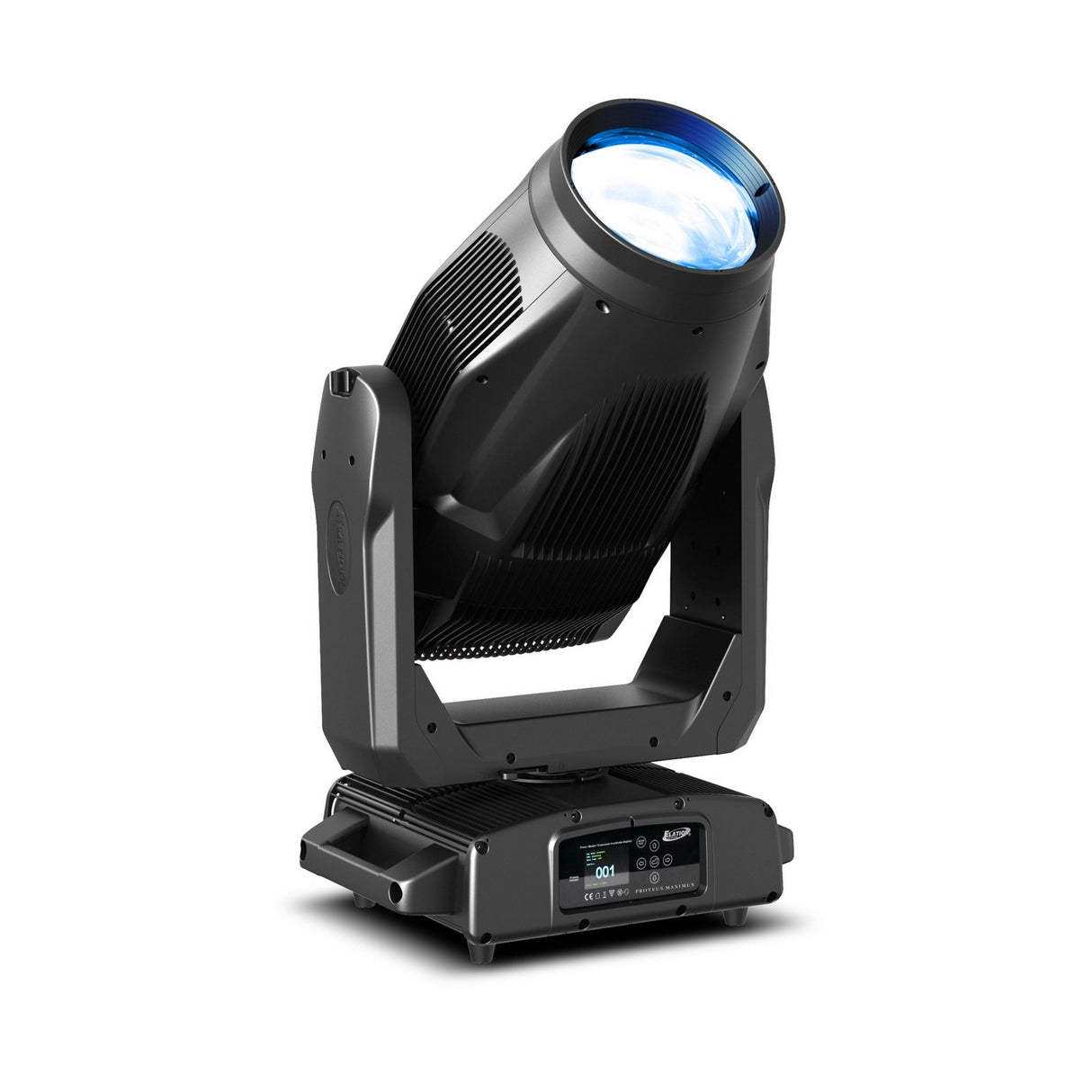

Elation Proteus Maximus 950 Watt White LED Profile Fixture

Elation Proteus Maximus 950 Watt White LED Profile Fixture

The PROTEUS MAXIMUS an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment. Providing up to 50.000 lumens from its custom designed 950W LED engine the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Proteus Maximus provides the designer a comprehensive FX package with 6 rotating and 7 fixed glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. Its indexable framing system provides full blackout shutter cuts for precise beam shape control.

Key Features

• High Efficiency 950W White LED Engine
• Up to 50.000 Total Lumen Fixture Output
• CMY Color Mixing and Variable CTO
• 6 Position Color Wheel, High CRI, UV filter
• Complete FX System featuring Rotating and Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost
• Indexable Full Blackout Framing System
• Wide Zoom Range from 5.5 to 50 / Large 180mm Front Aperture

Technical Specifications

SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
50,000 Total Lumen Output
CRI 70+ (82+ with HCRI Filter)
2:1 Hotspot Ratio
EFFECTS
5.5 - 50 Motorized Zoom (Large 180mm Front Aperture)
4 Rotating Full Blackout Framing Blades
+/-50 Continuous Framing Indexing
Full 360 Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate and Gamma Brightness
COLOR
CMY Color Mixing
Linear CTO Color Correction
6 Dichroic Colors including High CRI Filter and UV
GOBOS
2 Gobo Wheels
6 Rotating / Indexing Interchangeable Glass Gobos
7 Static Interchangeable Glass Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (36 / 61)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
Hibernation Mode (Power Save)
5pin XLR DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 powerCON TRUE1 Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
457mm (17.9 in)
Width
331mm (13.0 in)
Height
824mm (32.5 in)
Weight
52kg (114.6 lbs.)
ELECTRICAL
AC 100-240V 50/60Hz
1,300W Max Power Consumption

14F to 113F (-10C to 45C)
